2-26 — MANUAL TRANSMISSION GEAR (#176302) — 114 parça

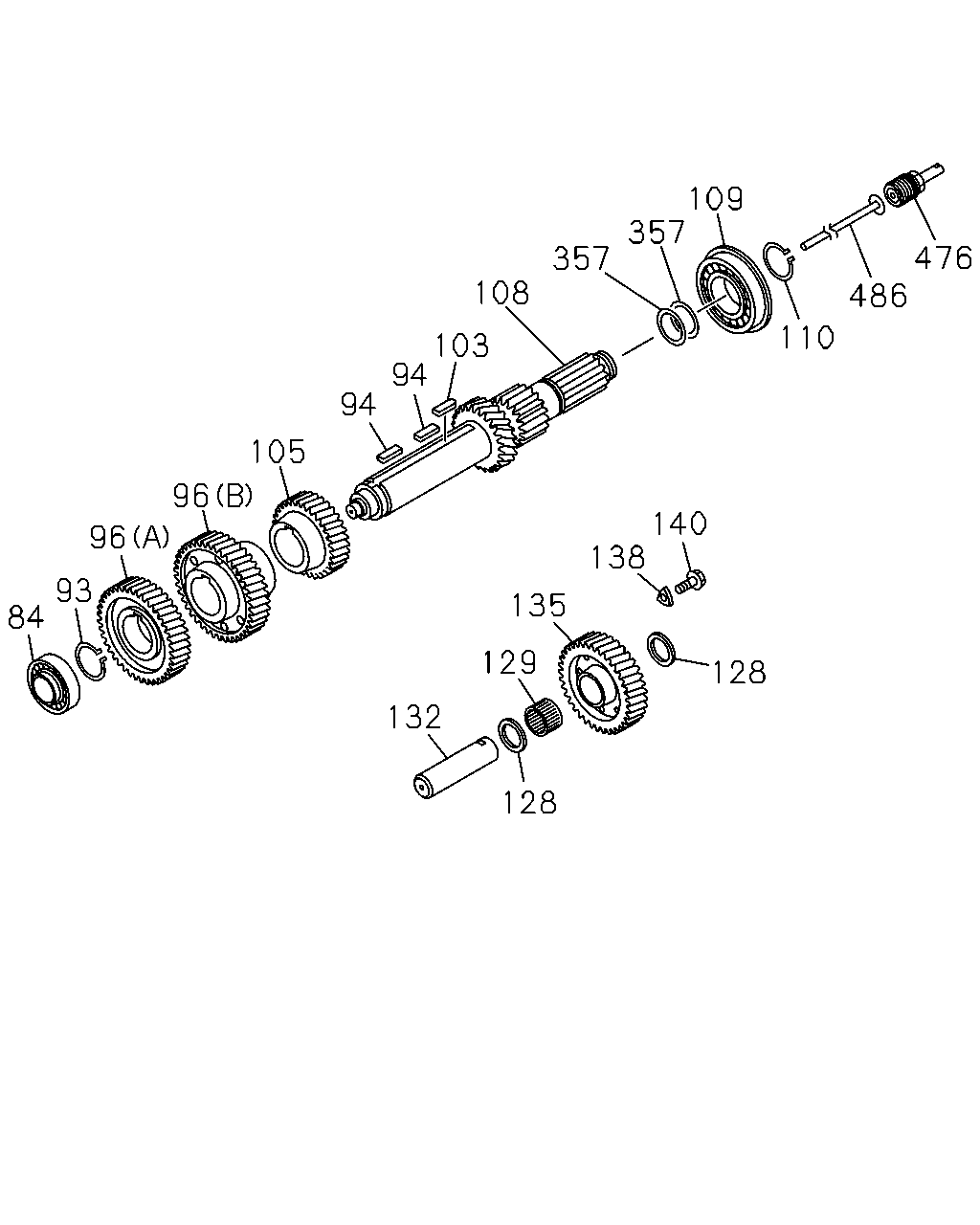

çizim 512789
84 96 93 132 128 128 135 129 138 140 110 486 476 109 357 357 108 103 94 94 105 96
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 1512-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 1512-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1512-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 1512-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1512-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1512-
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 1512-
105 GEAR; 3RD,COUNTER
Z=36 		1-33338-373-1 01 1 1512-
108 SHAFT; COUNTER
Z=26-21 		1-33311-325-1 01 1 1512-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 1512-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 1512-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1512-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1512-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1512-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1512-
132 SHAFT; REV 1-33351-035-1 01 1 1512-
135 GEAR; REV IDLER
Z=30 		1-33361-081-1 01 1 1512-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1512-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1512-
357 RING 1-31349-044-0 04 1 1512-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 1512-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 1512-

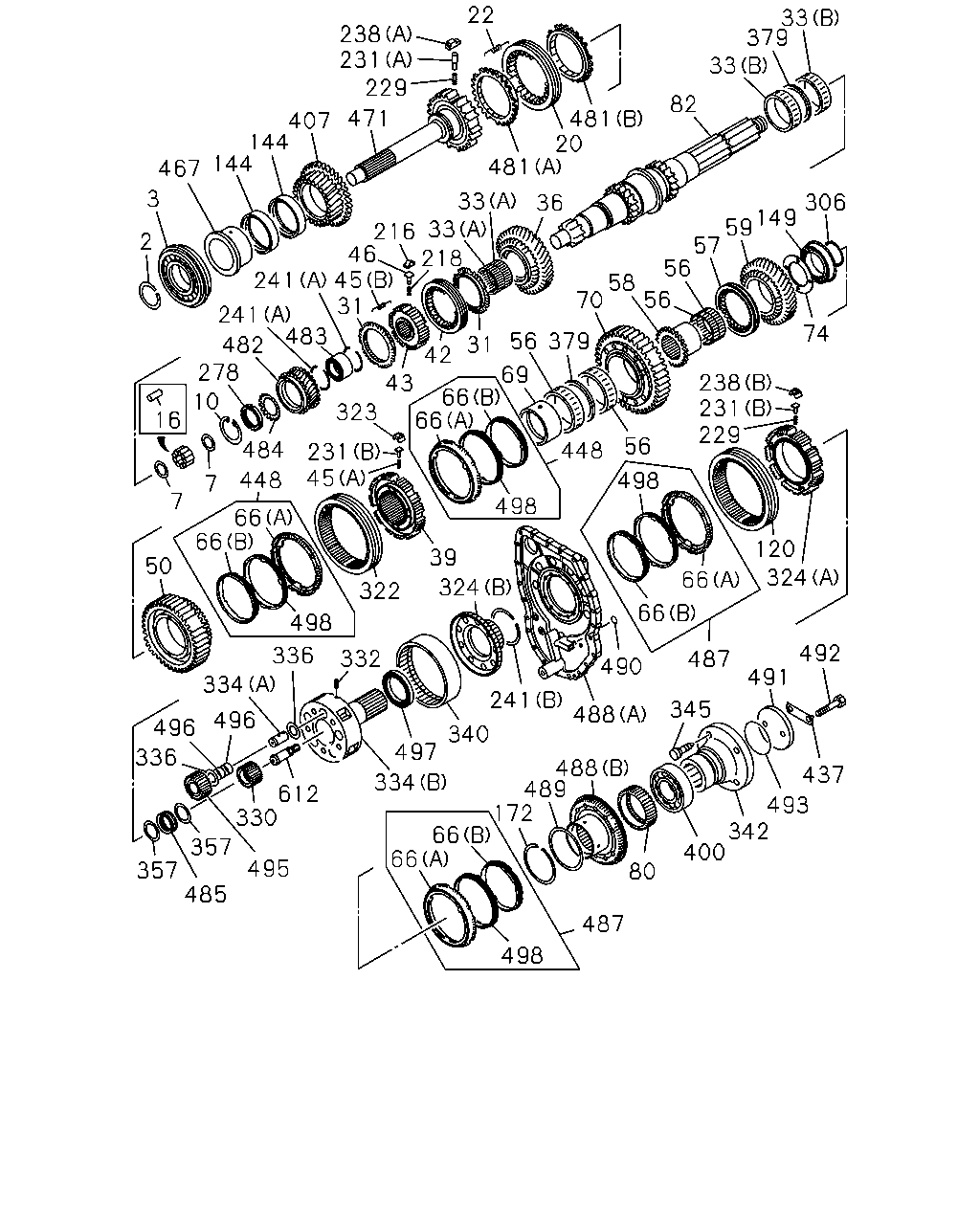

çizim 513832
22 238 229 231 471 407 144 144 467 3 2 16 10 278 482 241 241 46 45 216 31 483 218 33 33 36 481 20 481 82 33 379 33 7 7 484 323 43 42 31 56 448 231 69 379 70 58 56 56 57 59 149 306 45 50 66 66 498 66 66 498 448 56 74 238 229 231 498 66 66 39 324 322 332 336 334 496 496 336 357 357 485 330 495 612 334 340 497 241 488 490 487 491 324 492 120 437 493 342 400 80 487 488 489 172 66 66 498 345
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1512-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1512-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1512-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1512-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 1512-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1512-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1512-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 1512-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 1512-
20 SLEEVE 1-33262-216-1 01 1 1512-
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 1512-
31 RING; BLOCK,3RD & 4TH 8-98212-814-1 02 1 1512-
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-379-0 02 1 1512-
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 1512-
36 GEAR; 3RD,MAINSHAFT
Z=41 		1-33253-704-1 01 1 1512-
39 HUB; CLU,LOW & 2ND 1-33261-277-0 01 1 1512-
42 SLEEVE 1-33262-222-0 01 1 1512-
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 1512-
45 SPRING; BLOCK INSERT
(A) 		1-09580-578-0 03 1 1512-
45 SPRING; BLOCK INSERT
(B) 		1-09583-171-0 03 1 1512-
46 PLUNGER; DETENT,SYN 1-33263-020-0 03 1 1512-
50 GEAR; 2ND,MAINSHAFT
Z=43 		1-33251-411-1 01 1 1512-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-423-0 04 1 1512-
57 SLEEVE; REV 1-33262-209-1 01 1 1512-
58 HUB; CLU,REV 1-33261-286-1 01 1 1512-
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-081-2 01 1 1512-
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 04 1 1512-
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 04 1 1512-
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 1512-
70 GEAR; 1ST,MAINSHAFT
Z=49 		1-33255-074-1 01 1 1512-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 1512-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 1512-
82 SHAFT; MAIN,TRANS
Z=37-40-28-19 		1-33231-327-2 01 1 1512-
120 SLEEVE 1-33262-229-0 01 1 1512-
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 1512-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 1512-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 1512-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1512-
216 INSERT; CLU HUB,2ND TO 3RD 1-33263-025-2 03 1 1512-
218 SPRING; INSERT,CLU HUB,2ND TO 3RD
D=6.2 		1-09580-091-1 03 1 1512-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 09 1 1512-
229 SPRING; PLUNGER
D=3.8 		1-09580-395-0 06 1 1512-
231 PLUNGER
(B) 		1-33263-038-1 12 1 1512-
231 PLUNGER
(A) 		8-98273-831-0 06 1 1512-
238 INSERT
(A) 		1-33263-036-0 06 1 1512-
238 INSERT
(B) 		1-33263-039-0 09 1 1512-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 1512-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 1512-
278 NUT; BRG 1-09449-080-0 01 1 1512-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1512-
322 SLEEVE; SYN,LOW & 2ND 1-33262-228-0 01 1 1512-
323 INSERT 1-33263-041-0 03 1 1512-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1512-
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1512-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1512-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1512-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1512-
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1512-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1512-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1512-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1512-
340 GEAR; RING
Z=86 ISUZU 		1-34371-019-0 01 1 1512-
342 FLANGE; OUTPUT 1-37243-370-0 01 1 1512-
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1512-
357 RING 1-31349-044-0 04 1 1512-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 1512-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1512-
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 1512-
437 PLATE; LOCK 1-34252-032-0 01 1 1512-
448 SYNCHRONIZER ASM; 1ST & 2ND 8-98239-908-1 02 1 1512-
467 COLLAR; SHAFT 1-33234-091-1 01 1 1512-
471 SHAFT; INPUT 8-98174-781-0 01 1 1512-
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1512-
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1512-
482 GEAR; PRIMARY
Z=29 		1-33253-718-0 01 1 1512-
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1512-
484 PLATE; SETTING 1-33313-023-0 01 1 1512-
485 PIECE; GUIDE 1-33363-040-1 01 1 1512-
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1512-
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1512-
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1512-
489 WASHER; THRUST 1-09503-308-0 01 1 1512-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1512-
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 1512-
492 BOLT; PLATE 1-09000-740-0 02 1 1512-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1512-
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1512-
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 1512-
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 1512-
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1512-
498 CONE; SYN 8-98239-910-0 04 1 1512-
612 GALLERY; OIL 8-98239-463-0 01 1 1512-
