Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#176294) — 21 parça
◀

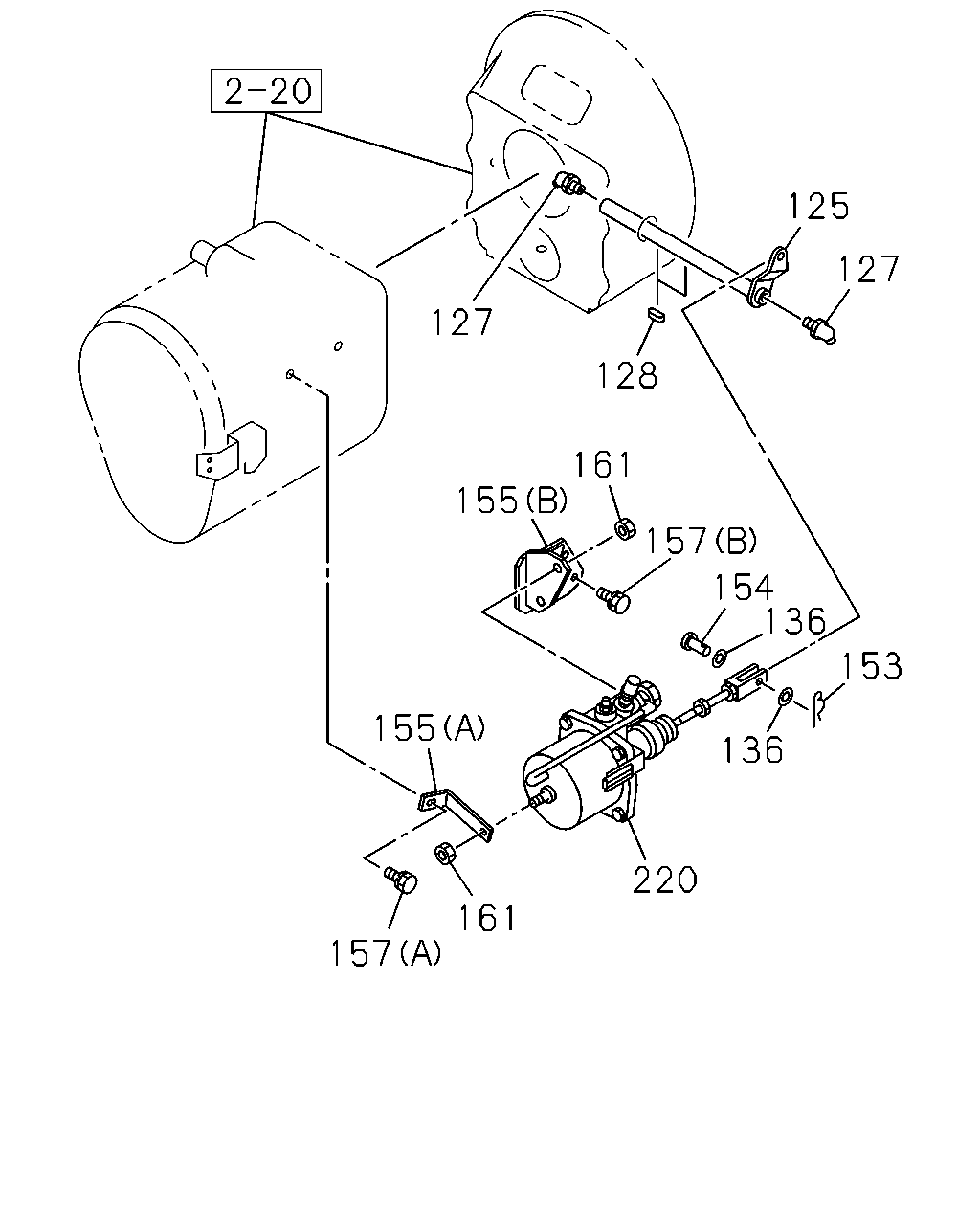

[201A] BOOSTER AND BRACKET (12 parça)

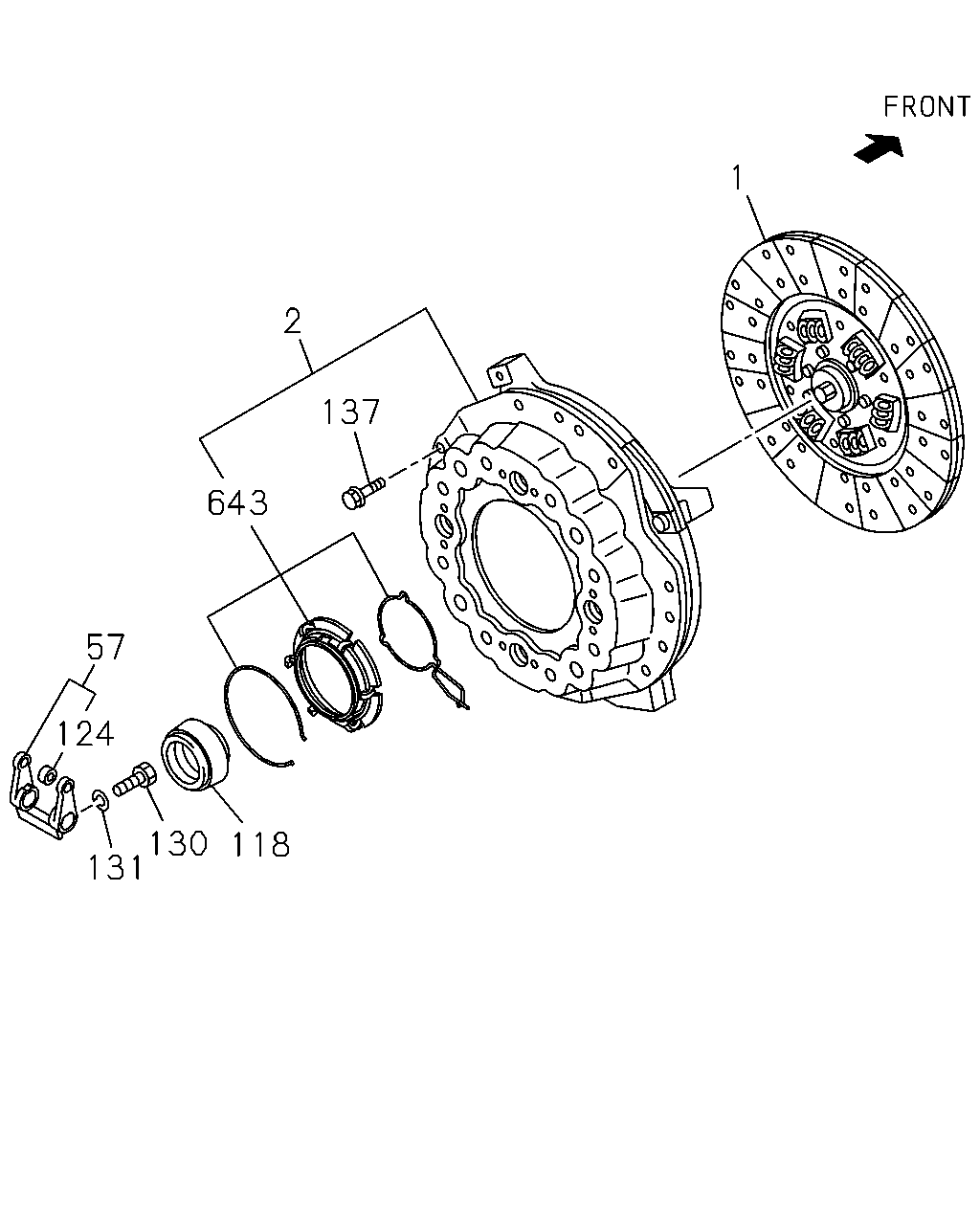

[201A] DISC AND PLATE (9 parça)
▶
127
125
128
127
155
161
157
154
155
161
157
220
136
153
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
125
SHAFT; CLU
1-31342-324-0
01
1
1512-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1512-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1512-
136
WASHER; PL
ID=15
0-91610-514-0
02
1
1512-
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
1512-
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
1512-
155
BRACKET; MINIPACK
(B)
1-31429-456-0
01
1
1512-
155
BRACKET; MINIPACK
(A)
1-31429-457-0
01
1
1512-
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28751-025-0
01
1
1512-
157
BOLT; BRKT
(B) M10X30 FLANGE
0-28751-030-0
02
1
1512-
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1512-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
1512-
1
2
643
137
118
130
131
124
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
15.5"
1-31240-976-0
01
1
1512-
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
1512-
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
1512-
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1512-
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1512-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1512-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1512-
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
1512-
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
1512-
