Sayfa 1-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11745 - EXZ LHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#176292) — 154 parça

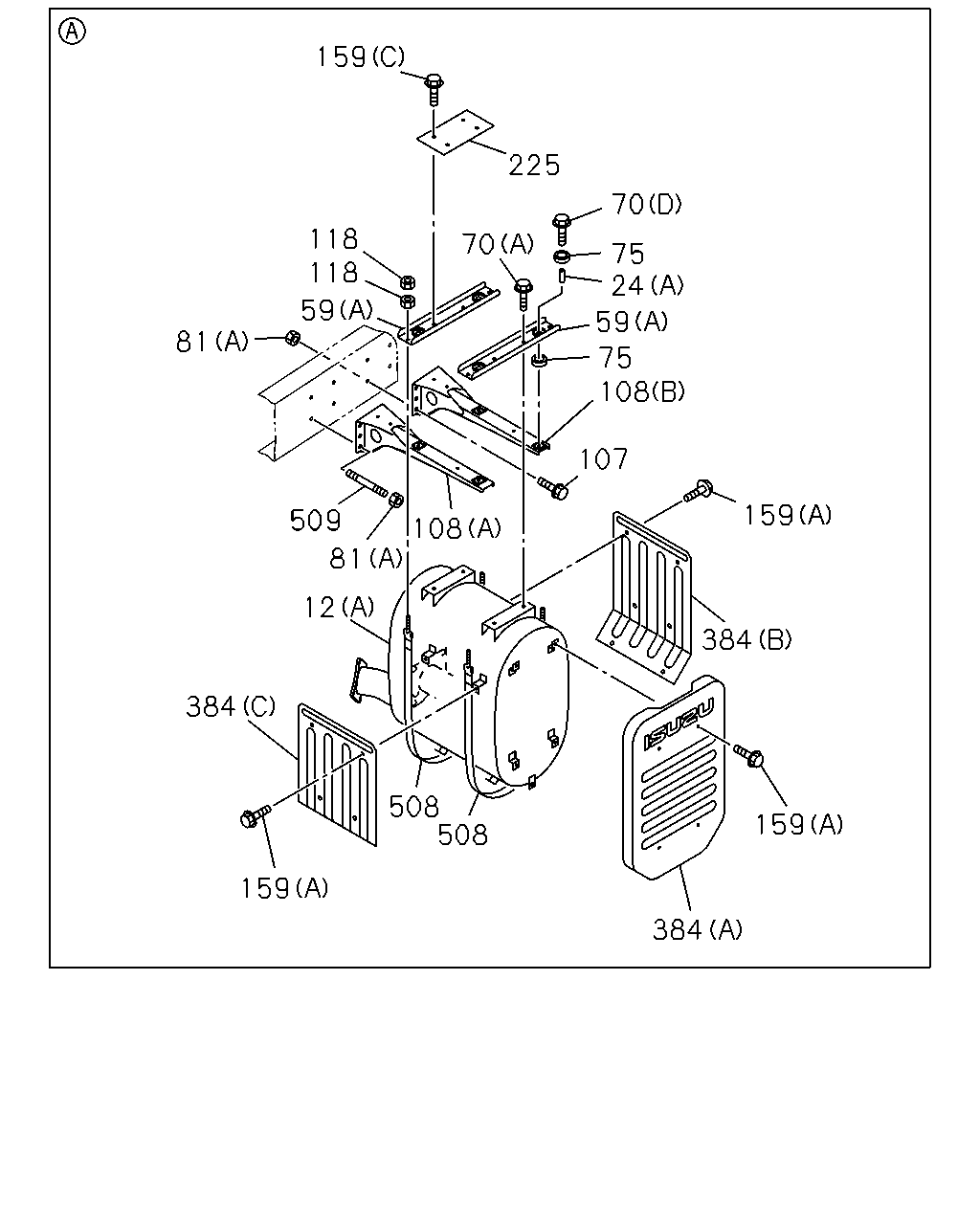

159 118 81 118 59 509 12 384 159 508 508 384 159 384 159 107 108 81 108 75 59 24 75 70 225 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97611-402-0	01	1	1512-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	8-97632-337-2	01	1	1512-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> (B) L=25	1-14234-083-0	10	1	1512-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) L=22	9-22159-024-0	04	1	1512-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1512-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1512-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-710-1	02	1	1512-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28051-020-0	04	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1512-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1512-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1512-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1512-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	1512-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	1512-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	1512-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1512-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1512-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X20 FLANGE	0-28650-820-0	02	1	1512-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1512-
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-515-0	01	1	1512-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-341-3	01	1	1512-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-378-4	01	1	1512-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22119-527-0	01	1	1512-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	1512-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	1512-

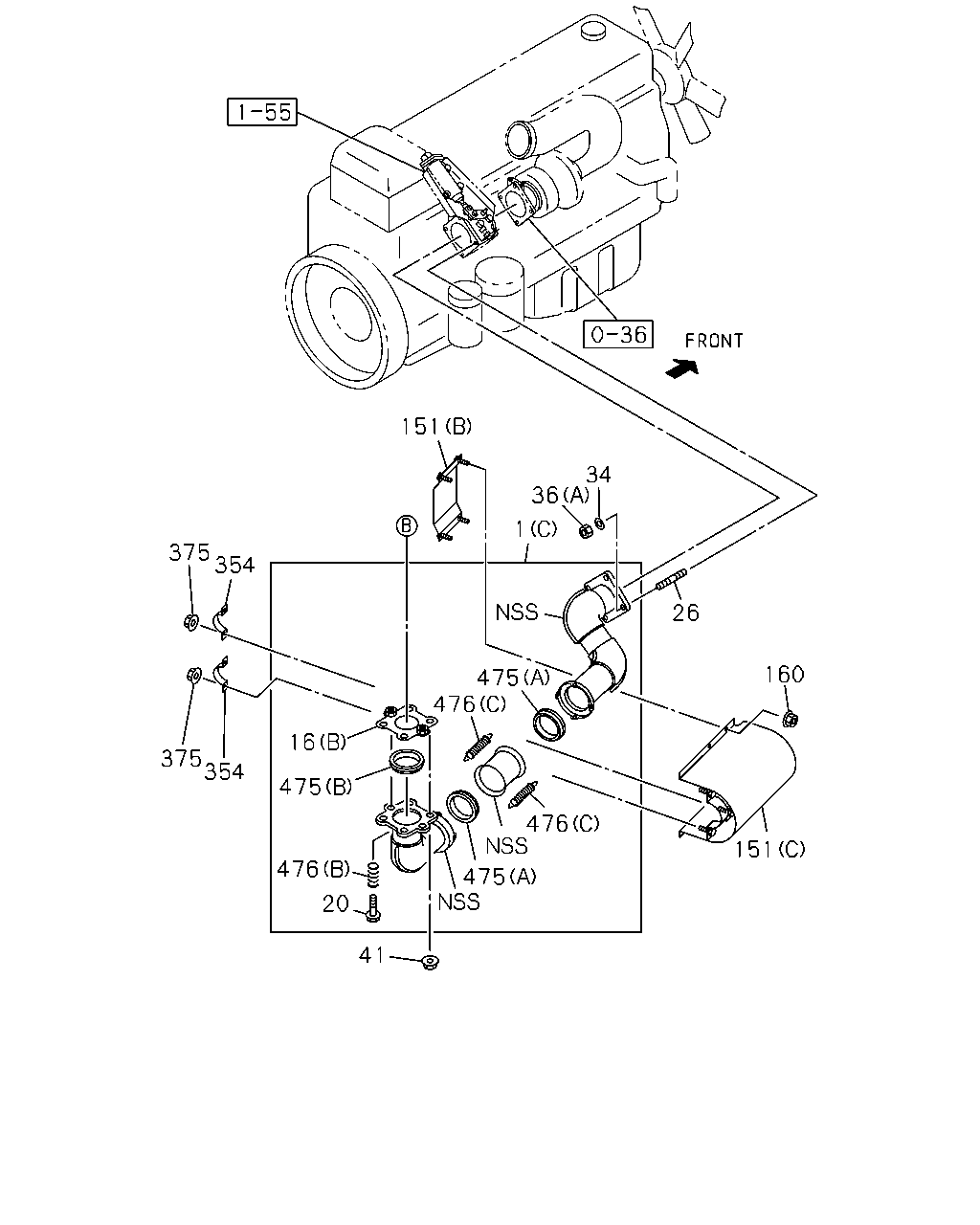

375 354 375 354 475 16 476 20 475 476 476 26 475 1 151 36 34 160 151 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-98334-206-0	01	1	1512-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-573-1	01	1	1512-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97634-533-0	01	1	1512-
16	FLANGE; EXH PIPE (B)	1-22115-148-1	01	1	1512-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1512-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1512-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	03	1	1512-
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1512-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1512-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1512-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1512-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1512-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1512-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1512-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-313-0	01	1	1512-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-314-0	01	1	1512-
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1512-
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1512-
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1512-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1512-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1512-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1512-

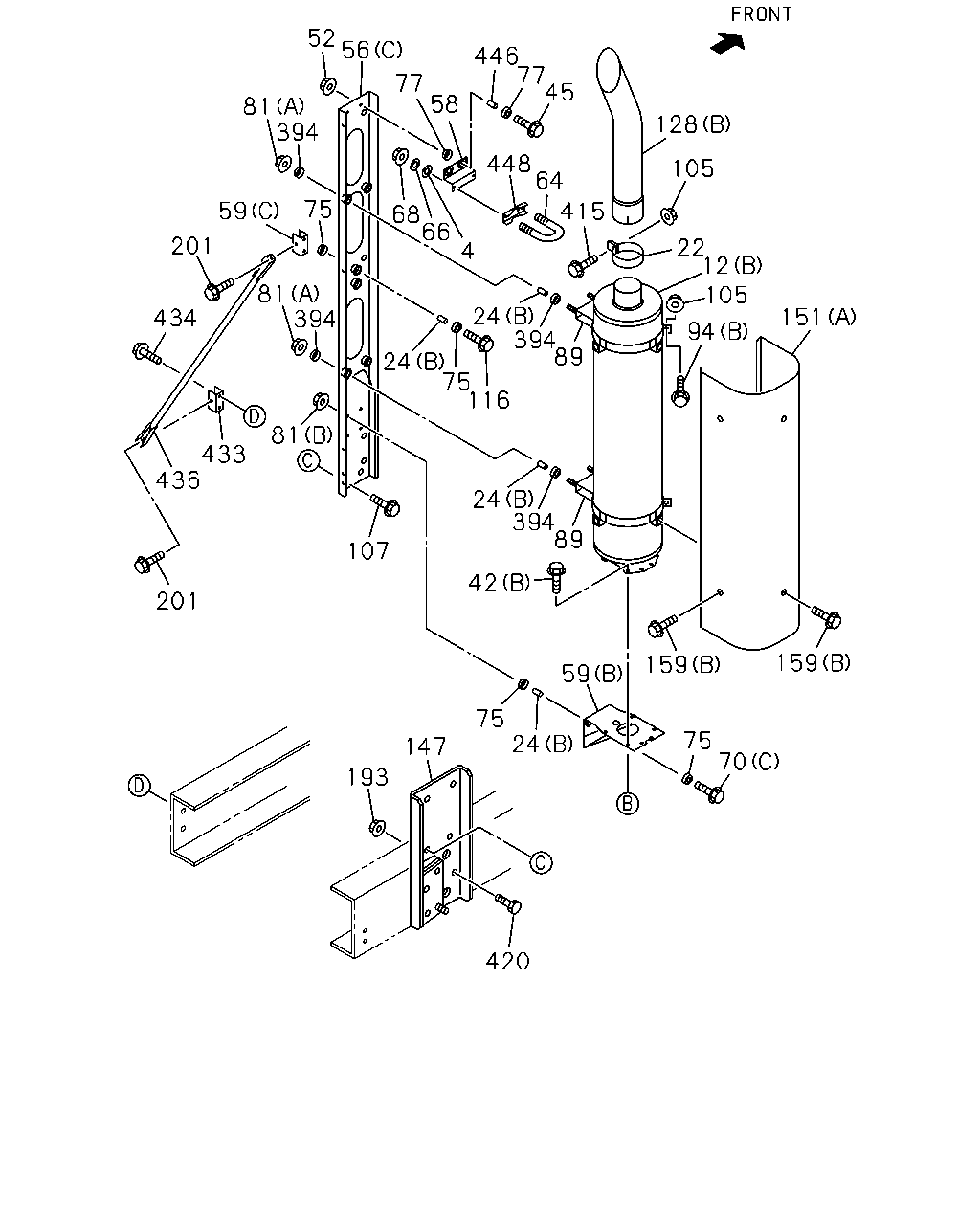

159 159 59 75 70 24 75 147 193 420 107 81 433 436 201 42 24 394 89 116 24 75 24 4 66 68 75 59 201 434 81 394 394 89 94 105 12 22 415 64 448 58 77 52 81 394 446 77 45 128 105 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1512-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97611-402-0	01	1	1512-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28> (B)	8-97632-337-2	01	1	1512-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1512-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> (B) L=25	1-14234-083-0	10	1	1512-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) L=22	9-22159-024-0	04	1	1512-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	1512-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X25 FLANGE	1-09000-604-0	08	1	1512-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1512-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1512-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1512-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1512-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1512-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-710-1	02	1	1512-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1512-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1512-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1512-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28051-020-0	04	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1512-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1512-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1512-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1512-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1512-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	8-97632-339-0	02	1	1512-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10X40 FLANGE	0-28051-040-0	02	1	1512-
94	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X40 FLANGE	0-28650-840-0	02	1	1512-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1512-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	1512-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1512-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1512-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-153-0	01	1	1512-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1512-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	8-97632-340-1	01	1	1512-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-313-0	01	1	1512-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-314-0	01	1	1512-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1512-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X20 FLANGE	0-28650-820-0	02	1	1512-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1512-
193	NUT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	04	1	1512-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1512-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1512-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1512-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1512-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1512-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1512-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1512-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1512-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1512-

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1512-

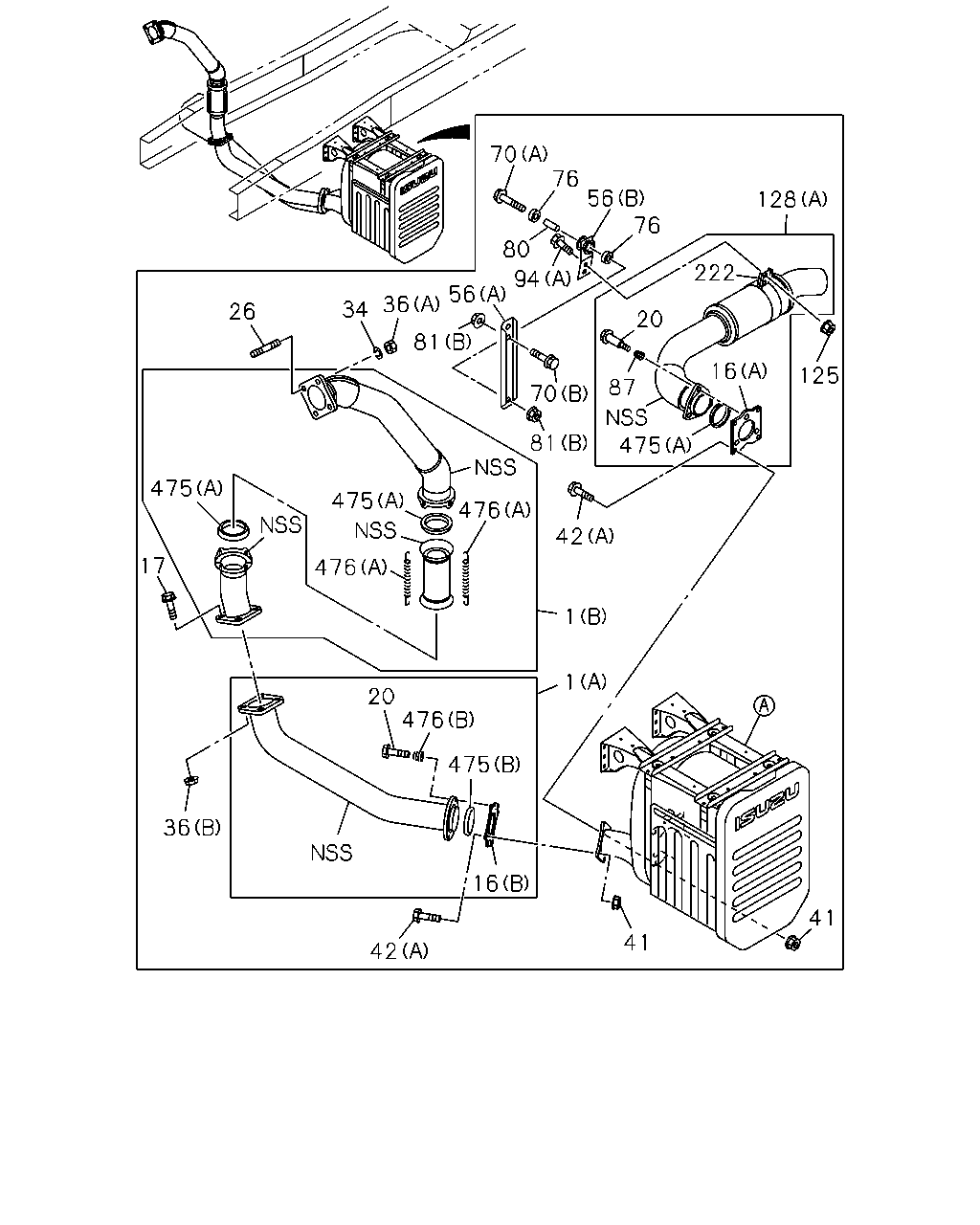

128 125 222 20 87 16 475 70 76 56 76 80 94 56 36 34 26 81 70 81 475 17 36 476 475 476 42 1 1 20 476 475 16 42 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-98334-206-0	01	1	1512-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-573-1	01	1	1512-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97634-533-0	01	1	1512-
16	FLANGE; EXH PIPE (B)	1-22115-148-1	01	1	1512-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-194-0	01	1	1512-
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1512-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1512-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	03	1	1512-
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1512-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1512-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1512-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1512-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	1512-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	1512-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	1512-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X25 FLANGE	1-09000-604-0	08	1	1512-
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97635-142-0	01	1	1512-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97615-956-0	01	1	1512-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97615-964-0	01	1	1512-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X60 FLANGE	0-28051-060-0	04	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X20 FLANGE	0-28051-020-0	04	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	02	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	1512-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1512-
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	1512-
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	1512-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	1512-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1512-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	03	1	1512-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1512-
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	1512-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> (B) M10X40 FLANGE	0-28051-040-0	02	1	1512-
94	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X40 FLANGE	0-28650-840-0	02	1	1512-
125	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	1512-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28> (B)	8-97635-143-0	01	1	1512-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28> (A)	8-97634-153-0	01	1	1512-
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-293-0	01	1	1512-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1512-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1512-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	01	1	1512-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1512-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1512-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
