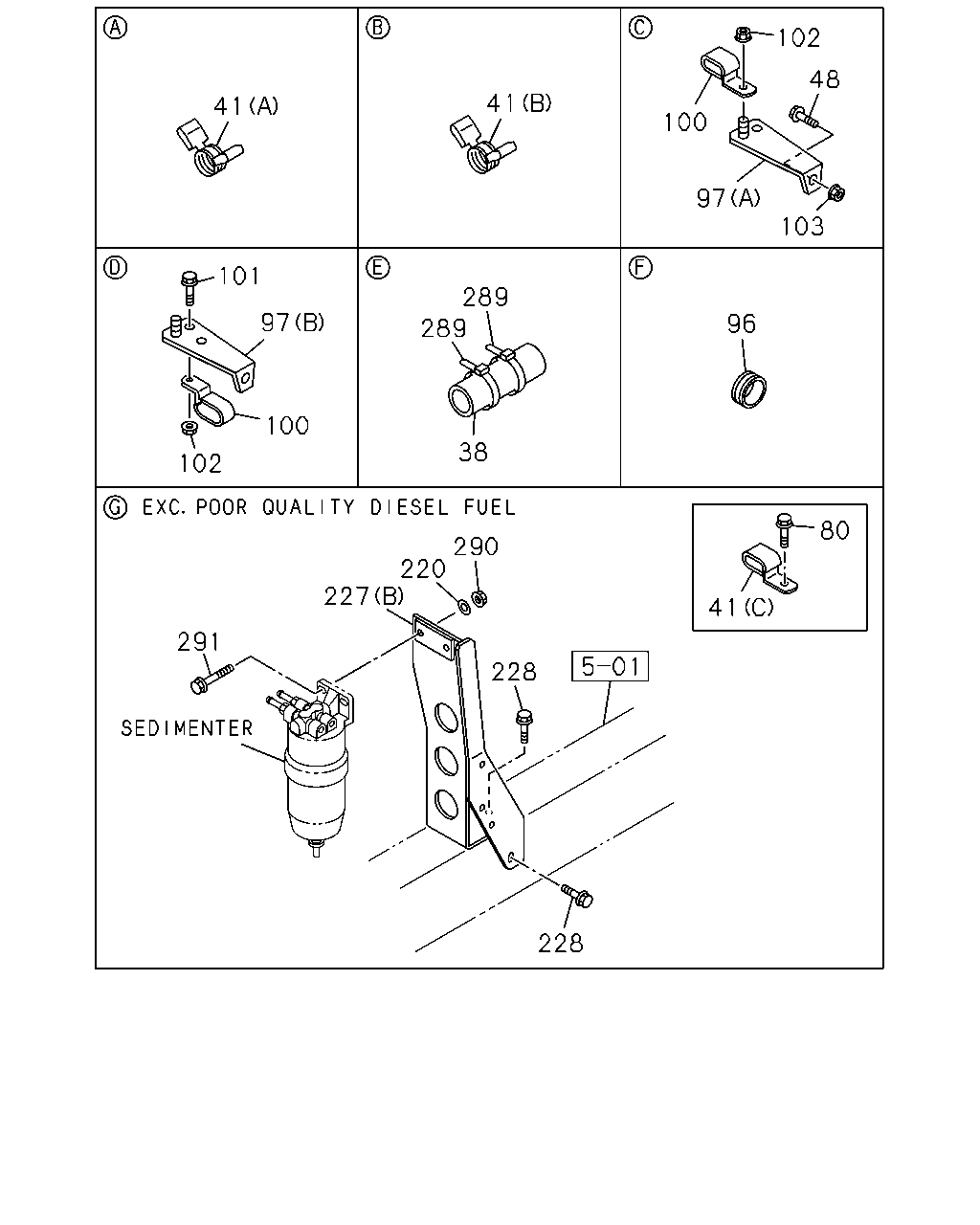

1-41 — FUEL PIPING; CHASSIS (#176290) — 69 parça

41 41 100 102 97 48 103 101 97 100 102 289 289 38 96 80 41 290 220 227 291 228 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1512-
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 550L<EDP> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-1512
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-
48	BOLT; BRKT FUEL TANK 550L<EDP> M8X30 FLANGE	0-28650-830-0	02	1	1512-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1512-1512
80	BOLT; CLIP,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	01	1	1512-
96	GROMMET; PIPE,FUEL TANK ID=39 OD=45 T=19	1-09332-077-0	01	1	1512-
97	BRACKET; CLIP (B)	1-47471-283-0	01	1	1512-
97	BRACKET; CLIP FUEL TANK 550L<EDP> (A)	8-98172-058-0	01	1	1512-
97	BRACKET; CLIP FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98189-648-0	01	1	1512-
100	CLIP; FUEL PIPE FUEL TANK 550L<EDP> ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1512-
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1512-
102	NUT; CLIP,FUEL PIPE FUEL TANK 550L<EDP> M8 FLANGE	0-91180-108-0	02	1	1512-
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1512-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1512-
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1512-
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98184-813-0	01	1	1512-
227	BRACKET; FUEL SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98144-953-0	01	1	1512-
227	BRACKET; FUEL SEDIMENTER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98184-809-0	01	1	1512-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	03	1	1512-
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> L=250	5-09707-030-1	04	1	1512-
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	02	1	1512-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1512-
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1512-

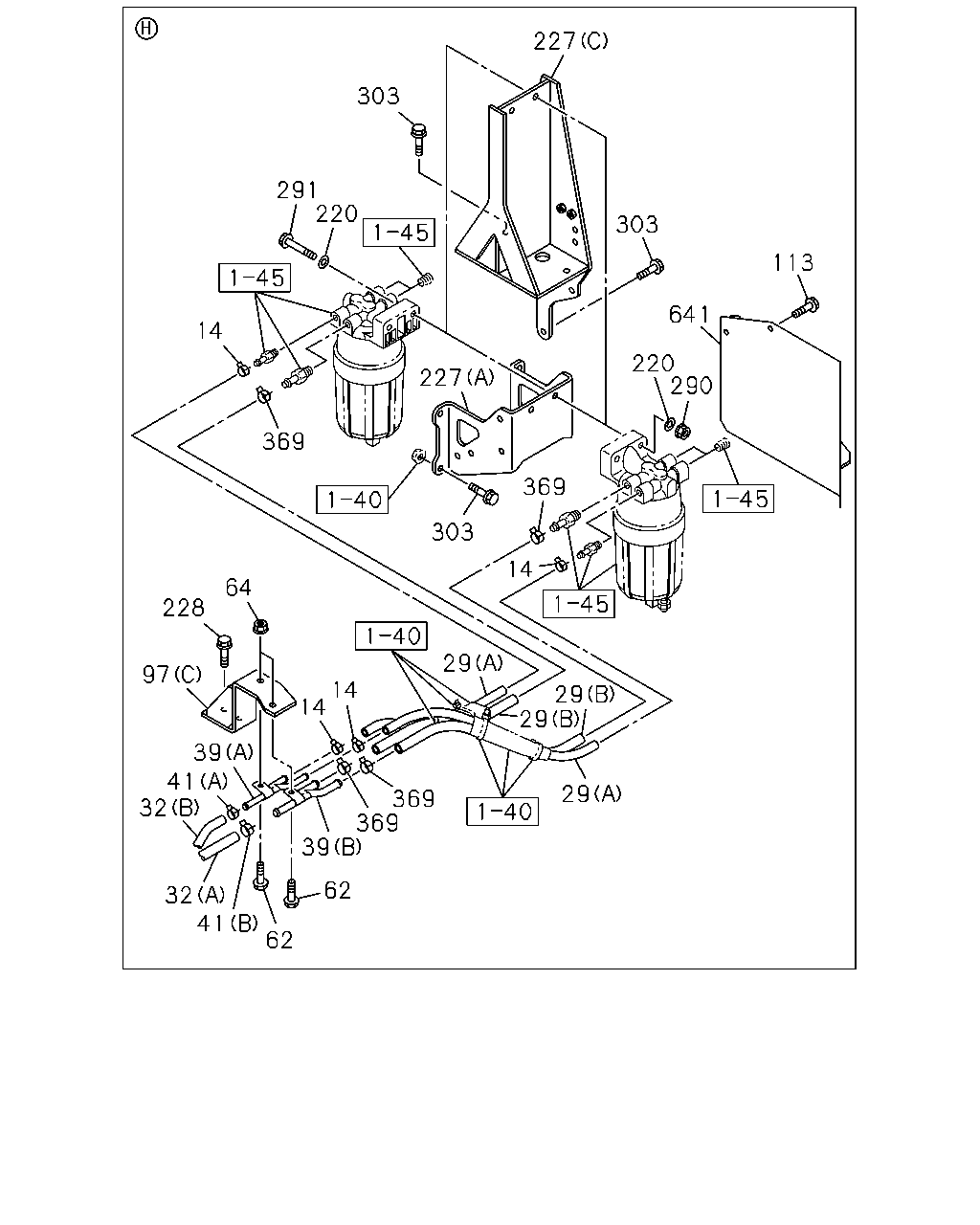

62 62 39 369 369 41 32 32 41 39 97 228 64 14 14 29 29 29 29 14 303 369 369 227 220 290 641 113 303 14 291 220 303 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1512-
29	HOSE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A) L=330 OD=14.5	8-98188-444-0	01	1	1512-
29	HOSE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A) L=330 OD=14.5	8-98188-444-0	01	1	1512-
29	HOSE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=350 OD=19	8-98188-464-0	01	1	1512-
29	HOSE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=350 OD=19	8-98188-464-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A) L=1200 SERVICED BY L=3000	0-01262-300-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1512-
39	PIPE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1512-
39	PIPE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1512-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 550L<EDP> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-1512
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1512-
62	BOLT; CLIP FIX FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1512-
64	NUT; CLIP FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1512-
97	BRACKET; CLIP (B)	1-47471-283-0	01	1	1512-
97	BRACKET; CLIP FUEL TANK 550L<EDP> (A)	8-98172-058-0	01	1	1512-
97	BRACKET; CLIP FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98189-648-0	01	1	1512-
113	BOLT; PROTECTOR POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M8X25 FLANGE	0-28050-825-0	02	1	1512-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1512-
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1512-
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) (A)	8-98184-813-0	01	1	1512-
227	BRACKET; FUEL SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98144-953-0	01	1	1512-
227	BRACKET; FUEL SEDIMENTER RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98184-809-0	01	1	1512-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1512-
228	BOLT; BRKT,SEDIMENTER EXC. POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	03	1	1512-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1512-
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1512-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) M10X40 FLANGE	0-28051-040-0	04	1	1512-
303	BOLT; BRKT RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3) POOR QUALITY DIESEL FUEL<KF0> M12X45 FLANGE	0-28051-245-0	05	1	1512-
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1512-
641	PROTECTOR; SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> EXC. RUSSIA EQUIPMENT(B12),VIETNAM EQUIPMENT(JCD), PHILIPPINE EQUIPMENT(WE3)	8-98184-817-0	01	1	1512-

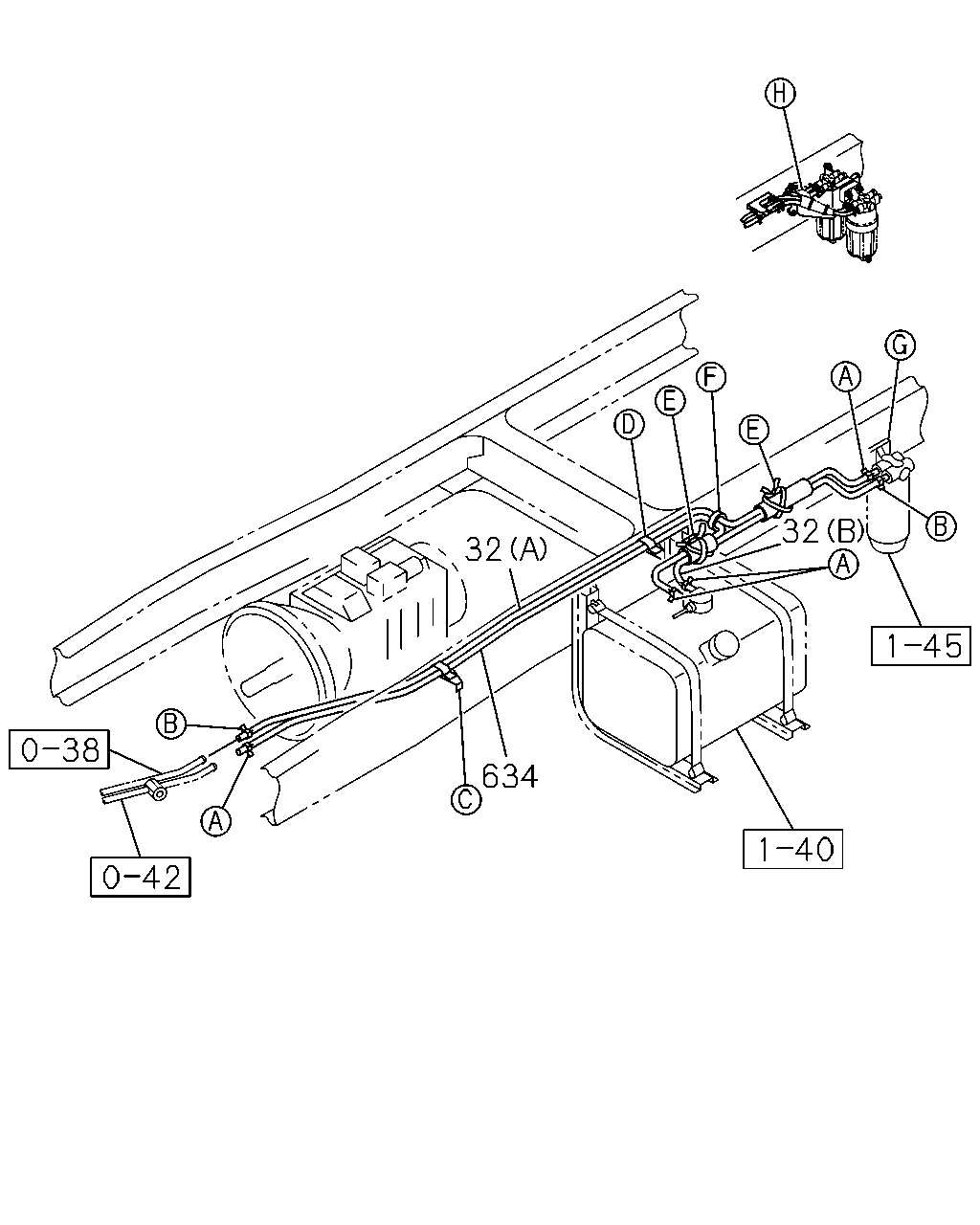

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A) L=1200 SERVICED BY L=3000	0-01262-300-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1512-
634	HOSE; RUBBER RETURN FUEL TANK 550L<EDP> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1512-
