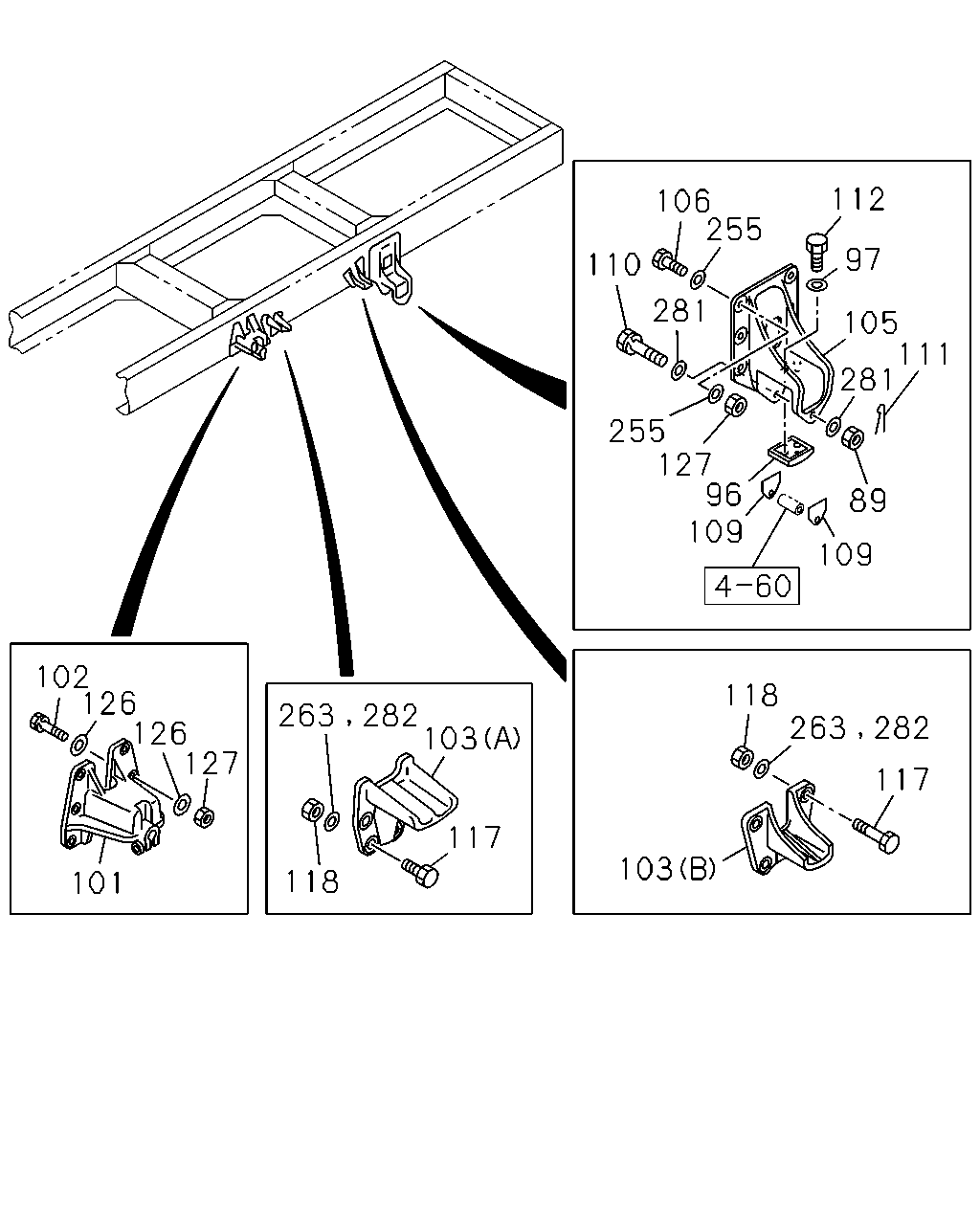

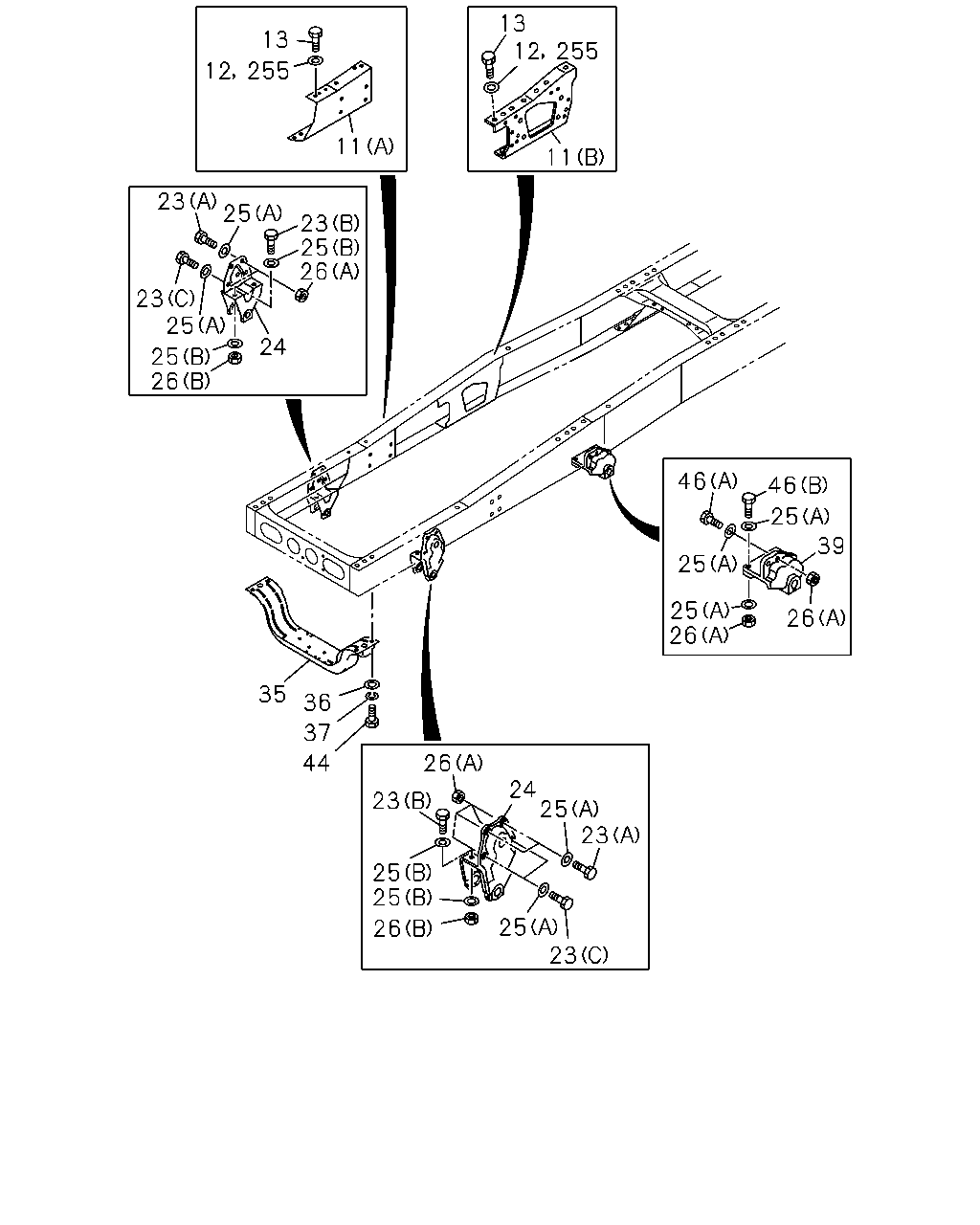

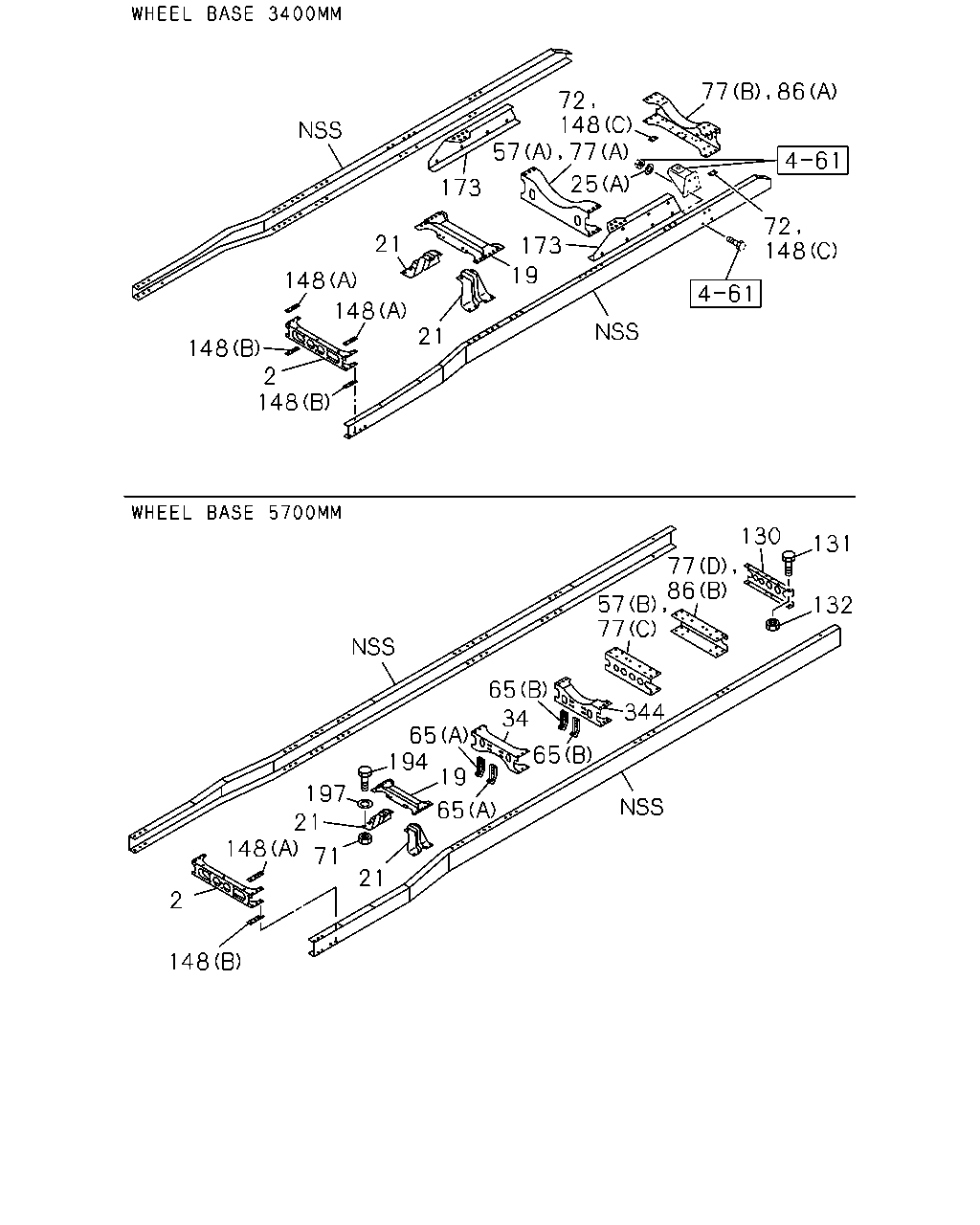

5-01 — FRAME AND OTHER PARTS (#17629) — 113 parça

112 106 255 97 110 281 105 111 281 255 127 96 109 89 109 102 126 126 127 118 263 263 103 117 117 103 118 101 282 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	1004-	●	●
96	PAD; RR SPR SOU	1-53359-047-0	02	1	1004-	●	●
97	WASHER; LK,PAD ID=14.2 SOU	0-91510-514-0	04	1	1004-	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	1004-	●	●
102	BOLT; BRKT,RR SPR M14X50 SOU	0-20951-450-0	12	1	1004-	●	●
103	STOPPER; SUB SPR (A)	1-53356-057-0	02	1	1004-	●	●
103	STOPPER; SUB SPR (B)	1-53357-037-0	02	1	1004-	●	●
105	BRACKET; RR SPR,RR SOU	1-53354-064-1	02	1	1004-	●	●
106	BOLT; BRKT M14X50 SOU	0-20951-450-0	12	1	1004-	●	●
109	SHIM; RR SPR T=4.5 SOU	1-53359-061-1	02	1	1004-	●	●
109	SHIM; RR SPR T=3.2 SOU	1-53359-062-1	02	1	1004-	●	●
110	BOLT; LEAF SPR STOPPER SOU	1-09000-007-0	02	1	1004-	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28 SOU	0-81123-028-0	02	1	1004-	●	●
112	BOLT; PAD M14X35 SOU	0-20951-435-0	04	1	1004-	●	●
117	BOLT; STOPPER M14X40 SOU	0-20951-440-0	16	1	1004-	●	●
118	NUT; STOPPER M14 SOU	0-91110-514-0	16	1	1004-	●	●
126	WASHER; PL,BRKT ID=15 SOU	8-98010-627-1	24	1	1004-	●	●
127	NUT; BRKT M14 SOU	0-91110-514-0	24	1	1004-	●	●
255	WASHER; PL,BRKT EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	24	1	1109-	●
255	WASHER; PL,BRKT ID=15 SOU	8-98010-627-1	24	1	1004-1108	●
255	WASHER; PL,BRKT EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	38	1	1109-		●
255	WASHER; PL,BRKT ID=15 SOU	8-98010-627-1	38	1	1004-1108		●
255	WASHER; PL,BRKT VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	54	1	1109-	●	●
263	WASHER; PL,SUB FRAME ID=15 SOU	8-98010-627-1	16	1	1004-1108	●	●
263	WASHER; PL,SUB FRAME EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	16	1	1109-	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	1004-	●	●
282	WASHER; PL,STOPPER VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	16	1	1109-	●	●

13 12 13 255 12 255 11 11 23 25 23 25 26 23 25 24 25 26 46 46 25 39 25 25 26 26 35 36 37 26 44 24 25 23 23 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1004-	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1004-	●	●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1004-	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1004-	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15 SOU	8-98010-627-1	14	1	1004-1108	●
12	WASHER; PL,BRKT,ENG MTG EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	14	1	1109-	●
13	BOLT; BRKT,ENG MTG M14X40 SOU	0-20951-440-0	10	1	1004-1108	●
13	BOLT; BRKT,ENG MTG EXC. VIN MODEL YEAR 2011<VZB> M14X40 SOU	0-20951-440-0	02	1	1109-		●
13	BOLT; BRKT,ENG MTG M14X35 SOU	0-20951-435-0	04	1	1004-	●	●
13	BOLT; BRKT,ENG MTG M14X40 SOU	0-20951-440-0	02	1	1004-1108		●
13	BOLT; BRKT,ENG MTG VIN MODEL YEAR 2011<VZB> M14X40 SOU	0-20951-440-0	10	1	1109-	●	●
23	BOLT; BRKT,SPR (A) M14X40 SOU	0-20951-440-0	04	1	1004-	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1004-	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1004-	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1004-	●	●
25	WASHER; PL,BRKT (A) ID=15 SOU	8-98010-627-1	28	1	1004-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1004-	●	●
25	WASHER; PL,BRKT (A) ID=15 SOU	8-98010-627-1	20	1	1004-		●
26	NUT; BRKT,SPR (A) M14 SOU	0-91110-514-0	16	1	1004-	●	●
26	NUT; BRKT,SPR (B) M16 SOU	0-91110-516-0	04	1	1004-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1004-	●	●
36	WASHER; PL,UNDER MBR ID=17 SOU	9-09164-516-0	04	1	1004-	●	●
37	WASHER; LK,UNDER MBR ID=16.2 SOU	0-91510-816-0	04	1	1004-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1004-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1004-	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1004-	●	●
46	BOLT; BRKT FIX (A) M14X40 SOU	0-20951-440-0	04	1	1004-	●	●
46	BOLT; BRKT FIX (B) M14X40 SOU	8-98097-157-0	04	1	1004-	●	●
255	WASHER; PL,BRKT EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	24	1	1109-	●
255	WASHER; PL,BRKT ID=15 SOU	8-98010-627-1	24	1	1004-1108	●
255	WASHER; PL,BRKT EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	38	1	1109-		●
255	WASHER; PL,BRKT ID=15 SOU	8-98010-627-1	38	1	1004-1108		●
255	WASHER; PL,BRKT VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	54	1	1109-	●	●

72 148 25 173 72 148 21 173 19 148 148 21 148 2 148 130 131 77 86 57 77 132 65 34 344 65 194 65 19 197 21 65 148 71 21 2 148 57 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1004-	●	●
19	MEMBER; CROSS,2ND VIN MODEL YEAR 2011<VZB>	1-53174-265-0	01	1	1109-1202	●
19	MEMBER; CROSS,2ND SOU	8-98098-303-0	01	1	1203-	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1004-1108	●	●
19	MEMBER; CROSS,2ND EXC. VIN MODEL YEAR 2011<VZB>	1-53174-231-1	01	1	1109-1202	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1109-1202		●
19	MEMBER; CROSS,2ND	1-53174-231-2	01	1	1203-		●
21	GUSSET; 2ND CROSS SOU	8-98202-399-0	01	1	1203-	●
21	GUSSET; 2ND CROSS SOU	1-53164-185-0	02	1	1004-1108	●
21	GUSSET; 2ND CROSS EXC. VIN MODEL YEAR 2011<VZB> SOU	1-53164-185-0	02	1	1109-1202	●
21	GUSSET; 2ND CROSS SOU	8-98202-398-0	01	1	1203-	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	1004-1108		●
21	GUSSET; 2ND CROSS VIN MODEL YEAR 2011<VZB>	1-53164-227-0	01	1	1109-1202	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	1109-1202		●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1203-		●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	1004-1108		●
21	GUSSET; 2ND CROSS VIN MODEL YEAR 2011<VZB>	1-53164-226-0	01	1	1109-1202	●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	1109-1202		●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1203-		●
25	WASHER; PL,BRKT (A) ID=15 SOU	8-98010-627-1	28	1	1004-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1004-	●	●
25	WASHER; PL,BRKT (A) ID=15 SOU	8-98010-627-1	20	1	1004-		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1004-		●
57	MEMBER; CROSS,RR SUSP FRT VIN MODEL YEAR 2011<VZB> (B)	1-53181-995-6	01	1	1109-		●
57	MEMBER; CROSS,RR SUSP FRT VIN MODEL YEAR 2011<VZB> (A)	1-53181-319-8	01	1	1109-	●
65	BRACKET; CENTER BRG (A)	8-97614-132-0	02	1	1004-		●
65	BRACKET; CENTER BRG (B)	8-97624-449-0	02	1	1004-		●
71	NUT; 2ND C/MBR M14 SOU	0-91110-514-0	08	1	1004-		●
72	SPACER; TRUNNION VIN MODEL YEAR 2011<VZB> SOU	1-53168-171-1	02	1	1109-	●
77	MEMBER; CROSS,TRUNNION RR (A)	1-53181-319-8	01	1	1004-1108	●
77	MEMBER; CROSS,TRUNNION RR EXC. VIN MODEL YEAR 2011<VZB> (A)	1-53181-319-8	01	1	1109-	●
77	MEMBER; CROSS,TRUNNION RR (B)	8-97624-484-1	01	1	1004-1108	●
77	MEMBER; CROSS,TRUNNION RR EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97624-484-1	01	1	1109-	●
77	MEMBER; CROSS,TRUNNION RR (C)	1-53181-995-6	01	1	1004-1108		●
77	MEMBER; CROSS,TRUNNION RR EXC. VIN MODEL YEAR 2011<VZB> (C)	1-53181-995-6	01	1	1109-		●
77	MEMBER; CROSS,TRUNNION RR (D)	8-97624-097-0	01	1	1004-1108		●
77	MEMBER; CROSS,TRUNNION RR EXC. VIN MODEL YEAR 2011<VZB> (D)	8-97624-097-0	01	1	1109-		●
86	MEMBER; CROSS,RR SUSP RR VIN MODEL YEAR 2011<VZB> (B)	8-97624-097-0	01	1	1109-		●
86	MEMBER; CROSS,RR SUSP RR VIN MODEL YEAR 2011<VZB> (A)	8-97624-484-1	01	1	1109-	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	1004-		●
131	BOLT; END C/MBR M14X40 SOU	0-20951-440-0	04	1	1004-		●
132	NUT; END C/MBR M14 SOU	0-91110-514-0	04	1	1004-		●
148	SPACER; C/MBR (C) SOU	1-53168-171-1	02	1	1004-1108	●
148	SPACER; C/MBR EXC. VIN MODEL YEAR 2011<VZB> (C) SOU	1-53168-171-1	02	1	1109-	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1004-	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1004-	●	●
173	STIFFENER; RR SPRING	8-97627-962-0	01	1	1004-	●
173	STIFFENER; RR SPRING	8-97627-961-0	01	1	1004-	●
194	BOLT; 2ND C/MBR M14X50 SOU	0-20951-450-0	08	1	1004-		●
197	WASHER; PL,2ND C/MBR EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	08	1	1109-		●
197	WASHER; PL,2ND C/MBR ID=15 SOU	8-98010-627-1	08	1	1004-1108		●
197	WASHER; PL,2ND C/MBR VIN MODEL YEAR 2011<VZB> ID=15 SOU	8-98010-627-1	16	1	1109-		●
344	MEMBER; CROSS,4TH	1-53181-649-3	01	1	1004-		●
