1-31 — AIR DUCT (#176287) — 80 parça

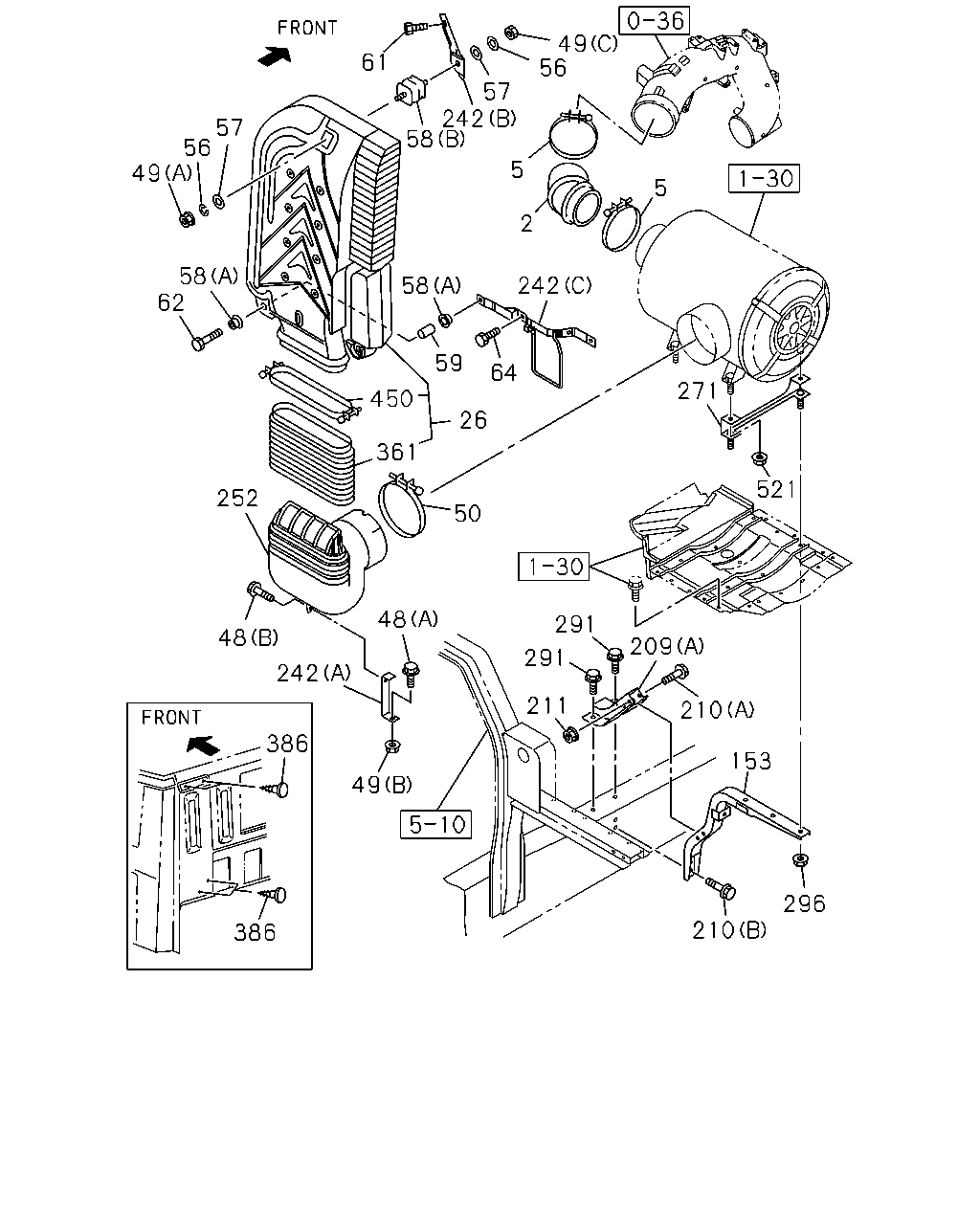

çizim 513481
61 58 242 57 56 49 5 2 5 242 58 59 26 64 450 361 50 242 48 252 62 58 49 56 57 386 386 49 48 291 291 211 209 210 153 296 210 271 521
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1512-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1512-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1512-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1512-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1512-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1512-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1512-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1512-
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1512-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1512-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1512-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1512-
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1512-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1512-
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 1512-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 1512-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1512-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		8-97080-149-0 01 1 1512-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1512-
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1512-
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 1512-
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1512-
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 1512-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1512-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1512-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1512-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1512-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1512-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1512-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1512-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1512-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (C) 		8-98041-994-1 01 1 1512-
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1512-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1512-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1512-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1512-
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 1512-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 1512-
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 1512-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1512-

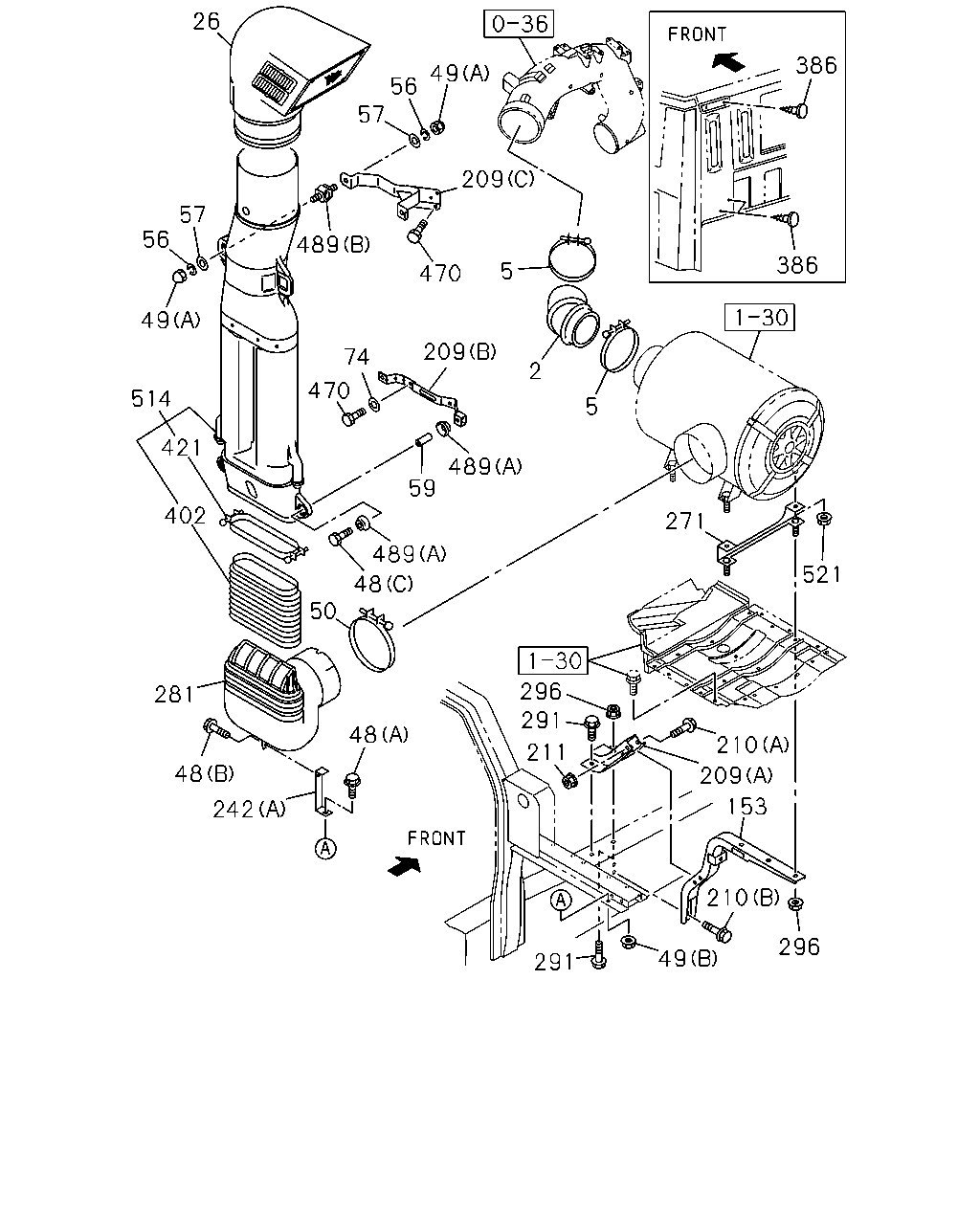

çizim 513901
296 49 291 210 153 209 210 211 291 296 521 271 5 2 489 59 489 48 50 48 242 48 281 402 421 514 49 56 57 26 57 56 49 5 209 74 470 489 470 209 386 386
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1512-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1512-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1512-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1512-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1512-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1512-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1512-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1512-
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1512-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1512-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1512-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1512-
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1512-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1512-
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 1512-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 1512-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1512-
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 1512-
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 1512-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1512-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1512-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1512-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1512-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1512-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1512-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1512-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1512-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (C) 		8-98041-994-1 01 1 1512-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1512-
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1512-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1512-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1512-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 01 1 1512-
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 1512-
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 1512-
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 1512-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1512-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 1512-
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 1512-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1512-
