Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

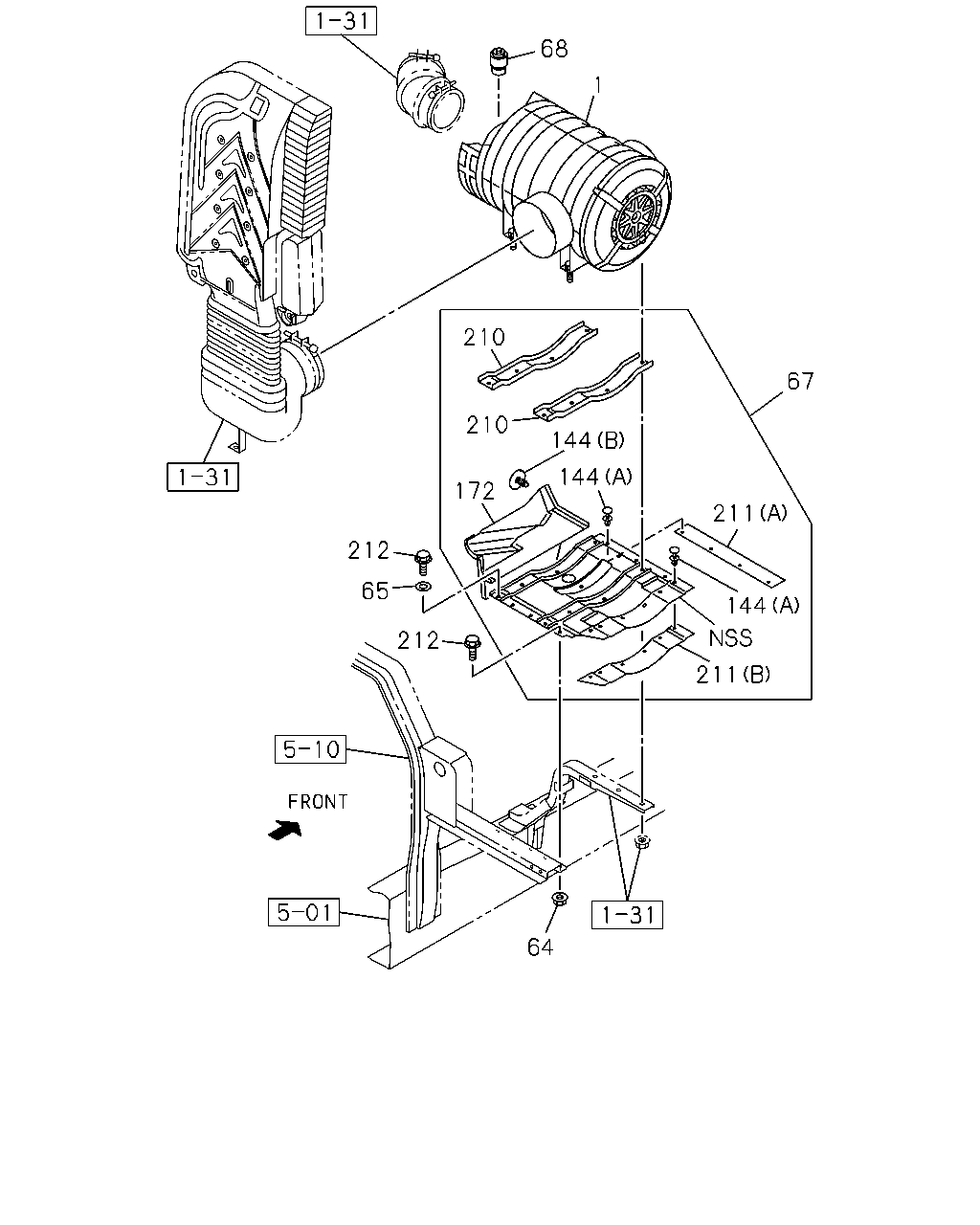

1-30 — AIR CLEANER
(#176286) — 18 parça
◀
[130A] FIXING (12 parça)
[130A] COMPONENT (6 parça)
▶
68
67
211
144
211
64
212
65
212
210
210
172
144
144
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
8-98059-841-0
01
1
1512-
64
NUT; BAND BRKT
M10 FLANGE
0-91180-210-0
04
1
1512-
65
WASHER; PL
ID=10.5
0-91610-710-0
04
1
1512-
67
COVER; ACL
8-98127-108-1
01
1
1512-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
1512-
144
CLIP; ACL
(A)
5-09987-033-0
08
1
1512-
144
CLIP; ACL
(B)
8-94279-048-0
03
1
1512-
172
INSULATOR; NOISE
8-98171-608-0
01
1
1512-
210
BRACKET; ACL MTG
1-53419-283-0
02
1
1512-
211
RUBBER; SEAL
(B)
8-98162-625-0
01
1
1512-
211
RUBBER; SEAL
(A)
8-98170-166-0
01
1
1512-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28651-025-0
04
1
1512-
1
1
27
26
8
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
8-98059-841-0
01
1
1512-
8
COVER ASM; ACL
1-14212-132-0
01
1
1512-
26
FILTER; ACL,INNER
1-14215-220-0
01
1
1512-
27
FILTER; ACL,OUTER
1-14215-213-0
01
1
1512-
27
FILTER; ACL,OUTER
BEST VALUE PARTS
1-87610-166-0
01
1
1512-
94
VALVE; VACUATOR
1-14219-192-0
01
1
1512-
