0-52 — OIL AND VACUUM PIPING; ENGINE
(#176277) — 44 parça
◀

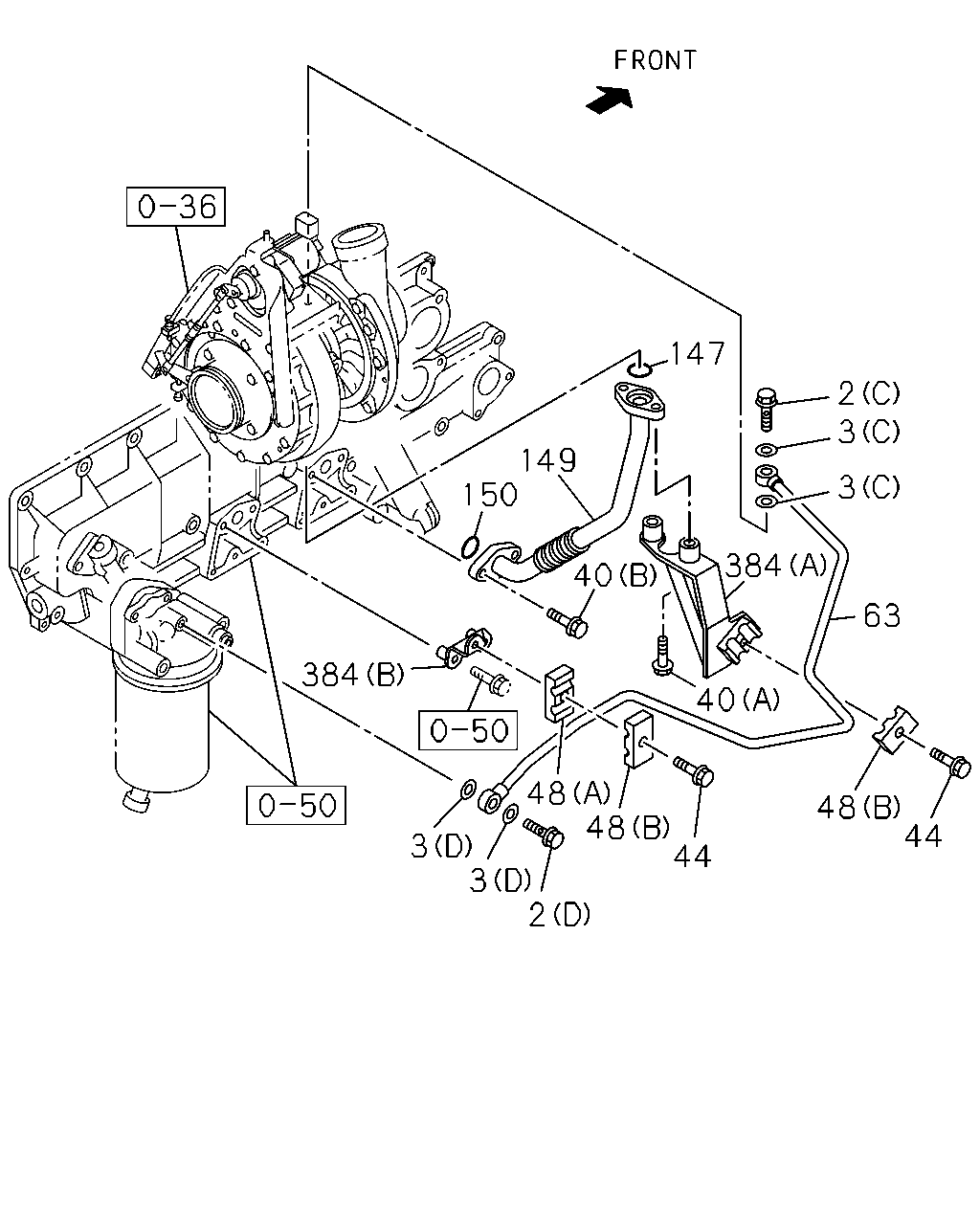

[052A] TURBOCHARGER SIDE (19 parça)

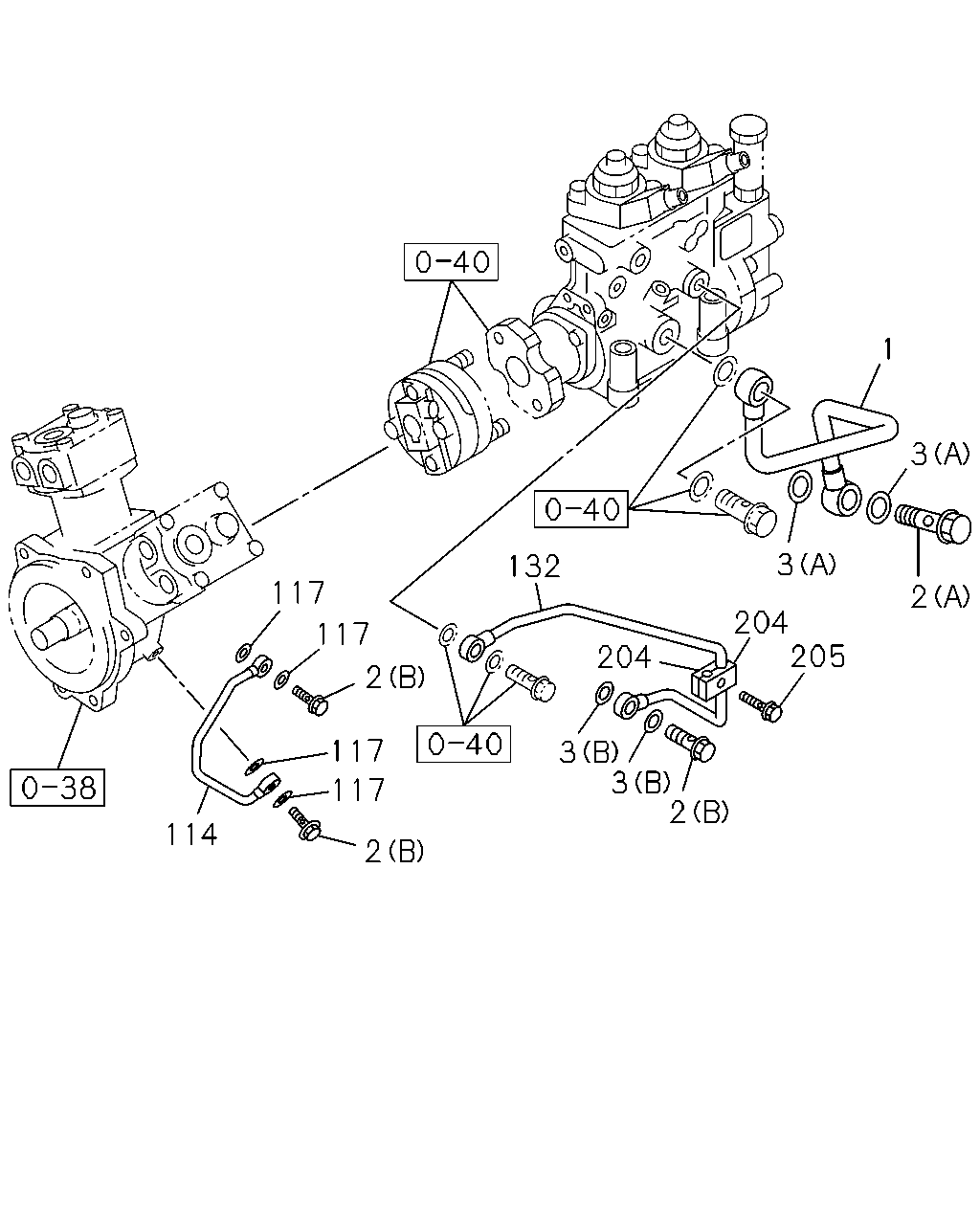

[052A] AIR COMPRESSOR SIDE (14 parça)

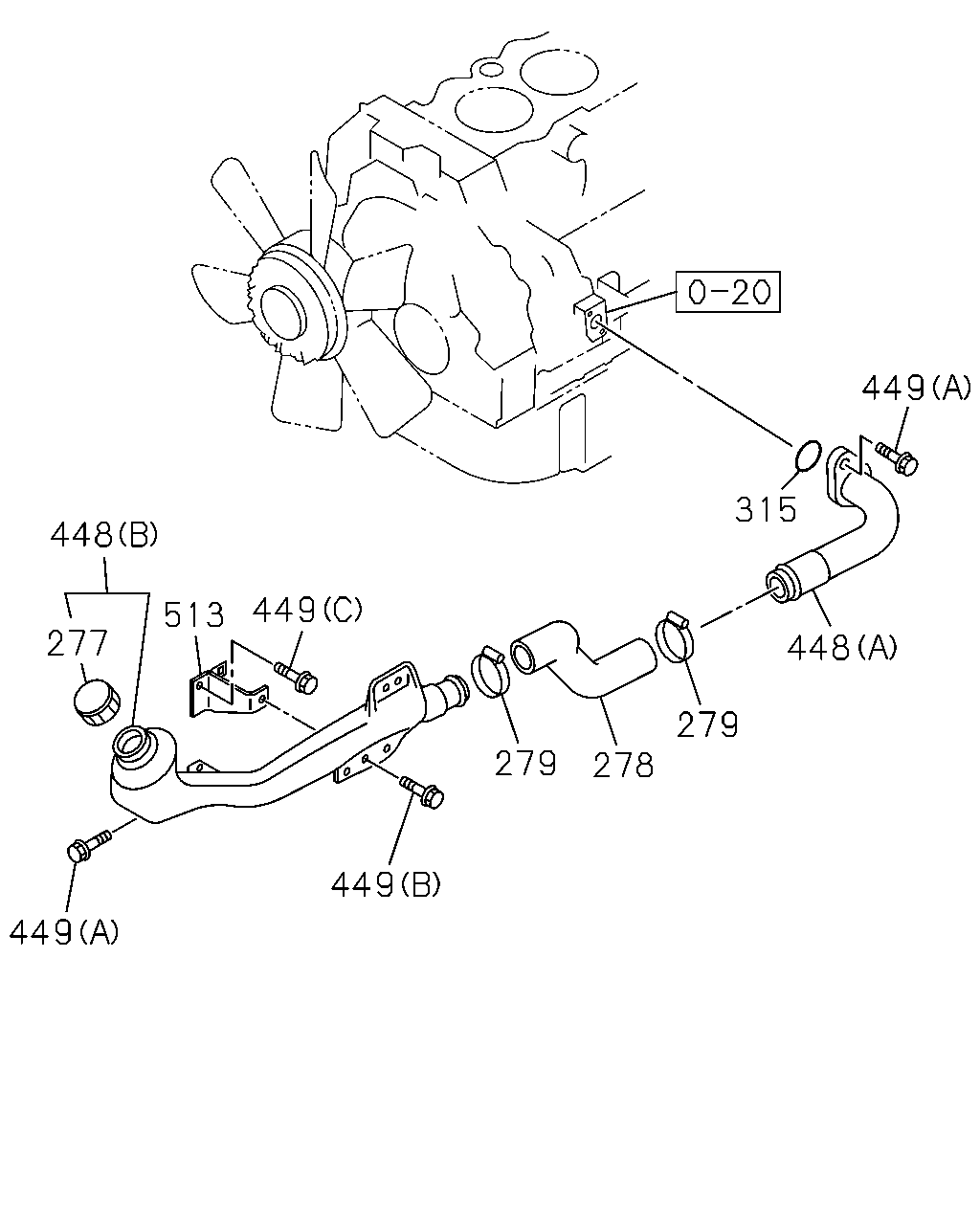

[052A] OIL FILLER NECK (11 parça)
▶
384
3
3
2
48
48
44
150
149
40
147
40
384
2
3
3
63
48
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
1512-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE
8-97372-238-0
03
1
1512-
2
BOLT; EYE,OIL PIPE
(C) M12X28
8-97388-295-0
01
1
1512-
2
BOLT; EYE,OIL PIPE
(D) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
02
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25
1-09630-141-0
02
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2
8-98251-344-0
02
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2
9-09571-412-0
02
1
1512-
40
BOLT; OIL PIPE
(A) M8X40 FLANGE
0-28050-840-0
02
1
1512-
40
BOLT; OIL PIPE
(B) M10X25 FLANGE
0-28751-025-0
02
1
1512-
44
BOLT; CLIP,OIL PIPE
M6X35 FLANGE
0-28050-635-0
02
1
1512-
48
CLIP; OIL PIPE
(A) ID=7 & 11 L=28
1-09701-231-1
01
1
1512-
48
CLIP; OIL PIPE
(B) ID=9 & 11 L=28
1-09701-265-1
02
1
1512-
63
PIPE; OIL,TURBOCHARGER FEED
8-97609-509-0
01
1
1512-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
01
1
1512-
149
PIPE; OIL RETURN,TURBOCHARGER
1-13314-024-1
01
1
1512-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7
1-09623-450-0
01
1
1512-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A)
1-13345-216-0
01
1
1512-
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B)
1-13345-225-1
01
1
1512-
114
117
2
117
117
2
132
204
3
3
2
205
204
3
3
2
1
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; OIL,INJ PUMP TO C/BL
8-97610-911-0
01
1
1512-
2
BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
1512-
2
BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE
8-97372-238-0
03
1
1512-
2
BOLT; EYE,OIL PIPE
(C) M12X28
8-97388-295-0
01
1
1512-
2
BOLT; EYE,OIL PIPE
(D) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
02
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25
1-09630-141-0
02
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2
8-98251-344-0
02
1
1512-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2
9-09571-412-0
02
1
1512-
114
PIPE ASM; OIL,BODY
1-13314-040-0
01
1
1512-
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
04
1
1512-
132
PIPE ASM; OIL,INJ PUMP FEED
8-97610-910-1
01
1
1512-
204
CLIP; OIL PIPE
1-09701-240-0
02
1
1512-
205
BOLT; CLIP
M6X30 FLANGE
0-28050-630-0
01
1
1512-
448
277
513
449
449
449
279
278
448
315
449
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
277
CAP; OIL FILLER
8-97629-367-0
01
1
1512-
278
HOSE; RUBBER,OIL FILLER
8-97631-599-0
01
1
1512-
279
CLIP; RUBBER HOSE
ID=48
9-09915-512-1
02
1
1512-
315
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7
1-09623-299-0
01
1
1512-
448
FILLER; OIL
(A)
1-11740-227-2
01
1
1512-
448
FILLER; OIL
(B)
8-97634-069-1
01
1
1512-
449
BOLT; OIL FILLER
(A) M8X16 FLANGE
0-28050-816-0
02
1
1512-
449
BOLT; OIL FILLER
(A) M8X16 FLANGE
0-28050-816-0
01
1
1512-
449
BOLT; OIL FILLER
(B) M8X20 FLANGE
0-28650-820-0
02
1
1512-
449
BOLT; OIL FILLER
(C) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1512-
513
BRACKET; OIL FILLER
8-98210-104-0
01
1
1512-
