0-41 — FUEL FILTER AND BRACKET
(#176273) — 25 parça
◀

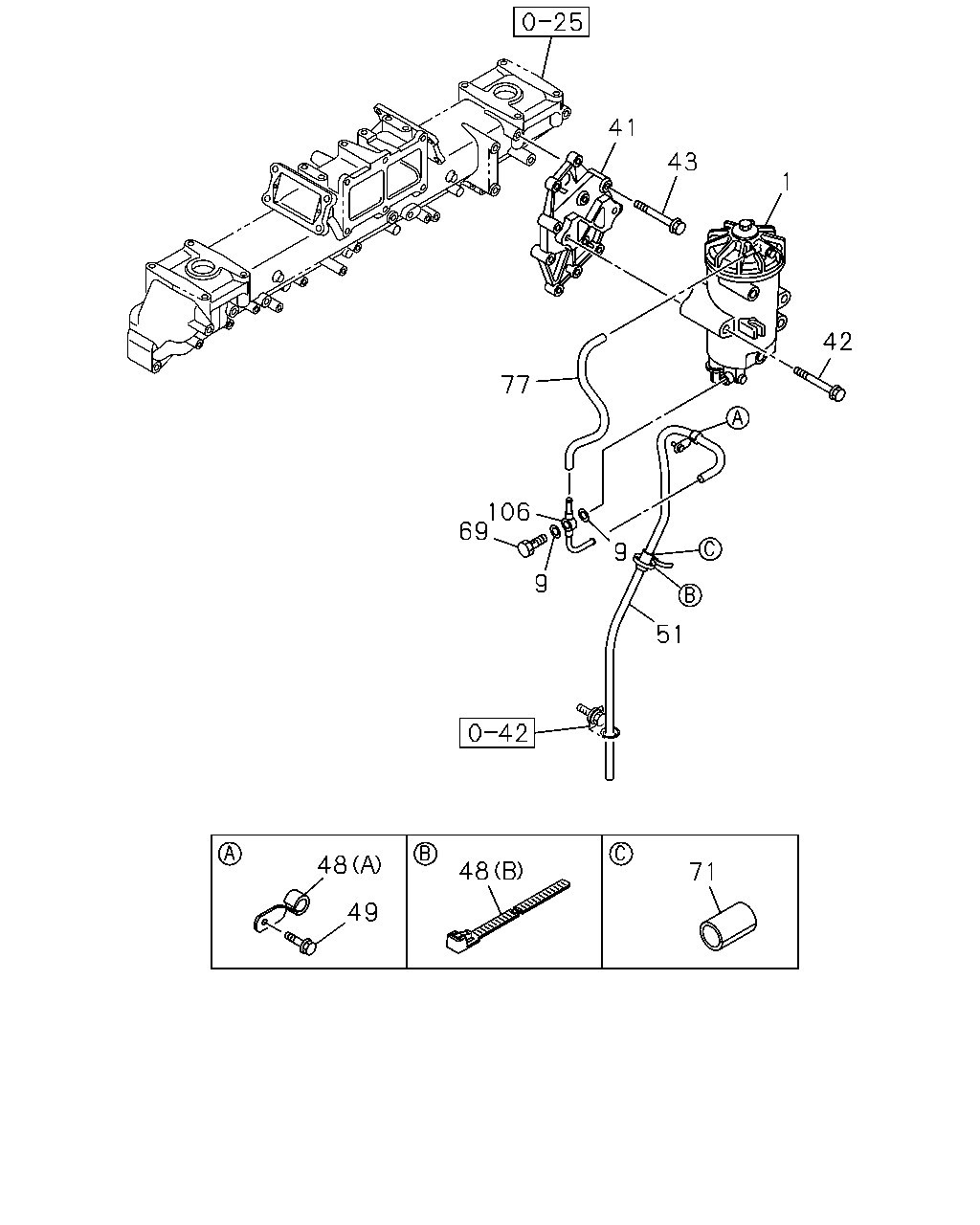

[041A] FIXING (13 parça)
[041A] COMPONENT (12 parça)
▶
41
43
1
77
42
106
69
9
51
48
49
48
71
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98258-016-0
01
1
1512-
9
GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
02
1
1512-
41
BRACKET; FUEL FILTER
8-97628-208-0
01
1
1512-
42
BOLT; FUEL FILTER
M12X100 FLANGE
0-28151-200-0
02
1
1512-
43
BOLT; BRKT
M10X60 FLANGE
0-28151-060-0
04
1
1512-
48
CLIP; VINYL PIPE
(A) ID=11 L=40
8-94123-171-1
01
1
1512-
48
CLIP; VINYL PIPE
(B) L=250
8-98216-430-0
01
1
1512-
49
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1512-
51
PIPE; VINYL
L=1000 SERVICED BY L=10000
9-09914-909-0
01
1
1512-
69
BOLT; EYE,FUEL FILTER
M10X21 FLANGE
8-97372-239-0
01
1
1512-
71
SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30
9-09956-682-0
01
1
1512-
77
HOSE; FUEL FILTER
8-98118-453-0
01
1
1512-
106
PIPE; FUEL
8-97631-785-0
01
1
1512-
26
14
61
144
32
146
23
21
24
22
2
24
26
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98258-016-0
01
1
1512-
2
ELEMENT KIT; FUEL FILTER
8-98116-662-0
01
1
1512-
14
SPRING; ELEMENT SUPPORT,FUEL FILTER
8-98116-657-0
01
1
1512-
21
COVER; UPR,FUEL FILTER
8-98116-653-0
01
1
1512-
22
BOLT; CENTER TUBE,COVER
8-98117-014-0
01
1
1512-
23
PLUG; COVER
8-98116-652-0
01
1
1512-
24
GASKET; CENTER TUBE BOLT
8-98116-655-0
01
1
1512-
26
GASKET; COVER TO BODY
8-98116-661-0
01
1
1512-
32
BOLT; DRAIN,FUEL FILTER
8-98116-652-0
01
1
1512-
61
SEAT; SPR ELEMENT
8-98116-658-0
01
1
1512-
144
PLUG; BODY
8-98153-286-0
01
1
1512-
146
PLUG KIT; BODY
8-98195-093-0
01
1
1512-
