Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

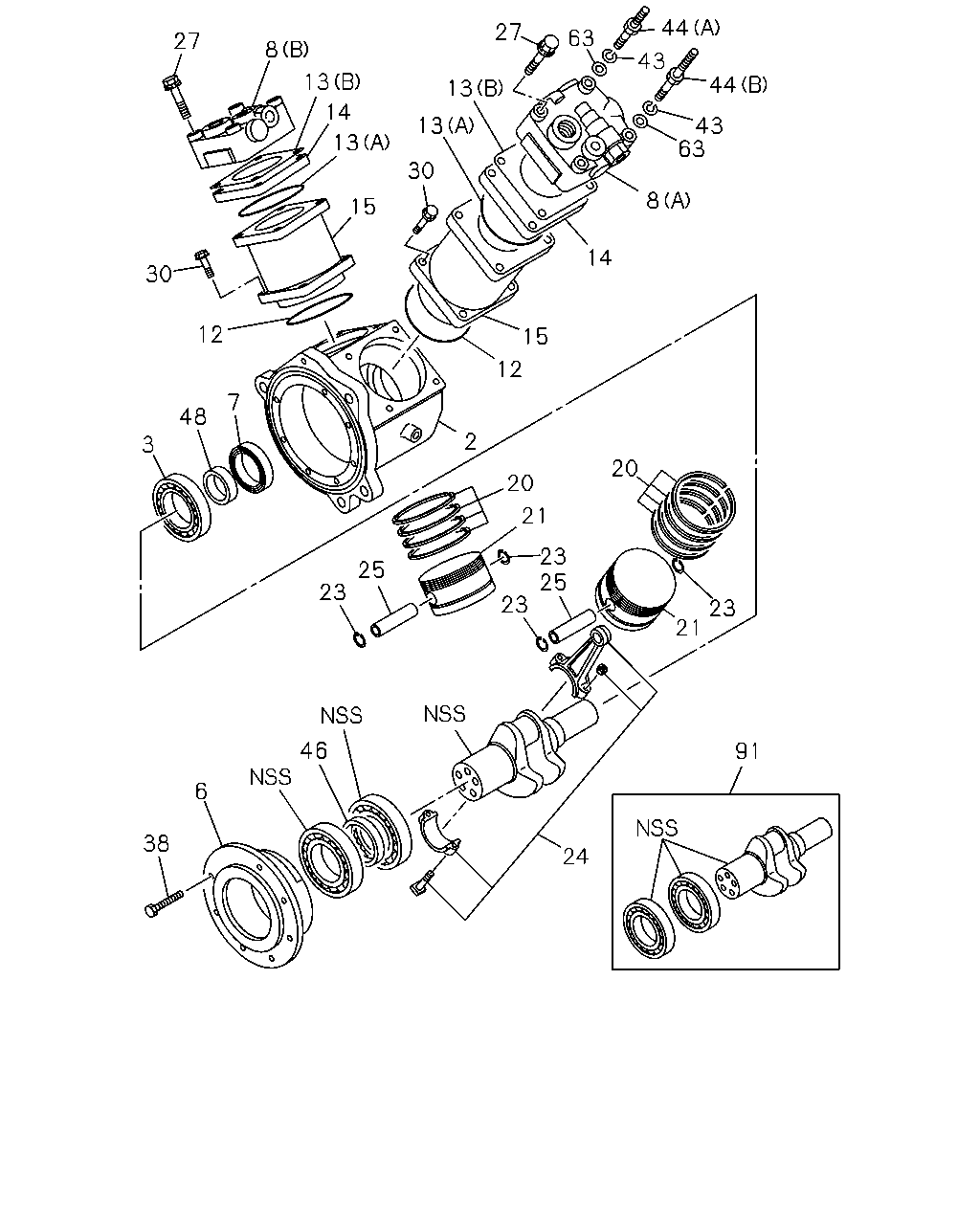

0-39 — AIR COMPRESSOR; BRAKE
(#176271) — 26 parça
24
91
21
25
20
21
20
23
23
23
25
23
46
6
38
2
12
15
14
8
63
43
44
44
43
63
27
13
13
30
15
12
7
48
3
30
27
8
14
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19151-269-6
01
1
1512-
3
BEARING; AIR CMPR
1-09800-232-0
01
1
1512-
6
COVER ASM; BRG,AIR CMPR
1-19156-068-1
01
1
1512-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
1512-
8
HEAD ASM; CYL,AIR CMPR
(B)
1-19110-073-0
01
1
1512-
8
HEAD ASM; CYL,AIR CMPR
(A)
1-19110-074-0
01
1
1512-
12
GASKET; AIR CMPR
8-98192-459-0
02
1
1512-
13
GASKET; AIR CMPR
(B)
1-19115-012-0
02
1
1512-
13
GASKET; AIR CMPR
(A)
8-98048-640-0
02
1
1512-
14
PLATE; AIR CMPR
8-98208-785-0
02
1
1512-
15
CYLINDER; AIR CMPR
1-19163-067-0
02
1
1512-
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
02
1
1512-
21
PISTON; AIR CMPR
1-19161-026-0
02
1
1512-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
04
1
1512-
24
ROD ASM; CONN,AIR CMPR
1-19173-006-0
02
1
1512-
25
PIN; PISTON,AIR CMPR
1-19167-006-0
02
1
1512-
27
BOLT; HD
M10X75
8-98167-018-0
06
1
1512-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
08
1
1512-
38
BOLT; COVER FIX
1-19159-016-0
07
1
1512-
43
WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2
9-09150-610-0
02
1
1512-
44
STUD; CYL HD,AIR CMPR
(A)
8-97614-054-0
01
1
1512-
44
STUD; CYL HD,AIR CMPR
(B)
8-98119-750-0
01
1
1512-
46
SPACER; BRG
1-19179-016-0
01
1
1512-
48
SLEEVE; CR/SHF
1-19179-018-0
01
1
1512-
63
WASHER; PL,STUD
ID=10.5 OD=18
9-09160-510-0
02
1
1512-
91
SHAFT KIT; CRANK
8-98277-387-0
01
1
1512-
