Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#176266) — 248 parça

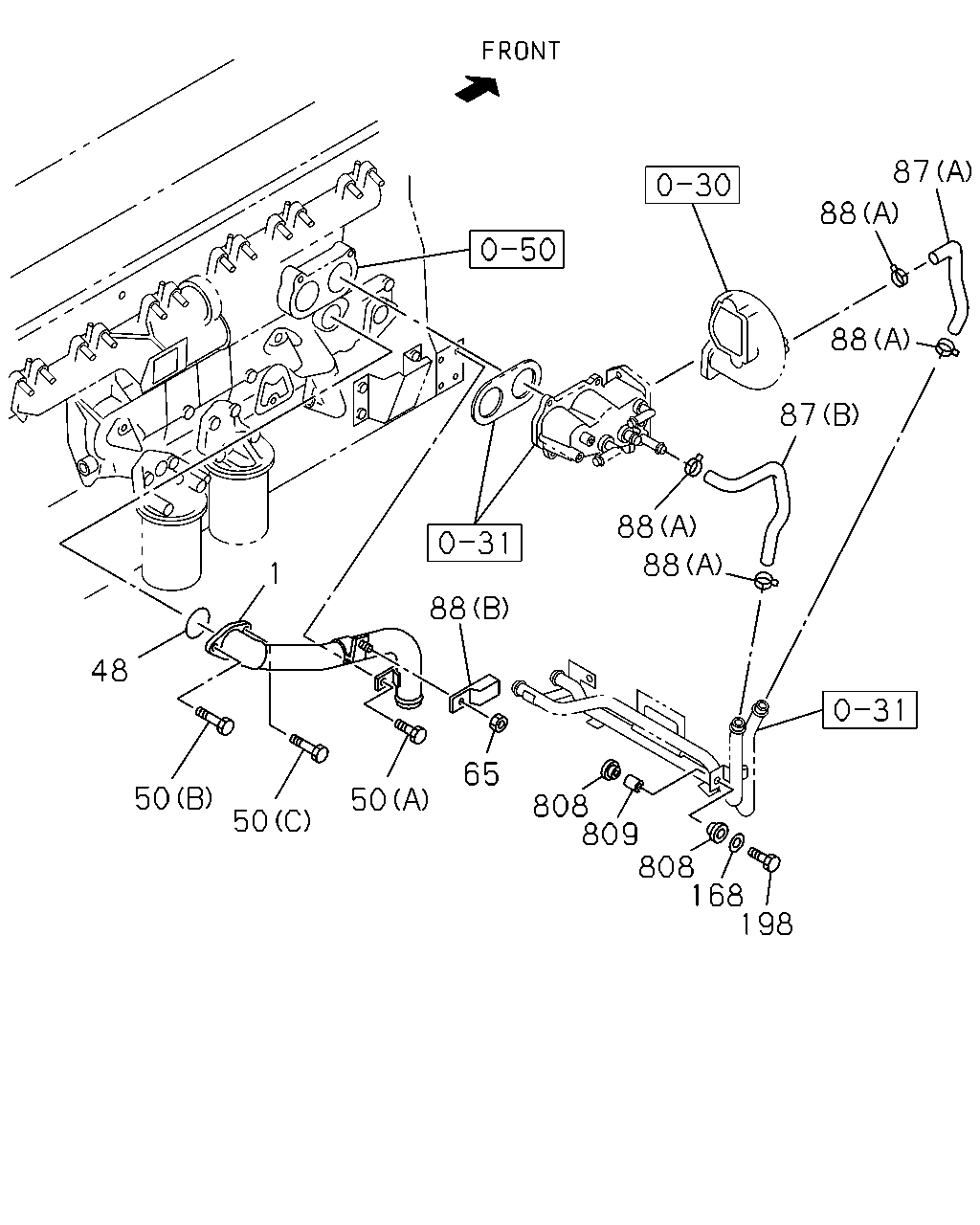

87 88 88 88 88 50 50 50 65 48 808 809 808 168 198 88 87 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	1512-
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	1512-
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	1512-
50	BOLT; WATER PIPE INL (C) M10X90 FLANGE	0-28151-090-0	01	1	1512-
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	1512-
65	NUT M10 FLANGE	0-91180-110-0	01	1	1512-
87	HOSE; RUBBER,HTR (B)	1-83565-572-0	01	1	1512-
87	HOSE; RUBBER,HTR (A)	1-83565-577-0	01	1	1512-
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	1512-
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1512-
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	1512-
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	1512-
808	RUBBER; MTG	1-09337-017-0	04	1	1512-
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	1512-

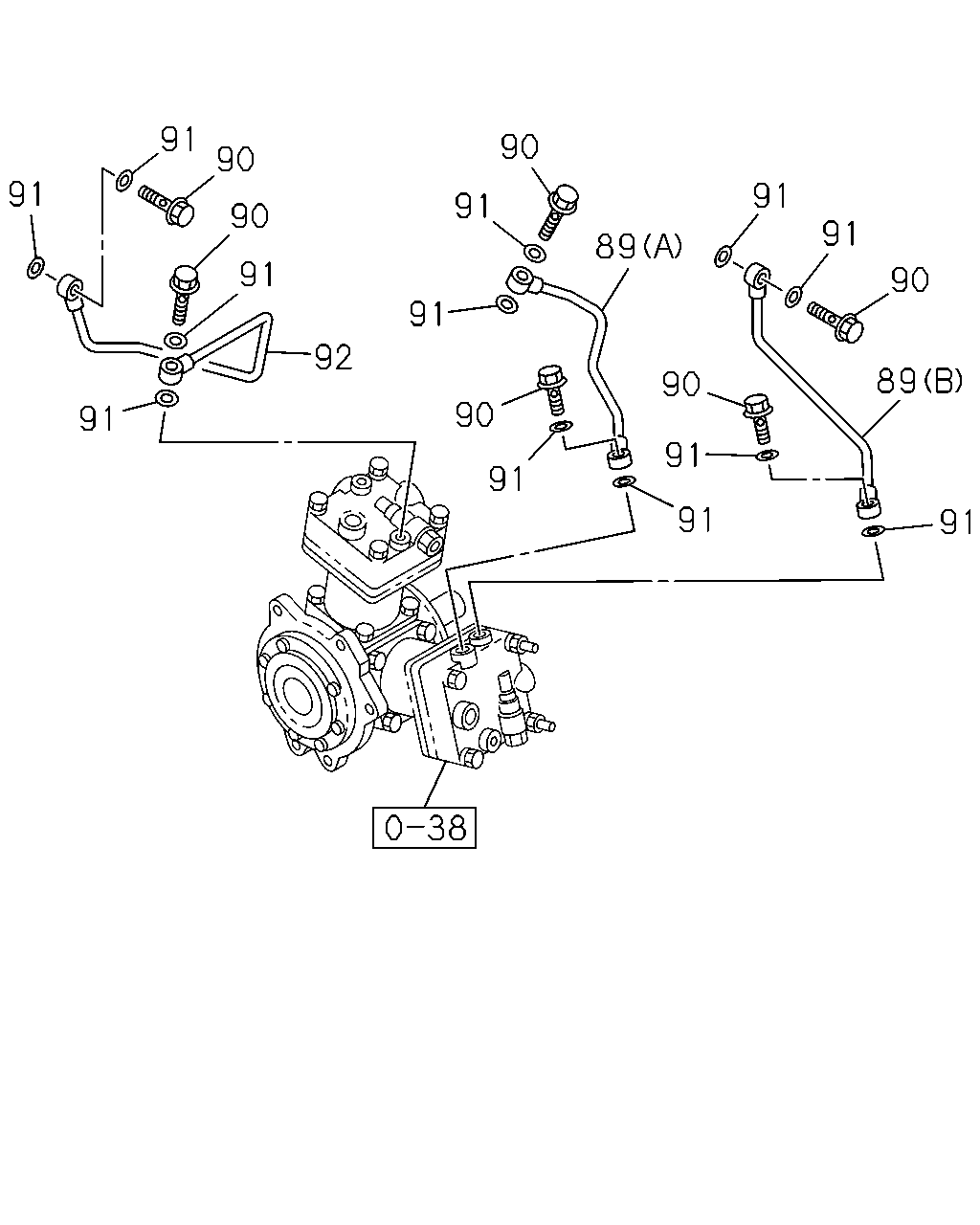

91 91 90 90 91 92 91 90 91 91 90 91 89 90 91 91 91 90 89 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	PIPE; WATER,AIR CMPR,IN (B)	1-13722-007-0	01	1	1512-
89	PIPE; WATER,AIR CMPR,IN (A)	1-13722-008-0	01	1	1512-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	1512-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	1512-
92	PIPE; WATER,AIR CMPR,OUT	1-13722-009-0	01	1	1512-

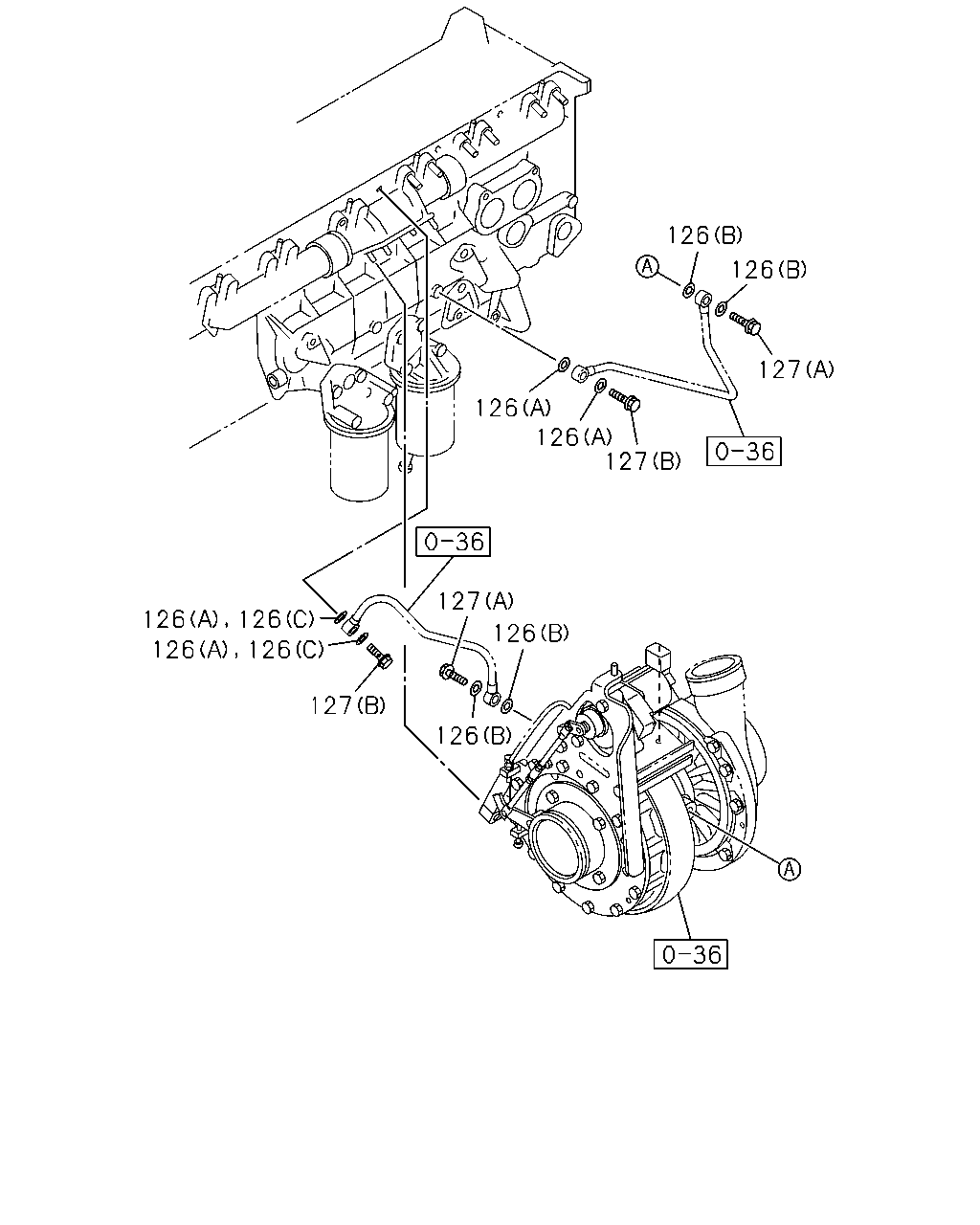

126 127 126 127 126 126 126 126 126 126 127 127 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	1512-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	04	1	1512-
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1512-
127	BOLT; EYE (A) M16X30 FLANGE	1-09675-095-1	02	1	1512-
127	BOLT; EYE (B) M14X27 EYE-BOLT	1-09675-193-0	02	1	1512-

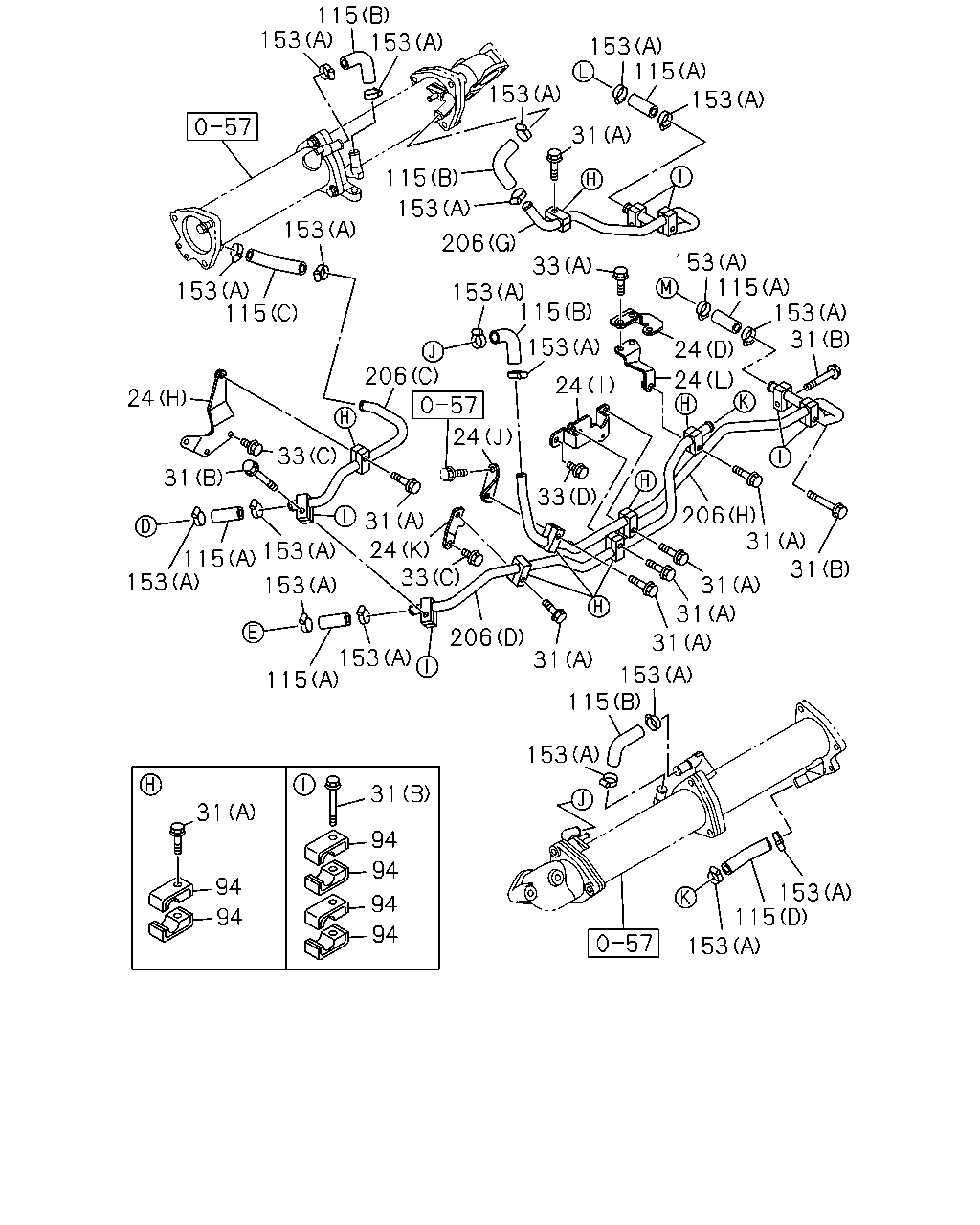

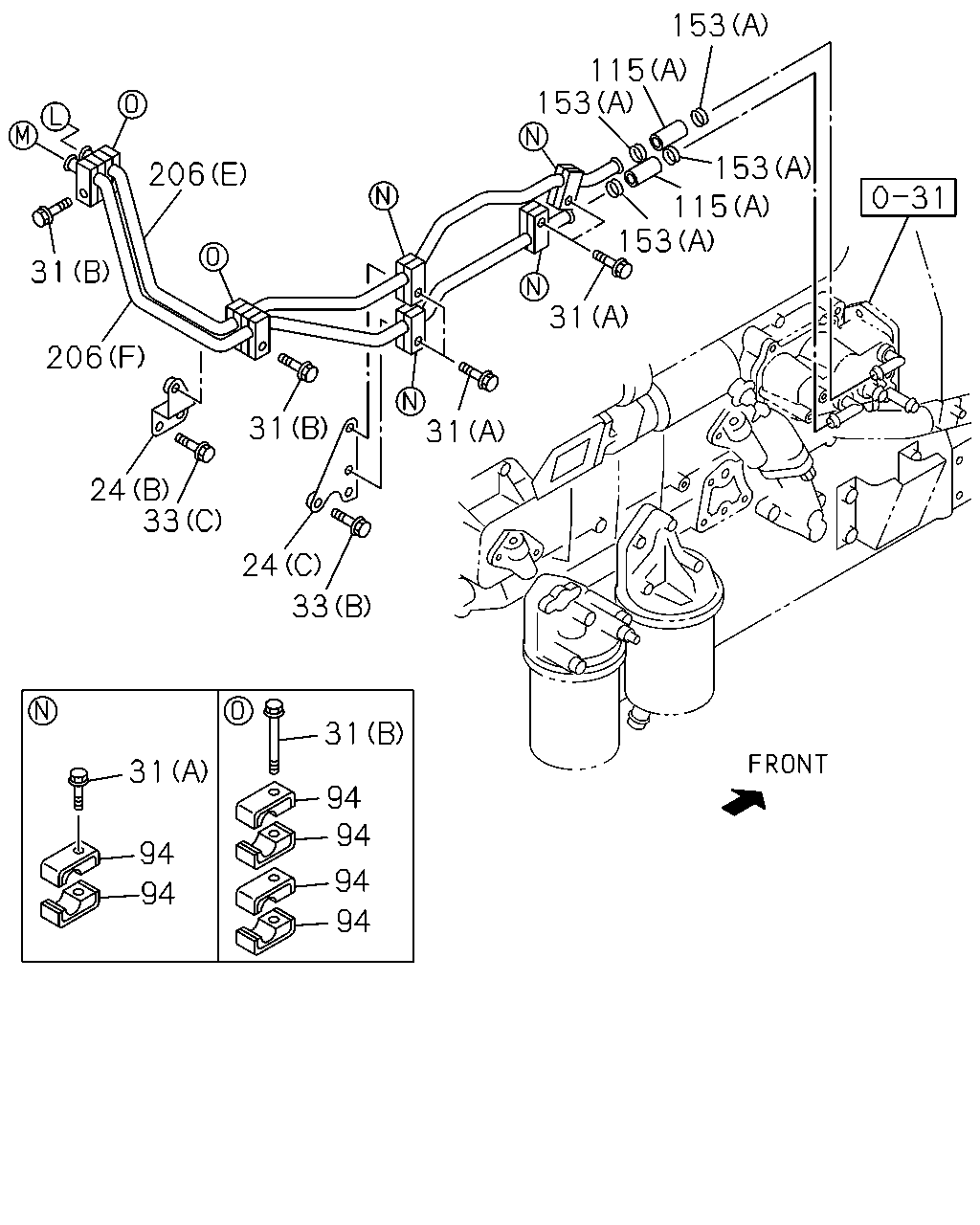

206 31 206 24 33 24 31 33 153 115 153 153 115 153 31 31 31 94 94 31 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1512-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1512-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1512-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1512-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1512-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1512-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1512-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1512-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1512-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1512-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1512-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1512-
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1512-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1512-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1512-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1512-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1512-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1512-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

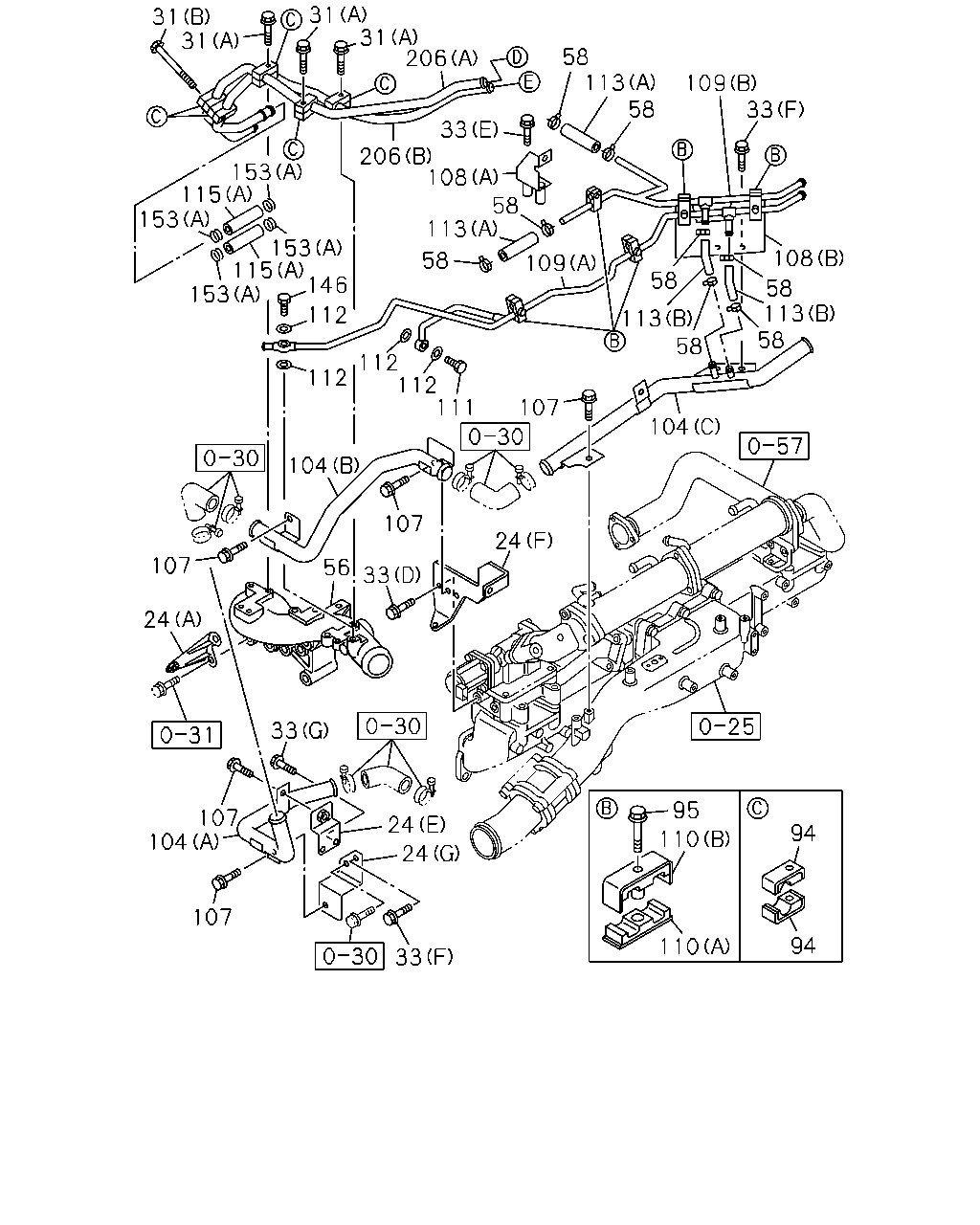

153 31 153 115 31 153 115 153 115 153 31 31 146 112 24 115 153 58 113 58 33 109 153 33 108 206 206 112 112 112 107 24 107 104 107 104 56 33 24 24 33 111 58 113 58 109 107 107 33 24 58 113 104 58 108 58 113 58 95 110 110 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1512-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1512-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1512-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1512-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1512-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1512-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1512-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1512-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1512-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1512-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1512-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1512-
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1512-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1512-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1512-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1512-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1512-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1512-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1512-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1512-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1512-
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1512-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1512-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1512-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1512-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-343-0	01	1	1512-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-497-0	01	1	1512-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1512-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1512-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1512-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1512-
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1512-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1512-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1512-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

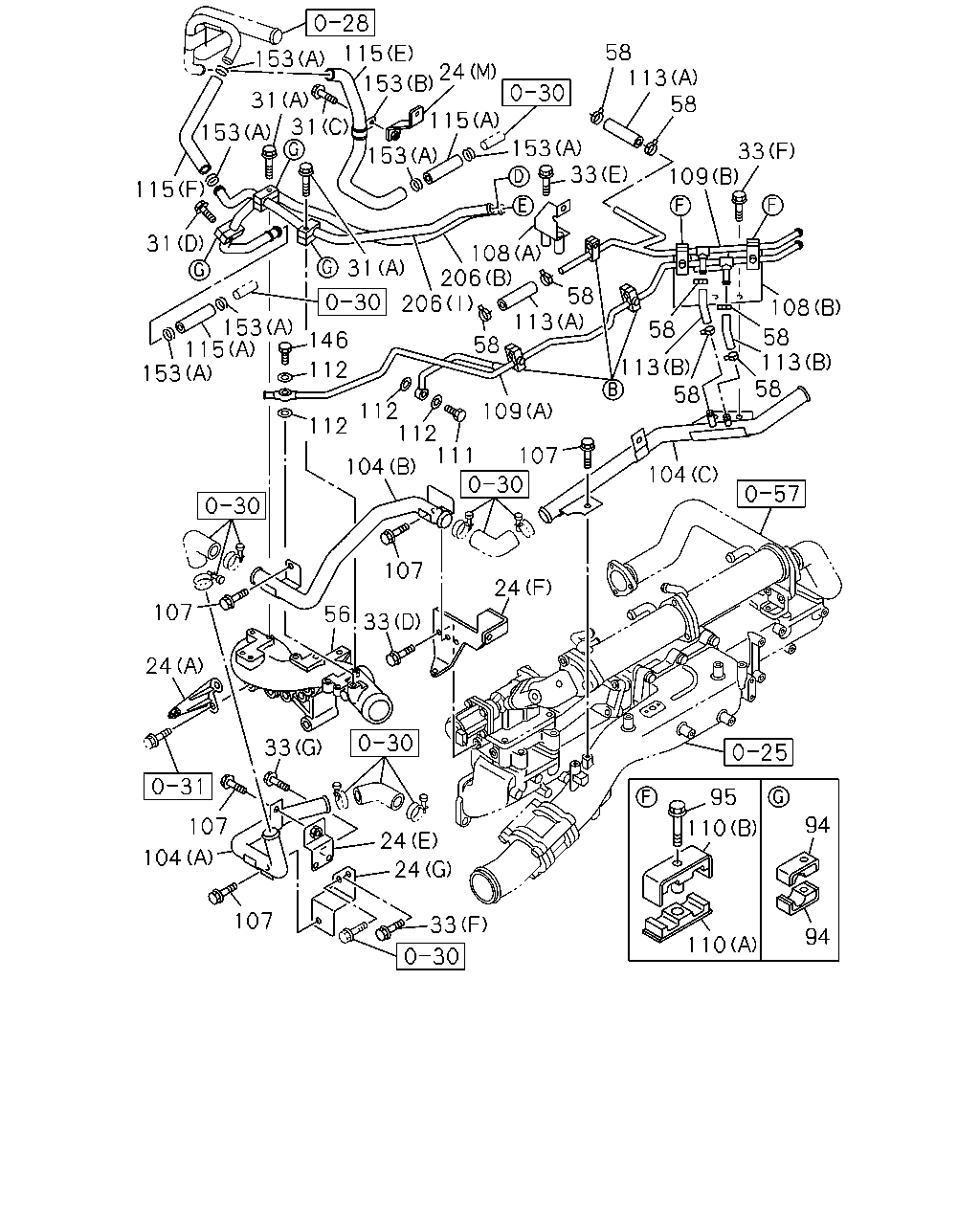

31 31 31 31 206 153 115 153 153 115 153 206 33 108 113 58 58 58 113 58 109 33 109 58 113 58 108 58 113 58 146 112 112 112 112 111 104 107 56 107 107 104 24 33 24 33 107 104 107 24 24 33 95 110 110 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1512-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1512-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1512-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1512-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1512-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1512-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1512-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1512-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1512-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1512-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1512-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1512-
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1512-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1512-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1512-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1512-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
56	PIPE; WATER OUTLET	8-98038-588-0	01	1	1512-
58	CLIP; RUBBER HOSE ID=14	1-09704-102-0	08	1	1512-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	06	1	1512-
104	PIPE; WATER CHARGE (B)	8-97613-001-1	01	1	1512-
104	PIPE; WATER CHARGE (A)	8-97617-188-0	01	1	1512-
104	PIPE; WATER CHARGE (C)	8-98191-341-0	01	1	1512-
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	05	1	1512-
108	BRACKET; WATER CHARGE (A)	8-97613-672-0	01	1	1512-
108	BRACKET; WATER CHARGE (B)	8-97615-508-2	01	1	1512-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	8-98191-343-0	01	1	1512-
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	8-98191-497-0	01	1	1512-
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	06	1	1512-
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	06	1	1512-
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	1512-
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	1512-
113	HOSE; RUBBER,AIR LEAK (A) L=100 SERVICED BY L=3000	0-03559-300-0	02	1	1512-
113	HOSE; RUBBER,AIR LEAK (B)	8-98191-351-0	02	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1512-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1512-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

115 153 153 153 153 115 24 31 153 115 153 33 115 153 206 153 206 31 24 33 153 115 153 206 31 153 153 115 153 31 33 115 153 24 24 33 153 115 153 31 24 206 31 31 31 31 31 153 115 153 153 115 153 31 94 94 94 94 31 94 94 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE (A)	8-97609-581-1	01	1	1512-
24	BRACKET; WATER PIPE (B)	8-97610-306-1	01	1	1512-
24	BRACKET; WATER PIPE (C)	8-97610-307-1	01	1	1512-
24	BRACKET; WATER PIPE (E)	8-97613-004-0	01	1	1512-
24	BRACKET; WATER PIPE (F)	8-97613-005-1	01	1	1512-
24	BRACKET; WATER PIPE (G)	8-97613-007-1	01	1	1512-
24	BRACKET; WATER PIPE (H)	8-97613-530-0	01	1	1512-
24	BRACKET; WATER PIPE (I)	8-97613-531-0	01	1	1512-
24	BRACKET; WATER PIPE (J)	8-97615-507-0	01	1	1512-
24	BRACKET; WATER PIPE (K)	8-97618-746-0	01	1	1512-
24	BRACKET; WATER PIPE (D)	8-97628-207-0	01	1	1512-
24	BRACKET; WATER PIPE (L)	8-97628-300-0	01	1	1512-
24	BRACKET; WATER PIPE RUSSIA EQUIPMENT(B12) (M)	8-98327-621-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (C) M8X16 FLANGE	0-28050-816-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (D) M8X50 FLANGE	0-28050-850-0	01	1	1512-
31	BOLT; CLIP RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	06	1	1512-
31	BOLT; CLIP EXC. RUSSIA EQUIPMENT(B12) (B) M8X70 FLANGE	0-28050-870-0	07	1	1512-
31	BOLT; CLIP (A) M8X40 FLANGE	0-28050-840-0	12	1	1512-
33	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	04	1	1512-
33	BOLT; BRKT (G) M10X20 FLANGE	0-28051-020-0	02	1	1512-
33	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	05	1	1512-
33	BOLT; BRKT (F) M10X25 FLANGE	0-28151-025-0	03	1	1512-
33	BOLT; BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1512-
33	BOLT; BRKT (E) M10X90 FLANGE	0-28151-090-0	02	1	1512-
33	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	03	1	1512-
33	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X25 FLANGE	0-28050-825-0	02	1	1512-
94	CLIP; WATER PIPE RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	54	1	1512-
94	CLIP; WATER PIPE EXC. RUSSIA EQUIPMENT(B12) ID=17 L=17	1-09701-284-0	56	1	1512-
115	HOSE; RUBBER (B)	8-97604-063-0	04	1	1512-
115	HOSE; RUBBER (C)	8-97628-219-0	01	1	1512-
115	HOSE; RUBBER (D)	8-97628-220-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	07	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (E)	8-98327-617-0	01	1	1512-
115	HOSE; RUBBER RUSSIA EQUIPMENT(B12) (F)	8-98327-618-0	01	1	1512-
115	HOSE; RUBBER EXC. RUSSIA EQUIPMENT(B12) (A) L=55 SERVICED BY L=3000	0-03566-300-0	08	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	30	1	1512-
153	CLIP; RUBBER HOSE RUSSIA EQUIPMENT(B12) (B) ID=27 L=26	8-98096-216-0	10	1	1512-
153	CLIP; RUBBER HOSE EXC. RUSSIA EQUIPMENT(B12) (A) ID=25	8-97177-581-0	28	1	1512-
206	PIPE; WATER,EGR COOLER (E)	8-97613-292-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (F)	8-97613-294-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (B)	8-97623-511-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (C)	8-97628-203-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (D)	8-97628-204-0	01	1	1512-
206	PIPE; WATER,EGR COOLER (G)	8-97628-205-1	01	1	1512-
206	PIPE; WATER,EGR COOLER (H)	8-97628-206-1	01	1	1512-
206	PIPE; WATER,EGR COOLER RUSSIA EQUIPMENT(B12) (I)	8-98327-620-0	01	1	1512-
206	PIPE; WATER,EGR COOLER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97629-442-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
