0-28 — VENTILATION SYSTEM (#176263) — 106 parça

270 151 270 270 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
151	SEPARATOR; OIL,PCV	8-98126-690-0	01	1	1512-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (A) L=500	8-98216-422-0	01	1	1512-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (B)	8-98216-429-0	03	1	1512-
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (A)	8-97646-828-2	01	1	1512-
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (B)	8-98247-767-0	01	1	1512-
270	COVER; VENTILATOR RUSSIA EQUIPMENT(B12) (C)	8-98247-768-1	01	1	1512-

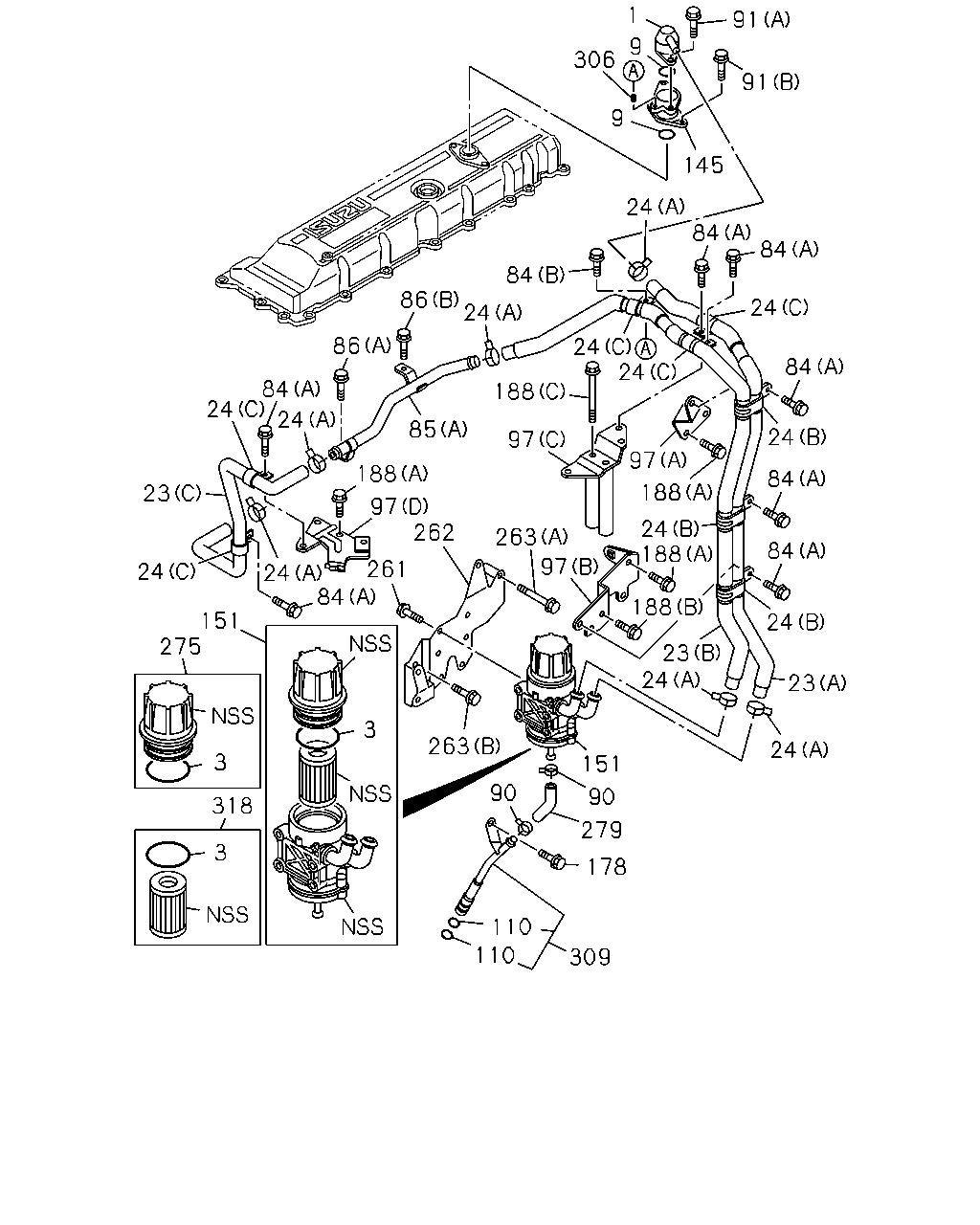

1 91 91 9 306 9 145 24 84 84 24 24 24 84 24 86 86 84 24 24 85 188 84 24 84 97 188 24 84 188 97 263 262 188 97 23 24 24 84 261 151 275 3 3 318 3 263 188 24 23 23 24 24 151 90 279 90 178 110 309 110 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BREATHER; AIR	1-11740-181-1	01	1	1512-
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1512-
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE (A)	8-98122-987-1	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (D)	8-98327-593-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (E)	8-98327-631-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-98122-988-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (C)	8-98254-532-0	01	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=28.5	1-09707-150-0	06	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (D) ID=24.5 L=22	8-97603-362-1	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	05	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR (A) M8X16 FLANGE	0-28050-816-0	07	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR RUSSIA EQUIPMENT(B12) (C) M8X60 FLANGE	0-28050-860-0	02	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (B) M8X50 FLANGE	0-28050-850-0	01	1	1512-
85	PIPE; BREATHER RUSSIA EQUIPMENT(B12) (B)	8-98327-612-0	01	1	1512-
85	PIPE; BREATHER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97611-021-1	01	1	1512-
86	BOLT; BREATHER PIPE RUSSIA EQUIPMENT(B12) (C)	8-98277-232-0	01	1	1512-
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	01	1	1512-
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-97377-804-0	01	1	1512-
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1512-
91	BOLT; AIR BREATHER (A) M10X20 FLANGE	0-28151-020-0	02	1	1512-
91	BOLT; AIR BREATHER (B) M10X25 FLANGE	0-28151-025-0	02	1	1512-
97	BRACKET; HOSE (A)	8-97628-209-0	01	1	1512-
97	BRACKET; HOSE (B)	8-98122-983-0	01	1	1512-
97	BRACKET; HOSE (C)	8-98122-984-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (F)	8-98327-608-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (G)	8-98327-609-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (E)	8-98328-539-0	01	1	1512-
97	BRACKET; HOSE EXC. RUSSIA EQUIPMENT(B12) (D)	8-98122-985-1	01	1	1512-
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1512-
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1512-
151	SEPARATOR; OIL,PCV	8-98126-690-0	01	1	1512-
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1512-
188	BOLT; BRKT (B) M8X45 FLANGE	0-28050-845-0	01	1	1512-
188	BOLT; BRKT (C) M10X130 FLANGE	0-28156-013-0	02	1	1512-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (D) M8X16 FLANGE	0-28050-816-0	02	1	1512-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
188	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	05	1	1512-
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1512-
262	BRACKET; OIL SEPARETOR	8-98122-426-0	01	1	1512-
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1512-
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1512-
275	CAP; PCV	8-97625-726-0	01	1	1512-
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1512-
306	SPACER; CLIP EXC. RUSSIA EQUIPMENT(B12) L=33	8-97329-615-0	01	1	1512-
309	PIPE ASM; OIL SEPARATOR	8-98122-427-0	01	1	1512-
318	ELEMENT KIT; PCV	8-97625-725-0	01	1	1512-

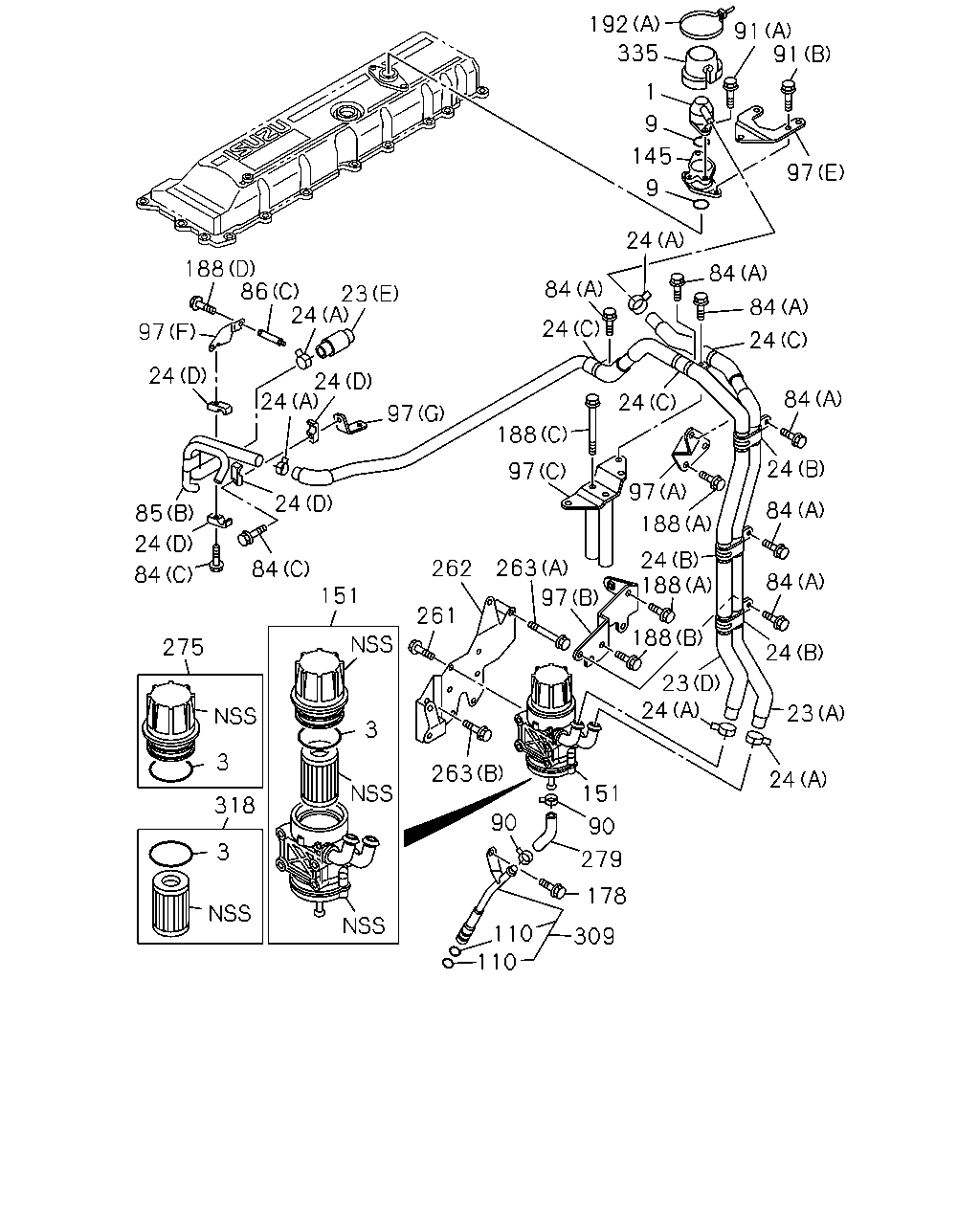

192 335 91 91 1 9 145 97 9 24 84 84 84 24 24 24 84 188 86 23 24 97 24 24 24 97 188 97 97 24 84 188 84 24 188 97 263 262 261 188 24 23 23 24 24 85 24 24 84 84 151 275 3 3 318 3 263 151 90 90 279 178 309 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BREATHER; AIR	1-11740-181-1	01	1	1512-
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1512-
9	GASKET; AIR BREATHER ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-565-0	02	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE (A)	8-98122-987-1	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (D)	8-98327-593-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE RUSSIA EQUIPMENT(B12) (E)	8-98327-631-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-98122-988-0	01	1	1512-
23	HOSE; RUBBER,VENTILATOR PIPE EXC. RUSSIA EQUIPMENT(B12) (C)	8-98254-532-0	01	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR (B) ID=30X2 L=28	1-09701-266-0	03	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR (A) ID=28.5	1-09707-150-0	06	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (D) ID=24.5 L=22	8-97603-362-1	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	04	1	1512-
24	CLIP; RUBBER HOSE,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (C) ID=33 L=30	8-97619-250-0	05	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR (A) M8X16 FLANGE	0-28050-816-0	07	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR RUSSIA EQUIPMENT(B12) (C) M8X60 FLANGE	0-28050-860-0	02	1	1512-
84	BOLT; PIPE CLIP,VENTILATOR EXC. RUSSIA EQUIPMENT(B12) (B) M8X50 FLANGE	0-28050-850-0	01	1	1512-
85	PIPE; BREATHER RUSSIA EQUIPMENT(B12) (B)	8-98327-612-0	01	1	1512-
85	PIPE; BREATHER EXC. RUSSIA EQUIPMENT(B12) (A)	8-97611-021-1	01	1	1512-
86	BOLT; BREATHER PIPE RUSSIA EQUIPMENT(B12) (C)	8-98277-232-0	01	1	1512-
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	01	1	1512-
86	BOLT; BREATHER PIPE EXC. RUSSIA EQUIPMENT(B12) (B)	8-97377-804-0	01	1	1512-
90	CLIP; RUBBER HOSE ID=14	1-09704-102-0	02	1	1512-
91	BOLT; AIR BREATHER (A) M10X20 FLANGE	0-28151-020-0	02	1	1512-
91	BOLT; AIR BREATHER (B) M10X25 FLANGE	0-28151-025-0	02	1	1512-
97	BRACKET; HOSE (A)	8-97628-209-0	01	1	1512-
97	BRACKET; HOSE (B)	8-98122-983-0	01	1	1512-
97	BRACKET; HOSE (C)	8-98122-984-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (F)	8-98327-608-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (G)	8-98327-609-0	01	1	1512-
97	BRACKET; HOSE RUSSIA EQUIPMENT(B12) (E)	8-98328-539-0	01	1	1512-
97	BRACKET; HOSE EXC. RUSSIA EQUIPMENT(B12) (D)	8-98122-985-1	01	1	1512-
110	GASKET; PIPE ID=11	1-09623-469-0	02	1	1512-
145	ADAPTER; AIR BREATHER	8-98073-548-0	01	1	1512-
151	SEPARATOR; OIL,PCV	8-98126-690-0	01	1	1512-
178	BOLT; PIPE M8X16 FLANGE	0-28050-816-0	01	1	1512-
188	BOLT; BRKT (B) M8X45 FLANGE	0-28050-845-0	01	1	1512-
188	BOLT; BRKT (C) M10X130 FLANGE	0-28156-013-0	02	1	1512-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (D) M8X16 FLANGE	0-28050-816-0	02	1	1512-
188	BOLT; BRKT RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	04	1	1512-
188	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) (A) M8X20 FLANGE	0-28050-820-0	05	1	1512-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (A) L=500	8-98216-422-0	01	1	1512-
192	CLIP; BAND RUSSIA EQUIPMENT(B12) (B)	8-98216-429-0	03	1	1512-
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	1512-
262	BRACKET; OIL SEPARETOR	8-98122-426-0	01	1	1512-
263	BOLT; BRKT,OIL SEPARETOR (A) M10X90 FLANGE	0-28151-090-0	01	1	1512-
263	BOLT; BRKT,OIL SEPARETOR (B) M14X25 FLANGE	0-28951-425-0	02	1	1512-
275	CAP; PCV	8-97625-726-0	01	1	1512-
279	HOSE; RUBBER,OIL DRAIN L=90 SERVICED BY L=1000	0-02759-100-0	01	1	1512-
309	PIPE ASM; OIL SEPARATOR	8-98122-427-0	01	1	1512-
318	ELEMENT KIT; PCV	8-97625-725-0	01	1	1512-
335	COVER; AIR BREATHER RUSSIA EQUIPMENT(B12)	8-98074-852-0	01	1	1512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
