Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#176261) — 31 parça
◀

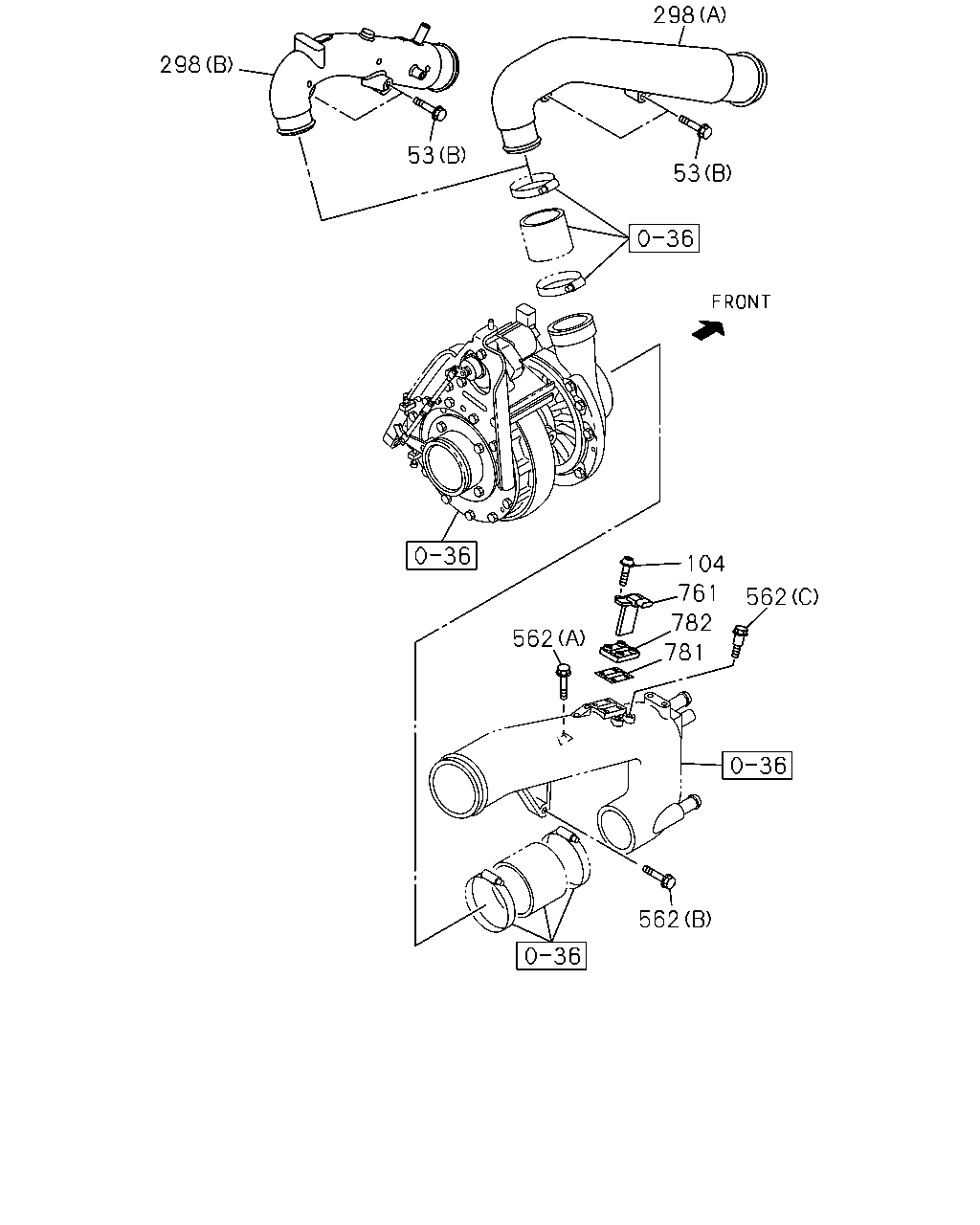

[025A] TURBOCHARGER SIDE (11 parça)

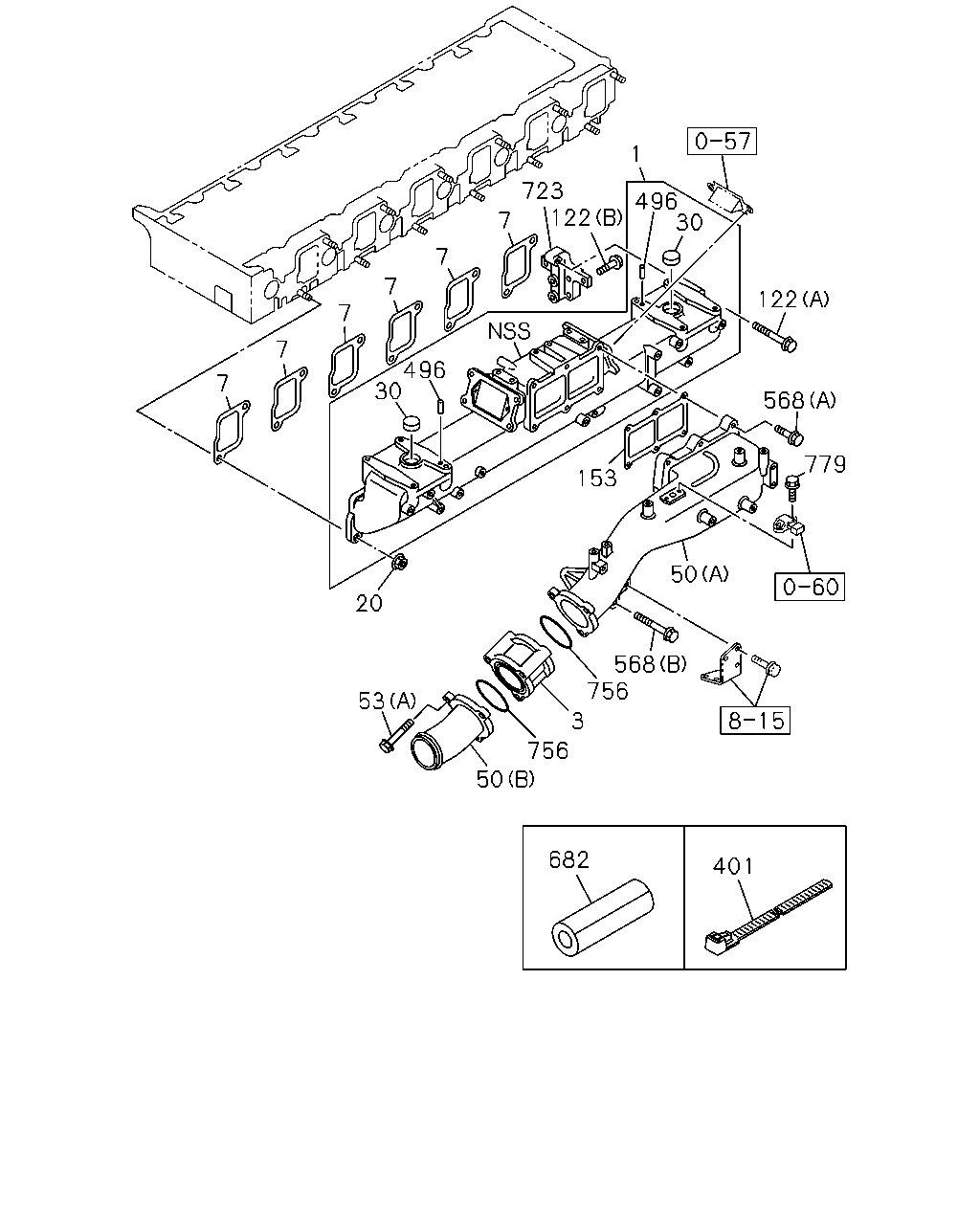

[025A] MANIFOLD ASM AND INL PIPE (20 parça)
▶
53
298
298
53
104
761
782
781
562
562
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
BOLT; INL PIPE
(A) M8X80 FLANGE
0-28050-880-0
03
1
1512-
53
BOLT; INL PIPE
(B) M10X60 FLANGE
0-28151-060-0
02
1
1512-
104
SCREW
M4X20 W/LK&PL WASHER
9-03920-420-0
04
1
1512-
298
PIPE; INL,TURBOCHARGER TO INL COVER
RUSSIA EQUIPMENT(B12) (B)
8-98337-281-0
01
1
1512-
298
PIPE; INL,TURBOCHARGER TO INL COVER
EXC. RUSSIA EQUIPMENT(B12) (A)
8-98254-536-0
01
1
1512-
562
BOLT; INL DUCT
(A) M10X50 FLANGE
0-28151-050-0
02
1
1512-
562
BOLT; INL DUCT
(B) M10X70 FLANGE
0-28151-070-0
01
1
1512-
562
BOLT; INL DUCT
(C) M10X49.8
8-97039-586-0
02
1
1512-
761
SENSOR; MANIF
8-97601-967-0
01
1
1512-
781
GASKET; SENSOR
8-98212-728-0
01
1
1512-
782
ADAPTER; SENSOR
8-98169-371-0
01
1
1512-
7
7
7
7
7
7
723
122
1
496
30
122
568
153
496
30
20
50
568
756
3
756
50
682
401
779
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; INL
8-98119-442-2
01
1
1512-
3
DUCT; INT
8-97606-246-0
01
1
1512-
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97615-623-1
06
1
1512-
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
1512-
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
1512-
50
PIPE; INL
(B)
8-97608-883-0
01
1
1512-
50
PIPE; INL
(A)
8-98133-285-1
01
1
1512-
53
BOLT; INL PIPE
(A) M8X80 FLANGE
0-28050-880-0
03
1
1512-
53
BOLT; INL PIPE
(B) M10X60 FLANGE
0-28151-060-0
02
1
1512-
122
BOLT; BRKT
(A) M10X110 FLANGE
0-28156-011-0
01
1
1512-
122
BOLT; BRKT
(B) M12X60 FLANGE
0-28161-260-0
02
1
1512-
153
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-094-1
01
1
1512-
401
CLIP; BAND
L=250
8-98216-430-0
01
1
1512-
496
PIN; INL MANIF
OD=4 L=12
1-09740-032-0
02
1
1512-
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
1512-
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
1512-
682
COVER; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
01
1
1512-
723
BRACKET; INL MANIF
8-97618-557-0
01
1
1512-
756
GASKET; INTAKE,THROTTLE
ID=94.6
1-09623-593-0
02
1
1512-
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
