Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

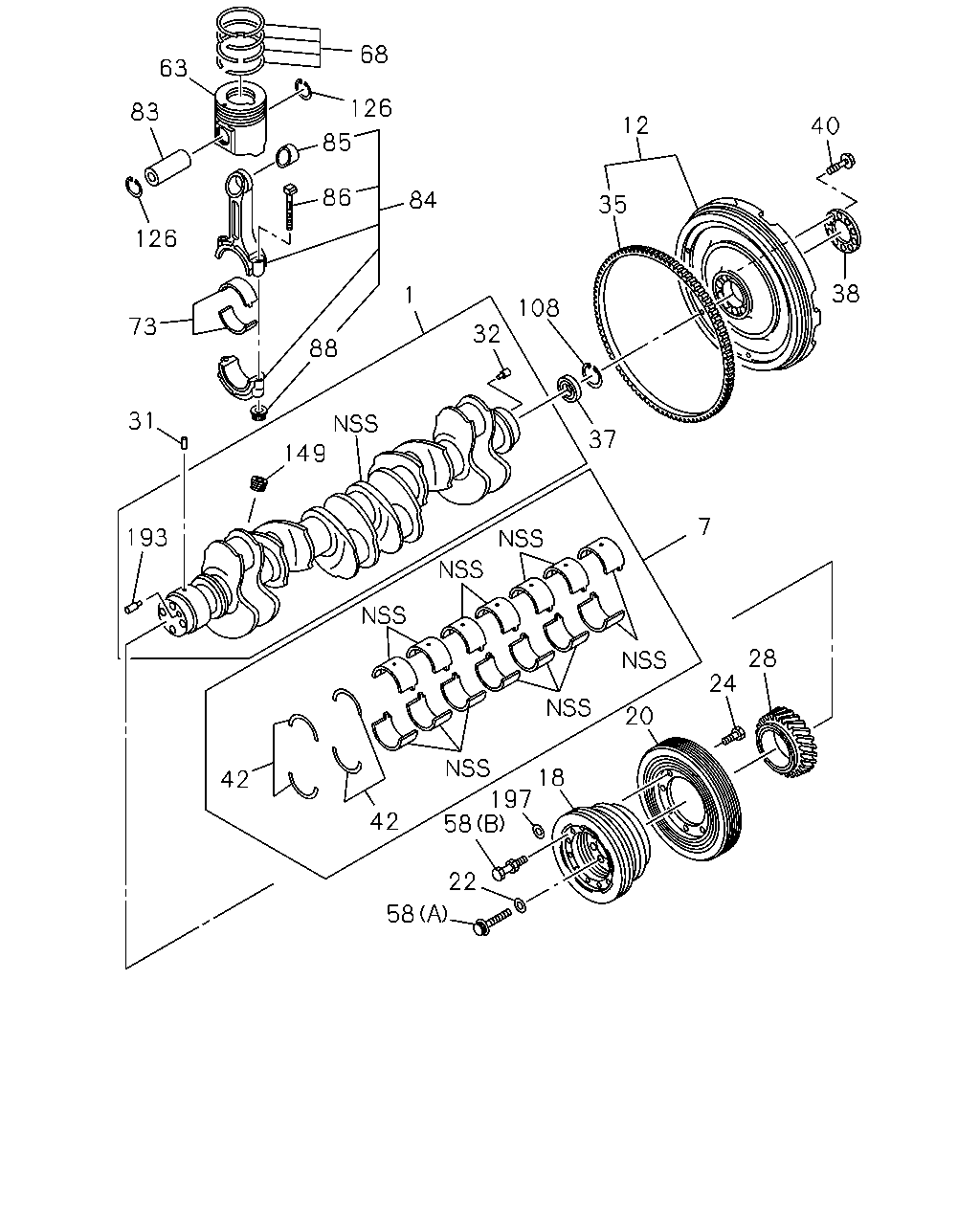

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#176258) — 31 parça
58
22
58
42
197
18
20
24
28
7
37
32
108
149
193
42
31
88
73
84
86
126
83
63
85
126
68
1
35
12
40
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98172-014-0
01
1
1512-
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1512-
12
FLYWHEEL
8-97610-231-0
01
1
1512-
18
PULLEY; CR/SHF
3-GROOVE
8-97606-321-0
01
1
1512-
20
DAMPER; CR/SHF
8-98147-154-0
01
1
1512-
22
PLATE; PULLEY
ID=18
9-09851-862-0
08
1
1512-
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
1512-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
1512-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
1512-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1512-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1512-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1512-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
1512-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
1512-
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
1512-
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1512-
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
08
1
1512-
58
BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE
8-97603-593-0
06
1
1512-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98028-808-2
06
1
1512-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
1512-
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
1512-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
1512-
84
ROD ASM; CONN
8-98115-948-0
06
1
1512-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1512-
86
BOLT; CONNROD
1-12235-036-3
12
1
1512-
88
NUT; CONNROD
1-12239-005-1
12
1
1512-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1512-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
1512-
149
PLUG
PT1
1-09605-021-1
06
1
1512-
193
PIN; FLANGE
OD=8 L=20
9-08160-820-0
01
1
1512-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
1512-
