Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#176254) — 52 parça
◀

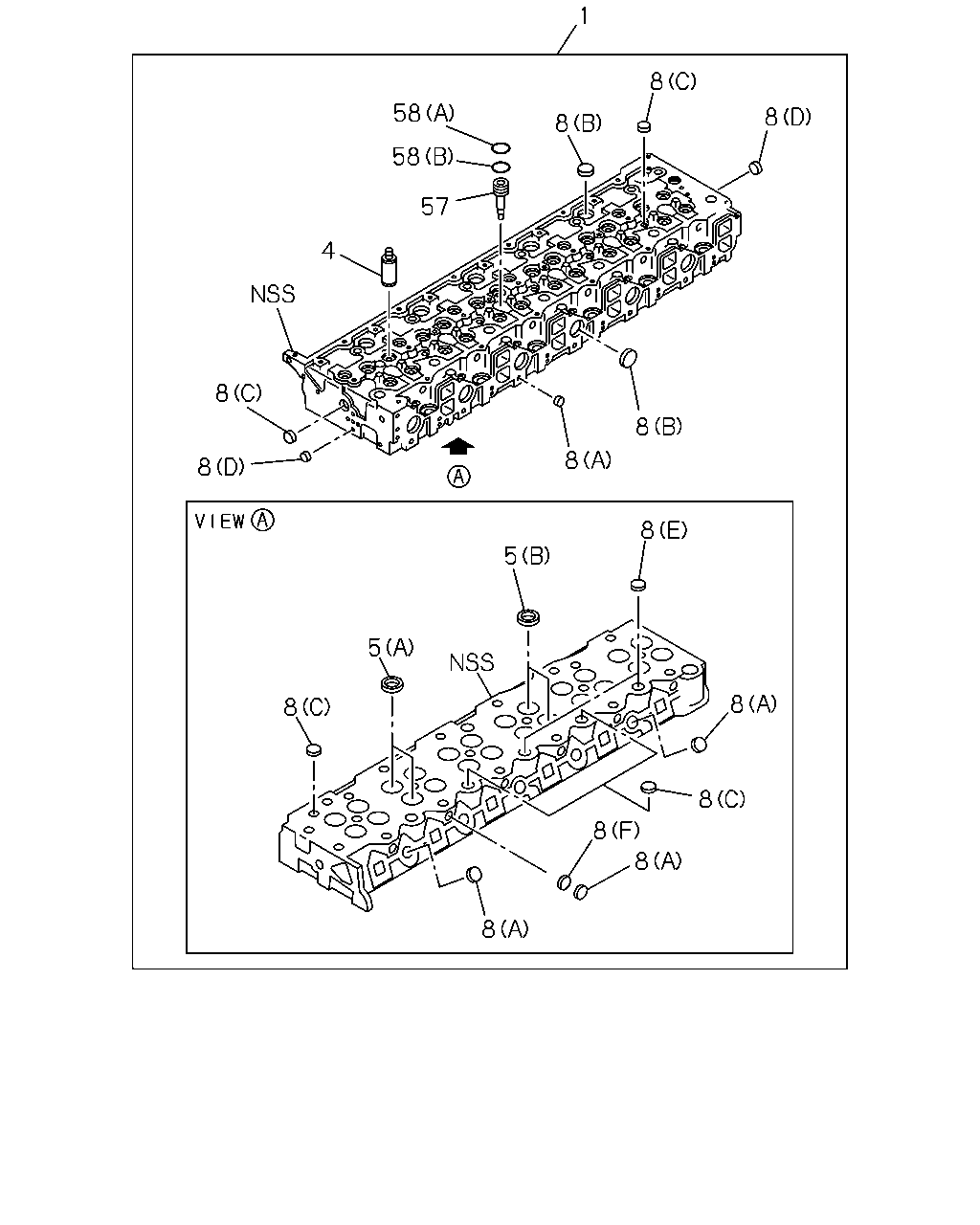

[011A] COMPONENT;CYL HEAD (13 parça)

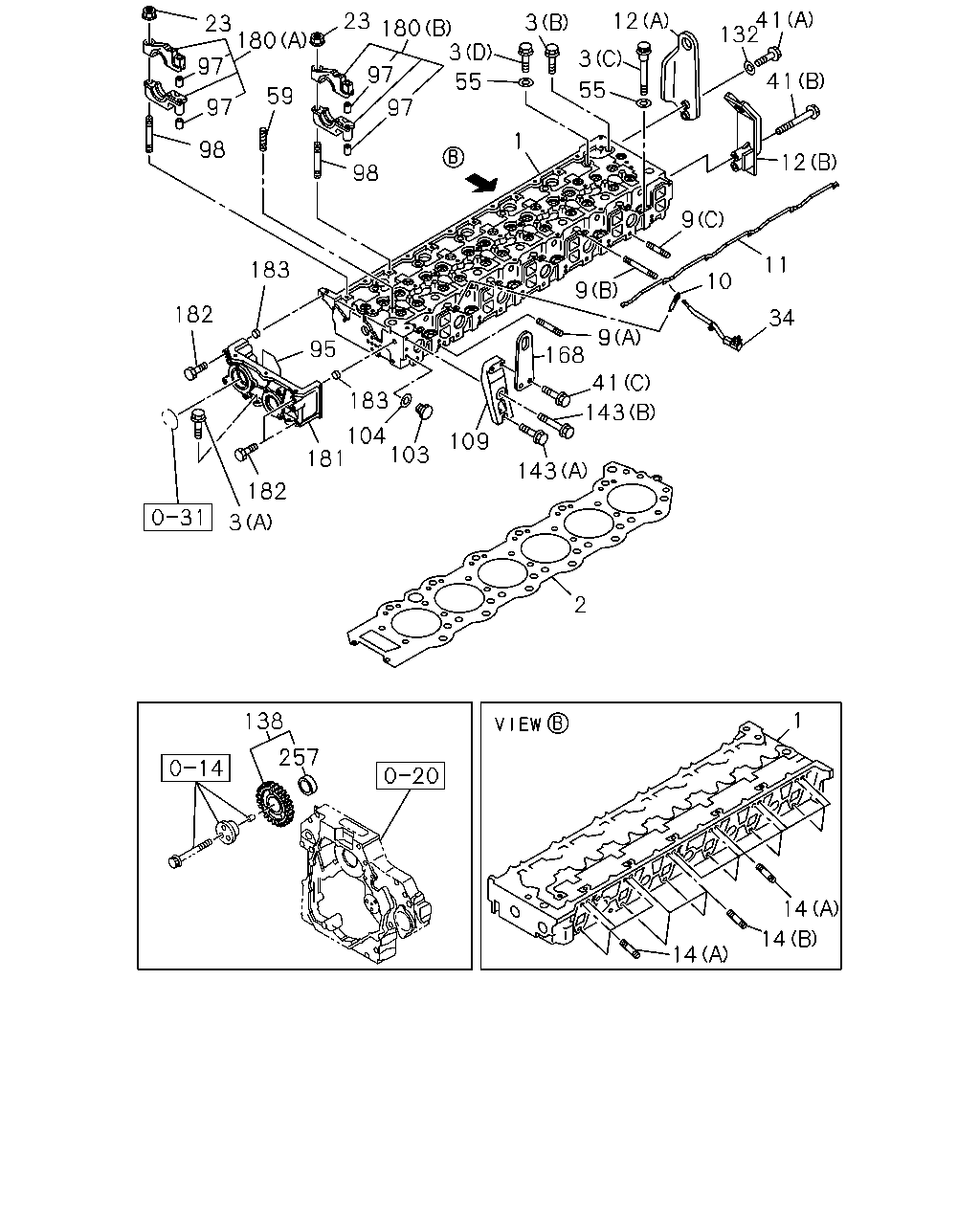

[011A] HD ASM,ENG HANGER AND OTHER PARTS (39 parça)
▶
1
8
8
8
58
58
57
8
8
5
8
8
8
8
8
8
5
8
8
8
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
1-11110-939-6
01
1
1512-
4
GUIDE; VLV
1-11721-012-1
24
1
1512-
5
SEAT; VLV INSERT
(A) INLET
1-11711-074-1
12
1
1512-
5
SEAT; VLV INSERT
(B) EXHAUST
1-11715-109-1
12
1
1512-
8
CUP; SEALING,WATER JACKET
(E) OD=32
1-09600-012-2
02
1
1512-
8
CUP; SEALING,WATER JACKET
(C) OD=25
1-09600-016-0
10
1
1512-
8
CUP; SEALING,WATER JACKET
(D) OD=12.3
5-09600-013-0
02
1
1512-
8
CUP; SEALING,WATER JACKET
(F) OD=16
5-11129-006-0
06
1
1512-
8
CUP; SEALING,WATER JACKET
(A) OD=18
5-11219-008-0
12
1
1512-
8
CUP; SEALING,WATER JACKET
(B) OD=40
8-94241-637-0
18
1
1512-
57
SLEEVE; NOZZLE HOLDER
1-11129-064-1
06
1
1512-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK
8-97233-126-0
06
1
1512-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED
8-97233-127-0
06
1
1512-
143
41
168
10
11
9
12
41
132
41
12
3
55
55
3
180
97
97
23
180
23
97
97
98
183
182
182
3
104
181
183
95
109
103
143
2
1
257
138
14
14
14
34
9
9
98
59
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
1-11110-939-6
01
1
1512-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11141-265-4
01
1
1512-
3
BOLT; CYL HD TO BLOCK
(A) M10X35 FLANGE
0-28151-035-0
02
1
1512-
3
BOLT; CYL HD TO BLOCK
(B) M12X120 FLANGE
0-28156-212-0
01
1
1512-
3
BOLT; CYL HD TO BLOCK
(C) M18X115 FLANGE
8-98245-540-0
06
1
1512-
3
BOLT; CYL HD TO BLOCK
(D) M18X159 FLANGE
8-98245-541-0
20
1
1512-
9
STUD; INL MANIF
(A) M10X70 L=85
0-44011-070-0
01
1
1512-
9
STUD; INL MANIF
(B) M10X110 L=125
1-09302-001-0
06
1
1512-
9
STUD; INL MANIF
(C) M10X50 L=65
1-09302-105-0
05
1
1512-
10
PLUG; GLOW
1-82513-043-2
06
1
1512-
11
CONNECTOR; GLOW PLUG
1-19732-037-1
01
1
1512-
12
HANGER; ENG,RR
(A)
1-11777-272-0
01
1
1512-
12
HANGER; ENG,RR
(B)
8-97614-276-0
01
1
1512-
14
STUD; EXH MANIF
(B) M10X130 L=145
1-09302-107-0
04
1
1512-
14
STUD; EXH MANIF
(A) M10X77 L=92
1-09302-176-0
14
1
1512-
23
NUT; CAM BRKT
M4 FLANGE
1-09440-004-0
14
1
1512-
34
HARNESS; GLOW PLUG CONNECTOR
8-98145-681-0
01
1
1512-
41
BOLT; ENG HANGER
(B) M12X90 FLANGE
0-28161-290-0
02
1
1512-
41
BOLT; ENG HANGER
(C) M14X35 FLANGE
0-28851-435-0
02
1
1512-
41
BOLT; ENG HANGER
(A) M12X37
8-94440-908-0
02
1
1512-
55
WASHER; PL,CYL HD TO BLOCK
ID=18.2 OD=29
1-09503-032-0
26
1
1512-
59
GUIDE; BRIDGE
8-97378-021-1
12
1
1512-
95
GASKET; CYL HD TO GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-403-0
01
1
1512-
97
DOWEL; CAM BRKT SET
OD=16
8-98143-037-0
28
1
1512-
98
STUD; CAM BRKT
M12X100 L=120
8-94397-322-0
14
1
1512-
103
PLUG; HD
M10X7
1-09604-094-0
01
1
1512-
104
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
1512-
109
BRACKET; ENG HANGER
8-98114-196-0
01
1
1512-
132
WASHER; PL,ENG HANGER
ID=12.5 OD=26
9-09164-612-0
02
1
1512-
138
GEAR; IDLE
Z=45
1-12523-371-1
01
1
1512-
143
BOLT; FIX
(A) M12X25 FLANGE
0-28161-225-0
01
1
1512-
143
BOLT; FIX
(B) M12X50 FLANGE
0-28161-250-0
01
1
1512-
168
HANGER; ENG,FRT
8-97615-471-0
01
1
1512-
180
BRACKET SET; CAM,CYL HD
(A)
8-97608-785-3
01
1
1512-
180
BRACKET SET; CAM,CYL HD
(B)
8-97608-791-3
06
1
1512-
181
CASE; HEAD GEAR
1-11310-055-1
01
1
1512-
182
BOLT; CASE
M10X80
9-05921-080-0
07
1
1512-
183
DOWEL; CYL HEAD
1-13119-004-0
02
1
1512-
257
BUSHING; IDLE GEAR
AFTER PRESS FITTING, MACHINE IT.
8-98081-168-0
01
1
1512-
