Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11745 - EXZ LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

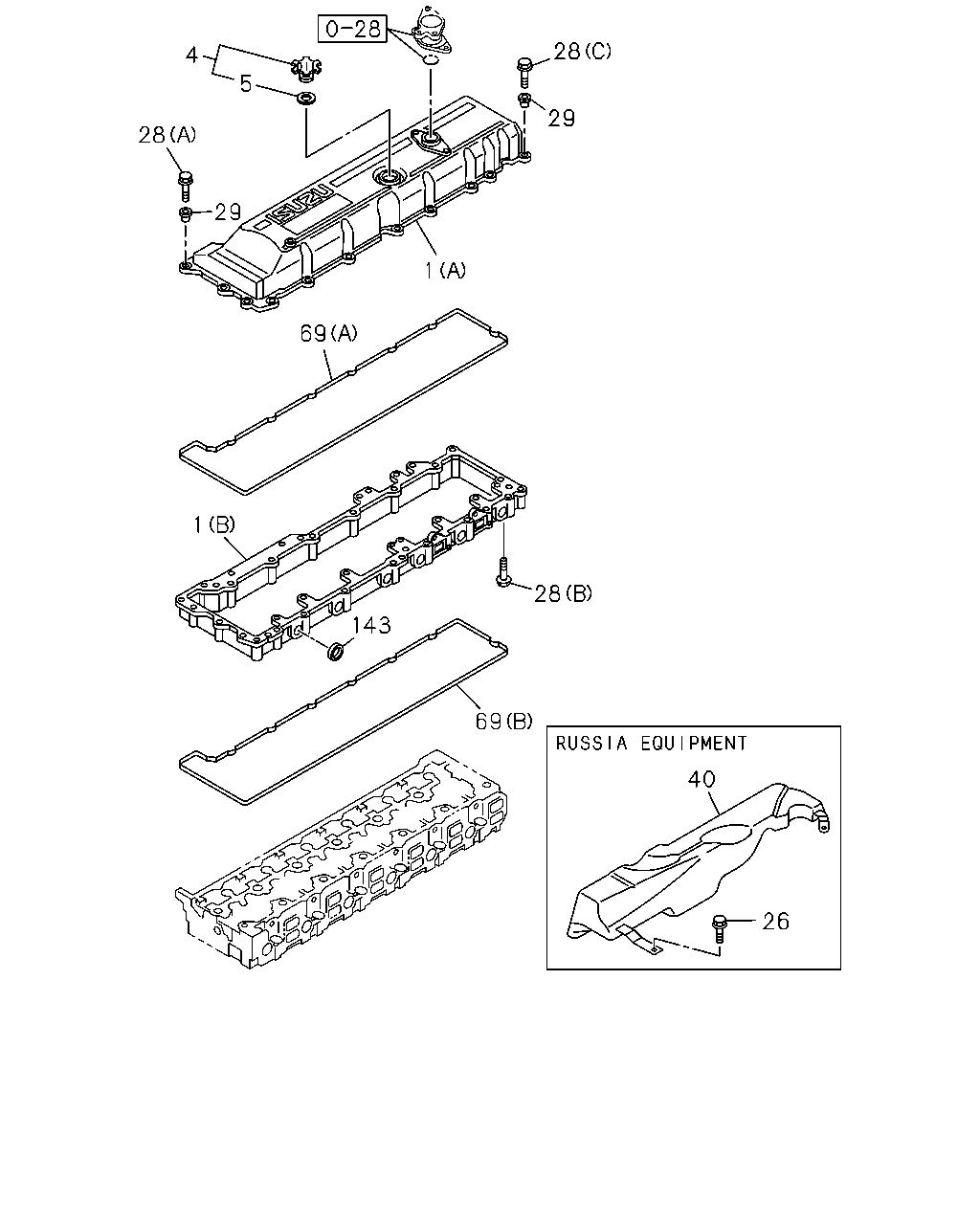

0-10 — CYLINDER HEAD COVER
(#176253) — 13 parça
4
5
28
29
69
1
29
28
1
28
143
69
40
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
(A)
1-11180-476-5
01
1
1512-
1
COVER; CYL HD
(B)
8-97618-854-1
01
1
1512-
4
CAP; OIL FILLER
8-94399-723-0
01
1
1512-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1512-
26
BOLT; CYL HD COVER
RUSSIA EQUIPMENT(B12) M8X16 FLANGE
0-28050-816-0
02
1
1512-
28
BOLT; HD COVER
(A) M8X30 FLANGE
0-28050-830-0
08
1
1512-
28
BOLT; HD COVER
(B) M8X60 FLANGE
0-28050-860-0
08
1
1512-
28
BOLT; HD COVER
(C) M8X80 FLANGE
0-28050-880-0
12
1
1512-
29
RUBBER; MTG,HD COVER
OD=22
8-94395-684-0
20
1
1512-
40
COVER
RUSSIA EQUIPMENT(B12)
8-98165-006-0
01
1
1512-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
1-11173-119-1
01
1
1512-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-11173-120-1
01
1
1512-
143
GASKET; SLEEVE
OD=30
1-09639-034-0
06
1
1512-
