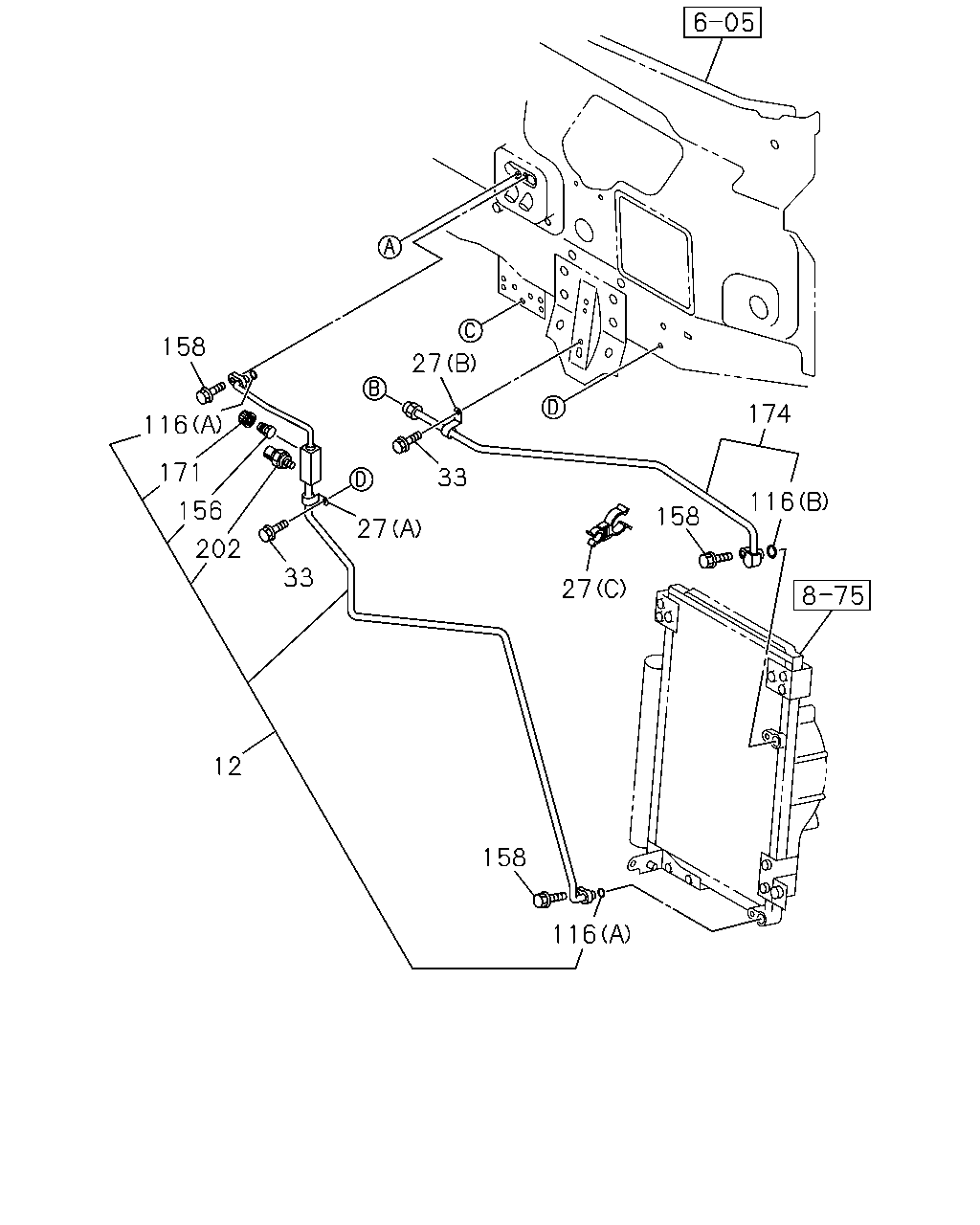

8-52 — PIPING; AIR CONDITIONING (#176242) — 30 parça

158 116 156 171 33 202 27 33 27 174 116 158 27 116 158 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK	8-98041-329-0	01	1	1502-
27	CLIP; COOLER PIPE (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1502-
27	CLIP; COOLER PIPE (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1502-
27	CLIP; COOLER PIPE (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1502-
33	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	02	1	1502-
116	GASKET; PIPE (A) ID=7.4	8-97095-906-0	02	1	1502-
116	GASKET; PIPE (B) ID=11.7	8-97095-907-0	01	1	1502-
156	VALVE; PIPE	8-98151-702-0	01	1	1502-
158	BOLT; PIPE FIX M6X25 FLANGE	0-28050-625-0	03	1	1502-
171	CAP; PIPE CAP MARK H	8-97095-911-0	01	1	1502-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE	8-98041-331-0	01	1	1502-
202	SWITCH; PRESSURE	1-83564-391-0	01	1	1502-

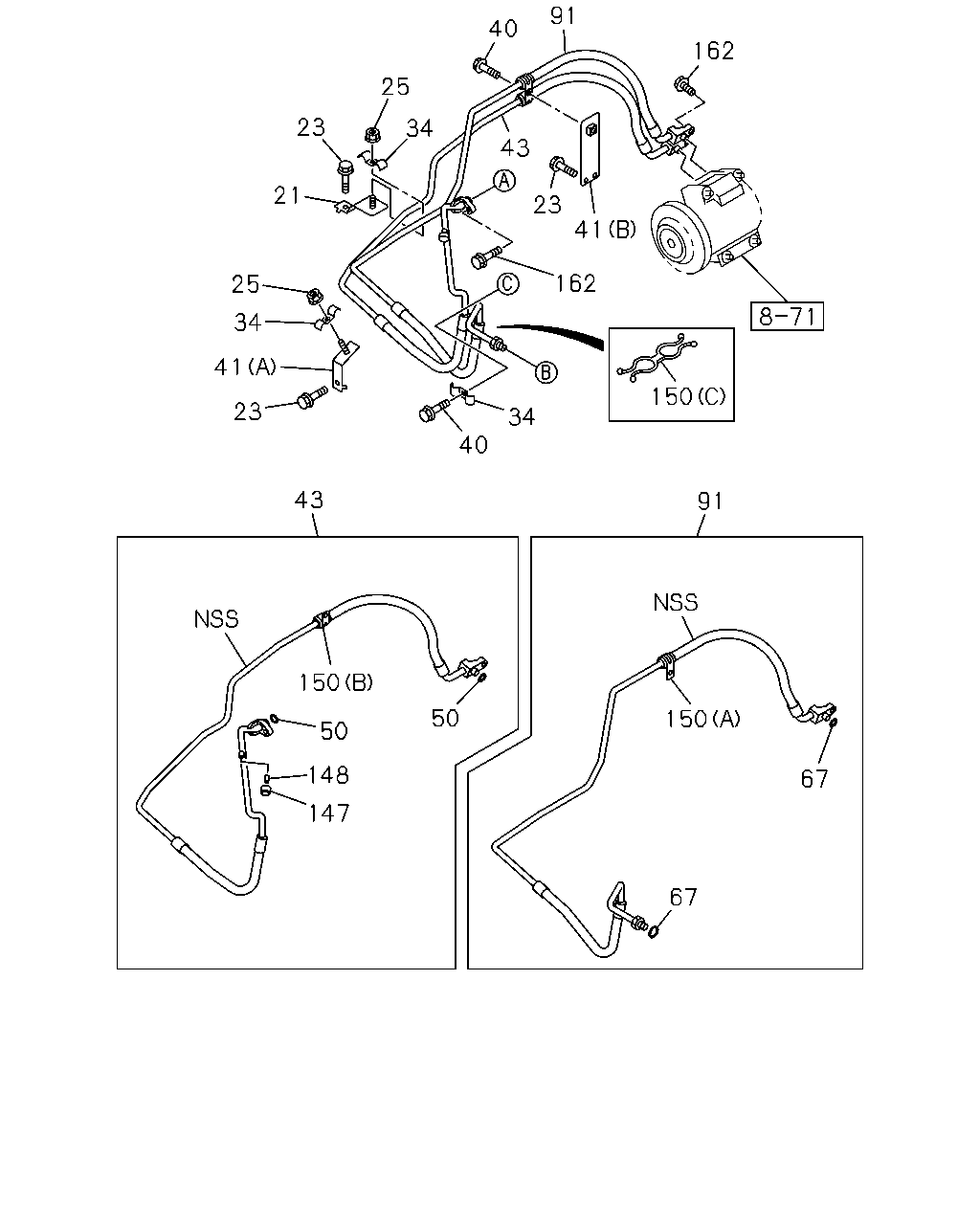

91 40 162 43 23 162 150 34 40 43 23 41 34 25 21 25 41 91 150 50 148 147 150 67 67 23 34 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE	8-98010-187-0	01	1	1502-
23	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1502-
23	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1502-
25	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1502-
34	CLIP; COOLER PIPE	8-98043-673-0	03	1	1502-
40	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1502-
41	BRACKET; PIPE CLIP (A)	8-98010-188-1	01	1	1502-
41	BRACKET; PIPE CLIP (B)	8-98032-049-0	01	1	1502-
43	HOSE; FLEX,A/C,EVAP TO CMPR	8-98043-672-2	01	1	1502-
50	GASKET; FLEX HOSE,A/C ID=14.5	8-97095-908-0	02	1	1502-
67	GASKET; FLEX HOSE ID=11.7	8-97095-907-0	02	1	1502-
91	HOSE; FLEX,CMPR	8-98043-674-2	01	1	1502-
147	CAP; FLEX HOSE CAP MARK L	1-83539-331-0	01	1	1502-
148	VALVE; FLEX HOSE	8-97095-909-0	01	1	1502-
150	CLIP; HOSE (A)	1-83574-249-0	01	1	1502-
150	CLIP; HOSE (B)	1-83574-264-0	01	1	1502-
150	CLIP; HOSE (C)	8-94423-042-0	01	1	1502-
162	BOLT; FLEX HOSE M6X25 FLANGE	0-28050-625-0	03	1	1502-
