Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#176240) — 28 parça
◀
[840A] HTR VALVE (5 parça)

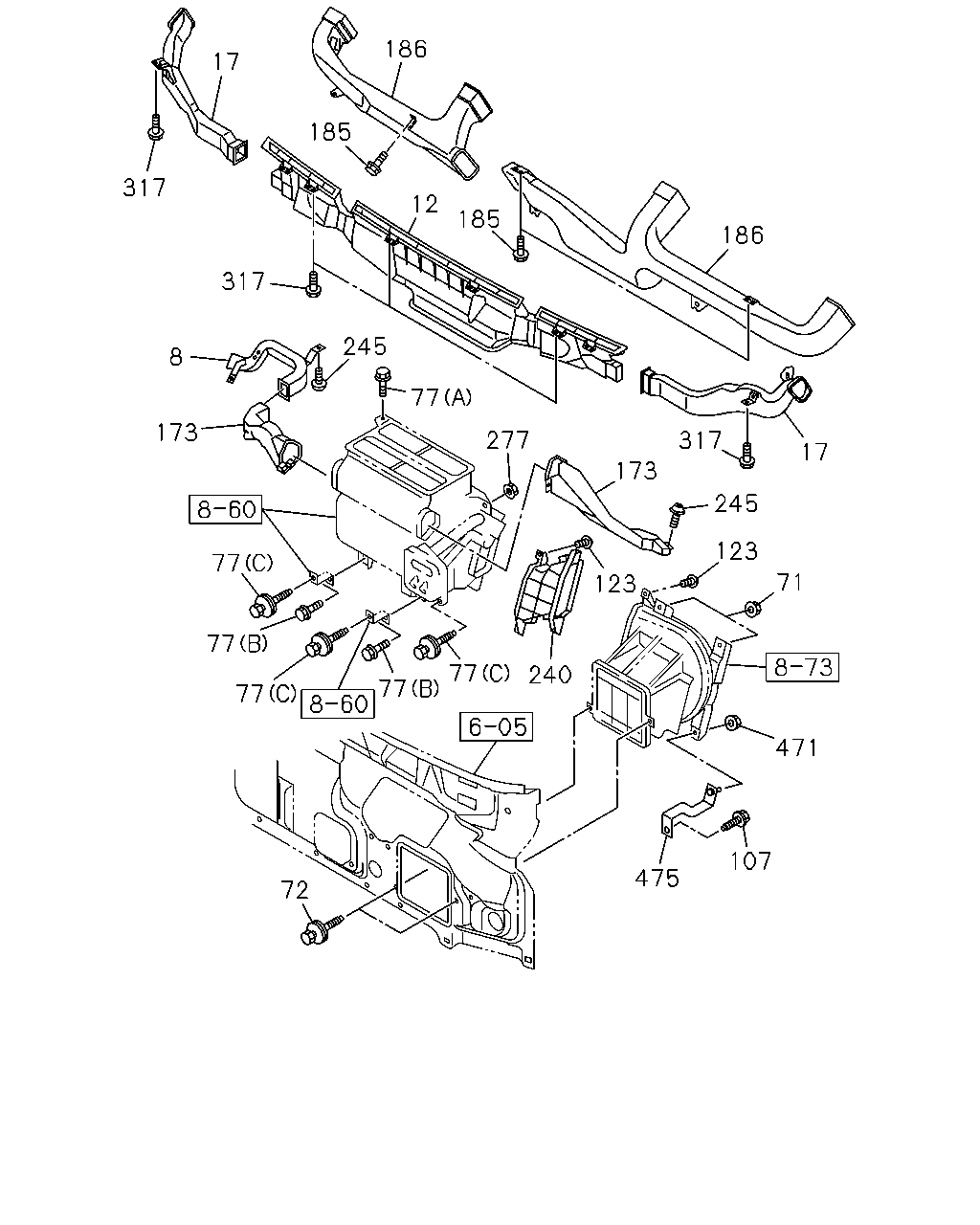

[840A] DUCT (23 parça)
▶
223
476
206
407
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
8-98080-998-1
01
1
1502-
206
GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1502-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
1502-
407
JOINT; HOSE
8-98041-758-0
01
1
1502-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
1502-
72
475
107
471
71
123
123
240
77
77
77
77
77
173
277
173
317
245
17
77
245
8
317
317
17
185
186
12
186
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
DUCT; HTR AIR,DRIVER FOOT
8-98290-098-0
01
1
1502-
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1502-
17
NOZZLE; DEFROSTER,SIDE
8-98040-018-1
01
1
1502-
17
NOZZLE; DEFROSTER,SIDE
8-98040-013-1
01
1
1502-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
1502-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1502-
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1502-
77
BOLT; HTR UNIT
(B) M6X20 FLANGE
0-28650-620-0
02
1
1502-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
03
1
1502-
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1502-
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1502-
173
DUCT; FOOT,HTR
8-97585-506-2
01
1
1502-
173
DUCT; FOOT,HTR
8-98290-097-0
01
1
1502-
185
SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1502-
186
DUCT; VENTILATOR
8-98285-574-0
01
1
1502-
186
DUCT; VENTILATOR
8-98285-571-0
01
1
1502-
240
DUCT; AIR,HTR
8-98041-402-1
01
1
1502-
245
CLIP; FOOT DUCT
8-98056-059-0
04
1
1502-
277
NUT; HTR
M6 FLANGE
0-91180-106-0
01
1
1502-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1502-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
06
1
1502-
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
1502-
475
BRACKET; BLOWER
8-98043-500-1
01
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
