◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11743 - FTS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#176235) — 173 parça
çizim 514144
428 428 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1502-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1502-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1502-
428 BRACKET
(B) 		1-47475-519-0 01 1 1502-
428 BRACKET
(C) 		8-98049-870-2 01 1 1502-
428 BRACKET
(A) 		8-98090-953-1 01 1 1502-

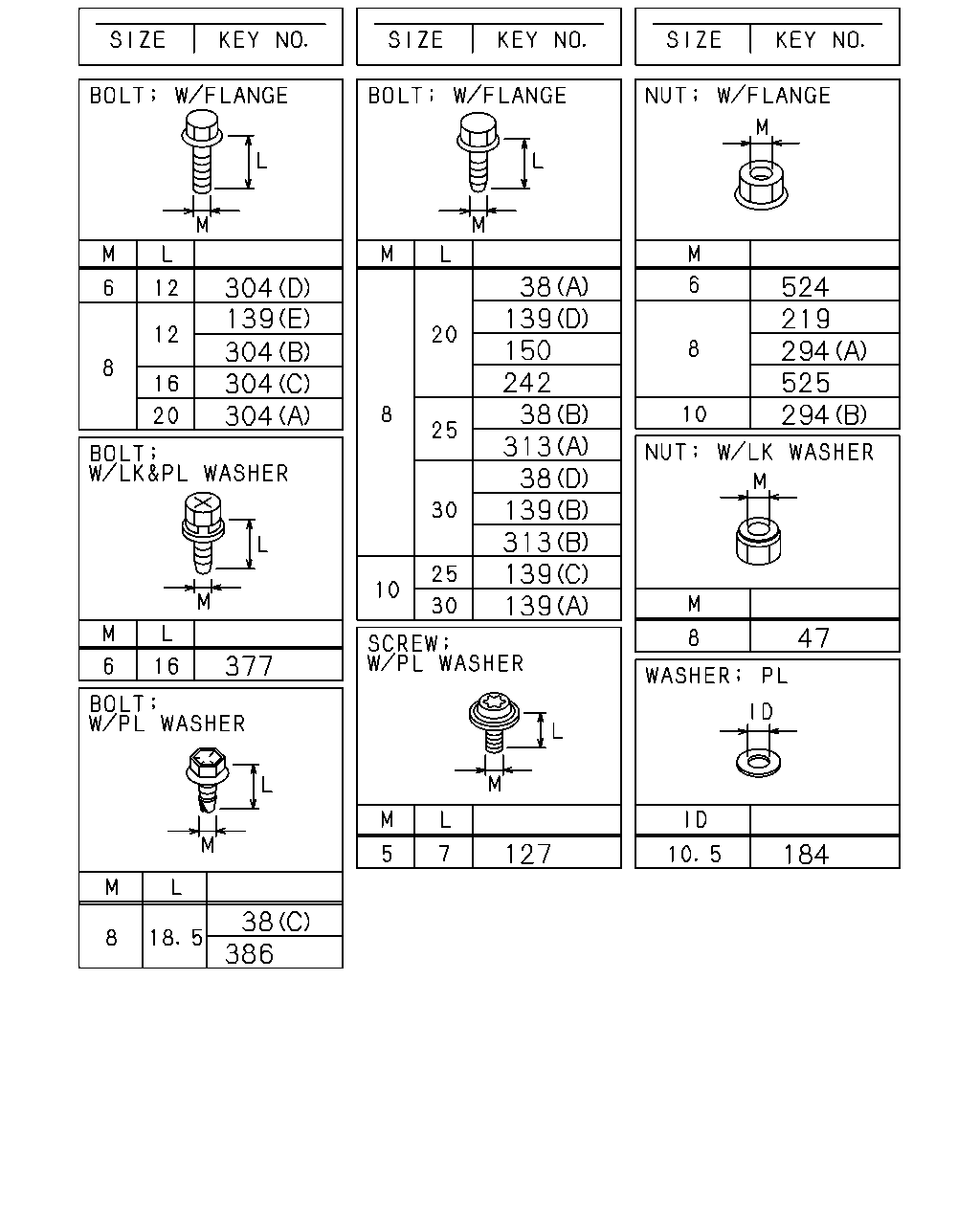

çizim 514693
304 139 304 304 304 377 38 386 127 139 313 139 139 38 313 38 242 150 139 38 524 219 294 525 294 47 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1502-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1502-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1502-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1502-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1502-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1502-
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1502-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1502-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1502-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1502-
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1502-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1502-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1502-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1502-
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1502-
150 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1502-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1502-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1502-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1502-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1502-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1502-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1502-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1502-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1502-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1502-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1502-
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1502-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 1502-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1502-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1502-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1502-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1502-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1502-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1502-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1502-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1502-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1502-
525 NUT; CLIP
M8 FLANGE 		5-09440-010-0 01 1 1502-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1502-

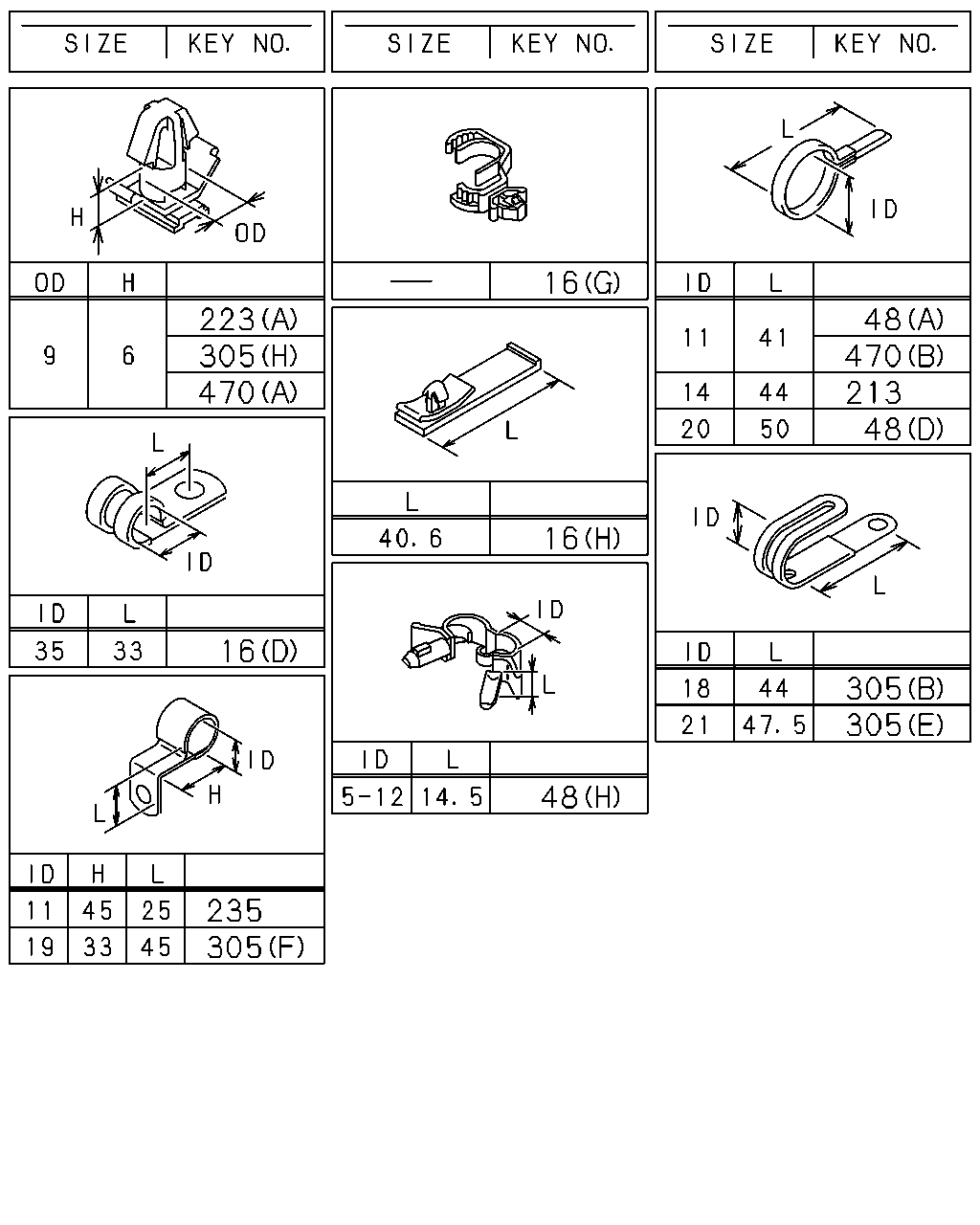

çizim 514758
223 305 470 16 235 305 16 16 48 48 470 213 48 305 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1502-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1502-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1502-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1502-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1502-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1502-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 05 1 1502-
16 CLIP; HARNESS
(G) ID=10 & 16 		8-94413-325-0 01 1 1502-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1502-
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1502-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1502-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 1502-
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1502-
48 CLIP; FRAME HARNESS
(F) L=600 		1-09707-107-1 01 1 1502-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1502-
48 CLIP; FRAME HARNESS
(G) ID=10 & 15 		1-09709-279-1 01 1 1502-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1502-1510
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1502-1510
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 03 1 1502-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 1502-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1502-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1502-
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 01 1 1502-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 H=45 L=25 		1-09700-866-0 01 1 1502-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1502-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1502-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1502-
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1502-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1502-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1502-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1502-
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 1502-
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 1502-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1502-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1502-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1502-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1502-

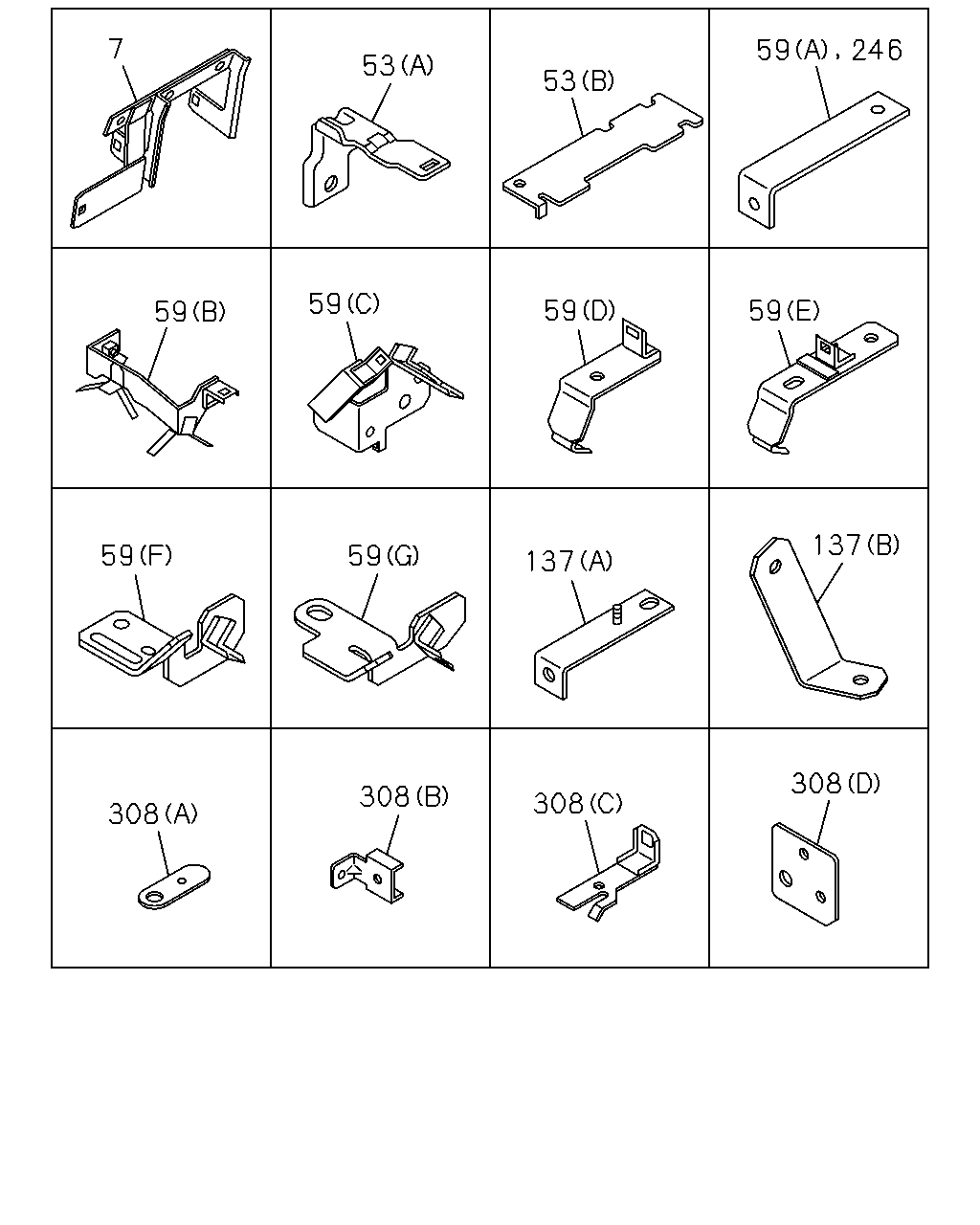

çizim 514779
7 53 53 59 246 59 59 59 59 308 59 308 137 308 308 137 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98248-632-0 01 1 1502-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1502-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1502-
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 1502-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1502-
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1502-
59 BRACKET; FRAME HARNESS
(D) 		8-98118-500-0 01 1 1502-
59 BRACKET; FRAME HARNESS
(E) 		8-98152-282-0 01 1 1502-
59 BRACKET; FRAME HARNESS
(F) 		8-97616-305-0 01 1 1502-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 1502-
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1502-
246 BRACKET; CLIP,SPD SENSOR
L=95 		1-82699-085-0 01 1 1502-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1502-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1502-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1502-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1502-

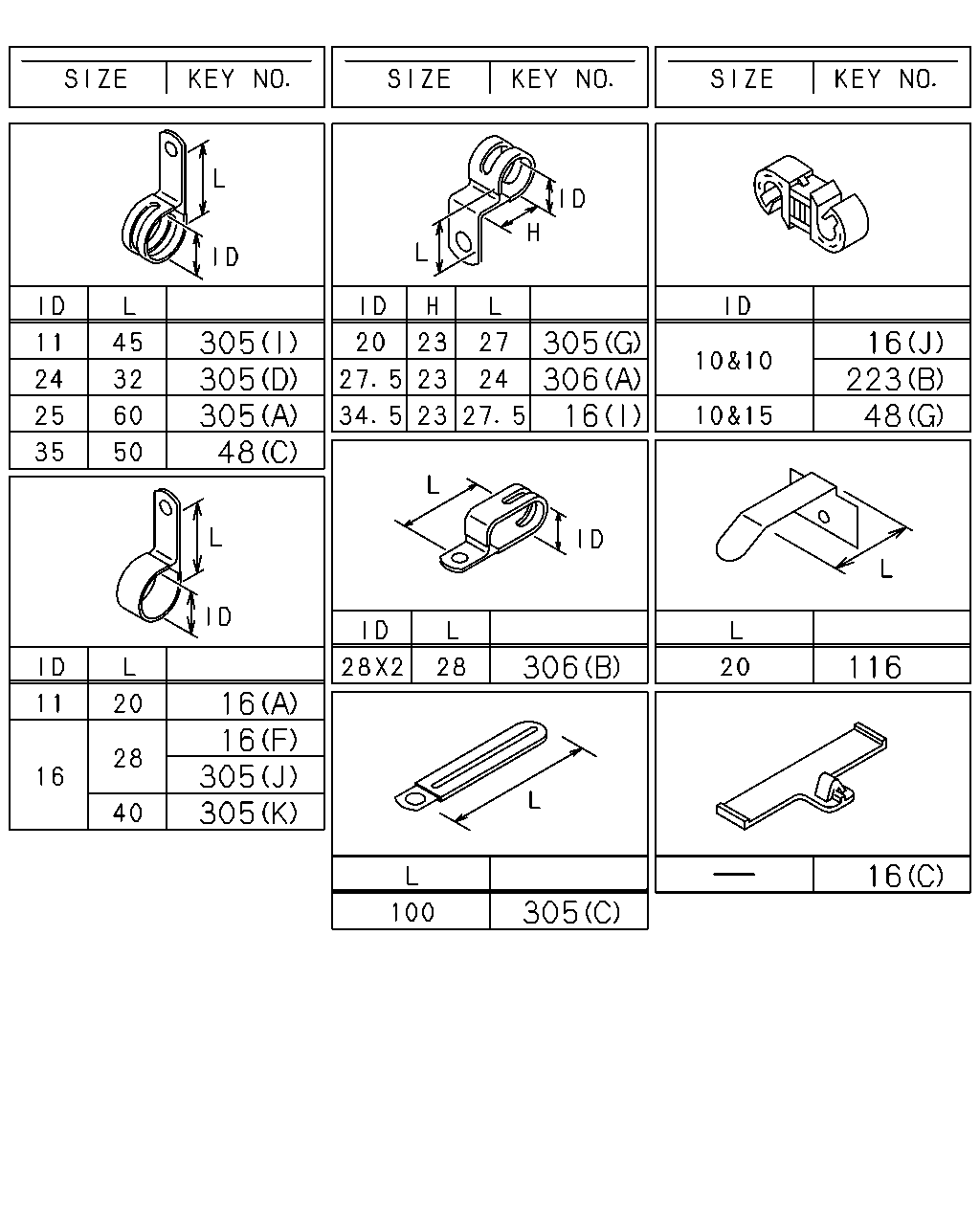

çizim 514834
305 48 305 305 16 305 305 16 305 16 306 306 305 16 48 223 116 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1502-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1502-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1502-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1502-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1502-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1502-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 05 1 1502-
16 CLIP; HARNESS
(G) ID=10 & 16 		8-94413-325-0 01 1 1502-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1502-
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1502-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1502-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 1502-
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1502-
48 CLIP; FRAME HARNESS
(F) L=600 		1-09707-107-1 01 1 1502-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1502-
48 CLIP; FRAME HARNESS
(G) ID=10 & 15 		1-09709-279-1 01 1 1502-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1502-1510
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1502-1510
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 03 1 1502-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 1502-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1502-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1502-
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 01 1 1502-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1502-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1502-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1502-
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1502-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1502-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1502-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1502-
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 1502-
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 1502-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1502-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1502-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1502-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1502-
çizim 514882
14 48 206 217 225 14 16 48 48 1 1 178 178 503 530 16 538
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1502-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1502-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1502-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 1502-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 15 1 1502-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1502-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1502-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1502-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1502-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1502-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1502-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 05 1 1502-
16 CLIP; HARNESS
(G) ID=10 & 16 		8-94413-325-0 01 1 1502-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1502-
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1502-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1502-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 1502-
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1502-
48 CLIP; FRAME HARNESS
(F) L=600 		1-09707-107-1 01 1 1502-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1502-
48 CLIP; FRAME HARNESS
(G) ID=10 & 15 		1-09709-279-1 01 1 1502-
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1502-1510
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1502-1510
48 CLIP; FRAME HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 01 1 1511-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 03 1 1502-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 1502-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1502-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1502-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1502-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1502-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1502-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1502-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1502-
503 CONNECTOR 1-82690-668-0 01 1 1502-
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1502-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1502-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
