Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#176234) — 98 parça
◀
[810A] DIFF LOCK HARNESS (2 parça)
[810A] FRAME HARNESS NO.2 (2 parça)
[810A] AIR TANK HARNESS (2 parça)
[810A] MAP LAMP HARNESS (1 parça)
[810A] BOLT,NUT,BRACKET (22 parça)
[810A] RELAY; CAB HARNESS (2 parça)
[810A] OTHER HARNESS (5 parça)
[810A] CAB HARNESS NO.1 (23 parça)
[810A] ENGINE SIDE (4 parça)
[810A] CAB HARNESS NO.2 (9 parça)
[810A] FRAME HARNESS NO.1 (23 parça)
[810A] CIGER LIGHTER SIDE (3 parça)
▶

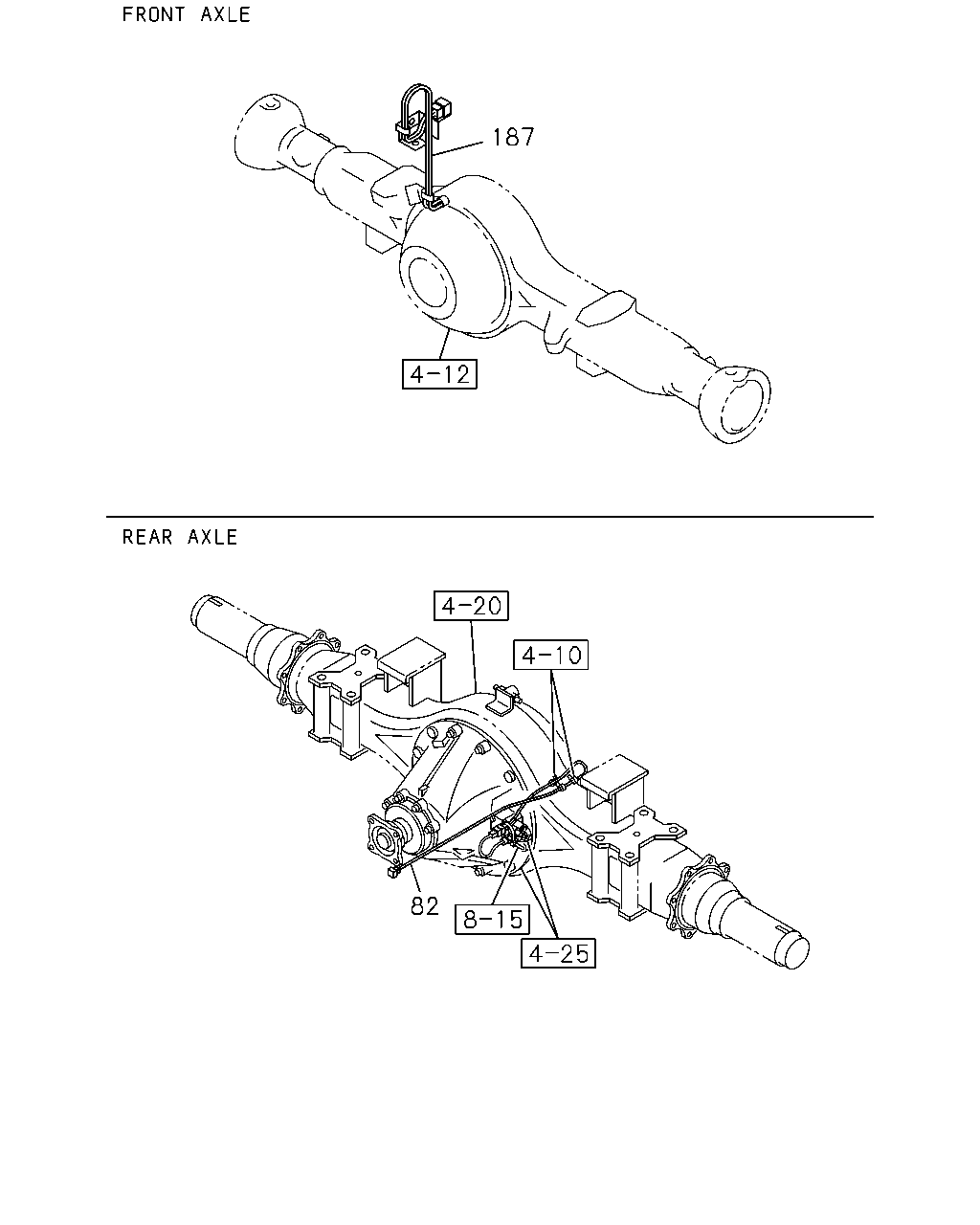

187
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
82
HARNESS; DIFF LOCK
8-98145-727-1
01
1
1502-
187
HARNESS; AXLE
8-98138-762-1
01
1
1502-

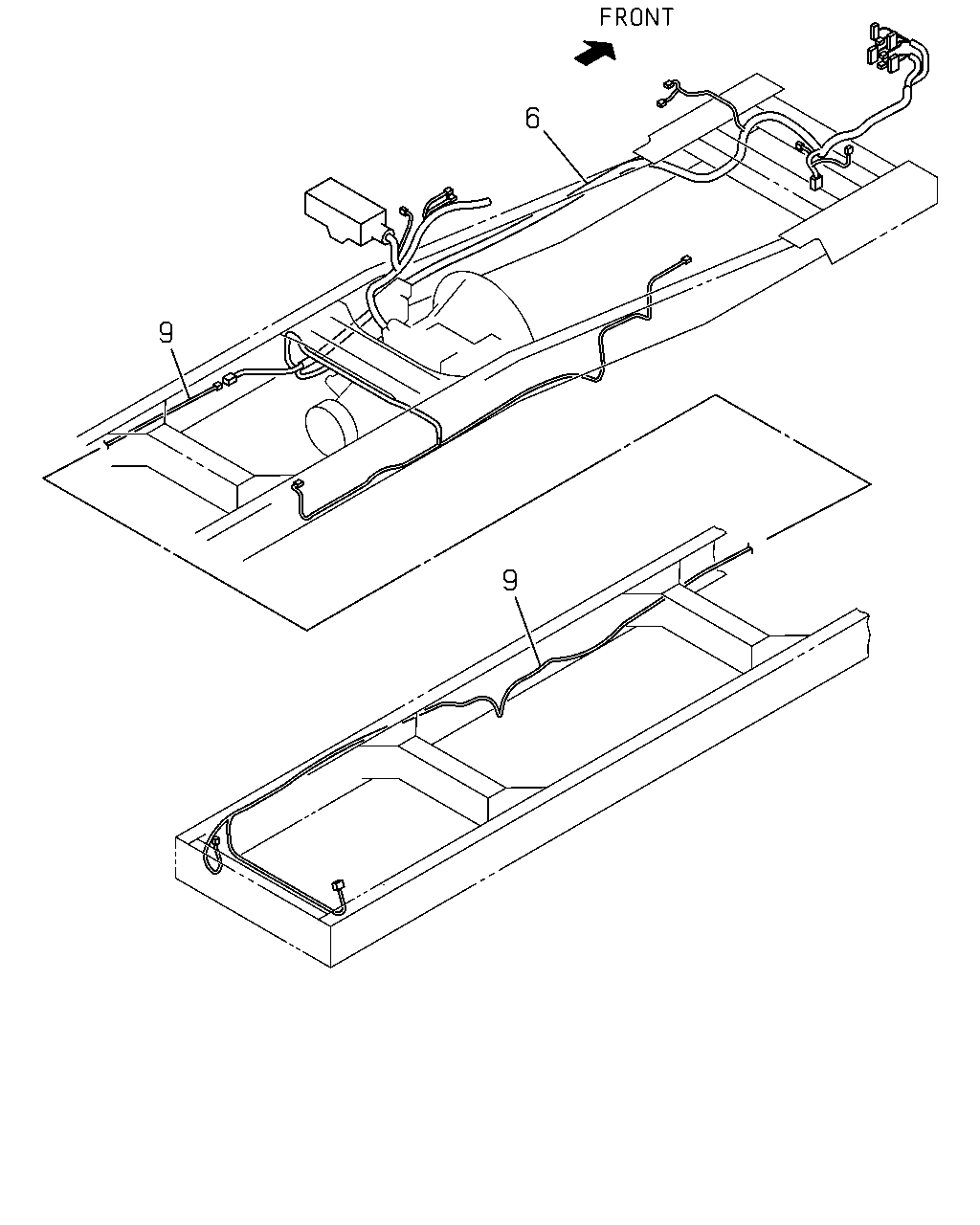

6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98186-317-0
01
1
1502-
9
HARNESS; FRAME,RR
8-98137-360-2
01
1
1502-

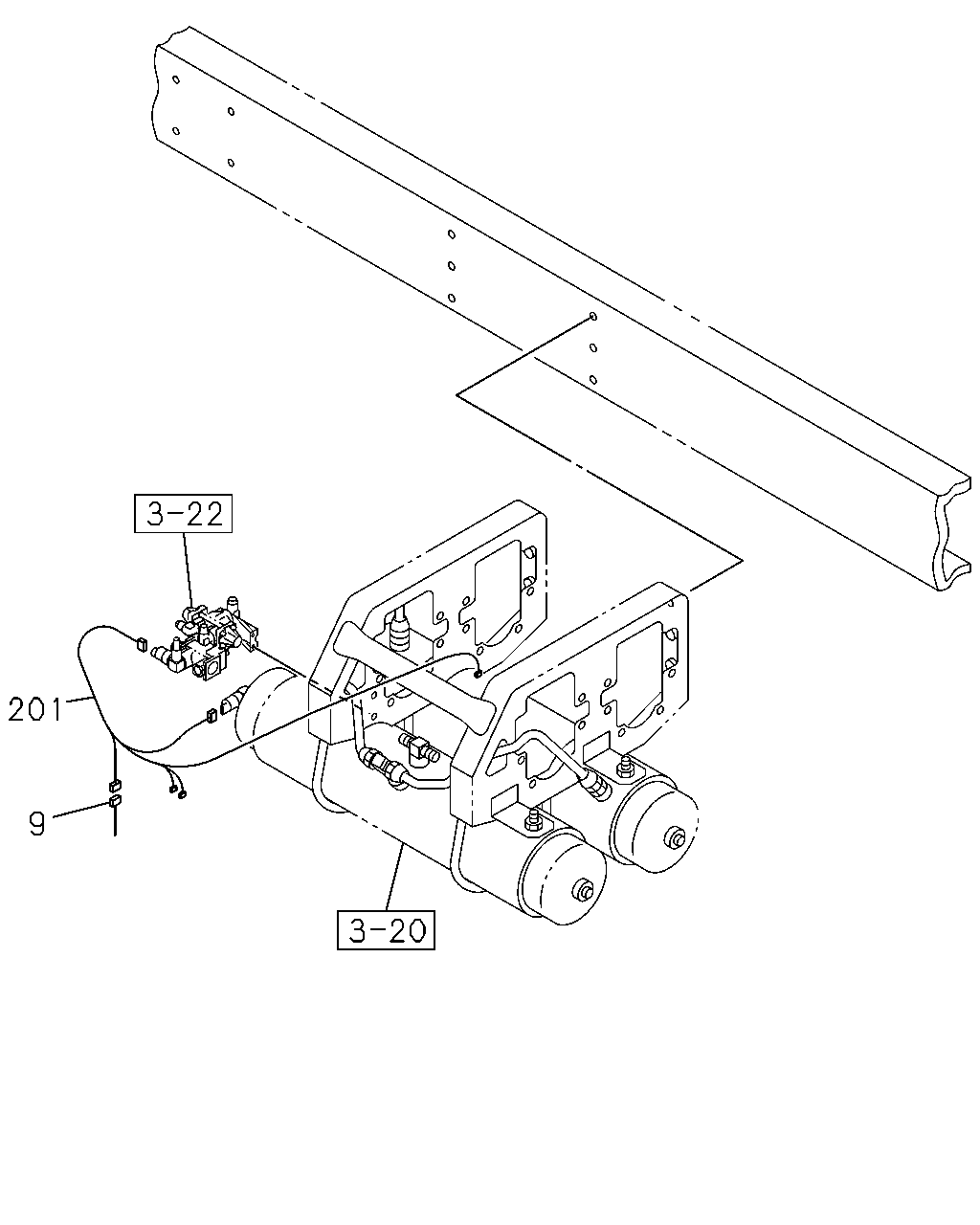

201
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
HARNESS; FRAME,RR
8-98137-360-2
01
1
1502-
201
HARNESS; AIR TANK
8-98221-273-0
01
1
1502-

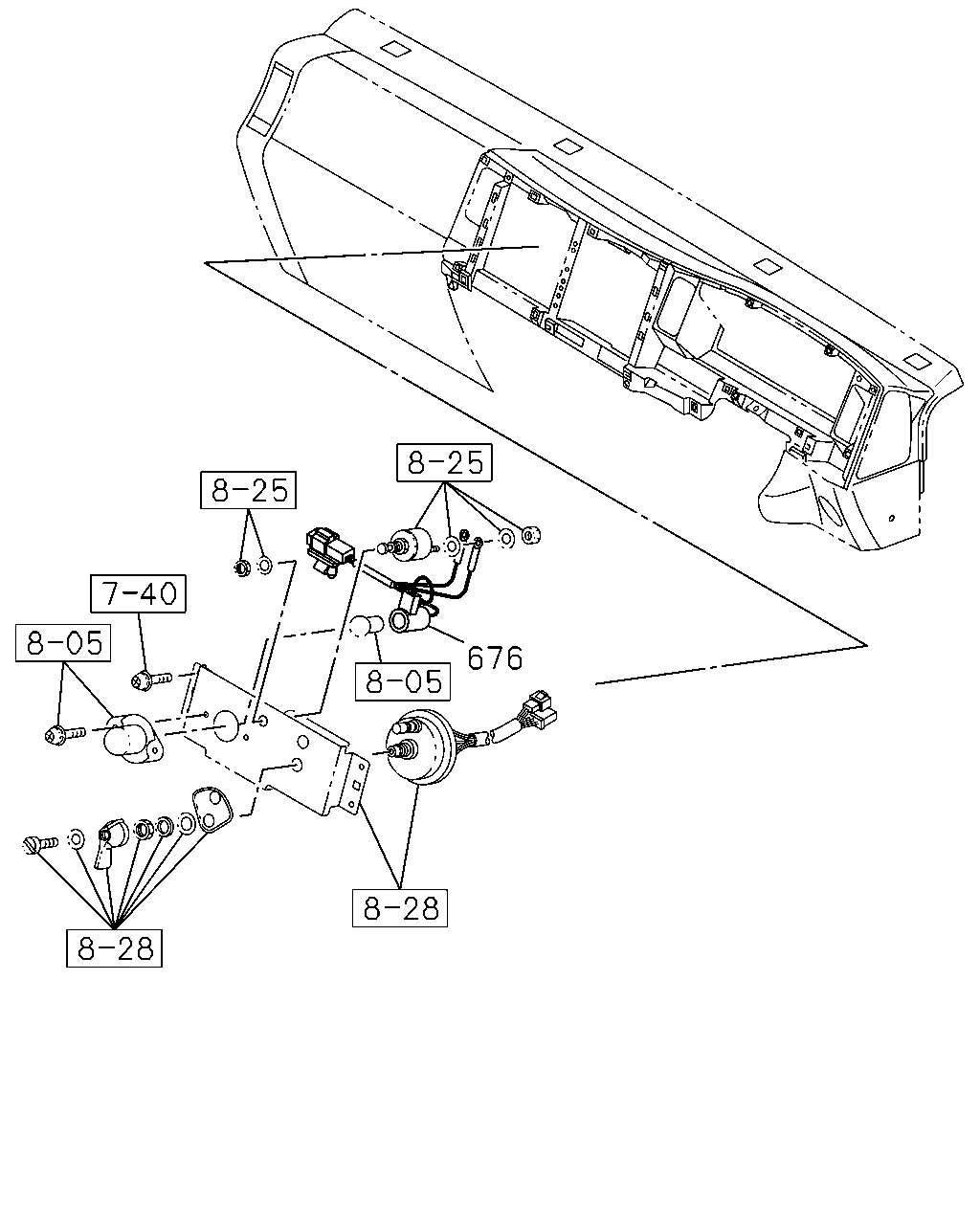

676
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
676
HARNESS; EXT,MAP LAMP
8-98140-101-0
01
1
1502-

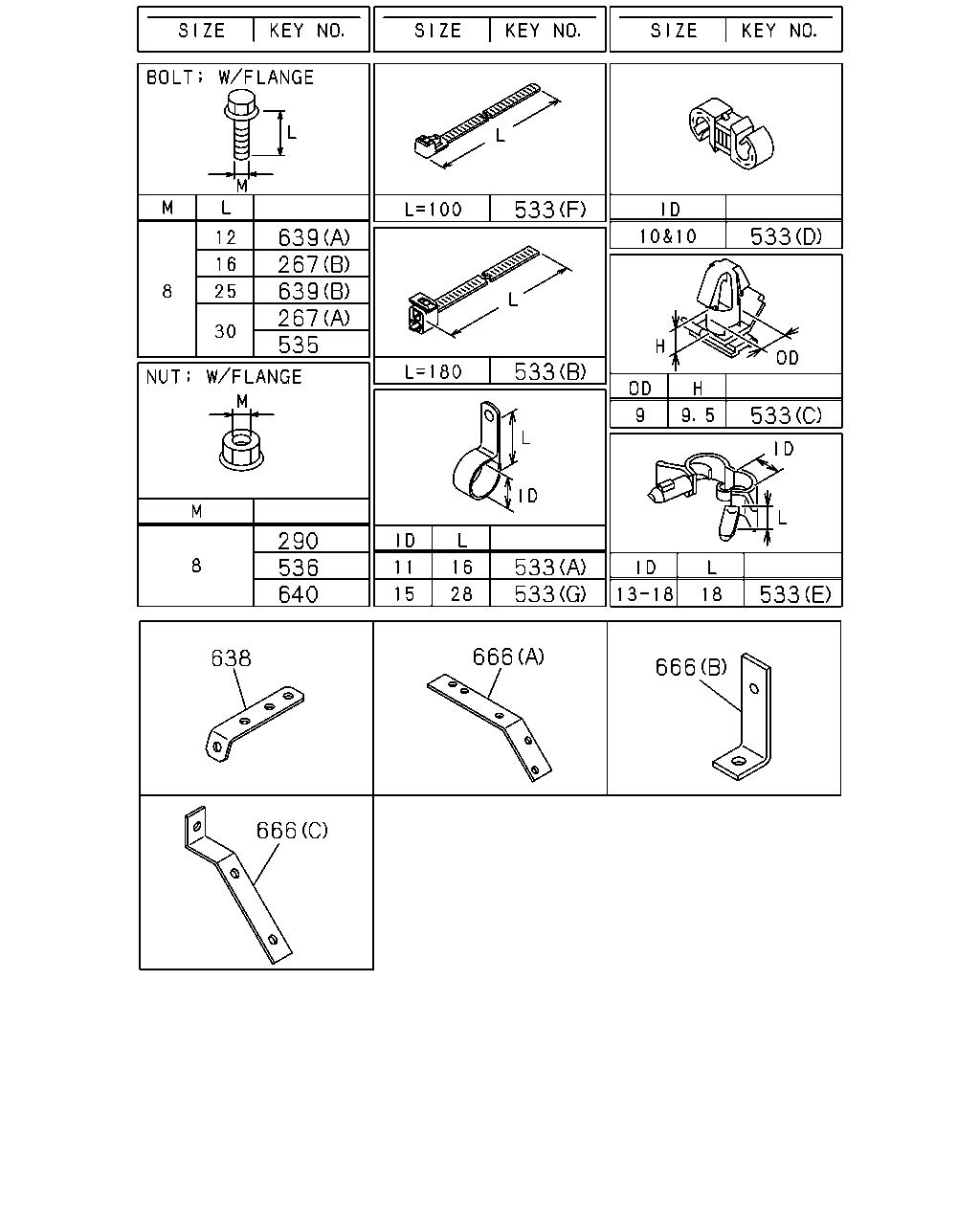

639
267
639
267
535
290
536
640
638
666
666
533
533
533
533
533
533
533
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
267
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
03
1
1502-
267
BOLT; BRKT
(A) M8X30 FLANGE
0-28650-830-0
01
1
1502-
290
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1502-
533
CLIP
(A) ID=11 L=16
0-95235-025-0
04
1
1502-
533
CLIP
(G) ID=15 L=28
1-09701-216-0
03
1
1502-
533
CLIP
(B) L=180
1-09707-162-1
01
1
1502-
533
CLIP
(C) OD=9 H=9.5
1-09709-179-0
01
1
1502-
533
CLIP
(D) ID=10 & 10
1-09709-277-1
01
1
1502-
533
CLIP
(E) ID=5-12 L=18
1-09709-287-0
01
1
1502-
533
CLIP
(E) ID=5-12 L=18
1-09709-287-0
01
1
1502-
533
CLIP
(F) L=100
5-09707-036-1
01
1
1502-
535
BOLT; BRKT FIX
M8X30 FLANGE
0-28650-830-0
01
1
1502-
536
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1502-
638
BRACKET; SPD SENSOR
1-82698-167-0
01
1
1502-
639
BOLT; CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
1502-
639
BOLT; CLIP
(B) M8X25 FLANGE
0-28650-825-0
02
1
1502-
639
BOLT; CLIP
(B) M8X25 FLANGE
0-28650-825-0
03
1
1502-
640
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1502-
640
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1502-
666
BRACKET; CLIP
(B) L=145
1-47475-655-0
01
1
1502-
666
BRACKET; CLIP
(C)
8-98140-841-1
01
1
1502-
666
BRACKET; CLIP
(A)
8-98140-891-1
01
1
1502-

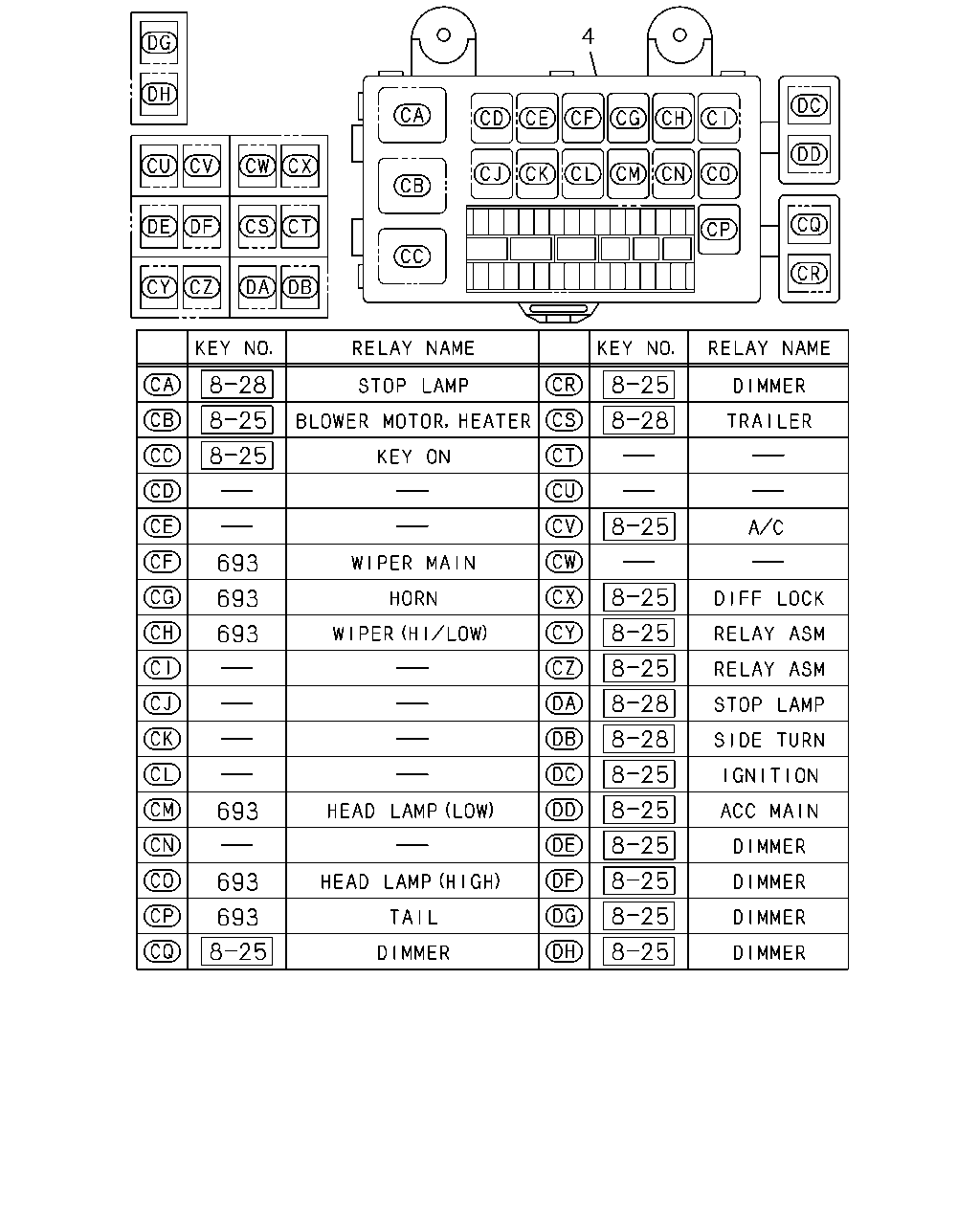

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
8-98081-164-0
01
1
1502-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1502-

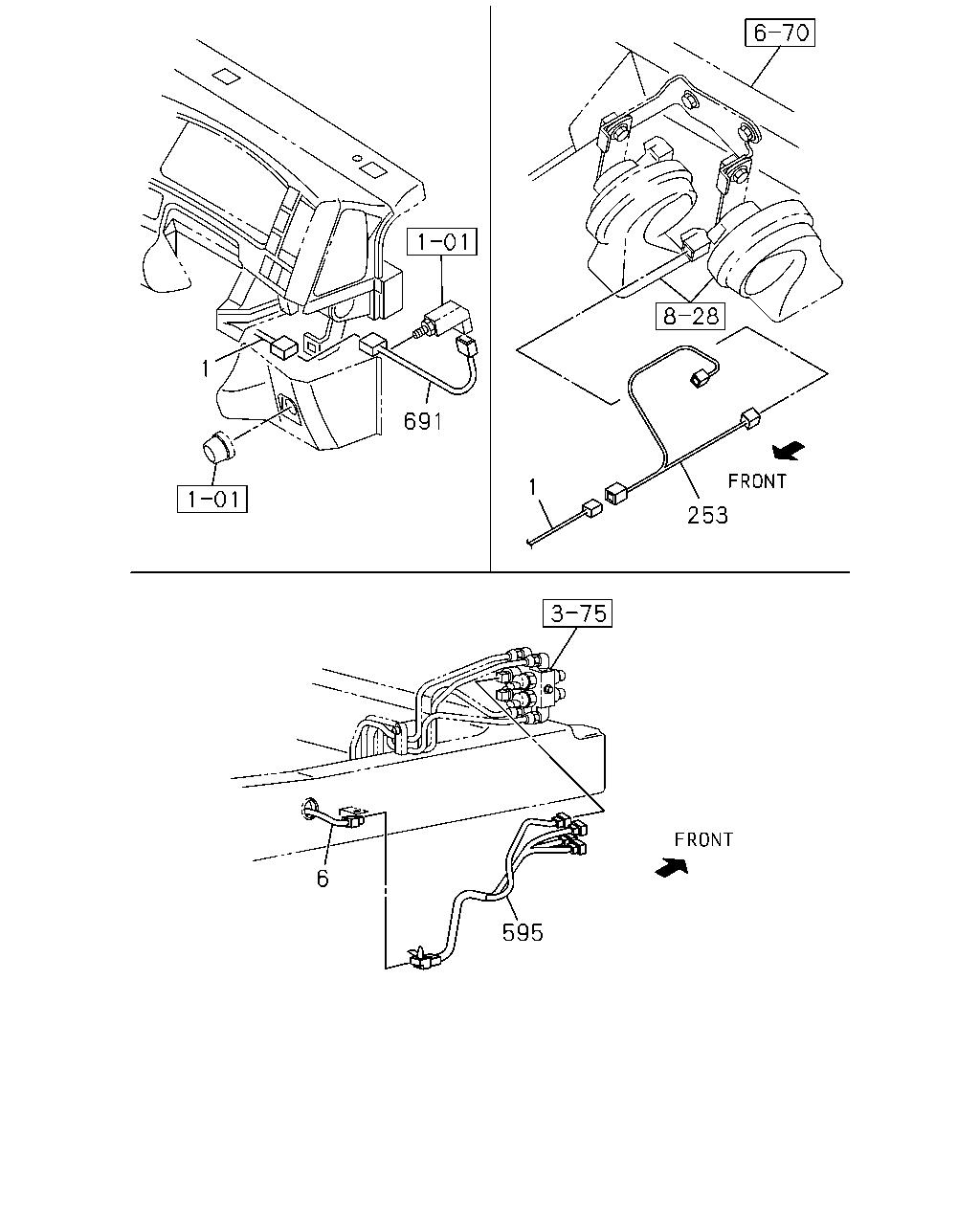

1
691
1
253
6
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98248-557-0
01
1
1502-
6
HARNESS; FRAME
8-98186-317-0
01
1
1502-
253
HARNESS; EXT,HORN
8-98074-080-3
01
1
1502-
595
HARNESS; WARNING,BRK
8-97621-002-3
01
1
1502-
691
HARNESS; IDLE CONT
8-98049-014-2
01
1
1502-

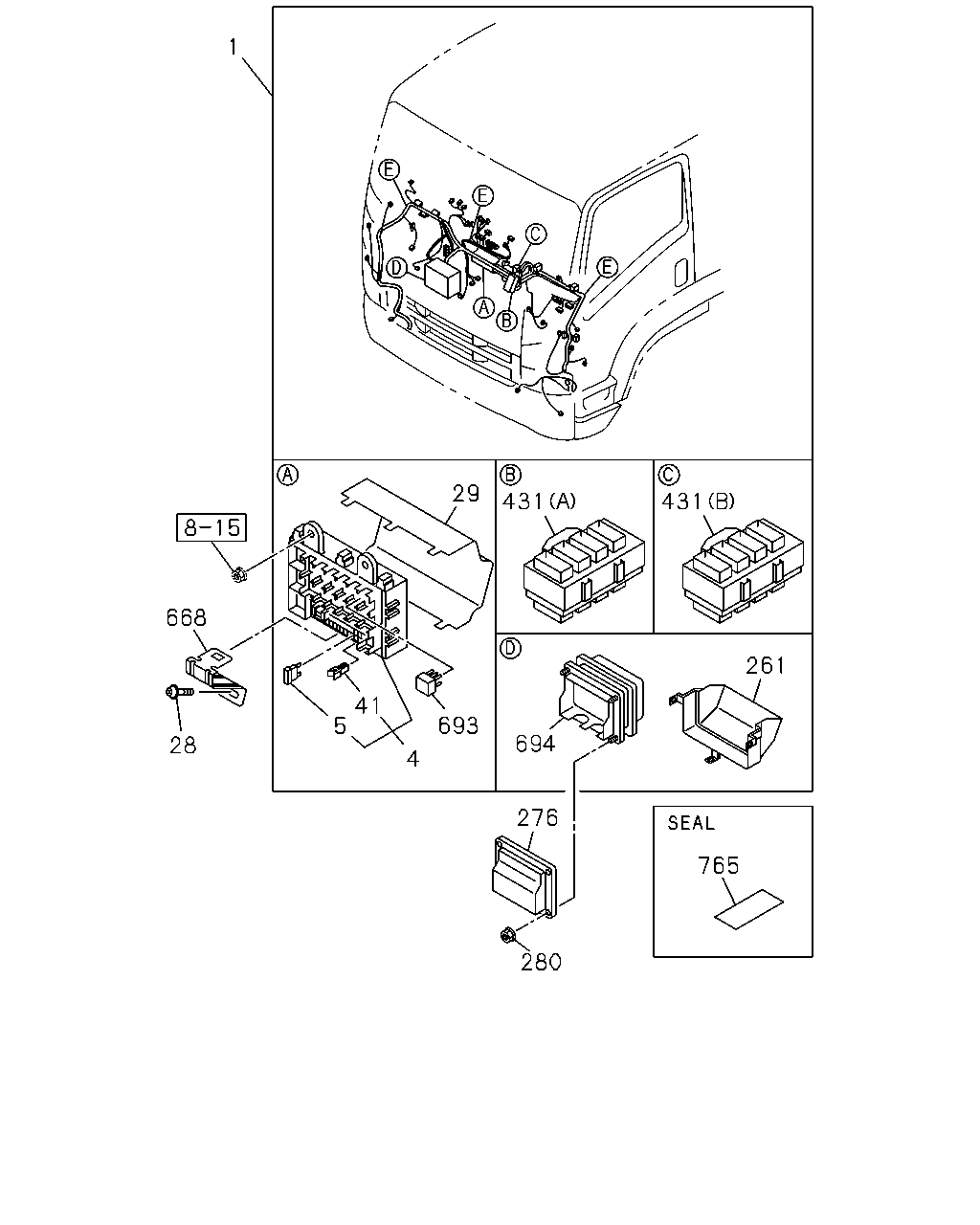

1
668
28
29
5
41
4
693
431
694
276
280
431
261
765
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98248-557-0
01
1
1502-
4
BOX ASM; FUSE,HARNESS
8-98081-164-0
01
1
1502-
5
FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1502-
5
FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1502-
5
FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1502-
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
AR
1
1502-
28
SCREW; FUSE BOX
M6X16 FLANGE
0-28650-616-0
01
1
1502-
29
COVER; FUSE BOX
8-98056-968-0
01
1
1502-
41
PULLER; FUSE
8-98054-260-0
01
1
1502-
261
COVER; CONNECTOR BOX
8-98065-986-1
01
1
1502-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1502-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1502-
431
CONNECTOR; JOINT
(E) 10P GREEN
1-82698-579-0
02
1
1502-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
05
1
1502-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82699-599-0
04
1
1502-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1502-
431
CONNECTOR; JOINT
(G) 6P BLACK
8-97616-194-0
02
1
1502-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1502-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1502-
668
BRACKET; HARNESS
8-98095-653-2
01
1
1502-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1502-
694
BOX ASM; CONNECTOR
8-98057-771-0
01
1
1502-
765
TAPE
100X40
1-72498-022-1
01
1
1502-

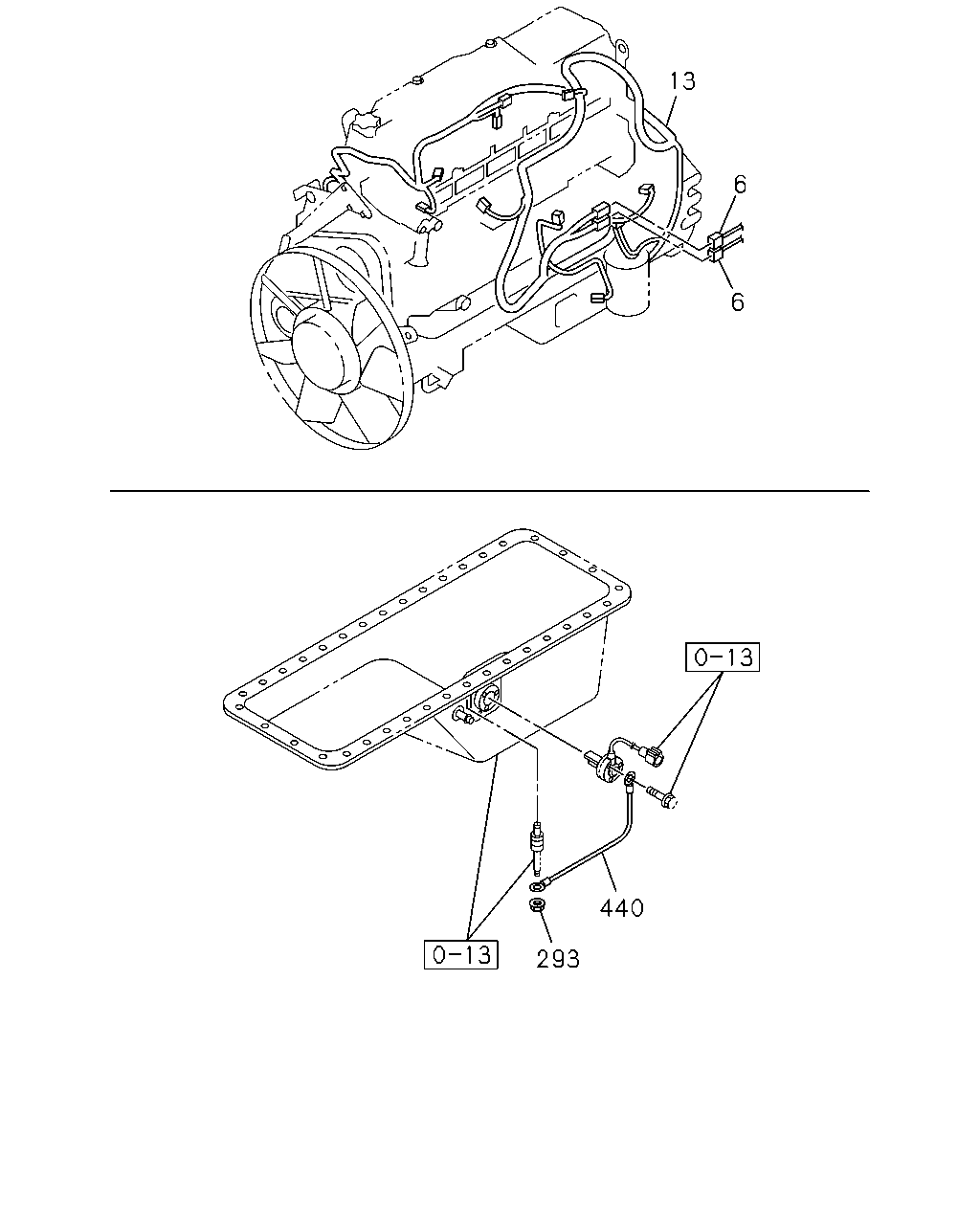

13
6
6
440
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98186-317-0
01
1
1502-
13
HARNESS; ENG
8-98177-186-0
01
1
1502-
293
NUT
M8 FLANGE
0-91180-108-0
01
1
1502-
440
CABLE; EARTH
8-97606-639-0
01
1
1502-
12
18
204
18
1
2
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98248-557-0
01
1
1502-
2
DIODE; CABLE HARNESS
(A) BLACK 10P
1-82699-703-0
01
1
1502-
2
DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A
8-94416-438-1
01
1
1502-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
08
1
1502-
2
DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A
8-94422-640-1
02
1
1502-
12
HARNESS; ROOF
8-98041-949-2
01
1
1502-
18
HARNESS; DOOR
8-98076-305-3
01
1
1502-
18
HARNESS; DOOR
8-98076-304-3
01
1
1502-
204
HARNESS; CABLE,FLOOR
8-98085-274-0
01
1
1502-

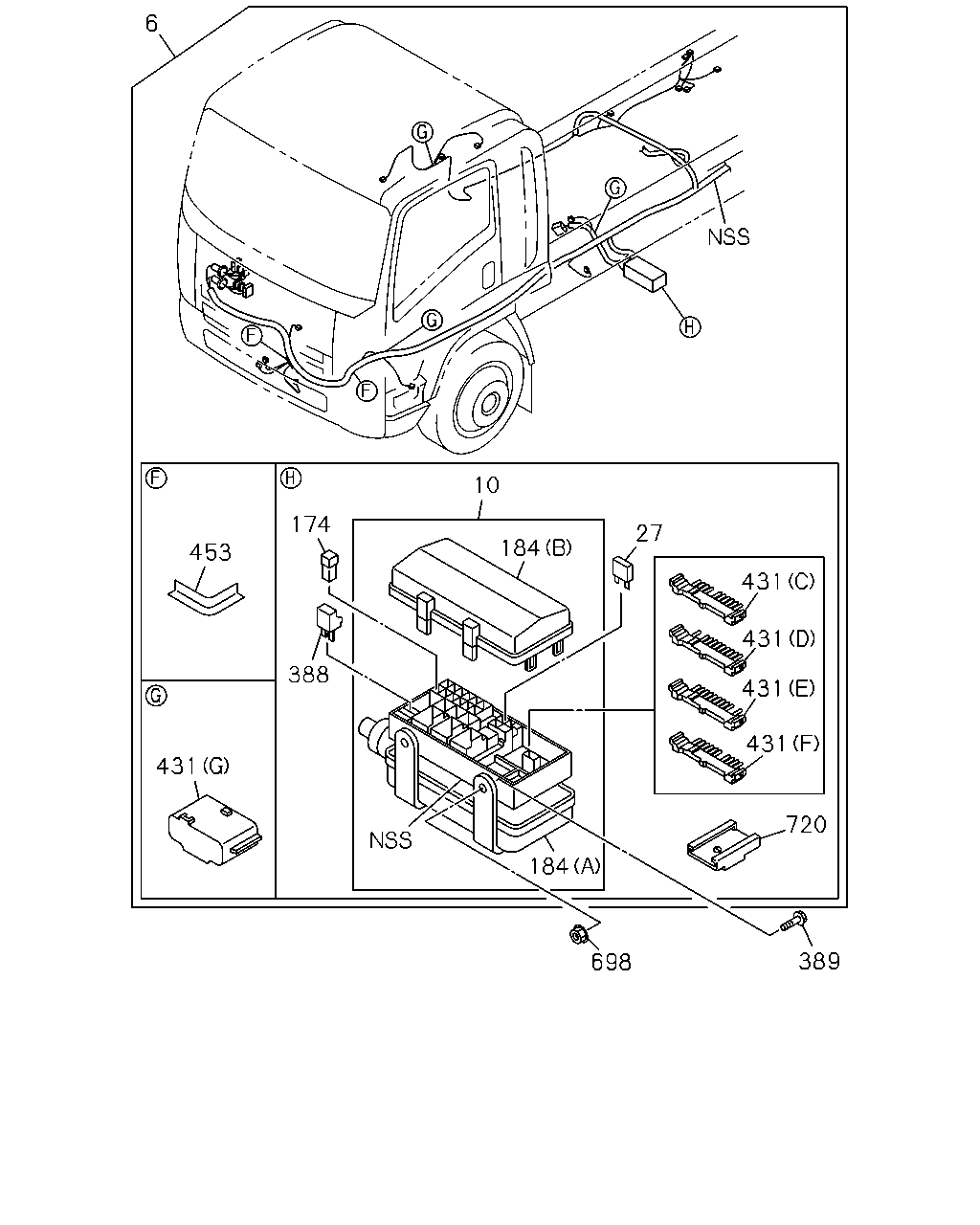

6
453
431
174
388
184
698
184
10
27
431
431
431
431
720
389
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98186-317-0
01
1
1502-
10
BOX; FUSE,HARNESS
8-98030-762-0
01
1
1502-
27
FUSE UNIT
10A RED
8-98054-257-0
01
1
1502-
27
FUSE UNIT
15A BLUE
8-98054-258-0
02
1
1502-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
01
1
1502-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
02
1
1502-
174
FUSE; SLOW BLOW
30A PINK
8-98079-191-0
01
1
1502-
174
FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
01
1
1502-
174
FUSE; SLOW BLOW
50A RED
8-98079-193-0
03
1
1502-
184
COVER; RELAY & FUSE BOX
(A)
8-98030-766-0
01
1
1502-
184
COVER; RELAY & FUSE BOX
(B)
8-98030-767-0
01
1
1502-
388
DIODE; RELAY BOX
BLACK 2P-1.5A
8-94422-639-1
02
1
1502-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1502-
431
CONNECTOR; JOINT
(E) 10P GREEN
1-82698-579-0
02
1
1502-
431
CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
05
1
1502-
431
CONNECTOR; JOINT
(F) 10P GREEN
1-82699-599-0
04
1
1502-
431
CONNECTOR; JOINT
(D) 10P BROWN
1-82699-601-0
01
1
1502-
431
CONNECTOR; JOINT
(G) 6P BLACK
8-97616-194-0
02
1
1502-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1502-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1502-
453
PROTECTOR; HARNESS
1-82699-709-0
01
1
1502-
698
NUT; COVER,RELAY BOX
M8 FLANGE
0-91180-108-0
02
1
1502-
720
ATTACHMENT; CONNECTOR
1-82699-688-0
03
1
1502-
1
408
409
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
8-98248-557-0
01
1
1502-
408
SOCKET ASM; ACCESSORY
8-98169-757-0
01
1
1502-
409
CAP; ACCESSORY SOCKET
8-98183-771-0
01
1
1502-
