Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#176226) — 66 parça
◀

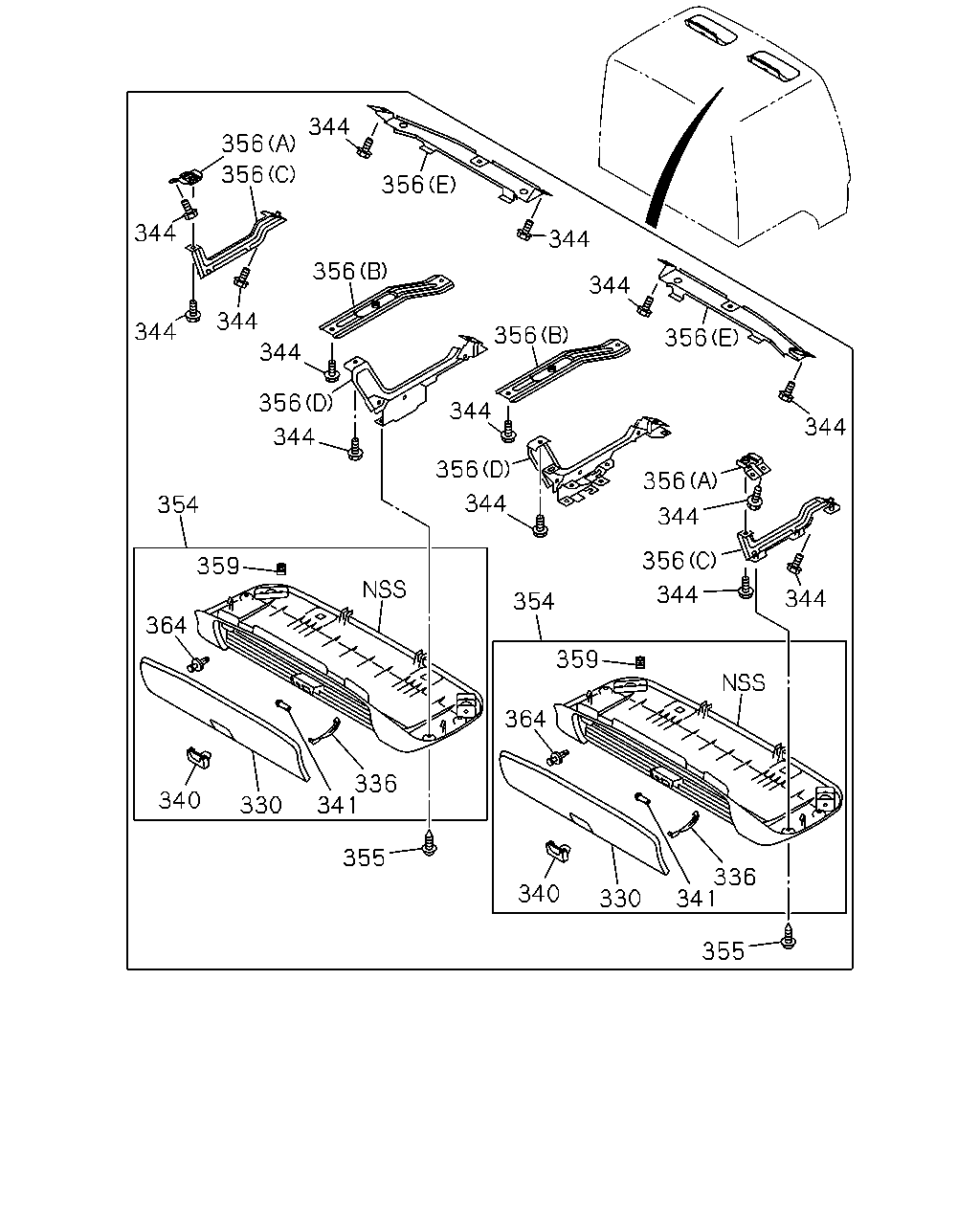

[743A] TRAY; HEADER ROOF (28 parça)

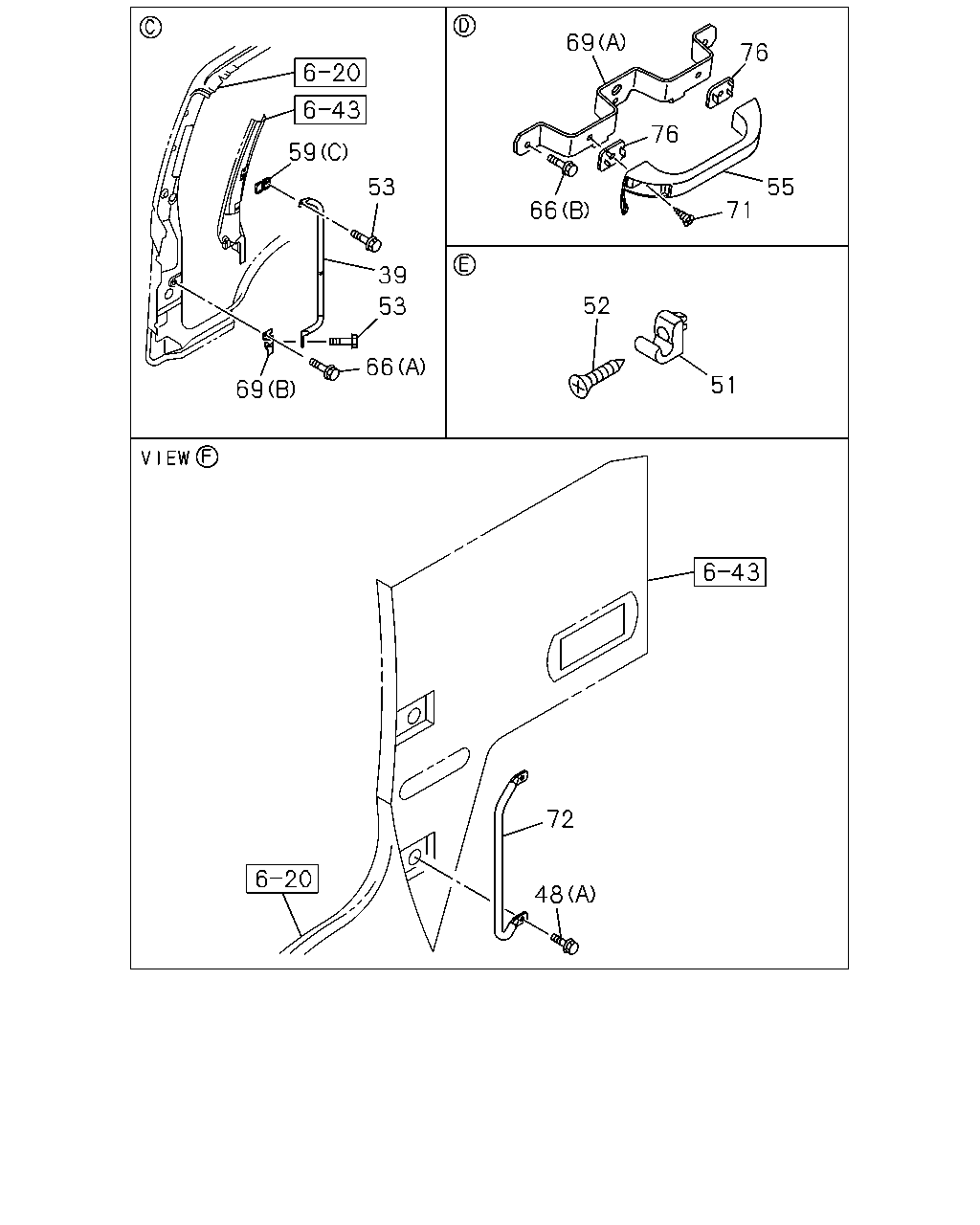

[743A] ASSIST GRIP NO.1 (20 parça)

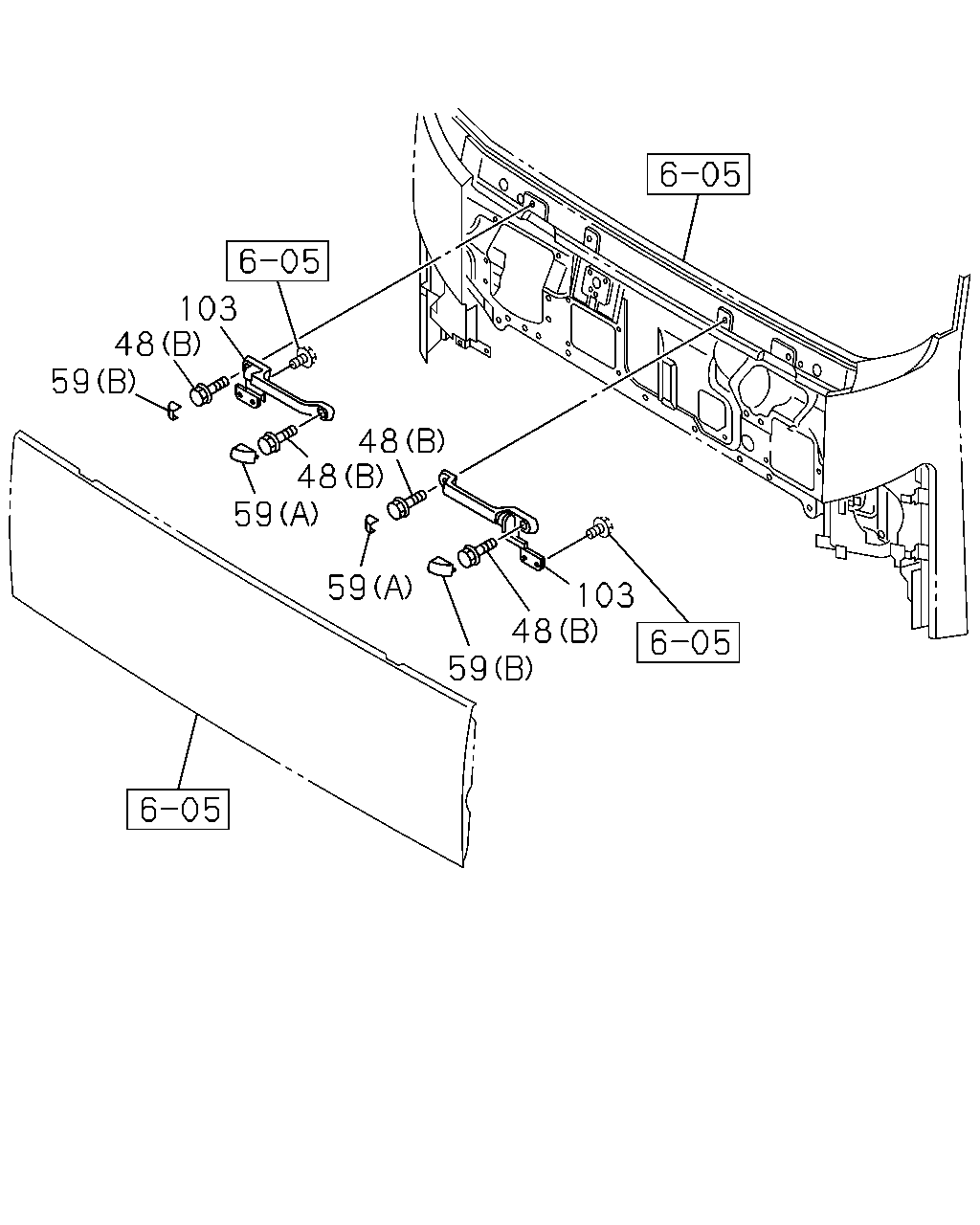

[743A] ASSIST GRIP NO.2 (7 parça)

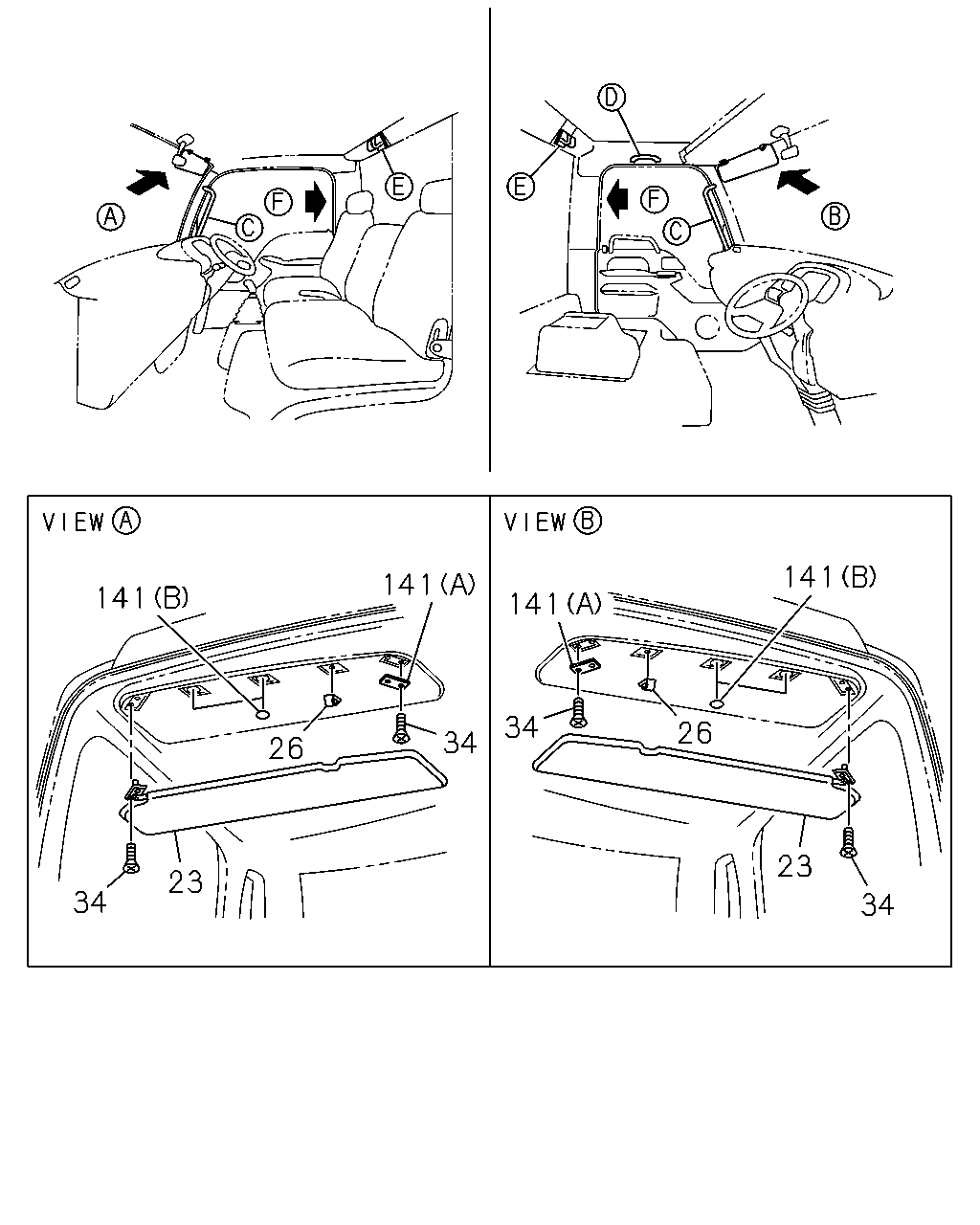

[743A] SUN VISOR (11 parça)
▶
344
356
356
356
344
344
344
344
356
344
356
344
344
356
344
356
344
356
356
344
356
344
344
344
354
359
364
340
330
341
336
355
354
359
364
340
330
341
336
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1502-
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1502-
336
STAY; LID
1-72448-379-3
02
1
1502-
336
STAY; LID
1-72448-379-3
02
1
1502-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1502-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1502-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1502-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1502-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
08
1
1502-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
12
1
1502-
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1502-
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1502-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1502-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
1502-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1502-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1502-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1502-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1502-
356
BRACKET; ROOF OUTER
(C)
8-98016-871-3
01
1
1502-
356
BRACKET; ROOF OUTER
(D)
8-98042-009-2
01
1
1502-
356
BRACKET; ROOF OUTER
(E)
8-98042-016-3
01
1
1502-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1502-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1502-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1502-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1502-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1502-
364
STOPPER; LID
8-98010-867-1
03
1
1502-
364
STOPPER; LID
8-98010-867-1
03
1
1502-
59
39
53
53
66
69
66
69
76
76
55
71
52
51
72
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-943-2
01
1
1502-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-942-2
01
1
1502-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1502-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1502-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1502-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
1502-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE
0-28650-820-0
04
1
1502-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1502-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
1502-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
1502-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1502-
66
BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE
0-28050-816-0
04
1
1502-
66
BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE
8-97108-669-0
06
1
1502-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1502-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1502-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1502-
71
SCREW
M6X28
8-98004-344-0
02
1
1502-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1502-1510
72
GRIP; ASSIST,CAB ENTRY,BACK
8-98315-144-0
02
1
1511-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1502-
103
48
59
48
59
48
59
59
48
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1502-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1502-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
1502-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
1502-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1502-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1502-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1502-
141
141
141
141
34
26
34
23
34
26
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
DARK GRAY
8-97405-170-3
01
1
1502-
23
SUN VISOR
DARK GRAY
8-97407-373-2
01
1
1502-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1502-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1502-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
04
1
1502-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1502-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1502-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1502-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1502-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1502-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
