◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11743 - FTS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#176213) — 61 parça

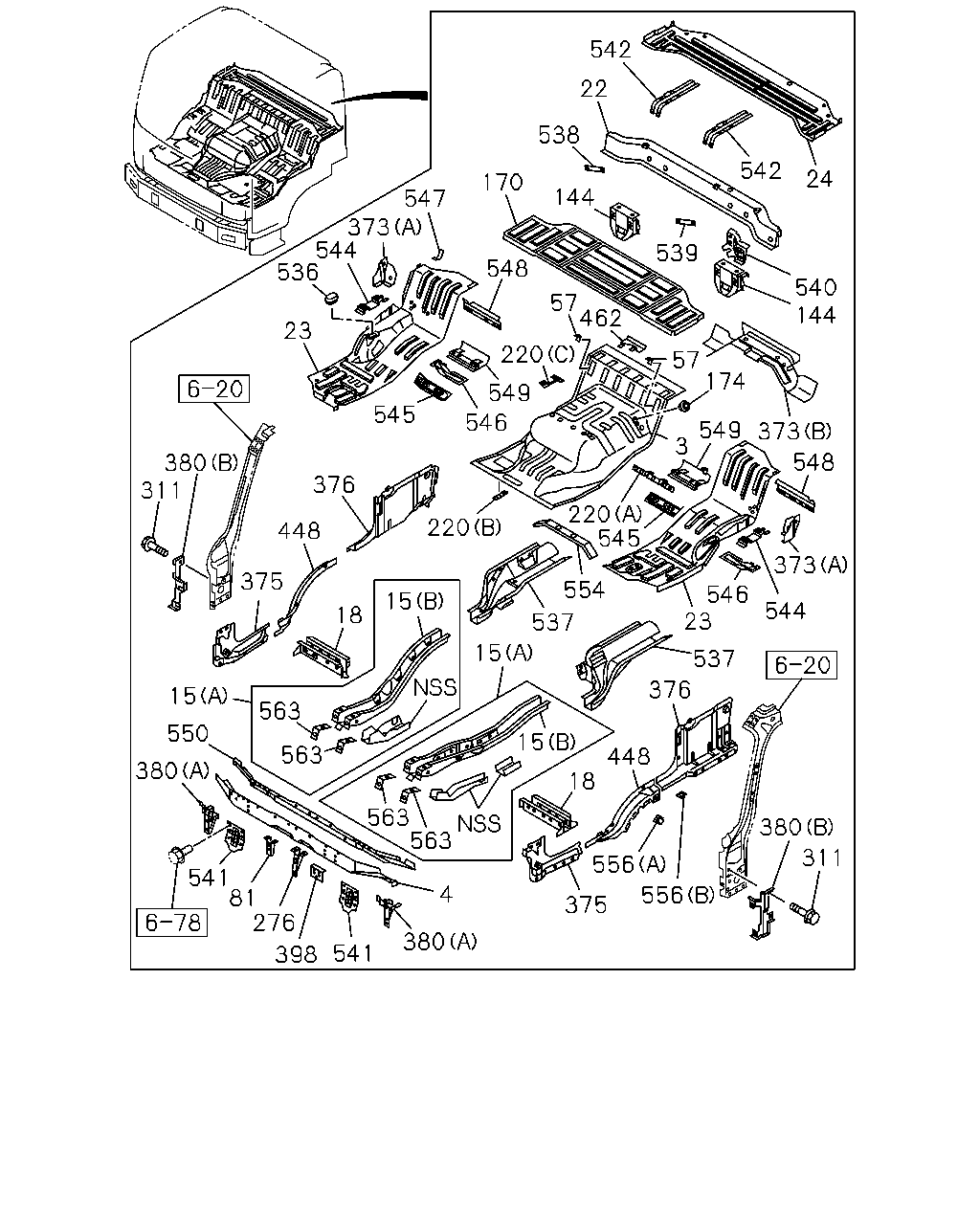

çizim 513642
542 22 538 170 539 542 540 24 144 547 548 462 174 373 373 220 549 548 544 536 23 545 549 546 220 376 380 311 375 15 18 15 550 380 541 81 276 398 541 220 537 15 554 545 373 544 23 537 376 448 15 18 563 563 563 563 380 375 380 556 556 57 448 4 311 546 3 57 144
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1502-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1502-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1502-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1502-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1502-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1502-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1502-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1502-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1502-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1502-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1502-
24 PANEL; BED PAN 8-97584-378-6 01 1 1502-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1502-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1502-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1502-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1502-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1502-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1502-
220 PATCH
(A) 		8-97588-840-4 01 1 1502-
220 PATCH
(B) 		8-97589-603-3 01 1 1502-
220 PATCH
(C) 		8-97589-627-2 01 1 1502-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1502-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1502-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1502-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1502-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1502-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1502-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1502-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1502-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1502-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1502-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1502-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1502-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1502-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1502-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1502-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1502-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1502-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1502-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1502-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1502-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1502-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1502-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1502-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1502-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1502-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1502-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1502-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1502-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1502-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1502-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1502-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1502-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1502-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1502-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1502-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1502-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1502-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1502-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1502-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1502-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
