Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#176210) — 48 parça
◀

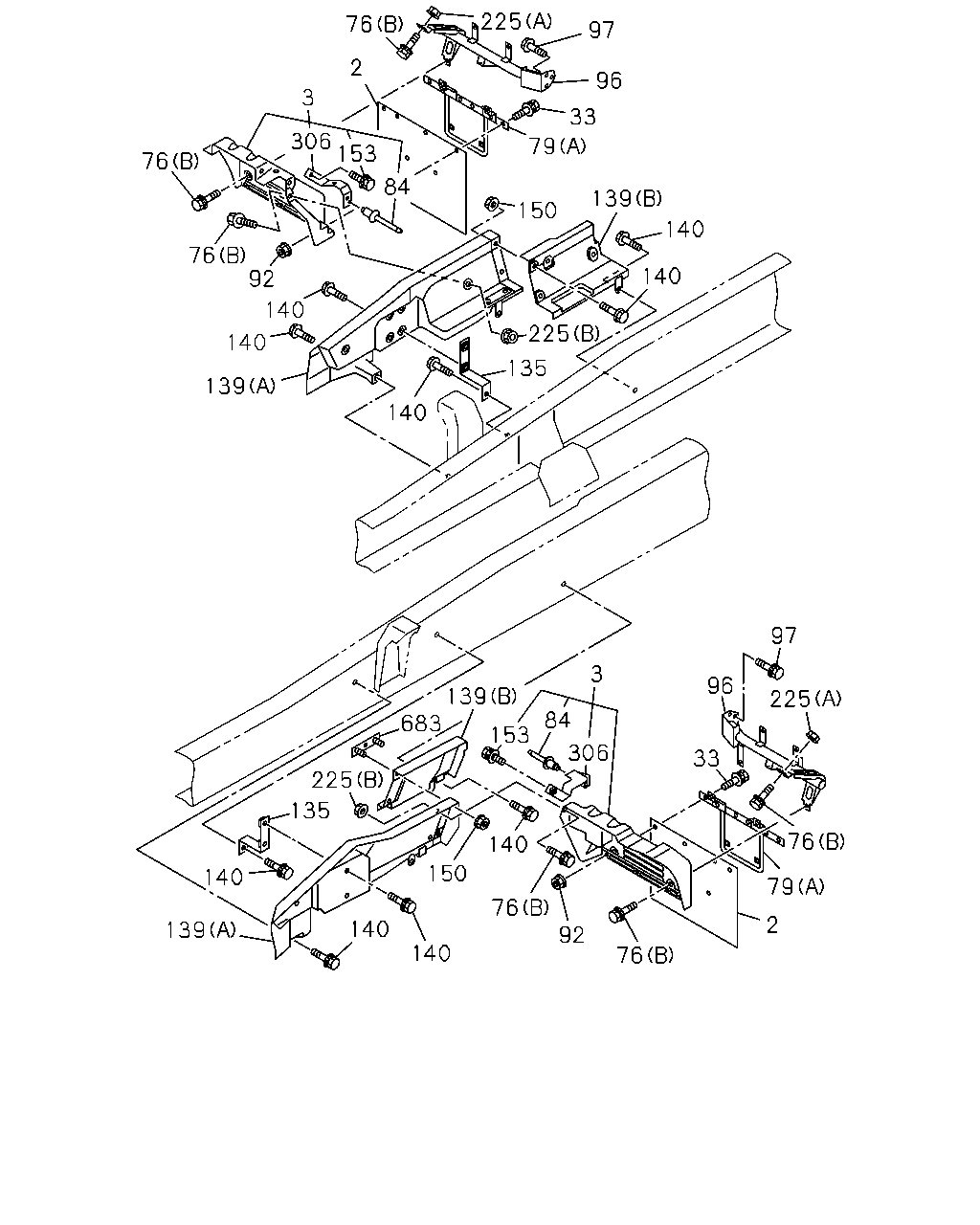

[647A] MUD GUARD; REAR AND SIDE PANEL (27 parça)
[647A] MUD COVER AND SEAL (10 parça)

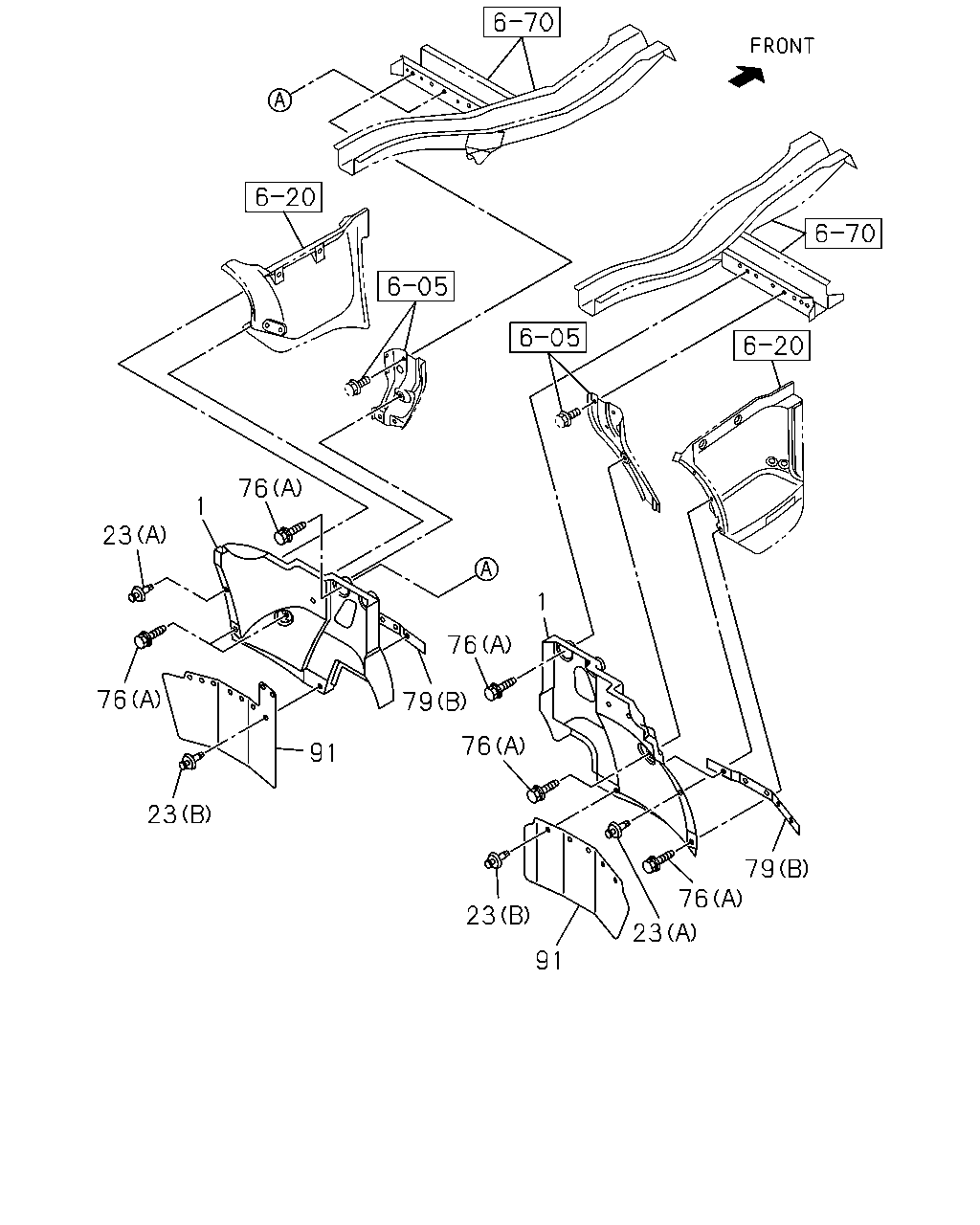

[647A] MUD GUARD; FRONT (11 parça)
▶
76
225
97
96
33
79
139
140
140
225
150
153
306
3
2
76
76
92
140
140
139
140
135
139
683
225
135
140
139
140
140
76
150
140
153
84
3
306
92
76
79
2
76
33
96
97
225
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
8-98111-019-0
02
1
1502-
3
GUARD; MUD,RR
8-98196-109-0
01
1
1502-
3
GUARD; MUD,RR
8-98196-121-0
01
1
1502-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
12
1
1502-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
07
1
1502-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
1502-
79
RETAINER; MUD COVER
(B)
8-98041-218-1
02
1
1502-
79
RETAINER; MUD COVER
(A)
8-98137-130-0
01
1
1502-
79
RETAINER; MUD COVER
(A)
8-98137-129-0
01
1
1502-
84
RIVET; MUD GUARD
5-09734-006-1
04
1
1502-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
08
1
1502-
96
STAY; MUD GUARD
1-79931-523-2
01
1
1502-
96
STAY; MUD GUARD
1-79931-522-2
01
1
1502-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
06
1
1502-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1502-
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1502-
139
PANEL; SIDE
(A)
8-98090-078-0
01
1
1502-
139
PANEL; SIDE
(B)
1-53194-590-1
01
1
1502-
139
PANEL; SIDE
(A)
8-98090-077-0
01
1
1502-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
15
1
1502-
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1502-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
02
1
1502-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1502-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1502-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1502-
306
BRACKET; MUD GUARD
8-98196-127-0
01
1
1502-
683
PLATE; SIDE PANEL
8-98199-233-0
01
1
1502-
219
218
9
181
254
192
9
219
218
307
307
181
192
254
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GUARD; SPLASH,WHEEL HOUSE
8-98057-963-0
01
1
1502-
9
GUARD; SPLASH,WHEEL HOUSE
8-98057-962-0
01
1
1502-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1502-
192
SEAL; MUD COVER
8-98041-159-2
01
1
1502-
192
SEAL; MUD COVER
8-98041-158-1
01
1
1502-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
10
1
1502-
219
FLAP; MUD GUARD
8-98041-151-1
02
1
1502-
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1502-
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1502-
307
RETAINER
D8X13.5
1-09987-248-1
10
1
1502-
76
23
76
23
91
79
76
1
76
23
91
23
76
79
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
8-98152-649-0
01
1
1502-
1
GUARD; MUD,FRT
8-98152-648-0
01
1
1502-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
1502-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1502-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
07
1
1502-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
1502-
79
RETAINER; MUD COVER
(B)
8-98041-218-1
02
1
1502-
79
RETAINER; MUD COVER
(A)
8-98137-130-0
01
1
1502-
79
RETAINER; MUD COVER
(A)
8-98137-129-0
01
1
1502-
91
COVER; MUD,FRT
8-98096-536-0
01
1
1502-
91
COVER; MUD,FRT
8-98096-535-0
01
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
