6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

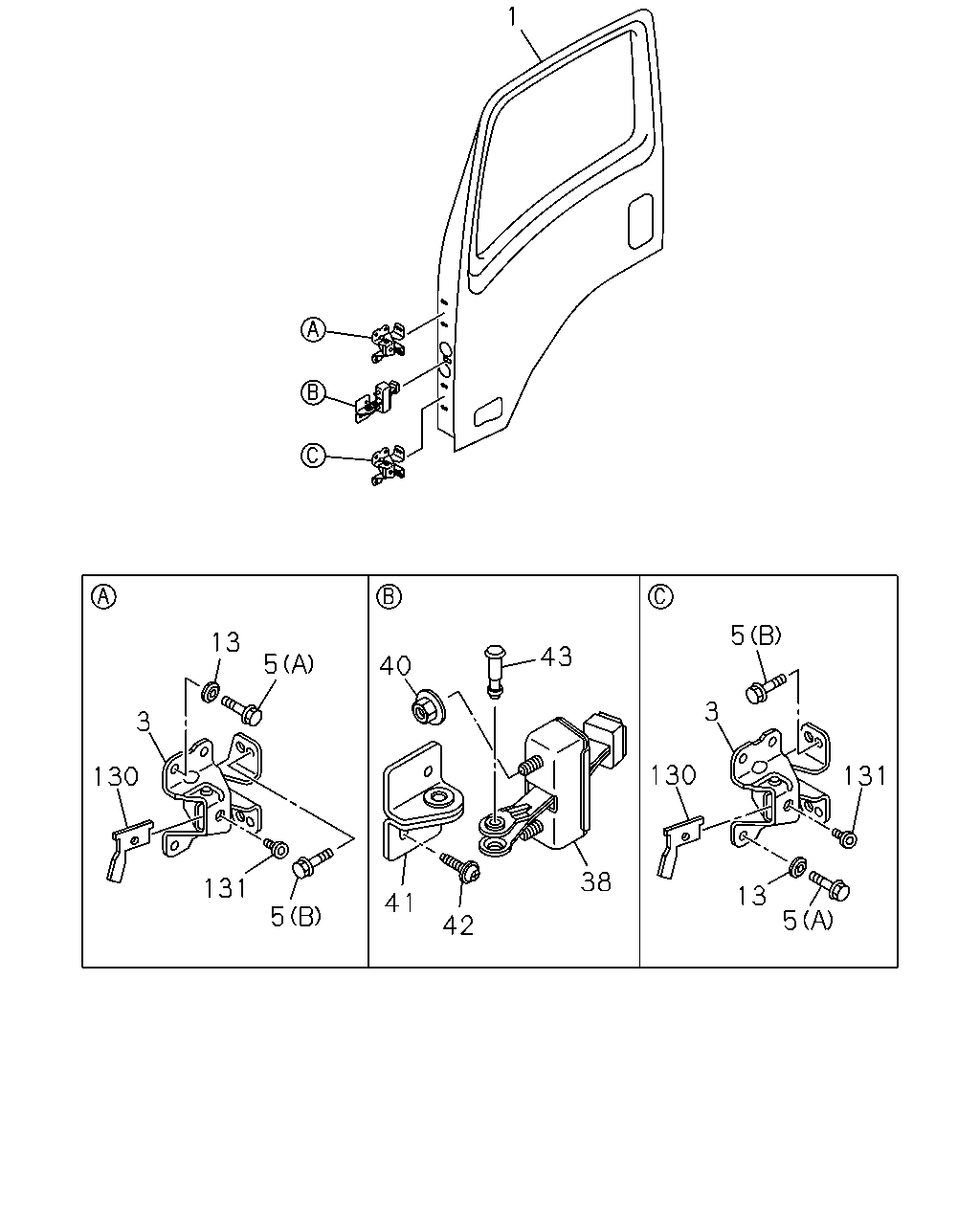

6-30 — FRONT DOOR AND HINGE
(#176205) — 16 parça
1
13
5
3
130
131
5
41
42
38
43
40
5
3
130
13
5
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98260-600-0
01
1
1502-
1
DOOR ASM; FRT,WO/TRIM
8-98260-599-0
01
1
1502-
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1502-
5
BOLT; HINGE
(B) M8X23 FLANGE
8-98029-440-0
08
1
1502-
5
BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
06
1
1502-
5
BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
06
1
1502-
13
WASHER; HINGE
ID=8.1 W/SEAL
8-97890-584-1
04
1
1502-
38
CHECKER ASM; DOOR
8-98208-189-1
02
1
1502-1508
38
CHECKER ASM; DOOR
8-98296-601-0
02
1
1509-
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1502-1508
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-
41
BRACKET; CHECKER
8-98029-290-3
02
1
1502-
42
BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
1502-
43
PIN
8-98037-152-2
02
1
1502-
130
STOPPER; HINGE
8-98038-299-1
04
1
1502-
131
BOLT; DOOR STOPPER
M10X11
8-98039-593-1
04
1
1502-
