6-05 — FRONT PANEL (#176202) — 116 parça

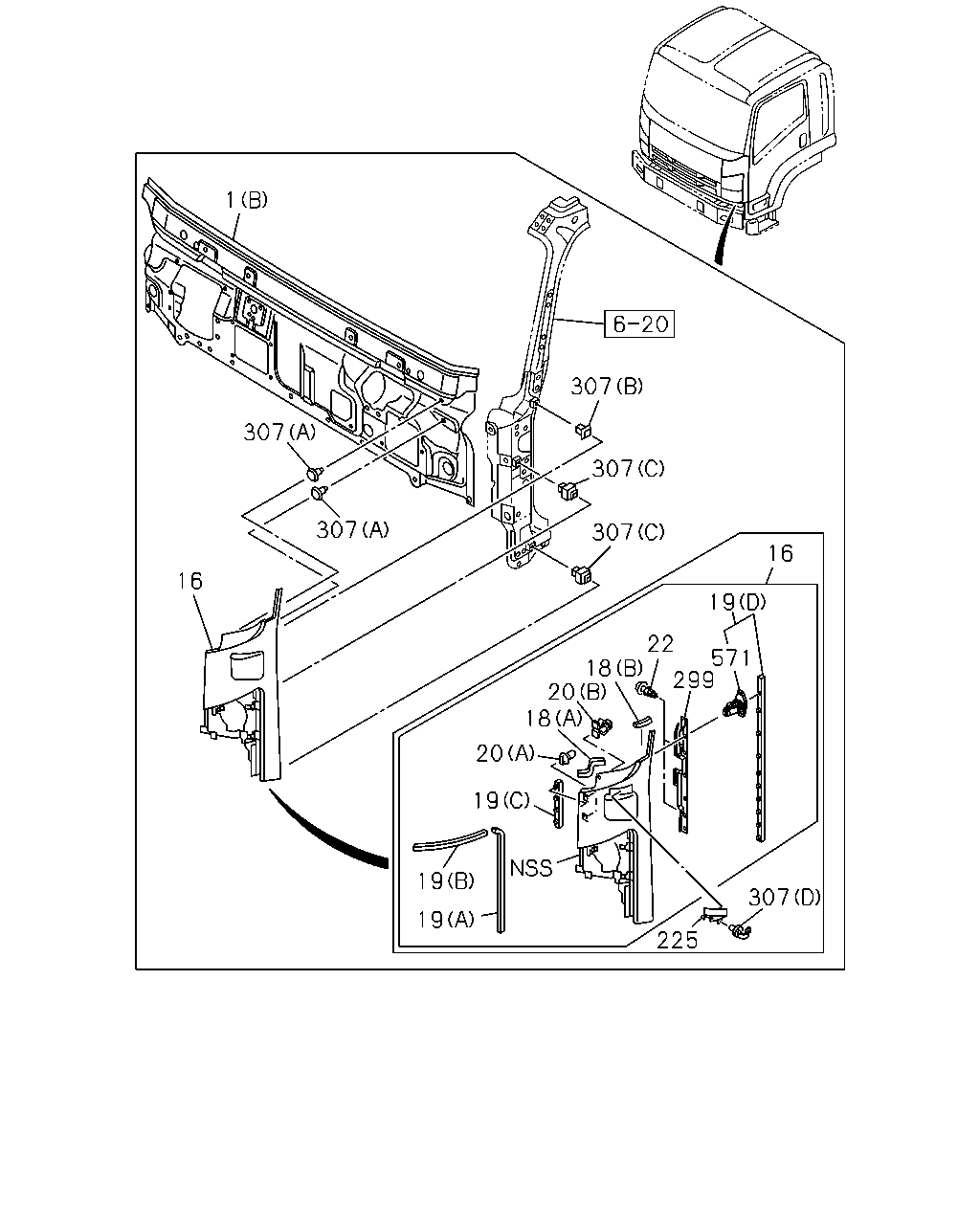

çizim 512410
1 307 307 16 307 307 307 16 19 22 18 20 18 20 19 571 299 307 225 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1502-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1502-
16 PANEL; FRONT,SIDE
LIGHT GREEN 		8-97412-744-5 01 1 1502-
16 PANEL; FRONT,SIDE
LIGHT GREEN 		8-97412-745-4 01 1 1502-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1502-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1502-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1502-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1502-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1502-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1502-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1502-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1502-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1502-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1502-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1502-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1502-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1502-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1502-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1502-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1502-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1502-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1502-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1502-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1502-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1502-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1502-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1502-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1502-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1502-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1502-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1502-

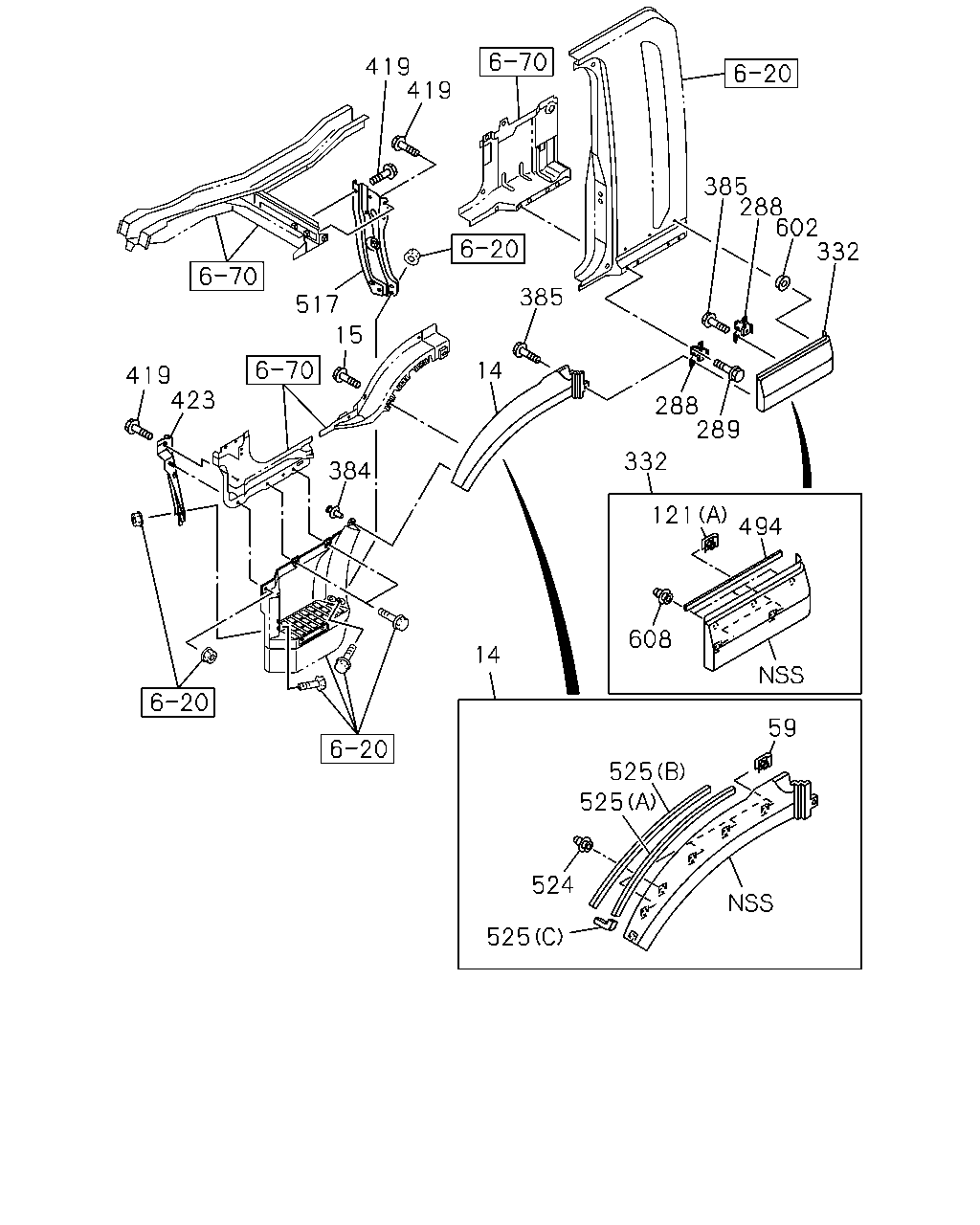

çizim 514264
419 419 517 15 419 423 384 14 385 14 385 288 602 332 288 289 332 121 494 608 525 525 524 525 59
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1502-
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1502-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1502-
59 GROMMET; SCREW 8-94279-723-0 10 1 1502-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1502-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1502-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1502-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1502-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1502-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1502-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1502-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1502-
332 FENDER; RR 8-98038-435-2 01 1 1502-
332 FENDER; RR 8-98038-434-2 01 1 1502-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1502-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1502-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1502-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1502-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1502-
494 FINISHER; FENDER 8-98072-723-0 01 1 1502-
494 FINISHER; FENDER 8-98041-172-1 01 1 1502-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1502-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1502-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1502-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1502-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1502-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1502-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1502-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1502-

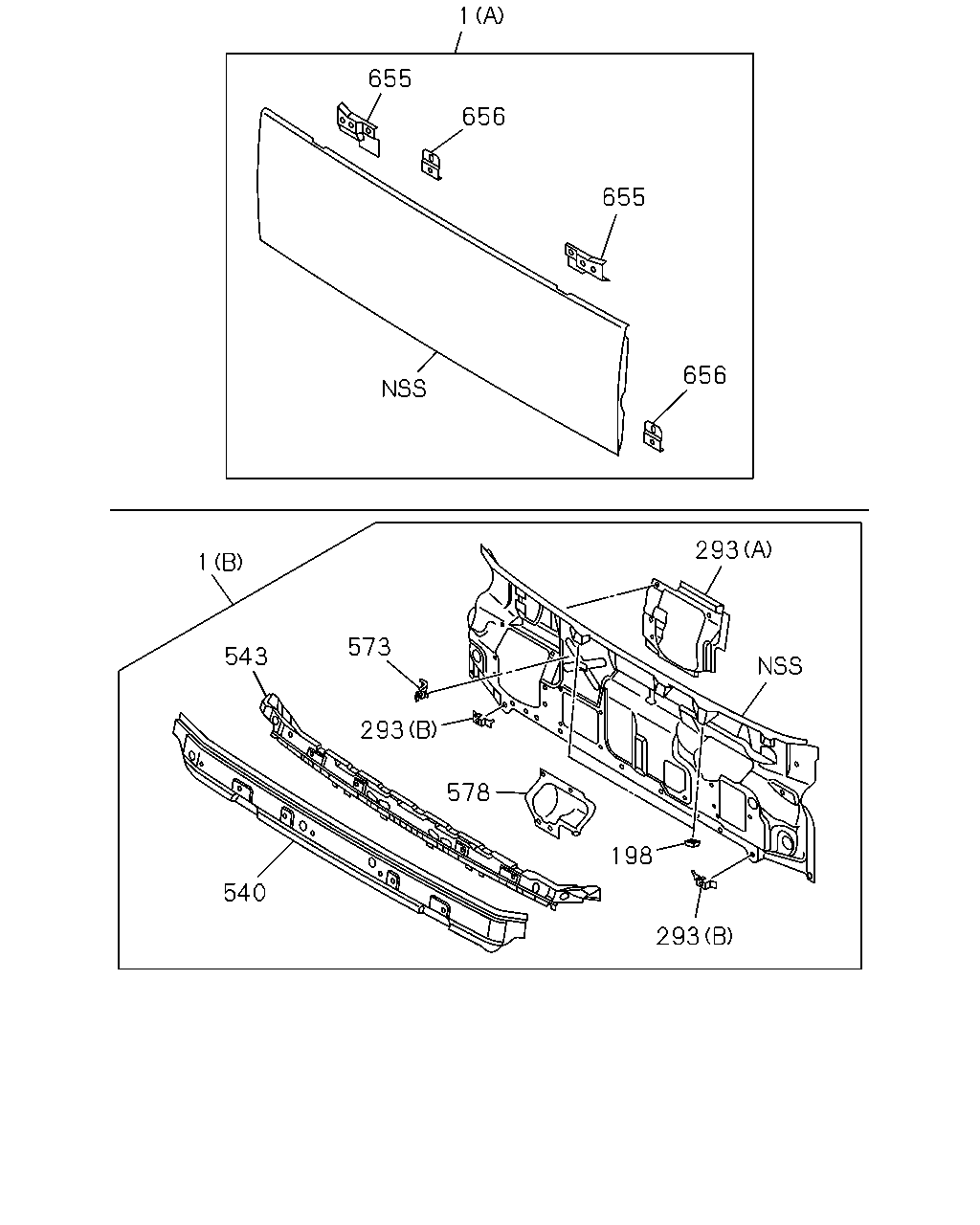

çizim 514284
655 1 655 656 656 1 543 573 293 293 198 540 578 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1502-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1502-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1502-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1502-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1502-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1502-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1502-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1502-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1502-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1502-
655 PATCH; HINGE 8-98031-263-0 01 1 1502-
655 PATCH; HINGE 8-98031-264-0 01 1 1502-
656 PATCH; STRIKER 8-98031-265-0 02 1 1502-

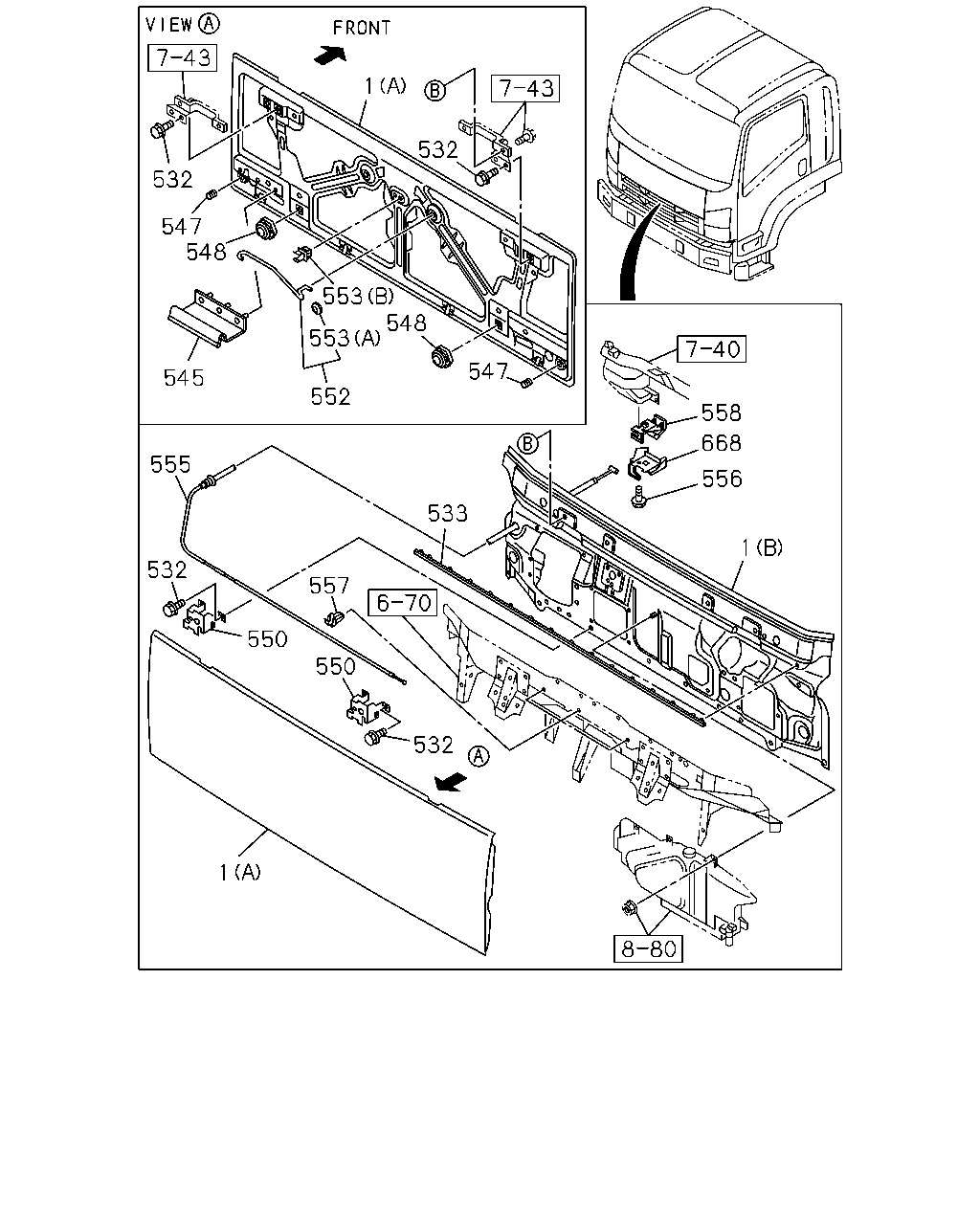

çizim 514378
1 558 556 668 547 532 547 545 552 553 553 532 548 548 555 532 550 557 550 532 1 533 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1502-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1502-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1502-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1502-
545 SEAL; FRT LID 8-98123-265-0 01 1 1502-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1502-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1502-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1502-
552 STAY; FRT LID 8-98089-838-0 01 1 1502-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1502-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1502-
555 CABLE; FRT LID 8-98036-574-1 01 1 1502-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1502-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1502-
558 LEVER; FRT LID 1-79338-007-1 01 1 1502-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1502-

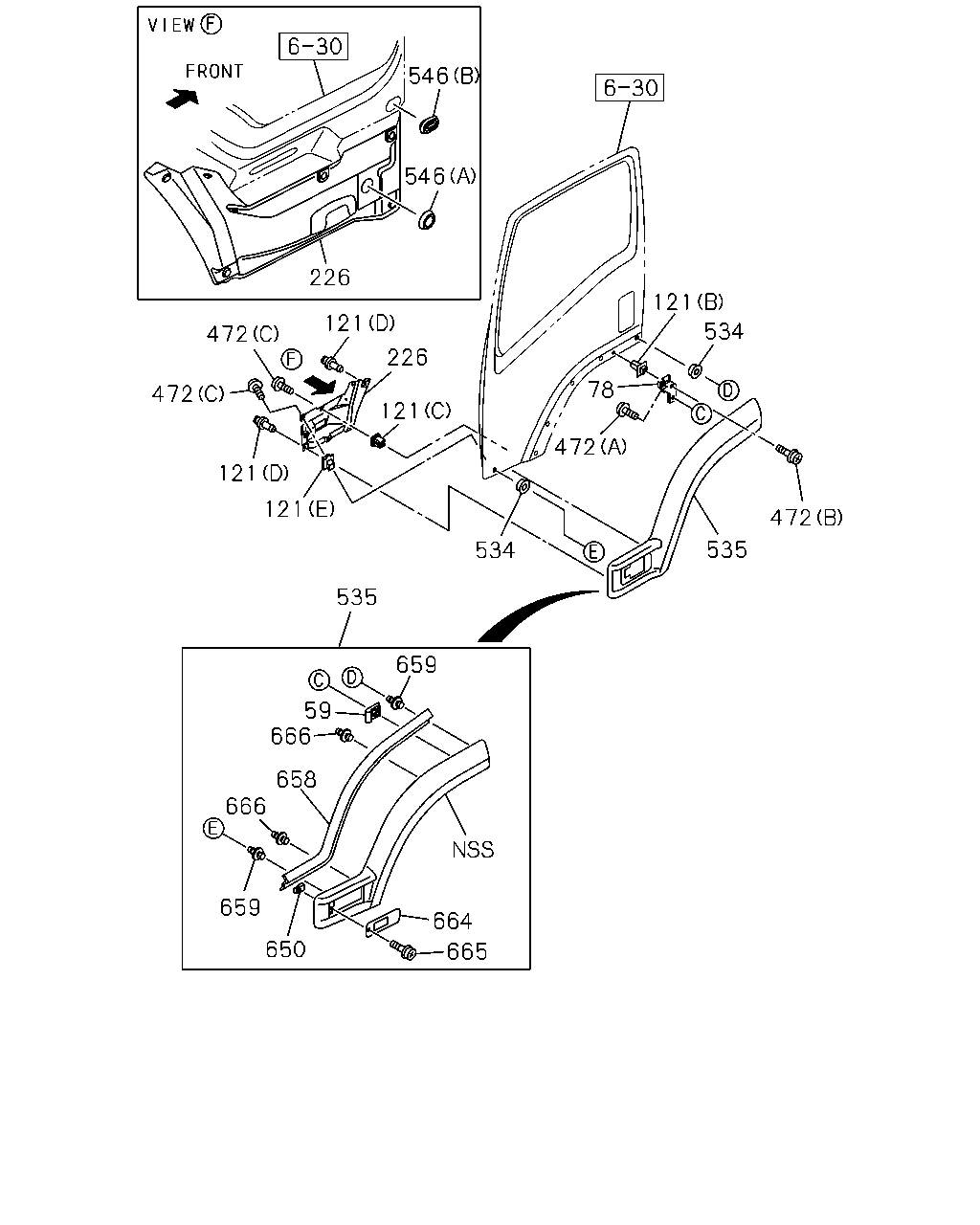

çizim 514531
546 546 226 472 121 226 121 472 121 121 535 659 59 666 658 666 659 664 650 665 534 472 78 121 535 472 534
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 10 1 1502-
78 BRACKET; FENDER 8-98041-166-1 01 1 1502-
78 BRACKET; FENDER 8-98041-165-1 01 1 1502-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1502-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1502-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1502-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1502-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1502-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1502-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1502-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1502-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1502-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1502-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1502-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1502-
535 FENDER; BLISTER
BLACK 		8-98106-499-0 01 1 1502-
535 FENDER; BLISTER
BLACK 		8-98106-498-0 01 1 1502-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1502-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1502-
650 NUT; SPIRE 8-94279-501-0 02 1 1502-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1502-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1502-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1502-
664 BASE; DOOR,SIDE TURN 8-98053-146-1 01 1 1502-
664 BASE; DOOR,SIDE TURN 8-98053-145-1 01 1 1502-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1502-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1502-
