Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

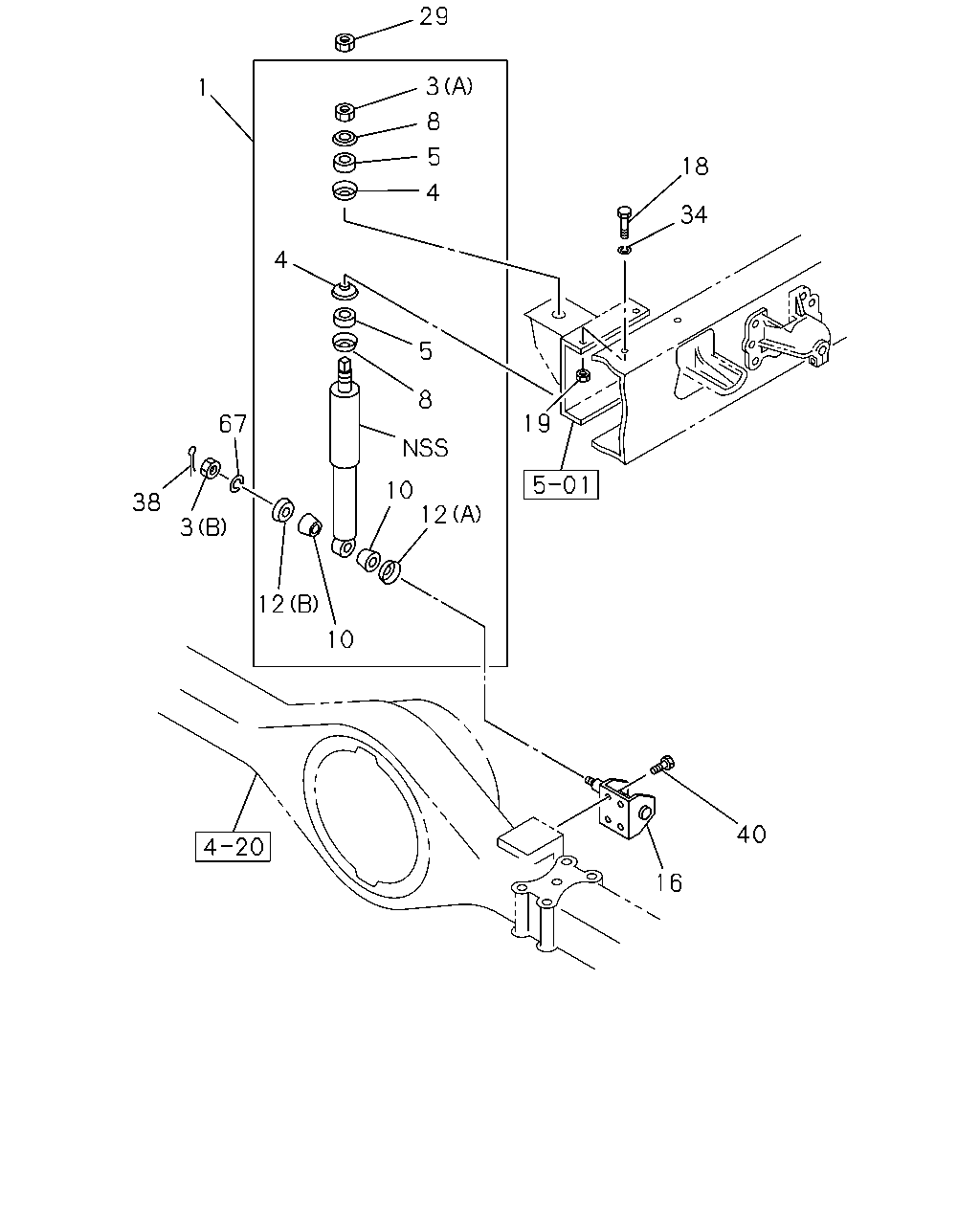

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#176192) — 17 parça
29
1
3
5
8
4
18
34
4
5
8
19
67
38
3
12
10
16
40
10
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
8-98050-245-0
02
1
1502-
3
NUT; S/ABS
(A) M14
9-99111-414-0
02
1
1502-
3
NUT; S/ABS
(B) M20 SLOTTED
9-99116-420-0
02
1
1502-
4
WASHER; CENTER,S/ABS
ID=24
1-51631-067-0
04
1
1502-
5
BUSHING; RUBBER,S/ABS,UPR
ID=16 T=25
1-51631-069-0
04
1
1502-
8
WASHER; S/ABS
ID=16.5
1-51631-068-0
04
1
1502-
10
BUSHING; RUBBER,S/ABS
9-51631-026-0
04
1
1502-
12
WASHER; S/ABS TO RR AXLE
(A) ID=27
9-51631-027-0
02
1
1502-
12
WASHER; S/ABS TO RR AXLE
(B) ID=21
9-51631-028-0
02
1
1502-
16
BRACKET; S/ABS,RR
1-51681-471-0
02
1
1502-
18
BOLT; S/ABS BRKT
M12X35
0-20851-235-0
08
1
1502-
19
NUT; S/ABS BRKT
M12
0-91110-512-0
08
1
1502-
29
NUT; LK,S/ABS,RR SUSP
M14
0-91111-514-0
02
1
1502-
34
WASHER; LK,S/ABS BRKT
ID=12.2
0-91510-812-0
08
1
1502-
38
PIN; SPLIT,S/ABS
OD=3.7 L=30
0-81124-030-0
02
1
1502-
40
BOLT; LWR BRKT
M12X30 W/LK WASHER
0-50541-230-0
08
1
1502-
67
WASHER; PL,S/ABS
ID=21
0-91610-520-0
02
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
