◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11743 - FTS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#176189) — 37 parça

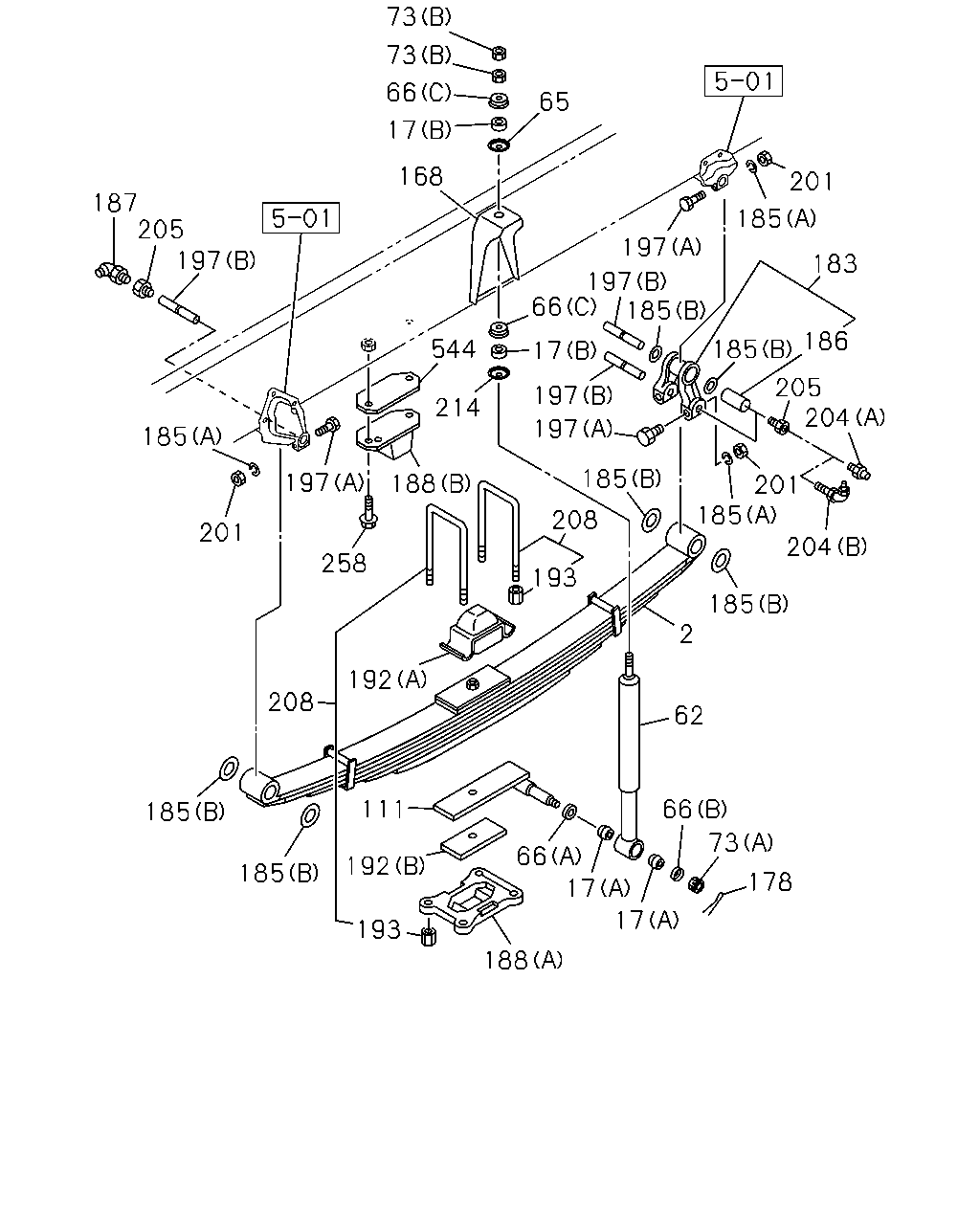

çizim 513785
73 73 66 17 65 168 187 197 205 185 201 208 185 185 192 193 188 17 17 66 73 178 66 62 2 204 185 185 208 193 192 258 197 188 214 185 197 197 201 204 205 186 185 183 185 185 197 197 201 66 544 17 111
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98135-956-0 02 1 1502-
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1502-
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1502-
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1502-
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 02 1 1502-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1502-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 1502-
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 1502-
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1502-
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1502-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 1502-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 1502-
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1502-
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1502-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1502-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1502-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1502-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1502-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 1502-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 1502-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 1502-
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 1502-
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 1502-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1502-
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 1502-
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 1502-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1502-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1502-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1502-
208 U-BOLT SET; FRT SPRING
L=400 		1-87870-503-0 04 1 1502-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 1502-
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 1502-
544 BRACKET; RUBBER 1-51174-017-1 02 1 1502-
çizim 514371
344 82
BalonParca AdiParca NoAdetTipApplied Date
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 1502-
344 PIN; FRT S/ABS 9-43219-034-0 01 1 1502-
