Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-35 - POWER STEERING CONTROL; CHASSIS SIDE
▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE
(#176185) — 59 parça
◀

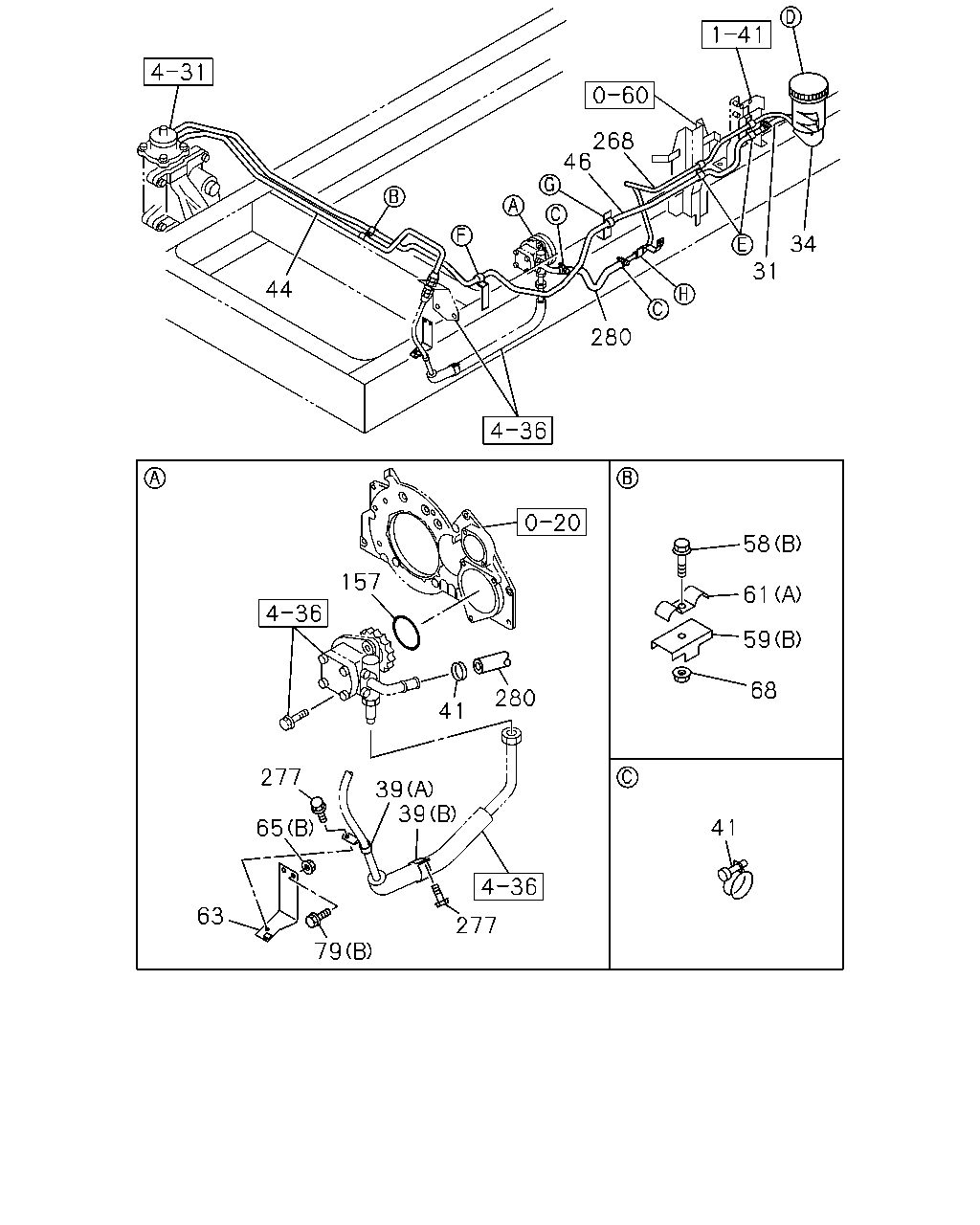

[435A] NO.1 (26 parça)

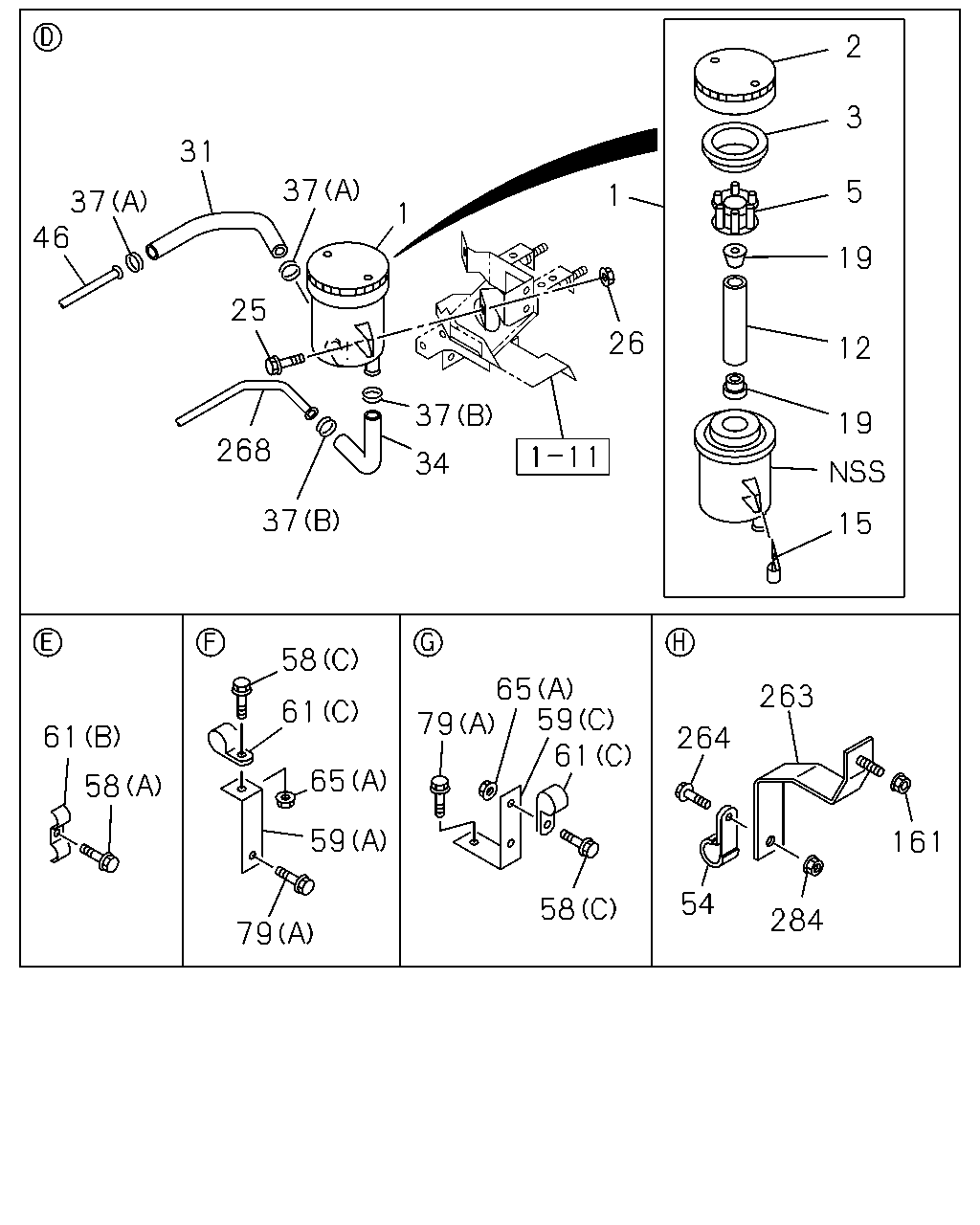

[435A] NO.2 (33 parça)
▶
44
280
31
34
268
46
157
277
65
63
79
277
39
39
41
280
58
61
59
68
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
HOSE; P/S OIL TANK,INL
8-98092-730-0
01
1
1502-
34
HOSE; P/S OIL TANK,OUTLET
8-98021-827-0
01
1
1502-
39
CLIP; FLEX HOSE
(A) ID=19 L=58
1-09700-733-1
01
1
1502-
39
CLIP; FLEX HOSE
(B) ID=40
8-94226-553-0
01
1
1502-
41
CLIP; HOSE,P/S
ID=32
1-09704-085-0
02
1
1502-
44
PIPE; OIL,P/S UNIT TO NIPPLE
8-97623-288-0
01
1
1502-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=2775
8-98111-272-0
01
1
1502-
58
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
02
1
1502-
58
BOLT; CLIP
(C) M8X20 FLANGE
0-28050-820-0
02
1
1502-
58
BOLT; CLIP
(B) M8X40 FLANGE
0-28650-840-0
01
1
1502-
59
BRACKET; CLIP,OIL PIPE
(B)
1-47475-427-1
01
1
1502-
59
BRACKET; CLIP,OIL PIPE
(A) L=95
1-82699-085-0
01
1
1502-
59
BRACKET; CLIP,OIL PIPE
(C)
8-98083-607-0
01
1
1502-
61
CLIP; OIL PIPE
(C) ID=16 L=20
0-95235-536-0
02
1
1502-
61
CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
01
1
1502-
61
CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20
1-09700-806-1
02
1
1502-
63
BRACKET; CLIP,P/S
8-98215-731-0
01
1
1502-
65
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1502-
65
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1502-
68
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
01
1
1502-
79
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1502-
79
BOLT; BRKT
(B) M10X25 FLANGE
0-28651-025-0
02
1
1502-
157
GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4
1-09623-467-0
01
1
1502-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98154-048-0
01
1
1502-
277
BOLT; HOSE CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1502-
280
HOSE; P/S OIL PUMP,INL
8-98131-414-0
01
1
1502-
46
37
31
25
37
1
26
1
37
34
268
37
2
3
5
19
12
19
15
61
58
58
61
65
59
79
79
59
65
61
58
264
161
263
54
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; OIL,P/S
8-98166-928-0
01
1
1502-
2
CAP; OIL TANK,P/S
8-98166-876-0
01
1
1502-
3
GASKET; OIL TANK,P/S
1-21249-003-1
01
1
1502-
5
STRAINER; OIL TANK,P/S
1-21235-007-1
01
1
1502-
12
FILTER; MICROBON,OIL TANK,P/S
1-21235-011-0
01
1
1502-
15
PLATE; FILTER,OIL TANK
1-21249-016-0
02
1
1502-
19
SEAT; OIL TANK
1-21249-004-0
02
1
1502-
25
BOLT; OIL TANK BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1502-
26
NUT; OIL TANK TO BRKT
M8 FLANGE
0-91180-108-0
02
1
1502-
31
HOSE; P/S OIL TANK,INL
8-98092-730-0
01
1
1502-
34
HOSE; P/S OIL TANK,OUTLET
8-98021-827-0
01
1
1502-
37
CLIP; HOSE,P/S
(A) ID=26
1-09704-082-0
02
1
1502-
37
CLIP; HOSE,P/S
(B) ID=32
1-09704-085-0
02
1
1502-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=2775
8-98111-272-0
01
1
1502-
54
CLIP; OIL PIPE
ID=19 L=20
0-95235-836-0
01
1
1502-
58
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
02
1
1502-
58
BOLT; CLIP
(C) M8X20 FLANGE
0-28050-820-0
02
1
1502-
58
BOLT; CLIP
(B) M8X40 FLANGE
0-28650-840-0
01
1
1502-
59
BRACKET; CLIP,OIL PIPE
(B)
1-47475-427-1
01
1
1502-
59
BRACKET; CLIP,OIL PIPE
(A) L=95
1-82699-085-0
01
1
1502-
59
BRACKET; CLIP,OIL PIPE
(C)
8-98083-607-0
01
1
1502-
61
CLIP; OIL PIPE
(C) ID=16 L=20
0-95235-536-0
02
1
1502-
61
CLIP; OIL PIPE
(A) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
01
1
1502-
61
CLIP; OIL PIPE
(B) ID=19 & 16 L=25 & 20
1-09700-806-1
02
1
1502-
65
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
02
1
1502-
65
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1502-
79
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1502-
79
BOLT; BRKT
(B) M10X25 FLANGE
0-28651-025-0
02
1
1502-
161
NUT; P/S PIPE
M8 FLANGE
0-91180-108-0
01
1
1502-
263
BRACKET; P/S PIPE
8-98131-412-0
01
1
1502-
264
BOLT; PIPE BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1502-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98154-048-0
01
1
1502-
284
NUT; PIPE
M8 FLANGE
0-91180-108-0
01
1
1502-
