12 |
JOINT ASM
|
1-43330-018-0 |
02 |
1 |
1502- |
| |
18 |

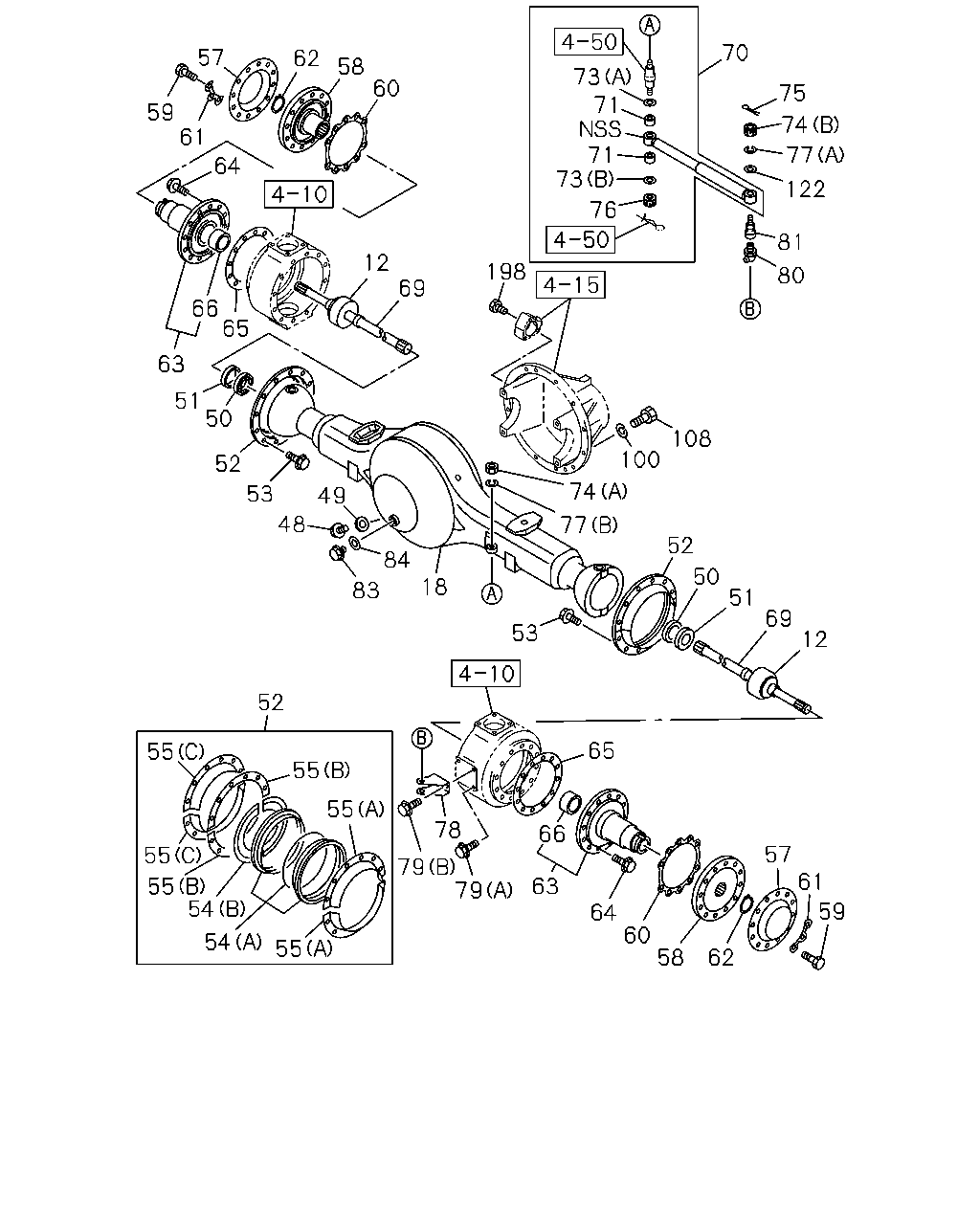

CASE; FRT AXLE
|
8-98200-134-0 |
01 |
1 |
1502- |
| |
48 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1502- |
| |
49 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1502- |
| |
50 |
SEAL; OIL,SHAFT,FRT AXLE
|
1-09625-192-0 |
02 |
1 |
1502- |
| |
51 |
GUIDE; OIL,FRT AXLE
|
9-43339-003-0 |
02 |
1 |
1502- |
| |
52 |
SEAL; OIL,KNUCKLE
|
1-09625-004-0 |
02 |
1 |
1502- |
| |
53 |
BOLT; OIL SEAL
M8X12 FLANGE
|
0-28050-812-0 |
20 |
1 |
1502- |
| |
53 |
BOLT; OIL SEAL
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1502- |
| |
54 |
GASKET; OIL SEAL
(A)
|
1-09625-241-0 |
02 |
1 |
1502- |
| |
54 |
GASKET; OIL SEAL
(B)
|
1-09625-242-0 |
02 |
1 |
1502- |
| |
55 |
RING; OIL SEAL
(A)
|
1-09625-243-0 |
04 |
1 |
1502- |
| |
55 |
RING; OIL SEAL
(B)
|
1-09625-244-0 |
04 |
1 |
1502- |
| |
55 |
RING; OIL SEAL
(C)
|
1-09625-245-0 |
04 |
1 |
1502- |
| |
57 |
COVER; FLANGE,FRT AXLE SHAFT
|
9-42313-116-0 |
02 |
1 |
1502- |
| |
58 |
FLANGE; AXLE SHAFT,FRT
|
1-42312-028-0 |
02 |
1 |
1502- |
| |
59 |
BOLT; FLANGE,FRT AXLE SHAFT
M12X45
|
9-09804-239-1 |
20 |
1 |
1502- |
| |
60 |
GASKET; FLANGE,FRT AXLE SHAFT
|
1-42175-001-0 |
02 |
1 |
1502- |
| |
61 |
PLATE; LK,FLANGE
|
1-43319-005-0 |
08 |
1 |
1502- |
| |
62 |
RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00
|
9-09952-253-0 |
02 |
1 |
1502- |
| |
63 |
SPINDLE; KNUCKLE,FRT AXLE SHAFT
|
8-98082-198-0 |
02 |
1 |
1502- |
| |
64 |
BOLT; SPINDLE
M12X30 FLANGE
|
0-28061-230-0 |
08 |
1 |
1502- |
| |
64 |
BOLT; SPINDLE
M12X45 FLANGE
|
0-28061-245-0 |
16 |
1 |
1502- |
| |
65 |
GASKET; KNUCKLE TO SPINDLE
|
9-43254-005-0 |
02 |
1 |
1502- |
| |
66 |
BUSHING; SPINDLE,FRT AXLE SHAFT
|
1-43321-011-0 |
02 |
1 |
1502- |
| |
69 |
SHAFT; AXLE,FRT INNER
|
8-98082-680-2 |
01 |
1 |
1502- |
| |
69 |
SHAFT; AXLE,FRT INNER
|
8-98082-681-2 |
01 |
1 |
1502- |
| |
70 |
ABSORBER ASM; SHOCK,SHIMMY
|
1-51630-207-0 |
01 |
1 |
1502- |
| |
71 |
BUSHING; RUB,LWR,FRT S/ABS
|
9-51631-037-0 |
02 |
1 |
1502- |
| |
73 |
WASHER; LWR,FRT S/ABS
(A)
|
9-51679-010-0 |
01 |
1 |
1502- |
| |
73 |
WASHER; LWR,FRT S/ABS
(B)
|
9-51679-011-0 |
01 |
1 |
1502- |
| |
74 |
NUT; S/ABS
(A)
M16
|
0-91110-516-0 |
01 |
1 |
1502- |
| |
74 |
NUT; S/ABS
(B)
M12
|
0-91116-512-0 |
01 |
1 |
1502- |
| |
75 |
PIN; SPLIT,S/ABS
OD=2.8 L=20
|
0-81123-020-0 |
01 |
1 |
1502- |
| |
76 |
NUT; LWR,FRT S/ABS
|
9-51631-083-0 |
01 |
1 |
1502- |
| |
77 |
WASHER; LK,S/ABS
(A)
ID=12.2
|
0-91510-512-0 |
01 |
1 |
1502- |
| |
77 |
WASHER; LK,S/ABS
(B)
ID=16.2
|
0-91510-516-0 |
01 |
1 |
1502- |
| |
78 |
BRACKET; SHIMMY DAMPER
|
1-43219-017-0 |
01 |
1 |
1502- |
| |
79 |
BOLT; BRKT
(A)
M12X20 FLANGE
|
0-28051-220-0 |
02 |
1 |
1502- |
| |
79 |
BOLT; BRKT
(B)
M12X25 FLANGE
|
0-28051-225-0 |
02 |
1 |
1502- |
| |
80 |
NIPPLE; GREASE,BRKT
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
01 |
1 |
1502- |
| |
81 |
PIN; SHIMMY DAMPER
|
1-43219-018-0 |
01 |
1 |
1502- |
| |
83 |
PLUG; OIL FILLER
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1502- |
| |
84 |
GASKET; PLUG,OIL FILLER
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1502- |
| |
100 |
WASHER; LK,FRT FINAL DRIVE
ID=12.2
|
0-91510-812-0 |
12 |
1 |
1502- |
| |
108 |
BOLT; FRT FINAL DRIVE
M12X60
|
0-10956-260-0 |
04 |
1 |
1502- |
| |
108 |
BOLT; FRT FINAL DRIVE
M12X35
|
0-20951-235-0 |
06 |
1 |
1502- |
| |
108 |
BOLT; FRT FINAL DRIVE
M12X105
|
8-97029-869-0 |
02 |
1 |
1502- |
| |
122 |
WASHER; S/ABS
ID=17 OD=30
|
0-91610-516-0 |
01 |
1 |
1502- |
| |
198 |
PLUG; COVER
M12X9
|
0-92002-412-0 |
01 |
1 |
1502- |
