◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11743 - FTS THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#176174) — 135 parça

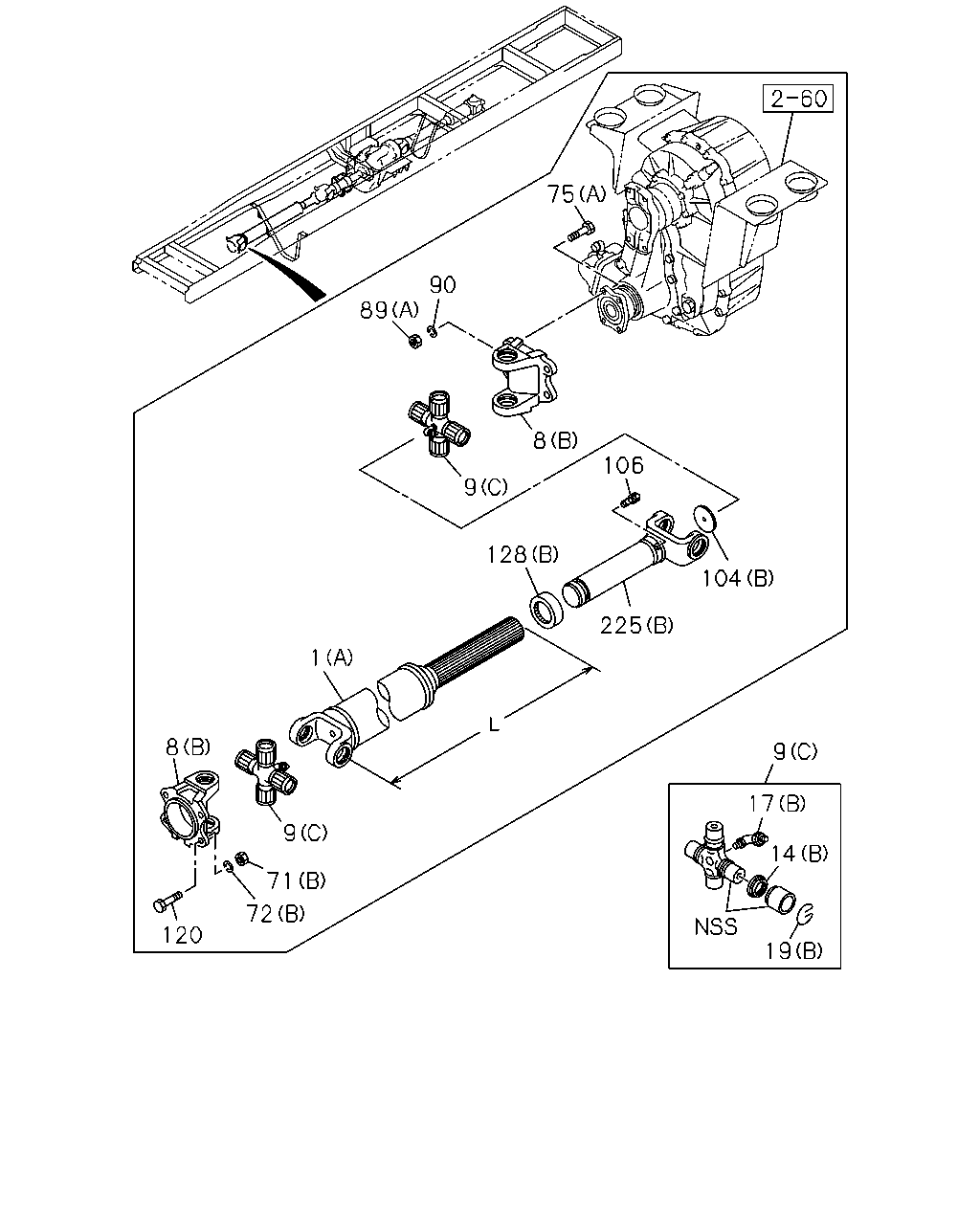

çizim 512752
120 8 72 71 9 1 128 225 104 106 8 9 89 90 75 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=911 		1-37123-509-1 01 1 1502-
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1502-
1 SHAFT; PROP
(B) L=255 		1-37152-779-0 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1502-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1502-
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1502-
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-102-1 AR 1 1502-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1502-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
14 COVER; DUST,SPIDER
(C) 		1-37319-012-0 04 1 1502-1505
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1502-
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1502-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1502-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1502-
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 1502-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1502-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1502-
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1502-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1502-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1502-
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1502-
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1502-
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 		0-91510-612-0 04 1 1502-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1502-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1502-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1502-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1502-
120 BOLT; YOKE TO RR AXLE
M12X32 		1-09000-076-1 04 1 1502-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1502-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1502-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1502-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1502-

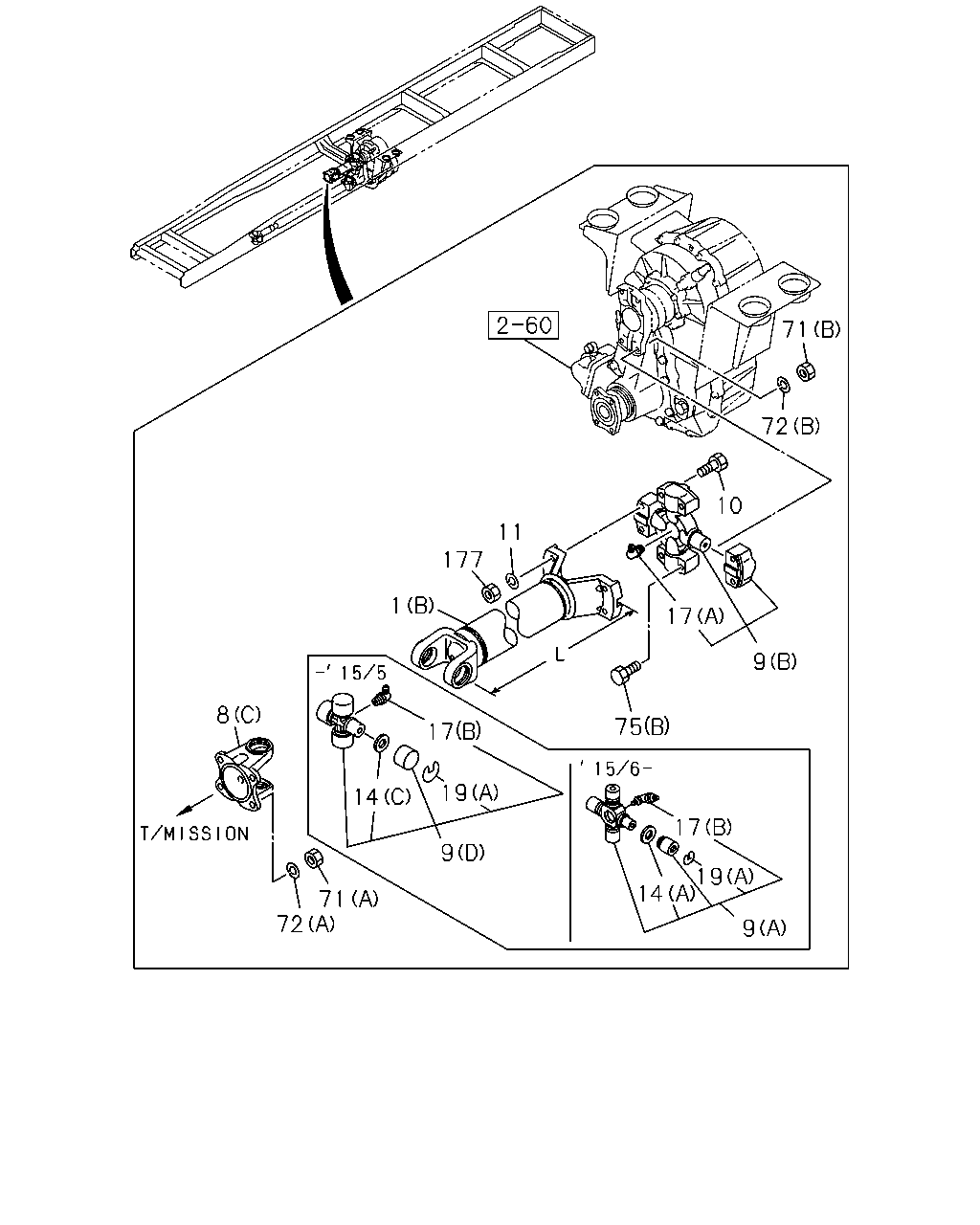

çizim 512756
71 72 10 17 9 11 177 1 75 17 19 14 9 17 19 9 14 8 71 72
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=911 		1-37123-509-1 01 1 1502-
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1502-
1 SHAFT; PROP
(B) L=255 		1-37152-779-0 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1502-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1502-
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1502-
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-102-1 AR 1 1502-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1502-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
10 BOLT; UJT
M12X75 		9-91061-275-0 04 1 1502-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1502-
14 COVER; DUST,SPIDER
(C) 		1-37319-012-0 04 1 1502-1505
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1502-
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1502-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1502-
71 NUT; YOKE
(B) M12 		0-91110-512-0 04 1 1502-
71 NUT; YOKE
(A) M14 		0-91110-514-0 04 1 1502-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1502-
72 WASHER; LK,YOKE
(B) ID=12.2 		0-91510-612-0 04 1 1502-
72 WASHER; LK,YOKE
(A) ID=14.2 		0-91510-614-0 04 1 1502-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1502-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1502-
177 NUT
M12 		0-91110-512-0 04 1 1502-

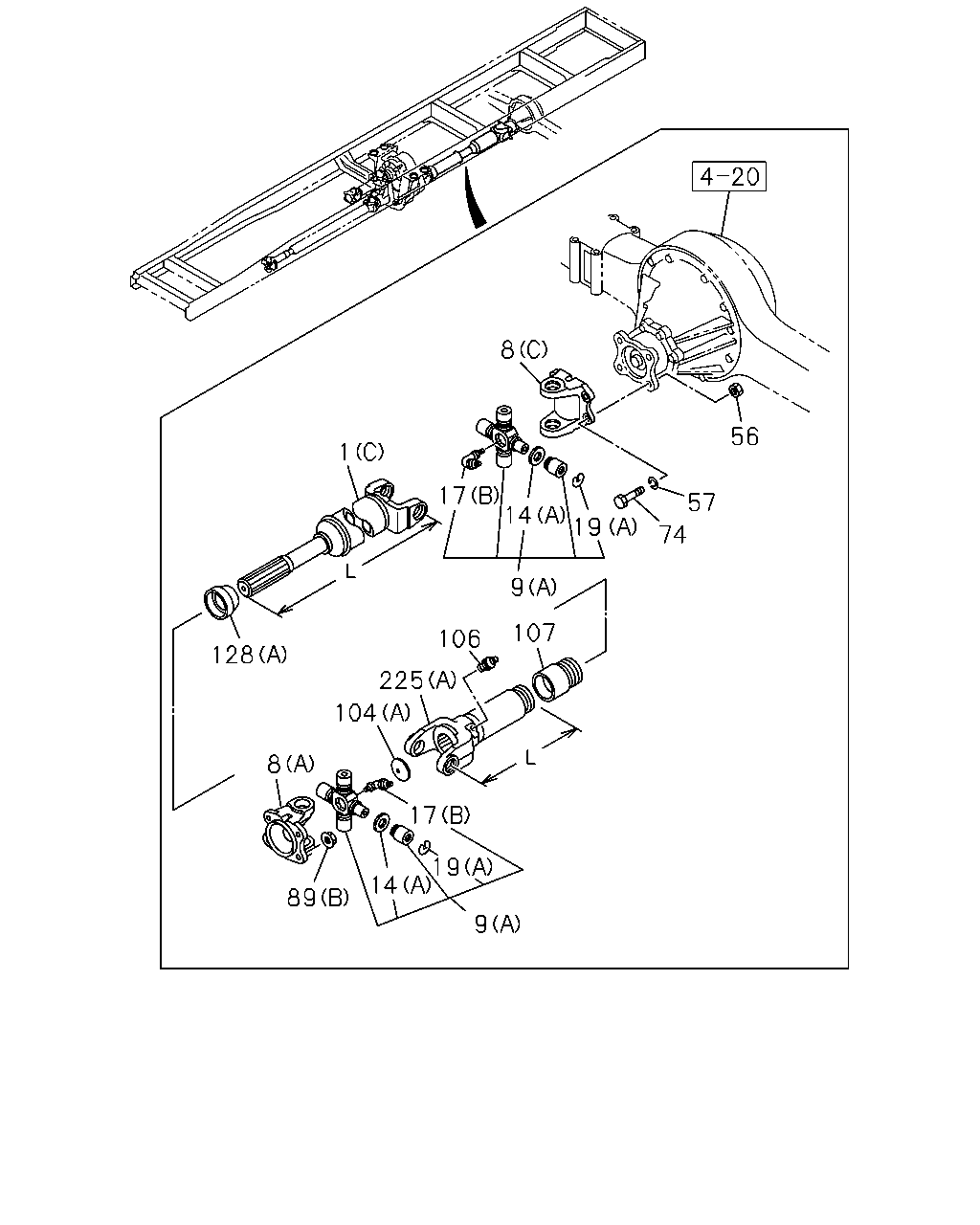

çizim 513071
128 8 89 104 225 106 17 19 14 9 107 9 17 1 14 19 74 57 56 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=911 		1-37123-509-1 01 1 1502-
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1502-
1 SHAFT; PROP
(B) L=255 		1-37152-779-0 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1502-
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1502-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1502-
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1502-
9 JOURNAL ASM; PROP SHAFT
(D) 		1-37300-102-1 AR 1 1502-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-0 AR 1 1502-1505
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(A) 		8-98048-925-1 AR 1 1506-
14 COVER; DUST,SPIDER
(C) 		1-37319-012-0 04 1 1502-1505
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1502-
14 COVER; DUST,SPIDER
(A) 		8-98020-800-0 08 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1502-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1502-
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1502-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1502-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1502-
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1502-
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1502-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1502-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1502-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1502-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1502-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 1502-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1502-
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1502-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1502-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1502-
