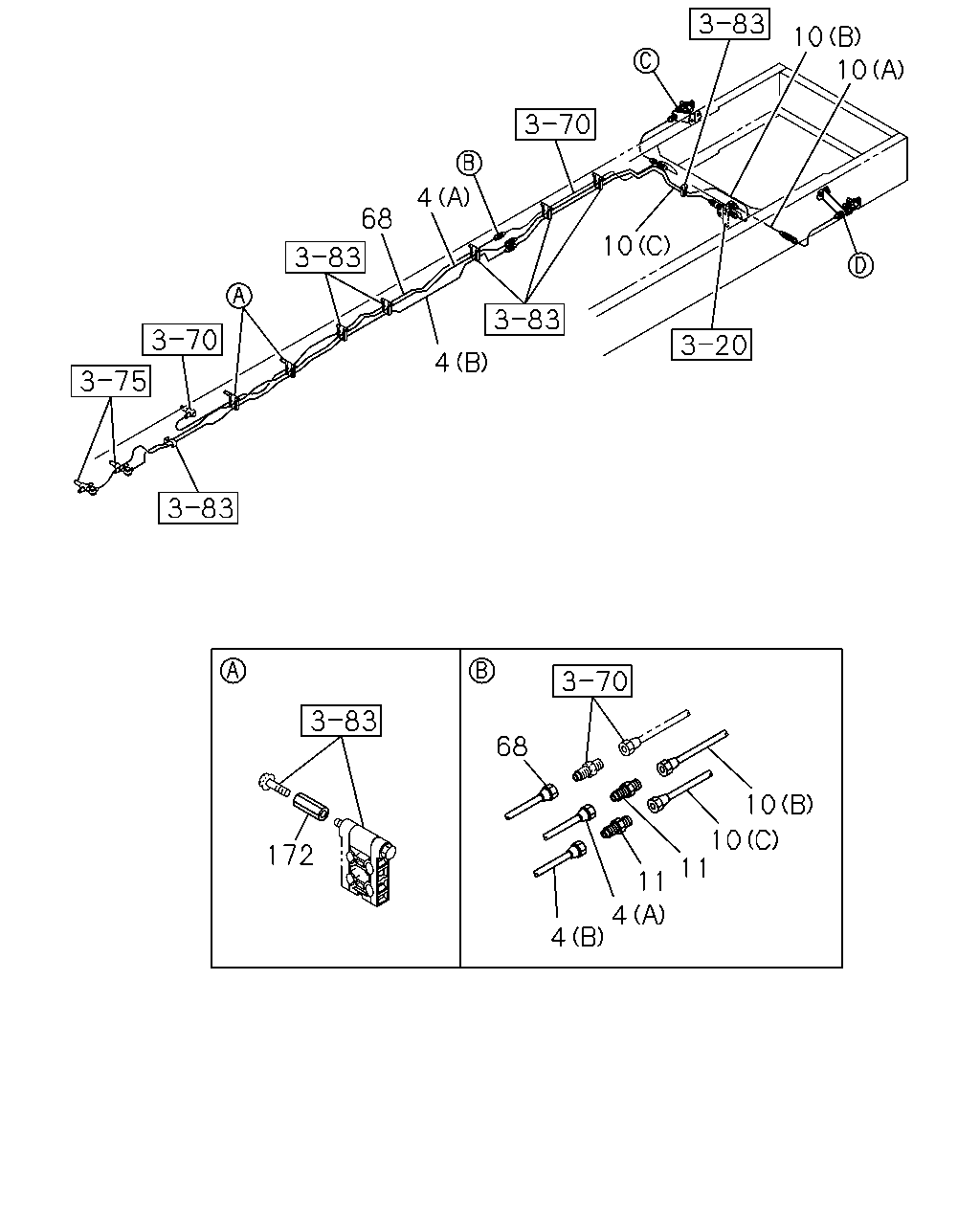

3-80 — BRAKE PIPING; TRAILER (#176172) — 23 parça

84 29 81 3 56 18 16 121 10 19 18 42 56 3 84 29 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; COCK M16	0-91111-516-0	02	1	1502-
10	PIPE; AIR,UNION TO DBL CHECK VLV (C) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
10	PIPE; AIR,UNION TO DBL CHECK VLV (B) L=1687 SERVICED BY L=1700	1-47428-880-0	01	1	1502-
10	PIPE; AIR,UNION TO DBL CHECK VLV (A) L=305	8-98141-746-0	01	1	1502-
16	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	1502-
18	NUT; UNION M16	0-91111-516-0	02	1	1502-
19	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	1502-
29	CONNECTOR; COCK	1-09650-121-1	02	1	1502-
42	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1502-
56	PIPE; AIR,UNION TO COCK (A) L=330	8-98152-579-0	01	1	1502-
56	PIPE; AIR,UNION TO COCK (B) L=338	8-98152-587-0	01	1	1502-
81	COCK; AIR COUPLING RED	1-47478-466-1	01	1	1502-
81	COCK; AIR COUPLING YELLOW	1-47478-467-1	01	1	1502-
84	BRACKET; COUPLER	8-98154-702-0	02	1	1502-
121	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1502-

68 4 10 10 10 4 68 172 4 4 11 11 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	PIPE; AIR,UNION TO UNION (A) L=2569 SERVICED BY L=2600	1-47428-884-0	01	1	1502-
4	PIPE; AIR,UNION TO UNION (B) L=2826 SERVICED BY L=2900	1-47428-885-0	01	1	1502-
10	PIPE; AIR,UNION TO DBL CHECK VLV (C) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	1502-
10	PIPE; AIR,UNION TO DBL CHECK VLV (B) L=1687 SERVICED BY L=1700	1-47428-880-0	01	1	1502-
10	PIPE; AIR,UNION TO DBL CHECK VLV (A) L=305	8-98141-746-0	01	1	1502-
11	UNION; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1502-
68	PIPE; AIR,UNION TO UNION L=2279 SERVICED BY L=2500	1-47428-883-0	01	1	1502-
172	SPACER	9-14149-158-0	02	1	1502-
