Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#176171) — 31 parça
◀
[378A] NO.1 (27 parça)
[378A] NO.2 (4 parça)
▶

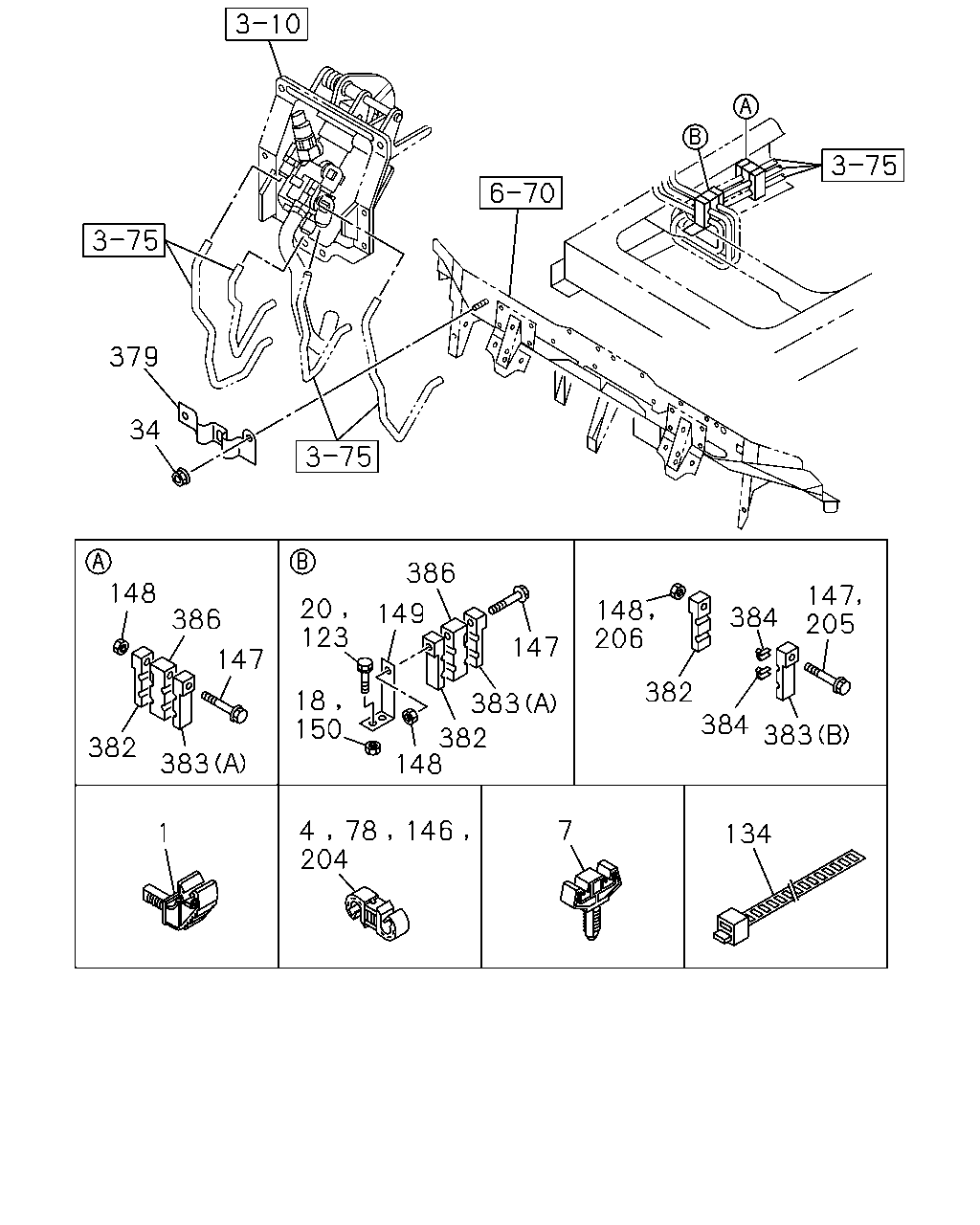

379
34
148
386
382
147
383
4
78
204
146
206
382
148
384
205
383
384
147
134
7
149
150
148
383
147
382
123
18
20
386
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; AIR PIPE
8-98012-254-1
01
1
1502-
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
03
1
1502-
4
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1502-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
1502-
7
CLIP; AIR PIPE
8-98012-254-1
10
1
1502-
18
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1502-
20
BOLT; CLIP
M8X50 FLANGE
0-28050-850-0
02
1
1502-
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1502-
78
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
01
1
1502-
78
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
1502-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1502-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1502-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1502-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1502-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1502-
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1502-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1502-
204
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1502-
205
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
01
1
1502-
206
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
1502-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1502-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
1502-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1502-
383
CLIP; LWR
(A) ID=10 & 10
1-09709-241-0
04
1
1502-
383
CLIP; LWR
(B) ID=10 & 10
1-09709-243-0
02
1
1502-
384
COLLAR
ID=6
1-47459-010-0
02
1
1502-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1502-

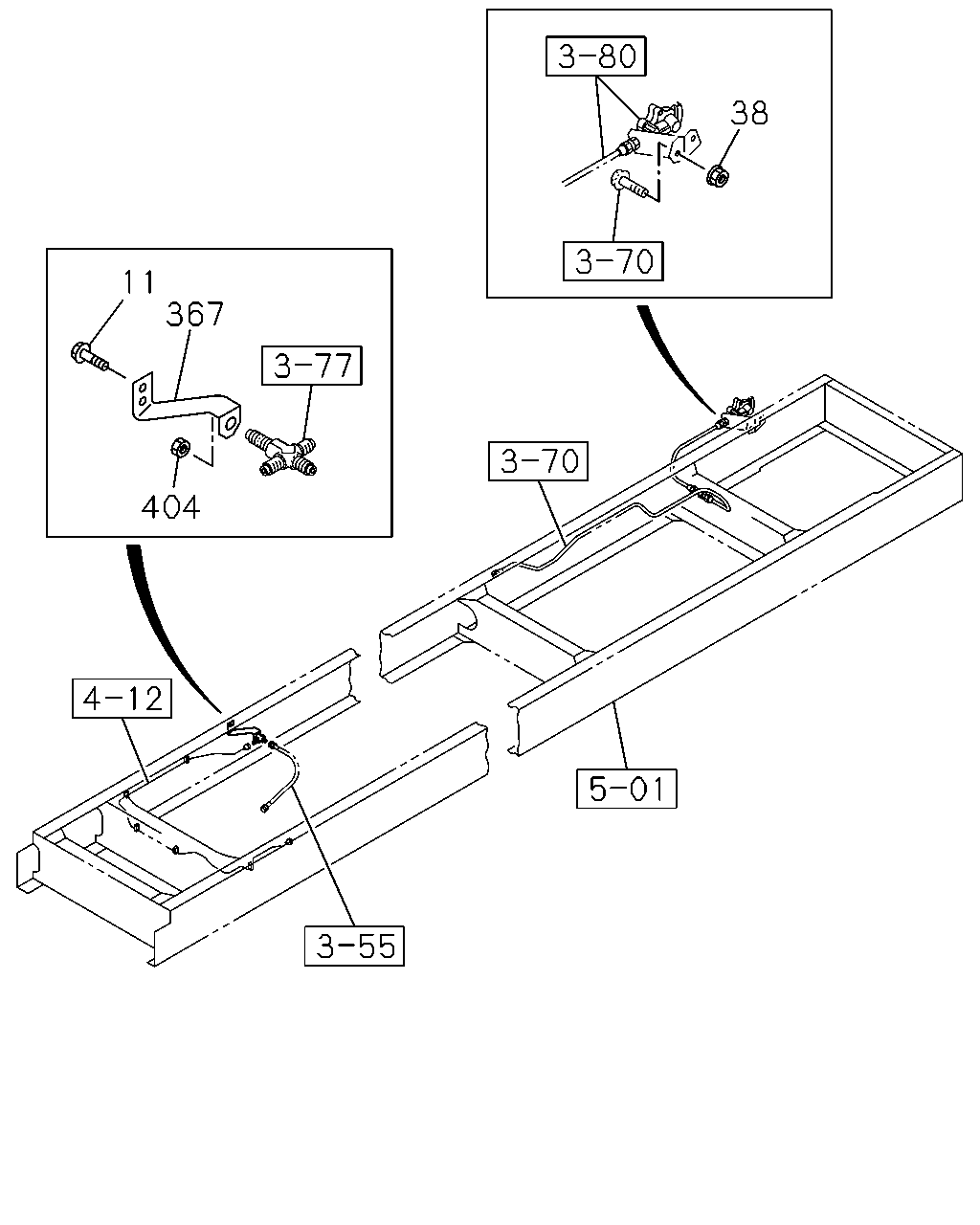

11
404
367
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; CLIP BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1502-
38
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1502-
367
BRACKET ASM
8-98152-567-0
01
1
1502-
404
NUT
M12
0-91111-512-0
01
1
1502-
