Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

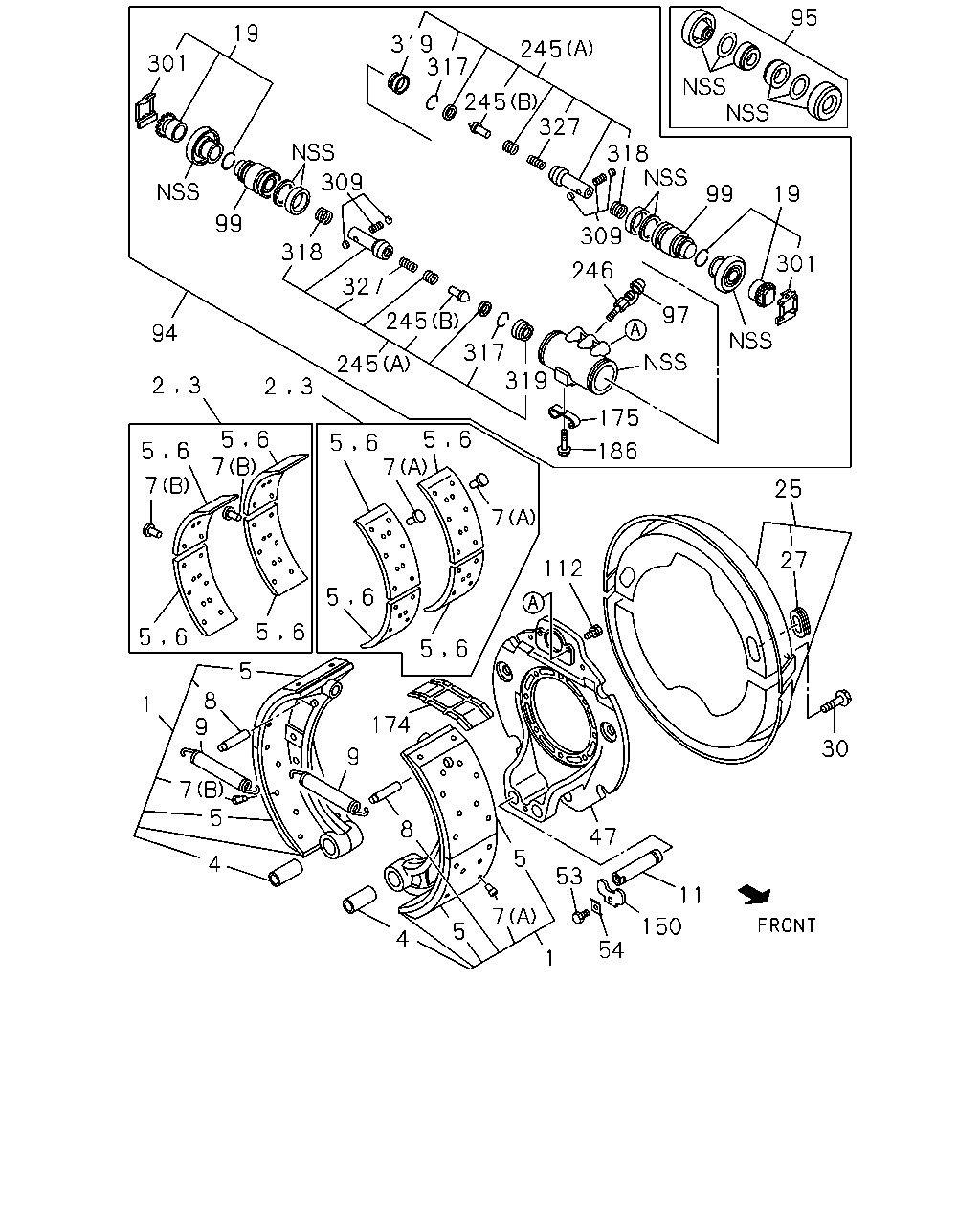

3-05 — REAR WHEEL BRAKE
(#176153) — 41 parça
19
301
309
318
99
327
319
245
317
317
245
245
327
309
318
246
319
186
175
97
99
19
95
301
245
3
2
3
2
94
5
6
5
6
7
7
5
6
6
5
1
4
7
5
9
5
8
174
9
5
6
5
6
7
6
5
7
6
5
112
25
27
30
11
150
54
53
47
5
5
7
4
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING
1-47170-496-0
01
1
1502-
1
SHOE; BRK,RR
TRAILING
1-47170-497-0
01
1
1502-
1
SHOE; BRK,RR
LEADING
1-47170-498-0
01
1
1502-
1
SHOE; BRK,RR
TRAILING
1-47170-499-0
01
1
1502-
2
LINING SET; RR BRK,STANDARD
LEADING
1-88311-390-0
01
1
1502-
2
LINING SET; RR BRK,STANDARD
TRAILING
1-88311-394-0
01
1
1502-
3
LINING SET; RR BRK,OVER SIZE
LEADING
1-88311-391-0
01
1
1502-
3
LINING SET; RR BRK,OVER SIZE
TRAILING
1-88311-395-0
01
1
1502-
4
BUSHING; BRK SHOE,RR WHEEL
1-47112-011-0
04
1
1502-
5
LINING; RR BRK SHOE,STANDARD
1-47126-812-0
08
1
1502-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-813-0
08
1
1502-
7
RIVET; LINING,RR BRK
(B) TRAILING L=18.5
1-09732-034-0
40
1
1502-
7
RIVET; LINING,RR BRK
(A) LEADING L=15.5
1-09732-053-0
40
1
1502-
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-134-0
04
1
1502-
9
SPRING; RETURN,BRK SHOE
1-09583-359-0
04
1
1502-
11
PIN; ANCHOR,RR WHEEL BRK
L=106.5
1-47131-038-0
04
1
1502-
19
ADJUSTER; RR BRK
1-47621-015-0
04
1
1502-
25
COVER SET; RR BRK DRUM
1-47151-458-1
02
1
1502-
27
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1502-
30
BOLT; DRUM COVER
M10X12
1-47159-187-0
12
1
1502-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-577-0
02
1
1502-
53
BOLT; LOCK PLATE
M10X16
0-20851-016-0
02
1
1502-
54
WASHER; LK,ANCHOR PIN,RR BRK
1-47133-011-0
02
1
1502-
94
CYLINDER; WHEEL,RR BRK
1-47601-183-0
02
1
1502-
95
CUP SET; RR WHEEL CYL
1-87830-985-0
02
1
1502-
97
CAP; BLEEDER,RR WHEEL CYL
OD=12
1-47619-011-0
02
1
1502-
99
PISTON; RR WHEEL CYL
1-47624-371-0
04
1
1502-
112
BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER
0-50551-232-0
04
1
1502-
150
PLATE; LK,ANCHOR PIN
1-47133-005-0
02
1
1502-
174
COVER; CYL,RR WHEEL CYL
1-47159-197-0
02
1
1502-
175
HANGER; RR WHEEL BRK
1-47619-145-0
02
1
1502-
186
BOLT; HANGER
M8X16 W/LK WASHER
0-50540-816-0
02
1
1502-
245
SHAFT
(A)
1-47623-027-1
04
1
1502-
245
SHAFT
(B)
1-47629-121-0
04
1
1502-
246
BLEEDER
1-47615-002-0
02
1
1502-
301
CLIP; ANTI LOTATION
1-47621-016-0
04
1
1502-
309
SPRING; ADJUSTER SHAFT
1-09580-544-0
04
1
1502-
317
RING; RETAINER
1-47629-119-0
04
1
1502-
318
SPRING; ADJ
1-09580-542-0
04
1
1502-
319
RING; DRIVE
1-47629-120-0
04
1
1502-
327
SPRING; ADJ
1-09580-543-0
04
1
1502-
