Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
2 - Clutch, Transmission, Trans Axle
▶

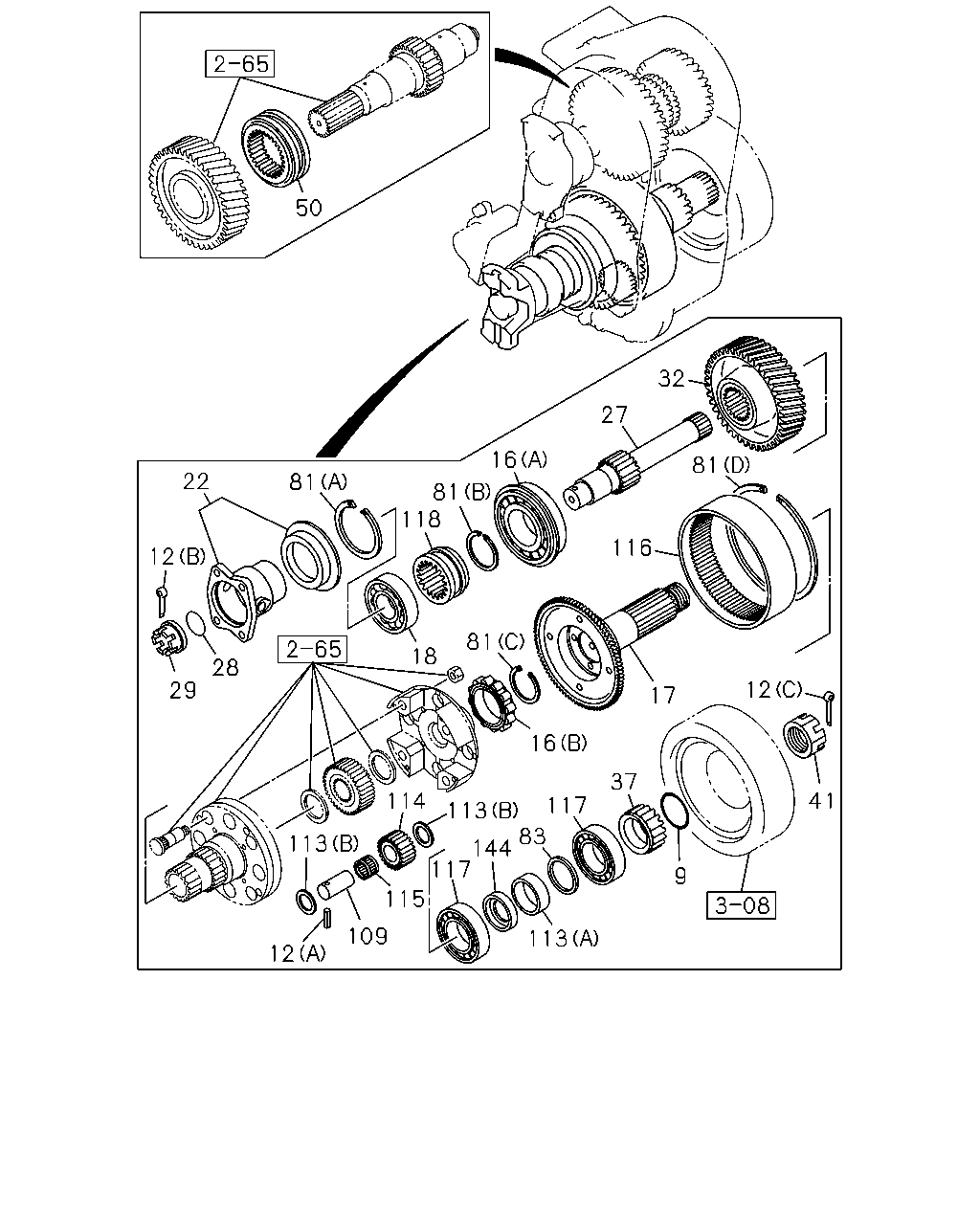

2-66 - MANUAL TRANSFER GEAR; OUTPUT
▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT
(#176150) — 47 parça
50
22
12
29
28
12
113
81
18
114
115
109
117
113
144
113
83
16
81
118
81
16
27
32
81
116
17
37
117
9
41
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-385-0
01
1
1502-
12
PIN
(A) L=25 OD=5
8-94135-771-0
04
1
1502-
12
PIN
(B)
9-08116-050-0
01
1
1502-
12
PIN
(C)
9-08116-060-0
01
1
1502-
16
BEARING; OUTPUT GEAR
(A) NTN
1-09810-164-0
01
1
1502-
16
BEARING; OUTPUT GEAR
(A) NSK
1-09810-185-0
01
1
1502-
16
BEARING; OUTPUT GEAR
(B) NTN
1-09810-200-0
01
1
1502-
16
BEARING; OUTPUT GEAR
(B) JTEKT
1-09810-226-0
01
1
1502-
17
SHAFT; OUTPUT
1-36351-044-0
01
1
1502-
18
BEARING; BALL,OUTPUT,FRT
NSK
1-09800-249-0
01
1
1502-
18
BEARING; BALL,OUTPUT,FRT
NTN
1-09800-250-0
01
1
1502-
22
FLANGE; OUTPUT,FRT
8-98096-538-0
01
1
1502-
27
GEAR; OUTPUT,FRT
1-36311-022-0
01
1
1502-
28
GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=42
9-09921-116-0
01
1
1502-
29
NUT; FLANGE
1-09440-017-0
01
1
1502-
32
GEAR; OUTPUT,TRANSFER
Z=41
1-36371-011-0
01
1
1502-
37
GEAR; DRIVE,SPD,TRANSFER
Z=18
1-33371-052-0
01
1
1502-
41
NUT; FLANGE LK,OUTPUT
M42
9-09844-217-1
01
1
1502-
50
SLEEVE; HIGH & LOW,TRANSFER
Z=28
1-36262-010-1
01
1
1502-
81
RING; SNAP
(A)
1-09587-023-0
01
1
1502-
81
RING; SNAP
(B) ID=66 T=2.53 WHITE
1-09588-131-0
AR
1
1502-
81
RING; SNAP
(B) ID=66 T=2.56 YELLOW
1-09588-132-0
AR
1
1502-
81
RING; SNAP
(B) ID=66 T=2.60 BLUE
1-09588-133-0
AR
1
1502-
81
RING; SNAP
(B) ID=66 T=2.64 GREEN
1-09588-134-0
AR
1
1502-
81
RING; SNAP
(C) ID=60.8
9-09180-065-0
01
1
1502-
81
RING; SNAP
(D)
9-09950-200-0
01
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.25
1-33235-086-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.30
1-33235-087-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.40
1-33235-088-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.50
1-33235-089-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.55
1-33235-090-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.60
1-33235-091-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.65
1-33235-092-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.70
1-33235-093-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=3.90
1-33235-094-0
AR
1
1502-
83
SHIM; OUTPUT SHAFT
T=4.00
1-33235-097-0
AR
1
1502-
109
SHAFT; PLANETARY
1-36383-003-0
04
1
1502-
113
PIECE; DISTANCE
(A)
1-36355-065-0
01
1
1502-
113
PIECE; DISTANCE
(B)
1-36389-002-0
08
1
1502-
114
GEAR; PLANETARY
Z=23
1-36381-001-0
04
1
1502-
115
BEARING; NEEDLE
NTN
1-09811-364-0
04
1
1502-
115
BEARING; NEEDLE
NSK
1-09811-369-0
04
1
1502-
116
GEAR; RING
Z=84
1-36381-004-0
01
1
1502-
117
BEARING; TAPER
NSK
1-09812-199-0
02
1
1502-
117
BEARING; TAPER
NTN
1-09812-200-0
02
1
1502-
118
SLEEVE; DIFF LOCK
Z=18
1-36262-023-0
01
1
1502-
144
CATCHER; OIL
1-36359-035-0
01
1
1502-
