Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11169 - FVZ SOUTH AFRICA
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#17615) — 38 parça
◀

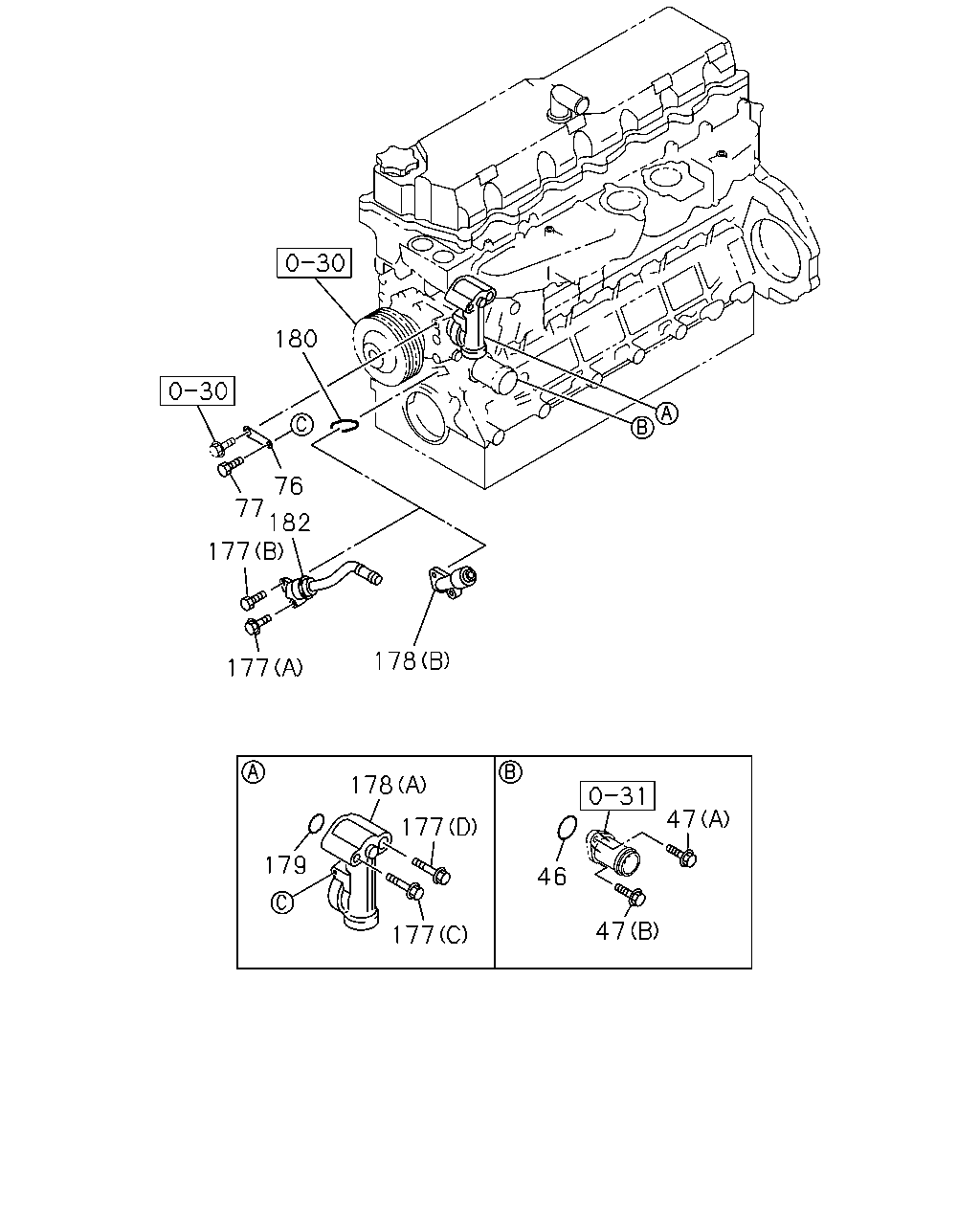

[032A] WATER DUCT (15 parça)

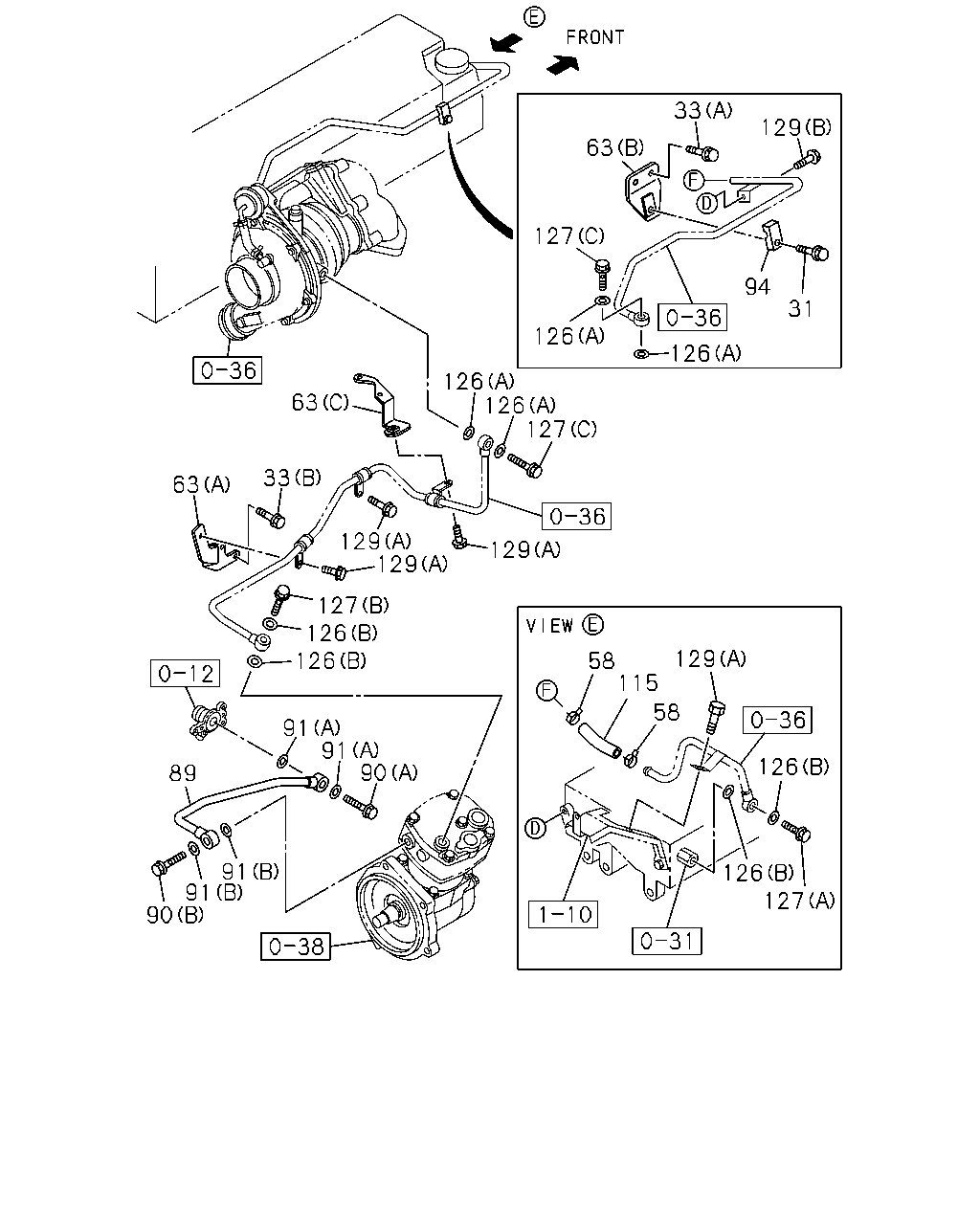

[032A] TURBOCHARGER AND AIR CMPR PIPING (23 parça)
▶
180
76
77
177
182
177
178
47
47
46
177
178
179
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
1001-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE SOU
0-28050-845-0
01
1
1001-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE SOU
0-28650-825-0
01
1
1001-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
1001-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
1001-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE SOU
0-28050-880-0
01
1
1001-
177
BOLT; WATER DUCT
(A) M8X25 FLANGE SOU
0-28650-825-0
01
1
1001-
177
BOLT; WATER DUCT
(B) M8X65 FLANGE
1-09044-072-1
01
1
1001-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
1001-
178
DUCT; WATER,BYPASS
(A)
8-94396-627-3
01
1
1001-
178
DUCT; WATER,BYPASS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)
8-94390-644-0
01
1
1001-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
1001-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
1001-
182
DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-94394-348-5
01
1
1001-
33
129
63
127
94
31
126
126
126
126
127
63
33
63
129
129
129
127
126
126
129
58
115
58
91
91
90
126
89
91
91
90
126
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
01
1
1001-
33
BOLT; BRKT
(A) M8X16 FLANGE SOU
0-28050-816-0
02
1
1001-
33
BOLT; BRKT
(B) M8X20 FLANGE
0-28050-820-0
02
1
1001-
58
CLIP; RUBBER HOSE
ID=16
8-94392-924-0
02
1
1001-
63
BRACKET; WATER PIPE
(B)
8-94392-951-0
01
1
1001-
63
BRACKET; WATER PIPE
(C)
8-98074-252-0
01
1
1001-
63
BRACKET; WATER PIPE
(A)
8-98074-253-0
01
1
1001-
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
1001-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
1001-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
1001-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 SOU
1-09630-085-0
02
1
1001-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
1001-
94
CLIP; WATER PIPE
8-94396-860-0
01
1
1001-
115
HOSE; RUBBER
L=60 SERVICED BY L=3000
0-03561-300-0
01
1
1001-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 SOU
1-09630-085-0
04
1
1001-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
04
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
04
1
1001-
127
BOLT; EYE
(C) M14X27 EYE-BOLT
1-09675-193-0
02
1
1001-
127
BOLT; EYE
(A) M16X25
5-09675-028-2
01
1
1001-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
1001-
129
BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE SOU
0-28050-816-0
05
1
1001-
129
BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE
0-28151-220-0
01
1
1001-
