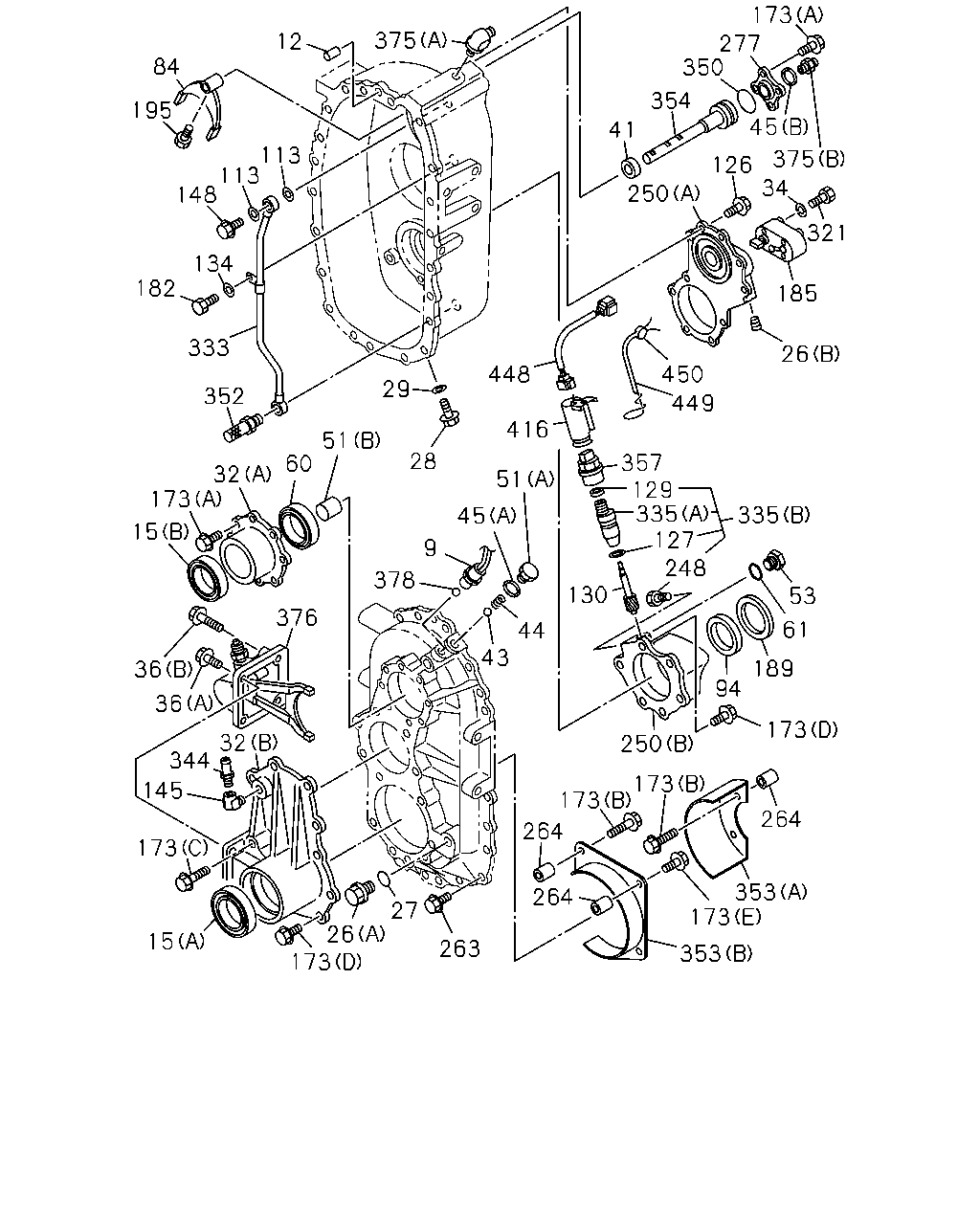

9 |
SWITCH; TRANSFER
|
1-82340-534-0 |
01 |
1 |
1502- |
| |
12 |
PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20
|
9-08161-220-0 |
02 |
1 |
1502- |
| |
15 |
SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F).
(A)
|
1-09625-549-0 |
01 |
1 |
1502- |
| |
15 |
SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F).
(B)
|
1-09625-552-0 |
01 |
1 |
1502- |
| |
26 |
PLUG; FILLER,TRANSFER CASE
(A)
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1502- |
| |
26 |
PLUG; FILLER,TRANSFER CASE
(B)
PT1/8
|
1-09605-050-0 |
02 |
1 |
1502- |
| |
27 |
GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
1502- |
| |
28 |
PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1502- |
| |
29 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F).
ID=26.8
|
1-09623-058-0 |
01 |
1 |
1502- |
| |
32 |
COVER; TRANSFER CASE,FRT
(A)
|
1-36121-029-0 |
01 |
1 |
1502- |
| |
32 |
COVER; TRANSFER CASE,FRT
(B)
|
1-36121-030-0 |
01 |
1 |
1502- |
| |
34 |
WASHER; LK,COVER
ID=8.2
|
0-91510-508-0 |
04 |
1 |
1502- |
| |
36 |
BOLT; SHIFT UNIT
(A)
M10X25 FLANGE
|
0-28151-025-0 |
03 |
1 |
1502- |
| |
36 |
BOLT; SHIFT UNIT
(B)
M10X60 FLANGE
|
0-28151-060-0 |
01 |
1 |
1502- |
| |
41 |
SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F).
|
1-09625-650-0 |
01 |
1 |
1502- |
| |
43 |
BALL; LK,SHIFT ROD
|
9-00097-013-0 |
01 |
1 |
1502- |
| |
44 |
SPRING; COIL,LK
|
9-09940-323-0 |
01 |
1 |
1502- |
| |
45 |
GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F).
(B)
|
1-09623-689-0 |
01 |
1 |
1502- |
| |
45 |
GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F).
(A)
ID=20.5 OD=28.0
|
9-09571-420-0 |
01 |
1 |
1502- |
| |
51 |
PLUG; SHIFT ROD
(A)
|
9-09862-175-0 |
01 |
1 |
1502- |
| |
51 |
PLUG; SHIFT ROD
(B)
OD=24 L=31
|
9-33545-011-1 |
01 |
1 |
1502- |
| |
53 |
PLUG; COVER
M16X12
|
1-09604-009-0 |
01 |
1 |
1502- |
| |
60 |
SEAL; OIL,FRT COVER,UPR
ALSO INCLUDED IN REPAIR KIT(T/F).
|
1-09625-548-0 |
01 |
1 |
1502- |
| |
61 |
GASKET; COVER
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
1502- |
| |
84 |
FORK; SHIFT,LOW & HIGH
|
1-36561-011-2 |
01 |
1 |
1502- |
| |
94 |
SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F).
|
1-09625-553-0 |
01 |
1 |
1502- |
| |
113 |
GASKET; OIL,TRANSFER
ID=12.2
|
8-98251-344-0 |
02 |
1 |
1502- |
| |
126 |
BOLT; RR COVER
M8X25 FLANGE
|
0-28050-825-0 |
12 |
1 |
1502- |
| |
127 |
GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F).
|
1-09623-246-0 |
01 |
1 |
1502- |
| |
129 |
SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F).
NOK
|
1-09625-510-0 |
01 |
1 |
1502- |
| |
130 |
GEAR; DRIVEN,SPD,TRANSFER
Z=15
|
1-33372-147-4 |
01 |
1 |
1502- |
| |
134 |
WASHER; PL
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
1502- |
| |
145 |
CONNECTOR; OIL PIPE,TRANSFER
PT1/4 & PT1/4 2WAY
|
1-09660-693-0 |
01 |
1 |
1502- |
| |
148 |
BOLT; EYE,OIL PIPE
M12X27 FLANGE
|
1-09675-085-0 |
01 |
1 |
1502- |
| |
173 |
BOLT; COVER
(A)
M8X25 FLANGE
|
0-28050-825-0 |
12 |
1 |
1502- |
| |
173 |
BOLT; COVER
(B)
M10X45 FLANGE
|
0-28151-045-0 |
03 |
1 |
1502- |
| |
173 |
BOLT; COVER
(C)
M12X100 FLANGE
|
0-28151-200-0 |
02 |
1 |
1502- |
| |
173 |
BOLT; COVER
(D)
M12X30 FLANGE
|
0-28151-230-0 |
15 |
1 |
1502- |
| |
173 |
BOLT; COVER
(E)
M10X20 W/LK WASHER
|
0-50551-020-0 |
02 |
1 |
1502- |
| |
182 |
BOLT; OIL PIPE,TRANSFER
M10X20 W/LK WASHER
|
0-50551-020-0 |
01 |
1 |
1502- |
| |
185 |
PUMP ASM; OIL,TRANSFER
|
1-34150-071-1 |
01 |
1 |
1502- |
| |
189 |
COVER; DUST,OIL SEAL
|
1-33139-011-1 |
01 |
1 |
1502- |
| |
195 |
BOLT; SHIFT FORK
M12X20
|
1-09052-039-0 |
01 |
1 |
1502- |
| |
248 |
BOLT
M6X12.5 FLANGE
|
8-98014-141-0 |
01 |
1 |
1502- |
| |
250 |
COVER; OIL PUMP,TRANSFER
(A)
|
1-36121-028-0 |
01 |
1 |
1502- |
| |
250 |
COVER; OIL PUMP,TRANSFER
(B)
|
1-36121-031-0 |
01 |
1 |
1502- |
| |
263 |
BOLT; TRANSFER CASE
M10X30 FLANGE
|
0-28151-030-0 |
21 |
1 |
1502- |
| |
264 |
SPACER
L=28
|
8-97108-653-0 |
03 |
1 |
1502- |
| |
277 |
COVER; SHIFT ROD,TRANSFER
|
1-36135-006-0 |
01 |
1 |
1502- |
| |
321 |
BOLT; PUMP HSG
M8X50
|
0-10855-850-0 |
04 |
1 |
1502- |
| |
333 |
PIPE; OIL,TRANSFER
|
1-36161-029-0 |
01 |
1 |
1502- |
| |
335 |
BUSHING
(A)
|
1-33373-074-0 |
01 |
1 |
1502- |
| |
335 |
BUSHING
(B)
|
1-33373-076-0 |
01 |
1 |
1502- |
| |
344 |
CONNECTOR
L=45
|
8-94338-874-0 |
01 |
1 |
1502- |
| |
350 |
RING; SNAP,RING GEAR
|
1-09623-688-0 |
01 |
1 |
1502- |
| |
352 |
FILTER; OIL
|
1-36289-001-0 |
01 |
1 |
1502- |
| |
353 |
BAFFLE
(A)
|
1-36379-007-0 |
01 |
1 |
1502- |
| |
353 |
BAFFLE
(B)
|
1-36379-008-0 |
01 |
1 |
1502- |
| |
354 |
ROD; AIR SHIFTER
|
1-36564-037-0 |
01 |
1 |
1502- |
| |
357 |
SENSOR; SPEED
25 PULSE
|
8-98234-167-0 |
01 |
1 |
1502- |
| |
375 |
NIPPLE
(B)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
1502- |
| |
375 |
NIPPLE
(A)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
1502- |
| |
376 |
SHIFT UNIT; DIFF LOCK
|
1-48260-083-0 |
01 |
1 |
1502- |
| |
378 |
BALL; CONT SWITCH
|
9-00097-013-0 |
01 |
1 |
1502- |
| |
416 |
PROTECTOR; SENSOR
|
8-98119-901-0 |
01 |
1 |
1502- |
| |
448 |
HARNESS; SPEED SENSOR
|
1-82670-078-0 |
01 |
1 |
1502- |
| |
449 |
WIRE; LEAD SEAL
|
1-80249-010-0 |
01 |
1 |
1502- |
| |
450 |
SEAL; REED
|
1-15739-008-0 |
01 |
1 |
1502- |
