2-30 — GEAR SHIFTER AND QUADRANT BOX
(#176142) — 69 parça
◀

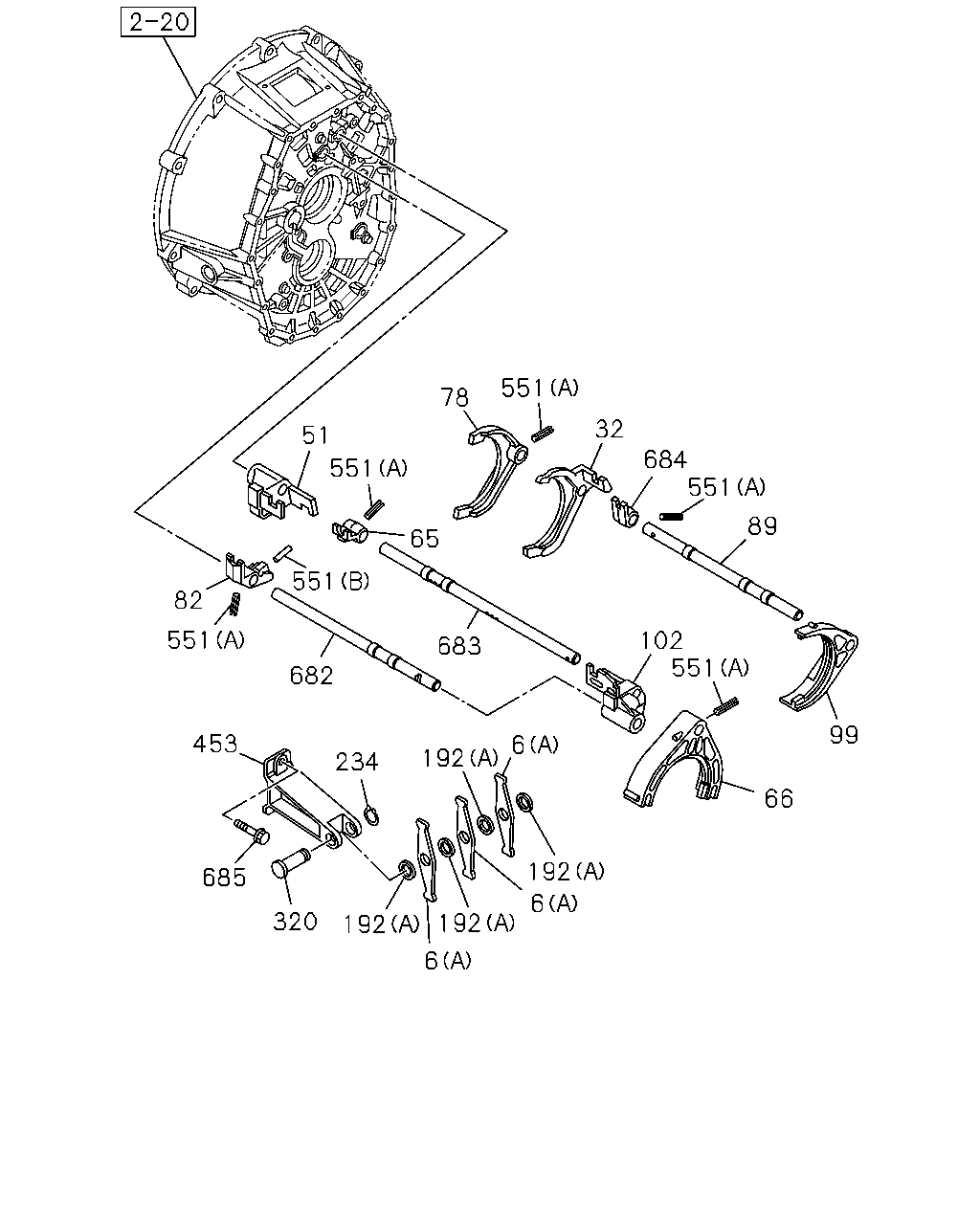

[230A] ARM AND ROD (24 parça)
[230A] BRACKET AND OTHER PARTS (8 parça)

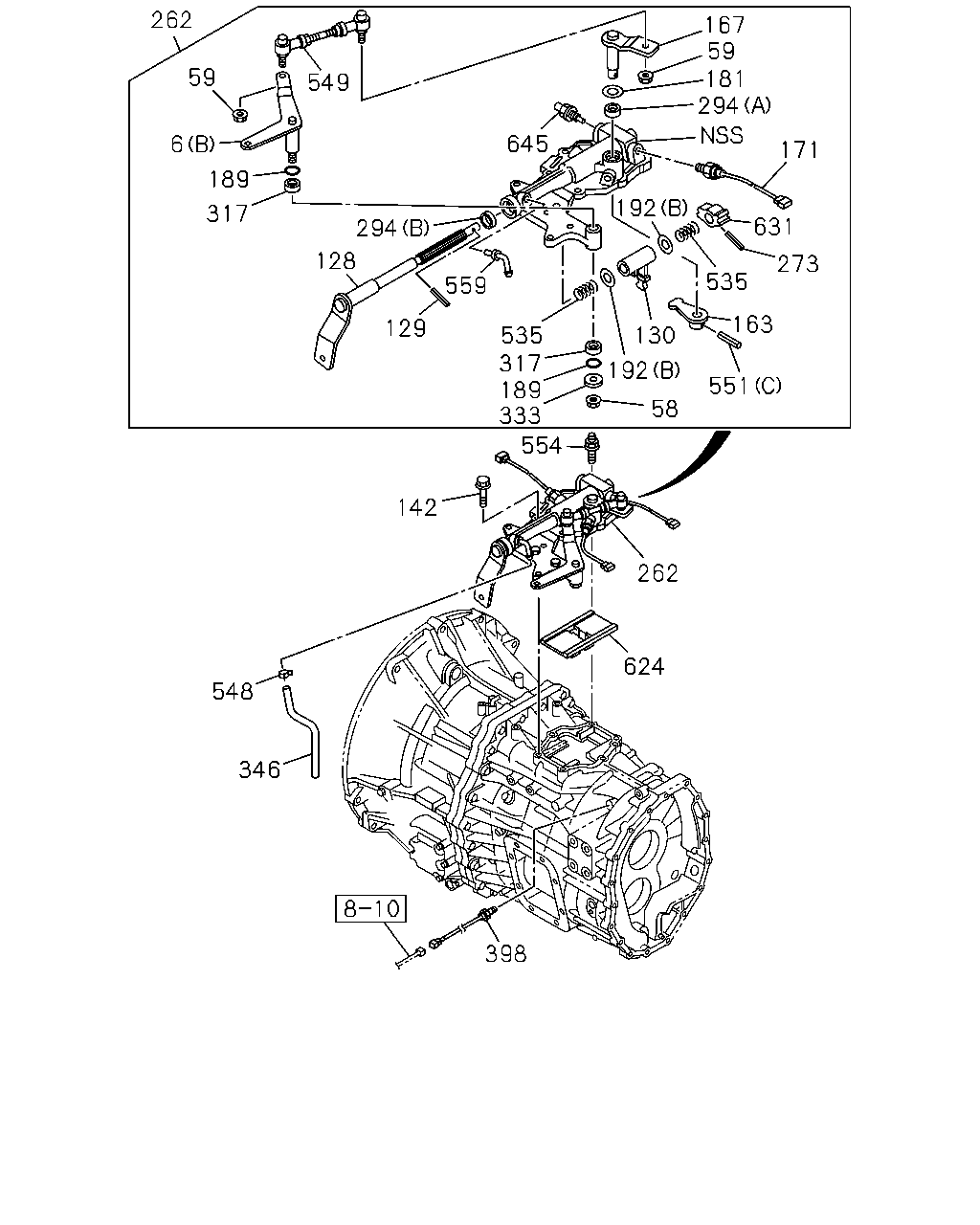

[230A] SHIFT CONTROL BOX (37 parça)
▶
99
66
551
102
89
551
684
32
78
551
551
51
82
551
551
682
683
234
453
685
320
192
192
6
6
192
192
6
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1502-
6
LEVER; RELAY
(B)
8-98022-855-0
01
1
1502-
32
ARM; SHIFT,1ST & 2ND
8-98236-424-1
01
1
1502-
51
BLOCK; SHIFT,1ST & 2ND
8-98074-457-1
01
1
1502-
65
BLOCK ASM; SHIFT,5TH & 6TH
8-97388-980-1
01
1
1502-
66
ARM; SHIFT,5TH & 6TH
8-97388-981-0
01
1
1502-
78
ARM; SHIFT,REV
8-97388-975-1
01
1
1502-
82
BLOCK; SHIFT,REV
8-97388-969-0
01
1
1502-
89
ROD; SHIFT,REV
8-98062-172-0
01
1
1502-
99
ARM; SHIFT,4TH & 3RD
8-98062-170-0
01
1
1502-1506
99
ARM; SHIFT,4TH & 3RD
8-98309-861-0
01
1
1507-
102
BLOCK; SHIFT,3RD & 4TH
8-97388-978-2
01
1
1502-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1502-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1502-
234
RING; SNAP
ID=16.5
0-91800-618-0
01
1
1502-
320
SHAFT; LEVER
8-97377-928-0
01
1
1502-
453
BLOCK; RELAY LEVER
8-97377-927-1
01
1
1502-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1502-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1502-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1502-
682
ROD; SHIFT,REV,SUB
8-97388-974-0
01
1
1502-
683
ROD; SHIFT,5TH & 6TH
8-98062-173-1
01
1
1502-
684
BLOCK; SHIFT,REV,SUB
8-97388-970-0
01
1
1502-
685
BOLT; BLOCK
M8X30 FLANGE
8-98034-764-0
02
1
1502-
406
158
636
637
630
381
178
391
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
02
1
1502-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
1502-
381
BOLT
M6X16 FLANGE
0-28650-616-0
01
1
1502-
391
PLUG; SW HOLE
8-97300-273-1
01
1
1502-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1502-
630
DETENT ASM
8-98019-536-0
04
1
1502-
636
BRACKET; CLIP
8-97610-096-2
01
1
1502-
637
BOLT; BRACKET
M8X16 FLANGE
0-28050-816-0
02
1
1502-
262
59
6
317
189
128
129
559
294
645
535
317
189
333
554
142
548
346
398
624
262
58
192
130
535
273
551
163
631
171
192
294
181
59
167
549
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1502-
6
LEVER; RELAY
(B)
8-98022-855-0
01
1
1502-
58
NUT
M10 FLANGE
0-91180-110-0
01
1
1502-
59
NUT
M8 FLANGE
0-91180-108-0
02
1
1502-
128
LEVER; SHIFT,EXTERNAL
8-97306-927-0
01
1
1502-1507
128
LEVER; SHIFT,EXTERNAL
8-98305-346-0
01
1
1508-
129
PIN; SPR,SHIFT
L=30 OD=4
1-09748-031-0
01
1
1502-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
1502-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
1502-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
1502-
167
LEVER; SELECT,EXTERNAL
8-98022-857-0
01
1
1502-
171
SWITCH; NEUTRAL
8-98242-172-1
01
1
1502-1509
171
SWITCH; NEUTRAL
8-98324-878-0
01
1
1510-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
1502-
189
GASKET; SELECT LEVER,CONT BOX
1-09623-594-0
02
1
1502-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1502-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1502-
262
BOX ASM; SHIFT CONT
8-98276-161-1
01
1
1502-1507
262
BOX ASM; SHIFT CONT
8-98305-336-1
01
1
1508-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
1502-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97305-662-0
01
1
1502-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97363-225-0
01
1
1502-
317
BUSHING; LEVER
1-09330-119-0
02
1
1502-
333
WASHER; PL,LEVER
ID=10.5
0-91610-710-0
01
1
1502-
346
HOSE; AIR
8-97309-855-0
01
1
1502-
398
SWITCH; REV LAMP
8-98242-173-1
01
1
1502-
535
SPRING; LEVER
8-97385-713-0
02
1
1502-
548
CLIP; HOSE
8-97031-674-0
01
1
1502-
549
ROD; LINK
8-98022-841-0
01
1
1502-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1502-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1502-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1502-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
1502-
559
PIPE; BREATHER
8-97358-318-0
01
1
1502-
624
PLATE; INTER LOCK
8-97241-317-3
01
1
1502-
631
STOPPER; SPRING
8-97305-666-0
01
1
1502-
645
DETENT ASM
8-98019-536-0
01
1
1502-
