2-26 — MANUAL TRANSMISSION GEAR (#176141) — 116 parça
çizim 512594
95 314 57 84 93 517 516 24 58 241 39 20 20 584 586 585 582 106 582 561 563 241 579 577 174 108 590 582 105 104 582 174 15 593 325 506 118 588 589 579 587 517 24 516 592 320 20 398 20 596 223
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1502-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1502-1508
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1502-1508
20 SLEEVE
(C) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1502-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1502-1502
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1502-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1502-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1502-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1502-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1502-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1502-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1502-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1502-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1502-1502
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1502-
174 SYNCHRONIZER ASM; 2ND-3RD 8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1502-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1502-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1502-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1502-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1502-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1502-1502
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1502-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1502-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1502-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1502-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1502-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1502-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1502-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1502-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1502-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1502-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1502-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1502-1508
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1502-1508
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1502-1508
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1502-1502
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1502-1508
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1502-1508
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1502-1508
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1502-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1502-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1502-

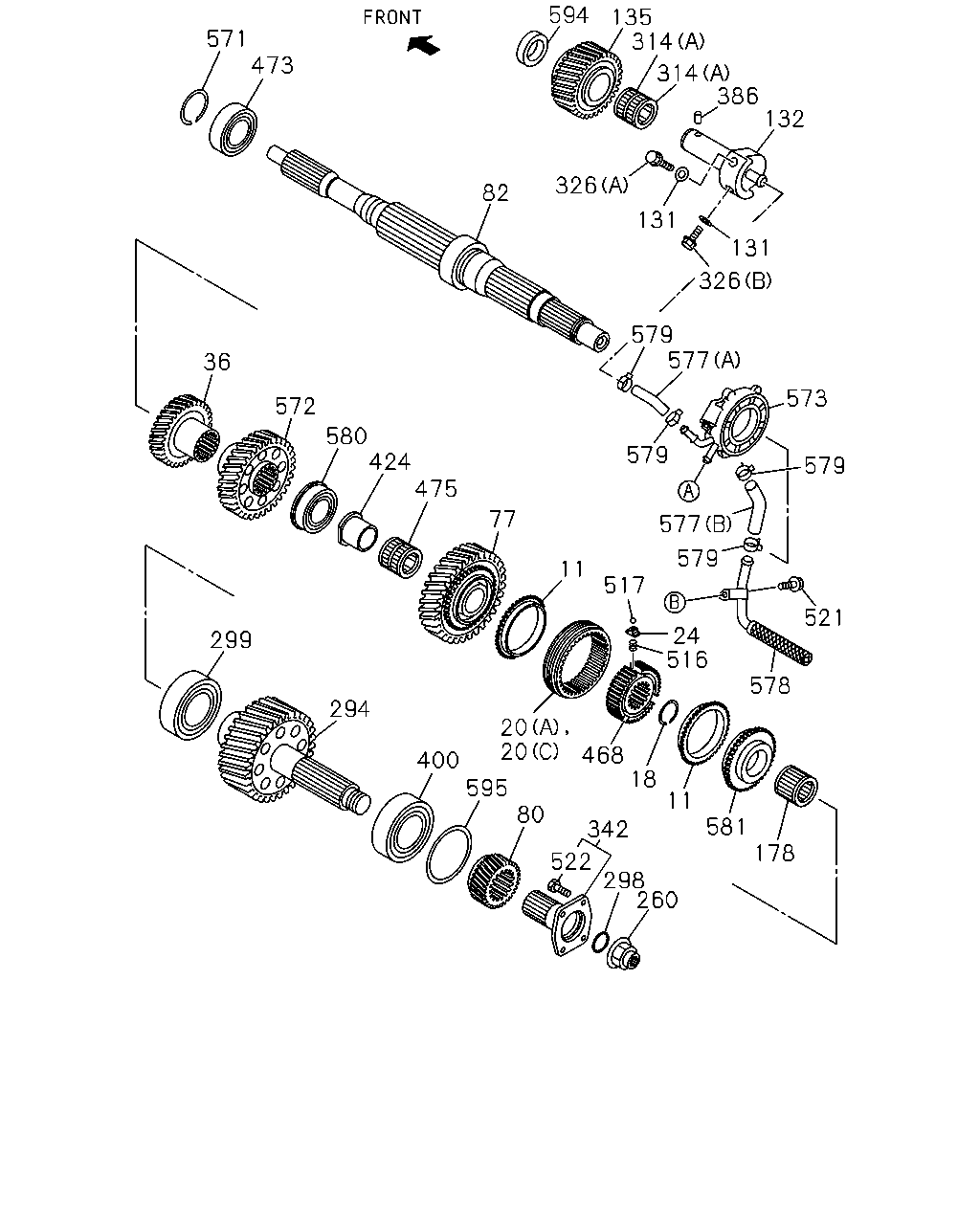

çizim 514010
571 594 473 82 326 314 314 135 386 131 326 131 579 573 577 579 577 579 521 578 178 581 11 18 468 20 595 20 400 342 522 298 260 294 299 517 24 516 11 77 475 424 580 572 36 80 132 579
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1502-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1502-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1502-1508
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1502-1508
20 SLEEVE
(C) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1502-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1502-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1502-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1502-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1502-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1502-
132 SHAFT; REV 8-98009-372-0 01 1 1502-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1502-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1502-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1502-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1502-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1502-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1502-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1502-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1502-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1502-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1502-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1502-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1502-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1502-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1502-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1502-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1502-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1502-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1502-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1502-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1502-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1502-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1502-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1502-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1502-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1502-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1502-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1502-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1502-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1502-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1502-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1502-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1502-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1502-
