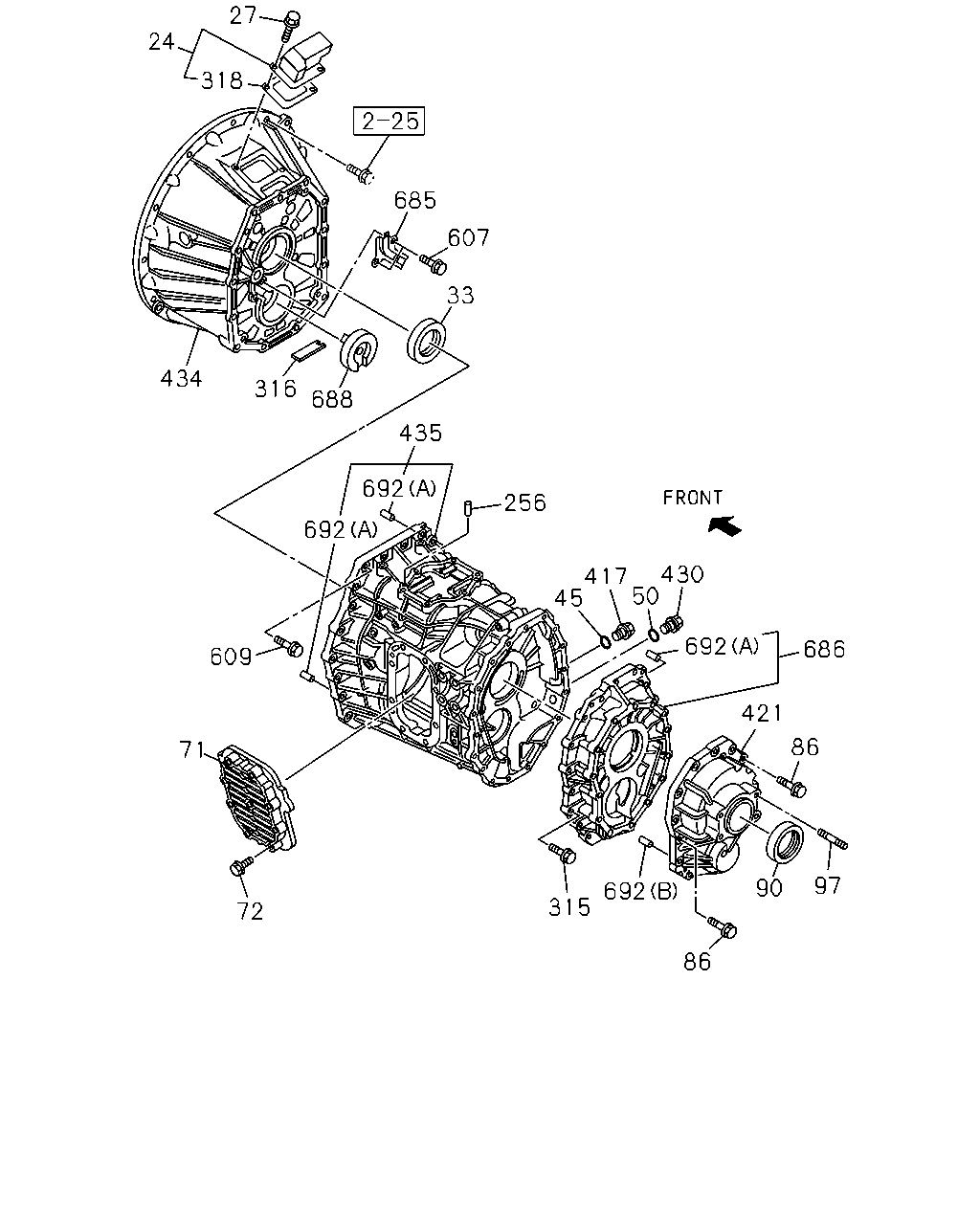

2-20 — MANUAL TRANSMISSION ASM AND CASE (#176139) — 28 parça

24 27 318 685 316 434 435 688 607 33 692 692 609 71 72 256 417 45 50 430 692 421 686 86 90 97 692 86 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	8-98283-062-0	01	1	1502-
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1502-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1502-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1502-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1502-
71	COVER; SIDE,TRANS CASE	8-98270-265-1	01	1	1502-
72	BOLT; SIDE COVER M10X50 FLANGE	1-09044-081-0	08	1	1502-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1502-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1502-
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1502-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1502-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1502-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1502-
318	GASKET; COVER	1-31139-023-0	01	1	1502-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1502-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1502-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1502-
434	HOUSING; CLU	8-98004-506-2	01	1	1502-
435	CASE; TRANS	8-98236-421-1	01	1	1502-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1502-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1502-
685	COVER; OIL PORT	8-98018-864-1	01	1	1502-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1502-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1502-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1502-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1502-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

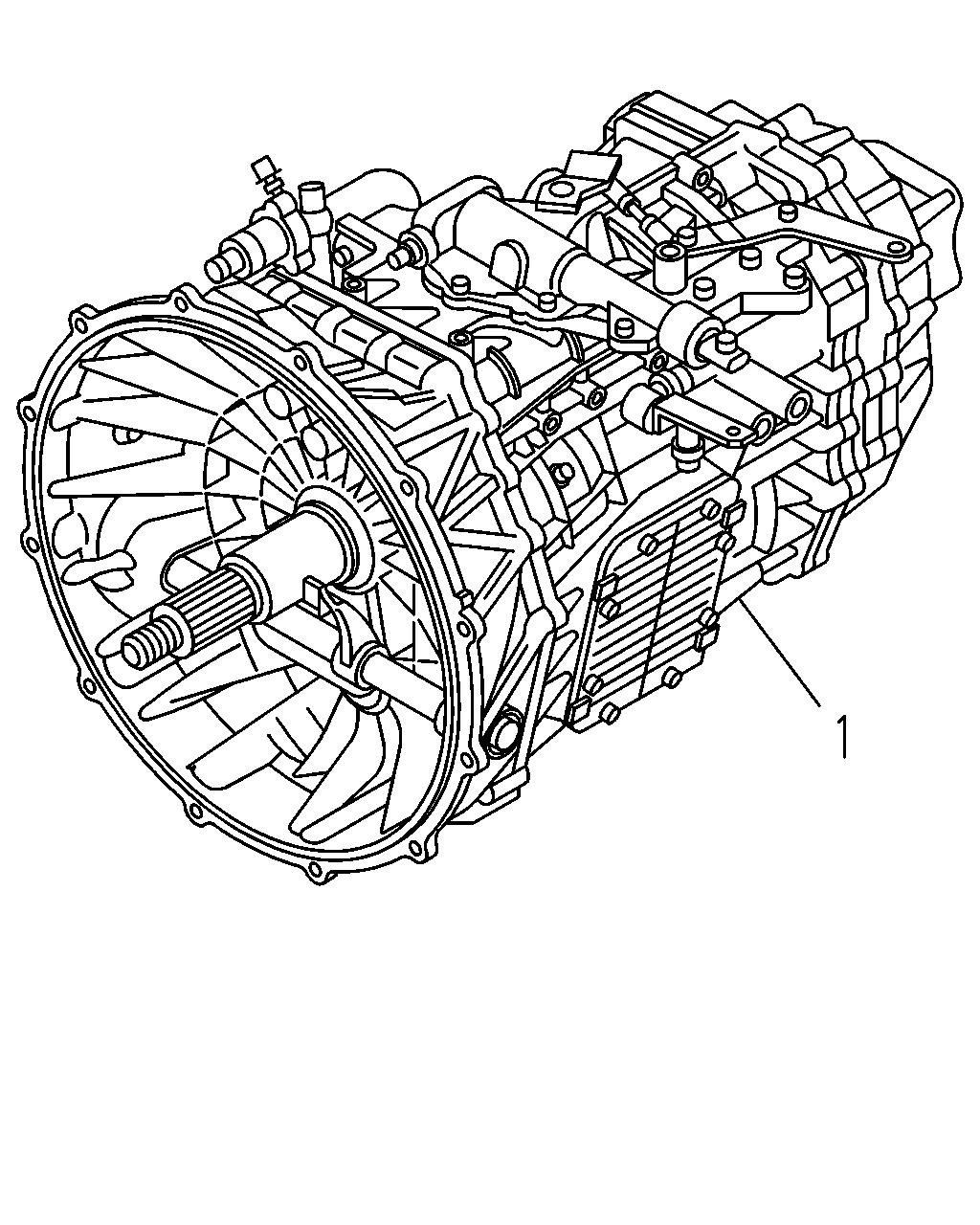

	1	TRANSMISSION ASM; MANUAL	8-98134-532-0	01	1	1502-
