Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

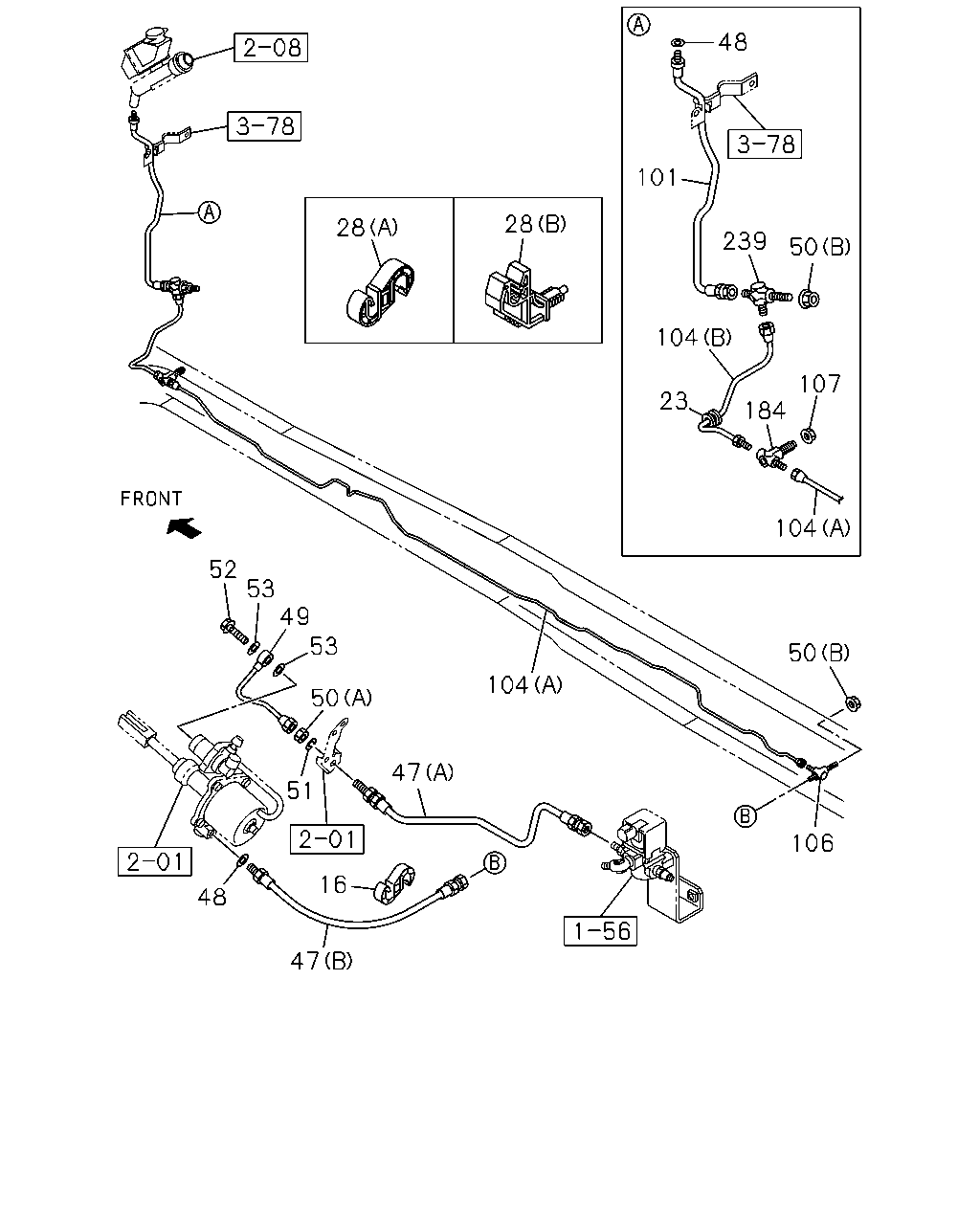

2-05 — CLUTCH PIPING
(#176135) — 21 parça
52
53
49
53
104
106
50
47
48
50
51
47
48
101
50
104
107
184
104
23
28
28
16
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1502-
23
GROMMET; CLU PIPE
ID=28 OD=35 T=17
9-09956-256-2
01
1
1502-
28
CLIP; OIL PIPE
(B) ID=6.35
1-09701-247-1
04
1
1502-
28
CLIP; OIL PIPE
(A) ID=6.35 & 6.35
1-09709-273-1
01
1
1502-
47
HOSE; FLEX,CLU CONT
(A) L=420
1-09363-633-0
01
1
1502-
47
HOSE; FLEX,CLU CONT
(B) L=530
8-98072-348-0
01
1
1502-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1502-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239
1-49117-401-0
01
1
1502-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1502-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1502-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1502-
51
WASHER; LK
ID=12.2
0-91510-512-0
01
1
1502-
52
BOLT; EYE,AIR PIPE
M14X27 FLANGE
1-09675-086-0
01
1
1502-
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1502-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440
8-98072-346-0
01
1
1502-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550
1-47428-724-0
01
1
1502-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2824 SERVICED BY L=2900
1-47428-744-0
01
1
1502-
106
UNION; OIL PIPE
M12 2WAY
1-09654-059-2
01
1
1502-
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
1502-
184
UNION; FLEX HOSE
8-98150-865-0
01
1
1502-
239
UNION; CLU HOSE
M12 2WAY
1-09654-059-2
01
1
1502-
