Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#176122) — 57 parça
◀
[110A] NO.2 (26 parça)
[110A] NO.3 (7 parça)
[110A] NO.1 (24 parça)
▶

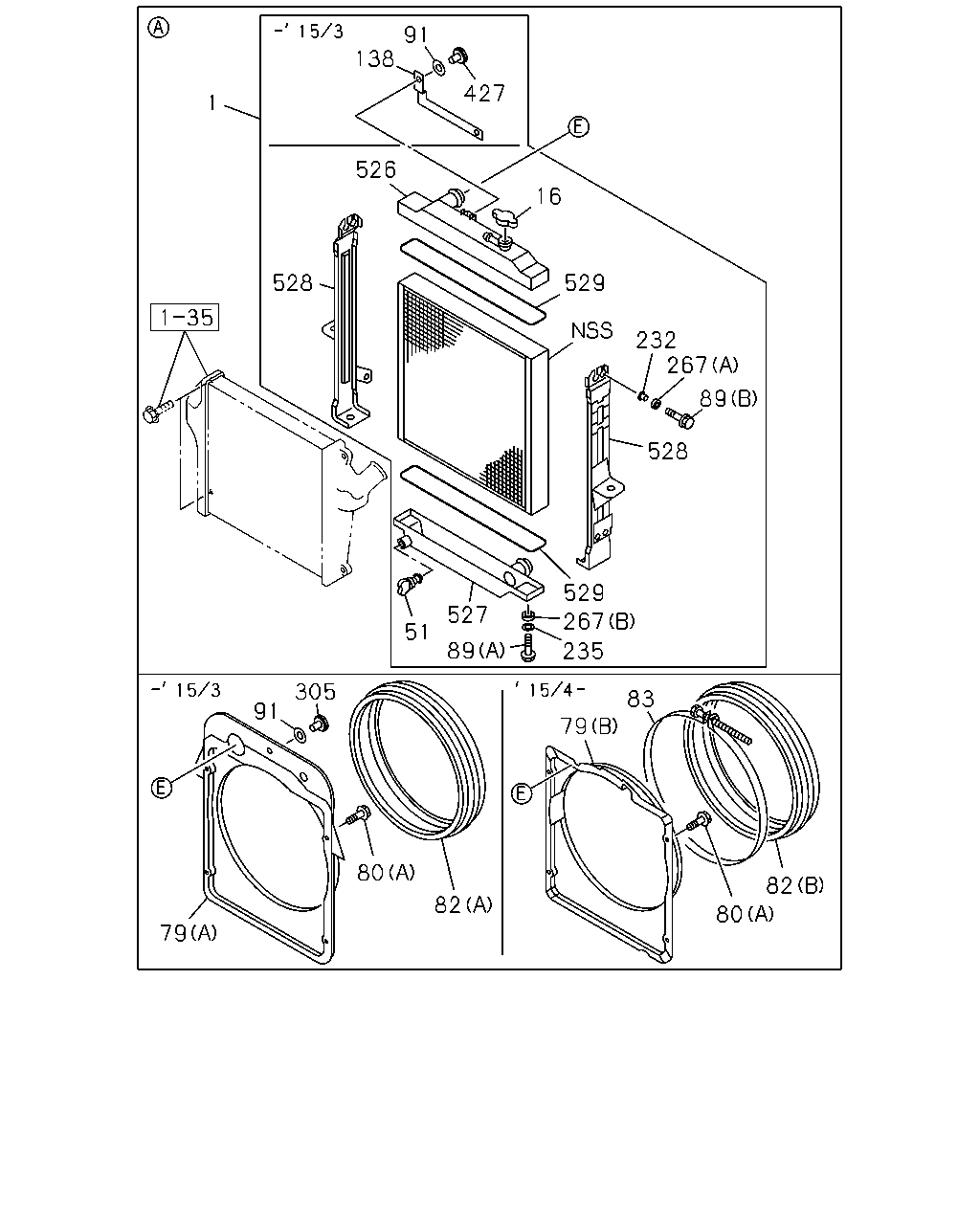

82
80
82
80
79
91
305
51
89
235
529
267
527
89
267
232
529
16
526
138
91
427
1
528
83
79
528
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98190-491-0
01
1
1502-1503
1
RADIATOR ASM
8-98309-949-0
01
1
1504-
16
CAP; RAD
8-98096-226-0
01
1
1502-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1502-
79
GUIDE; FAN,RAD
(A)
8-98190-310-0
01
1
1502-1503
79
GUIDE; FAN,RAD
(B)
8-98273-633-0
01
1
1504-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1502-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1502-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1502-1503
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1504-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1504-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1502-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1502-
91
WASHER; PL
1-21469-111-0
02
1
1502-1503
138
BRACKET; CLIP
8-98190-314-0
01
1
1502-1503
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1502-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1502-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1502-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1502-
305
CLIP; FAN COVER TO FAN GUIDE
1-09470-009-0
01
1
1502-1503
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1502-1503
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1502-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
1502-
528
PLATE; SIDE,RADIATOR CORE
8-98010-372-4
01
1
1502-
528
PLATE; SIDE,RADIATOR CORE
8-98098-554-0
01
1
1502-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1502-

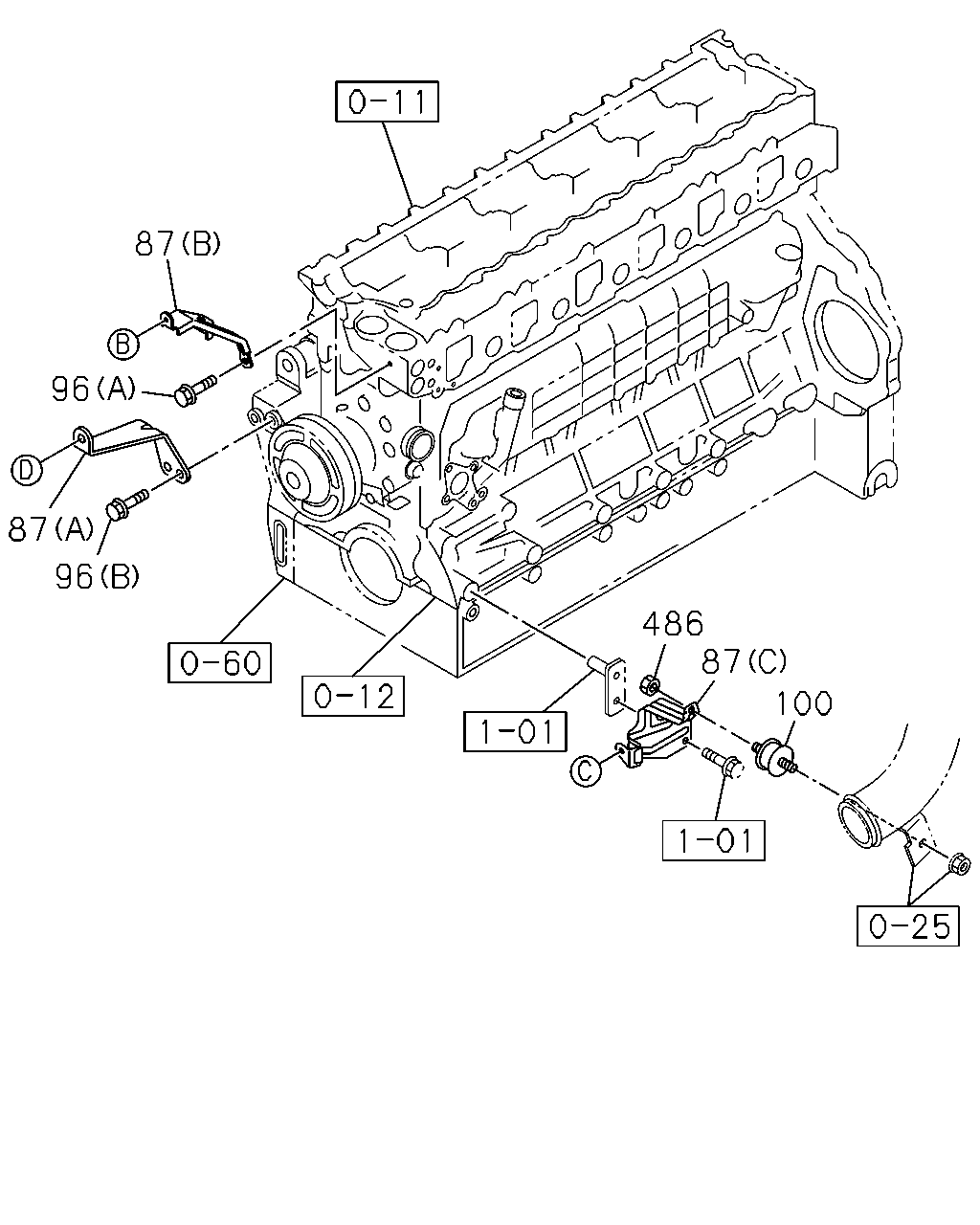

87
96
87
486
87
100
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1502-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1502-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1502-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1502-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1502-
100
RUBBER; MTG
8-98148-109-0
01
1
1502-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1502-

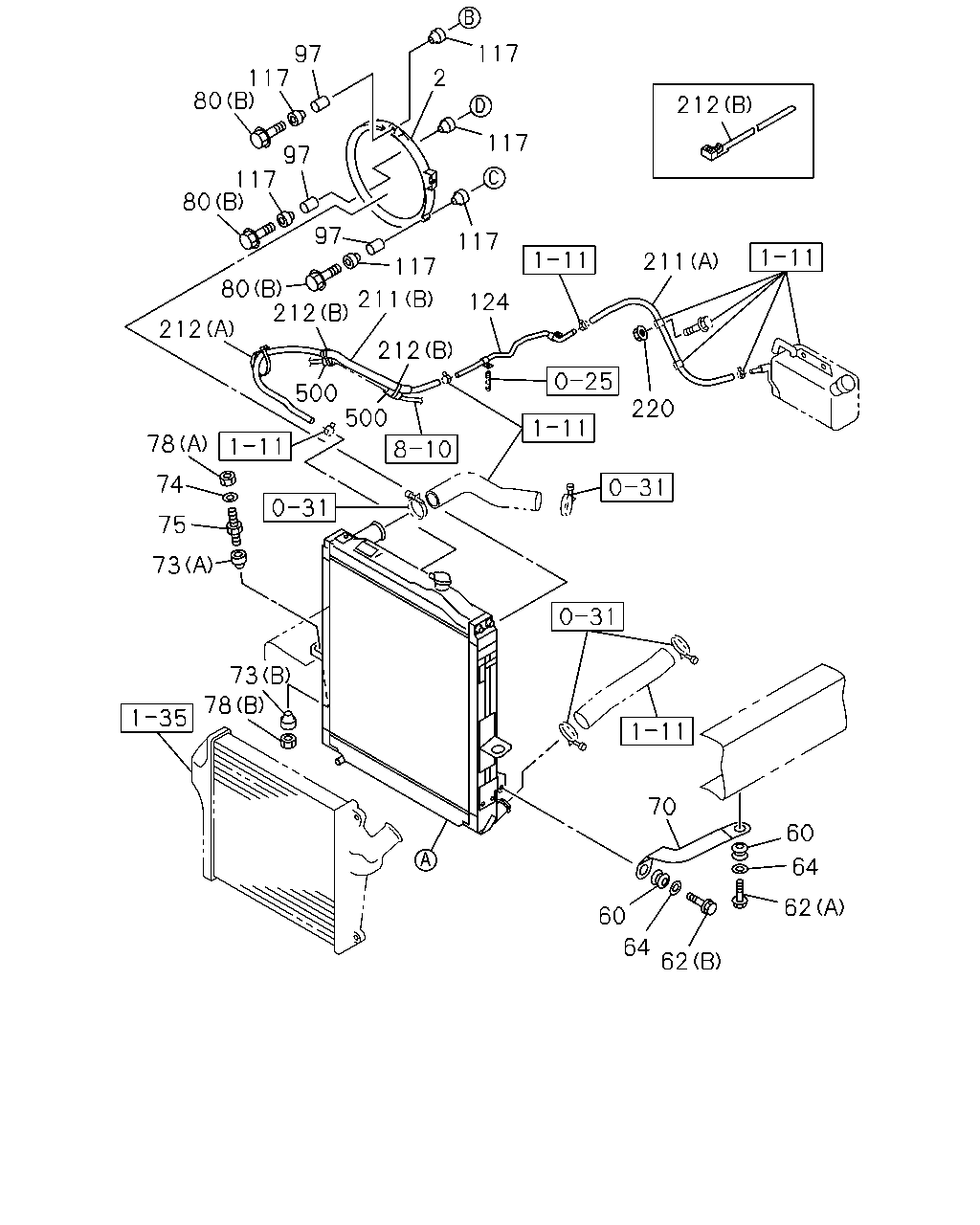

80
117
97
97
117
80
80
212
2
117
117
117
117
211
212
124
212
500
78
500
74
73
73
75
78
211
220
70
60
64
62
60
64
62
97
212
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1502-
60
GROMMET
1-09332-117-0
04
1
1502-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1502-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1502-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1502-
70
STAY; RAD
8-98055-806-0
01
1
1502-
70
STAY; RAD
8-98055-807-0
01
1
1502-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1502-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1502-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1502-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1502-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1502-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1502-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1502-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1502-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1502-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1502-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1502-
211
HOSE; RAD TO PIPE
(B) L=940
8-98073-544-0
01
1
1502-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1502-
212
CLIP; HOSE
(A) L=250
5-09707-030-1
01
1
1502-
212
CLIP; HOSE
(B) L=140
5-09707-031-1
02
1
1502-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1502-
500
SLEEVE; RUBBER
ID=17 OD=21 L=40
1-09337-012-0
02
1
1502-
