Isuzu WW
▶
TRUCKS
▶
FTS
▶
11743 - FTS THAILAND
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#176111) — 72 parça
◀

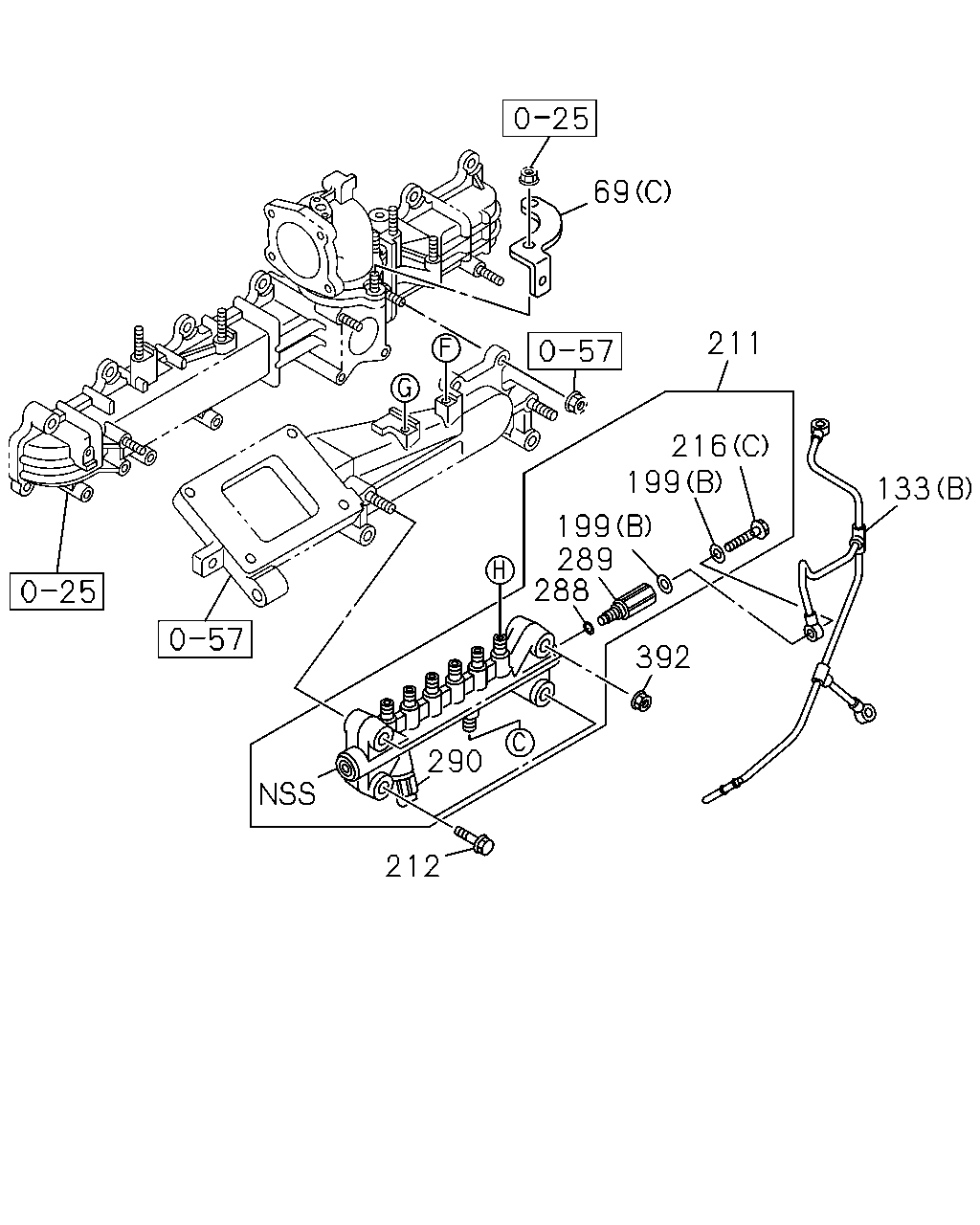

[040A] COMMON RAIL (16 parça)

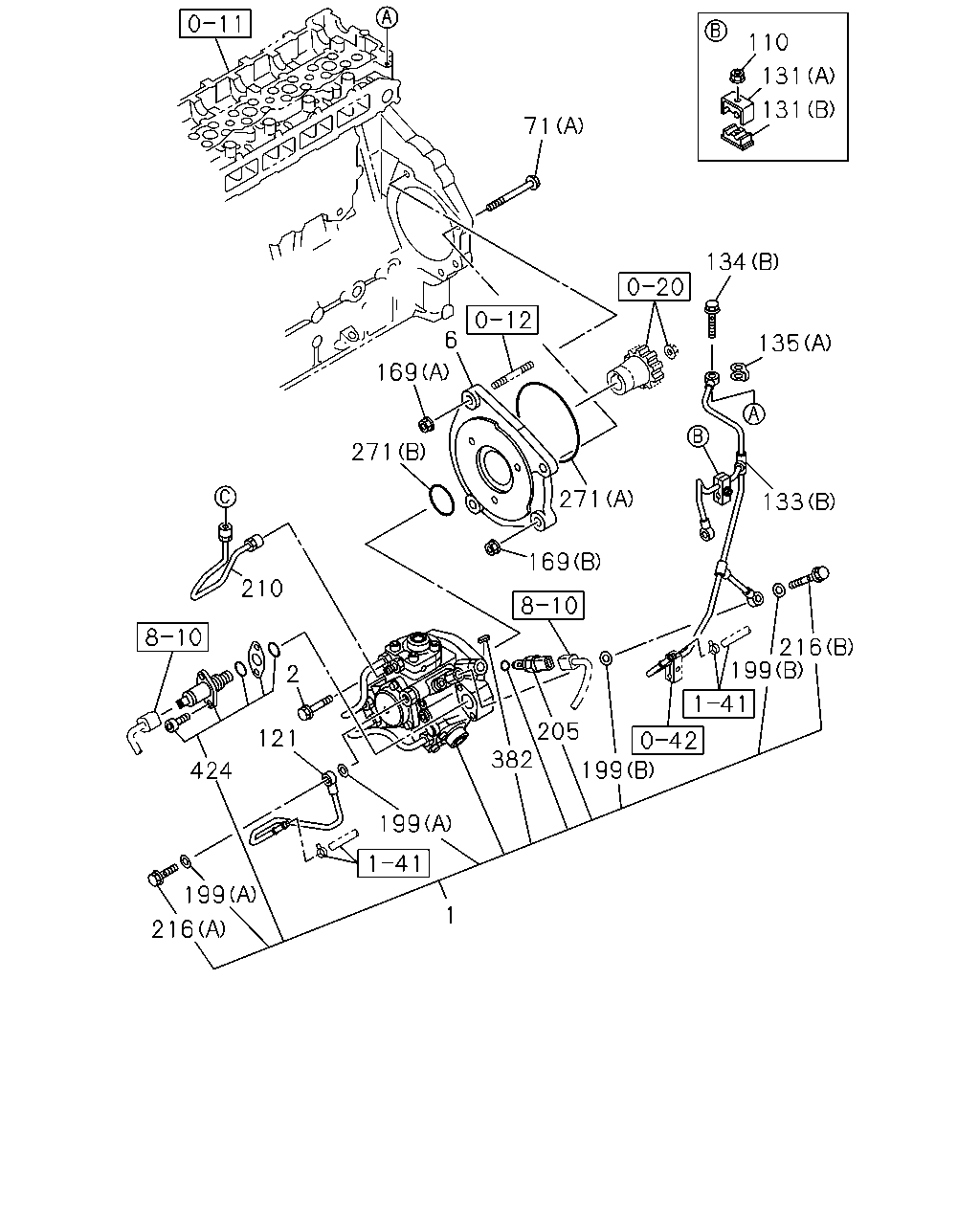

[040A] INJ PUMP (29 parça)

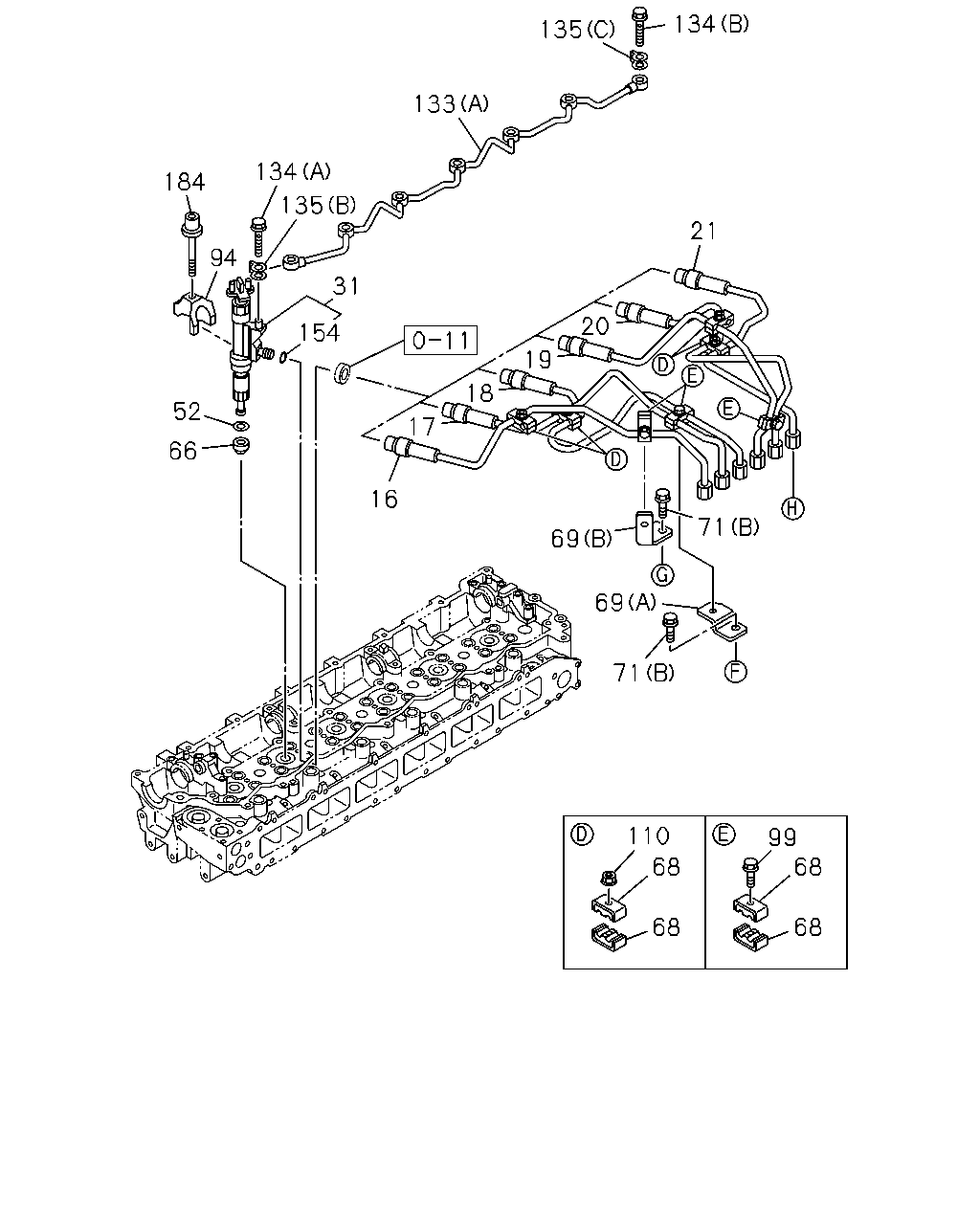

[040A] INJ PIPE (27 parça)
▶
69
211
216
199
199
392
212
290
288
289
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
BRACKET; INJ PIPE CLIP
(B)
8-98038-940-0
01
1
1502-
69
BRACKET; INJ PIPE CLIP
(C)
8-98038-941-0
01
1
1502-
69
BRACKET; INJ PIPE CLIP
(A)
8-98049-015-0
01
1
1502-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97610-504-0
01
1
1502-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98203-705-1
01
1
1502-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1502-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
04
1
1502-
211
RAIL ASM; COMMON
8-97609-980-2
01
1
1502-
212
BOLT; RAIL ASM
M10X50 FLANGE
8-97372-243-0
02
1
1502-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1502-
216
BOLT; EYE
(B)
8-97351-388-0
01
1
1502-
216
BOLT; EYE
(C)
8-98043-033-0
01
1
1502-
288
GASKET
ID=11 OD=16.3
1-15641-046-0
01
1
1502-
289
LIMITER; FUEL PRESS
8-98032-549-0
01
1
1502-
290
SENSOR; PRESS
8-98119-790-0
01
1
1502-
392
NUT; RAIL ASM
M10 FLANGE
0-91180-110-0
02
1
1502-
71
110
131
131
134
135
6
169
271
271
133
169
216
199
199
205
382
199
199
216
424
121
2
210
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-97605-946-7
01
1
1502-
2
BOLT; INJ PUMP
M8X28
8-94399-256-0
03
1
1502-
6
BRACKET; INJ PUMP TO C/BL
8-97601-154-1
01
1
1502-
71
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1502-
71
BOLT; BRKT
(A) M12X100 FLANGE
0-28151-200-0
01
1
1502-
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
05
1
1502-
121
PIPE; FUEL,FEED PUMP,SUCTION
8-98126-331-0
01
1
1502-
131
CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25
8-98000-010-2
01
1
1502-
131
CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25
8-98000-011-2
01
1
1502-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97610-504-0
01
1
1502-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98203-705-1
01
1
1502-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1502-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
1502-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0
8-98065-992-0
06
1
1502-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17
8-98079-755-0
01
1
1502-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6
8-98231-393-0
01
1
1502-
169
NUT; BRKT
(A) M10 FLANGE
0-91180-110-0
02
1
1502-
169
NUT; BRKT
(B) M12 FLANGE
0-91180-112-0
01
1
1502-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1502-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
04
1
1502-
205
SENSOR; FUEL TEMP
8-98023-581-0
01
1
1502-
210
PIPE; INJ,C/R
8-97608-480-1
01
1
1502-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1502-
216
BOLT; EYE
(B)
8-97351-388-0
01
1
1502-
216
BOLT; EYE
(C)
8-98043-033-0
01
1
1502-
271
GASKET; INJ PUMP
(A) ID=139.6
1-09623-464-0
01
1
1502-
271
GASKET; INJ PUMP
(B) ID=52
8-98031-844-0
01
1
1502-
382
KEY; DRIVE SHAFT
8-98161-995-0
01
1
1502-
424
OVERHAUL KIT; SUPPLY PUMP
8-98145-449-1
01
1
1502-
184
134
133
135
134
31
135
94
52
66
16
17
18
19
20
21
69
71
69
71
110
68
68
99
68
68
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
8-98298-611-0
01
1
1502-
17
PIPE; INJ NO.2
8-98298-612-0
01
1
1502-
18
PIPE; INJ NO.3
8-98298-613-0
01
1
1502-
19
PIPE; INJ NO.4
8-98298-614-0
01
1
1502-
20
PIPE; INJ NO.5
8-98298-615-0
01
1
1502-
21
PIPE; INJ NO.6
8-98298-617-0
01
1
1502-
31
NOZZLE ASM; INJ
8-97609-788-6
06
1
1502-
52
GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3
8-94173-412-0
06
1
1502-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-98079-248-0
06
1
1502-
68
CLIP; INJ PIPE
ID=11 & 11 L=19
8-98148-996-2
14
1
1502-
69
BRACKET; INJ PIPE CLIP
(B)
8-98038-940-0
01
1
1502-
69
BRACKET; INJ PIPE CLIP
(C)
8-98038-941-0
01
1
1502-
69
BRACKET; INJ PIPE CLIP
(A)
8-98049-015-0
01
1
1502-
71
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1502-
71
BOLT; BRKT
(A) M12X100 FLANGE
0-28151-200-0
01
1
1502-
94
BRACKET; INJ NOZZLE
8-98028-999-1
06
1
1502-
99
BOLT; CLIP,INJ,PIPE
M6X35 FLANGE
0-28050-635-0
03
1
1502-
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
05
1
1502-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-97610-504-0
01
1
1502-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98203-705-1
01
1
1502-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1502-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
1502-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0
8-98065-992-0
06
1
1502-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17
8-98079-755-0
01
1
1502-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6
8-98231-393-0
01
1
1502-
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
0-95690-111-0
06
1
1502-
184
BOLT; NOZZLE HOLDER
M8X54
8-98008-895-0
06
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
