Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

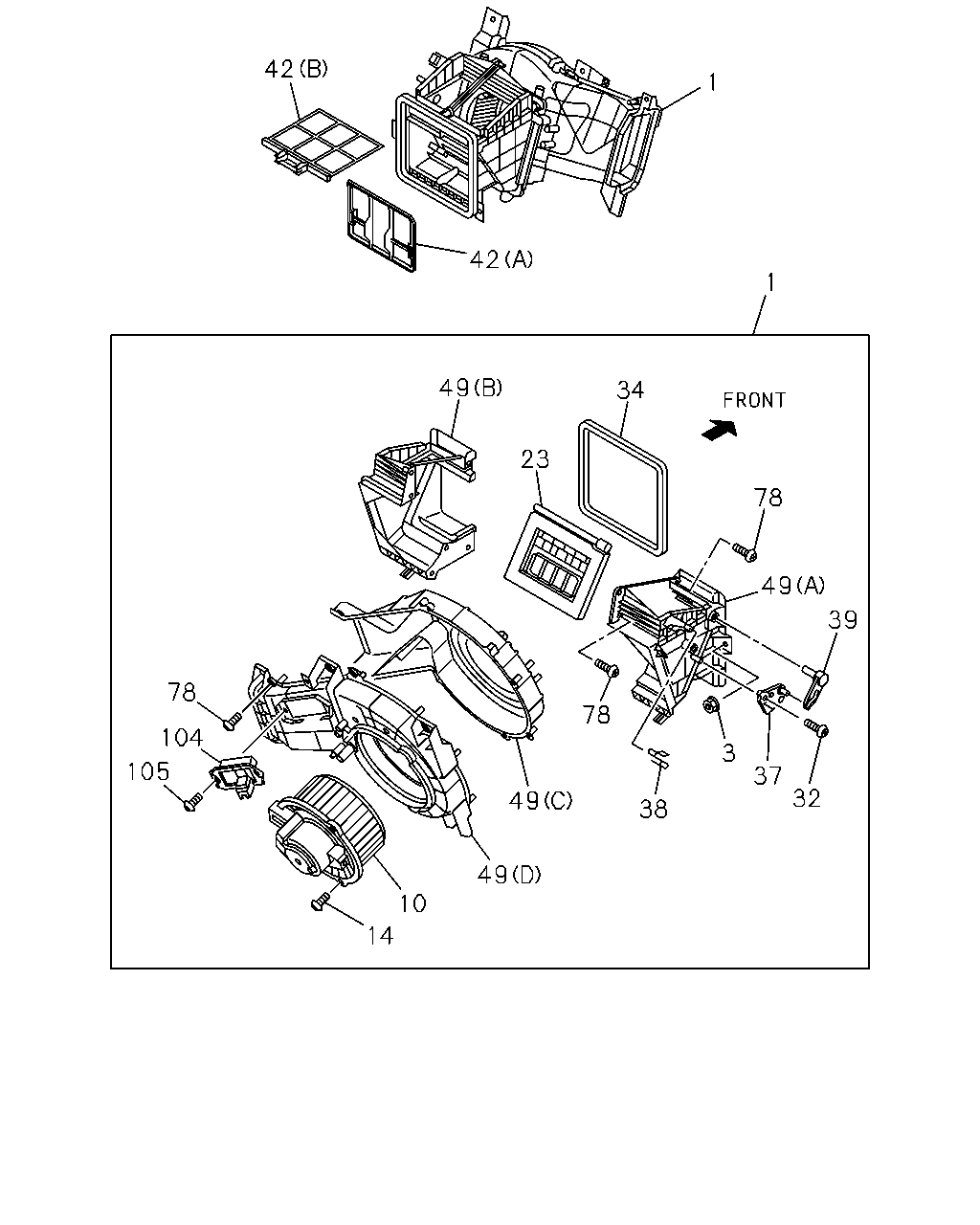

8-73 — BLOWER UNIT
(#176086) — 19 parça
42
42
49
78
104
105
14
10
49
49
78
38
3
37
32
39
49
78
34
23
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-98208-784-0
01
1
1601-
3
NUT; CASE
M6
1-83539-354-0
02
1
1601-
10
MOTOR ASM; FAN,BLOWER UNIT
8-98196-563-0
01
1
1601-
14
SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1601-
23
SHUTTER; BLOWER UNIT
8-98047-761-0
01
1
1601-
32
SCREW; LEVER
M4X16
8-98047-416-0
01
1
1601-
34
LINING; BLOWER UNIT
8-98096-453-0
01
1
1601-
37
LEVER; MODE LEVER
8-98047-453-0
01
1
1601-
38
CLIP; BLOWER UNIT
8-98047-417-0
01
1
1601-
39
LEVER; SHUTTER,BLOWER UNIT
8-98047-454-0
01
1
1601-
42
FILTER; BLOWER UNIT
(B)
8-98025-006-1
01
1
1601-
42
FILTER; BLOWER UNIT
(A)
8-98041-327-0
01
1
1601-
49
CASE; BLOWER UNIT
(D)
8-98047-444-0
01
1
1601-
49
CASE; BLOWER UNIT
(C)
8-98047-445-0
01
1
1601-
49
CASE; BLOWER UNIT
(B)
8-98077-415-0
01
1
1601-
49
CASE; BLOWER UNIT
(A)
8-98077-416-0
01
1
1601-
78
SCREW; CASE TO CASE
M4X16 TAPPING
8-97957-708-0
16
1
1601-
104
RESISTOR; BLOWER UNIT
8-98077-418-0
01
1
1601-
105
SCREW; RESISTOR
M4X16 TAPPING
8-97957-708-0
02
1
1601-
