Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#176080) — 15 parça
◀

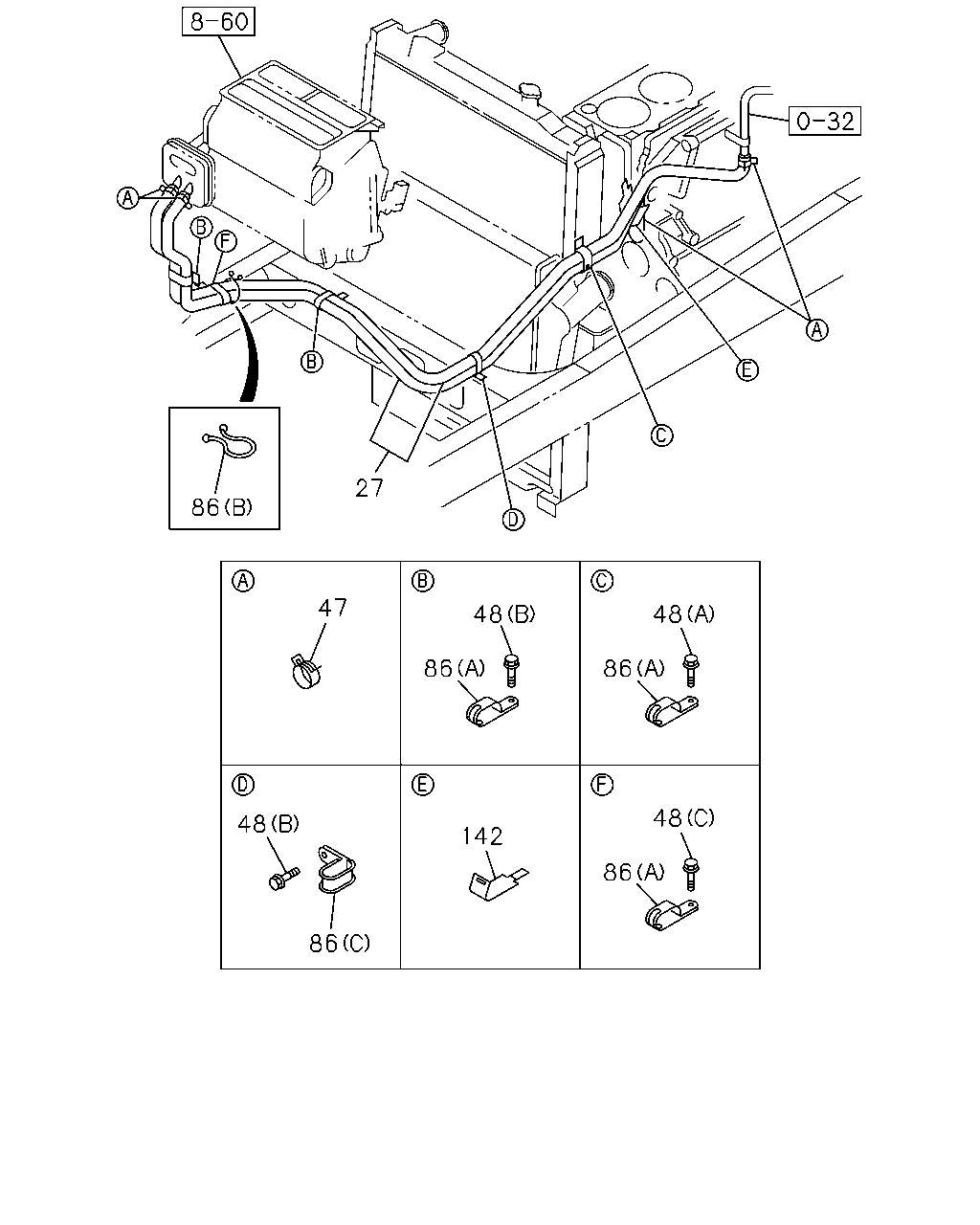

[845A] FIXING (9 parça)
[845A] COMPONENT (6 parça)
▶
27
86
48
47
48
86
142
86
86
86
48
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98226-489-0
01
1
1601-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1601-
48
BOLT; CLIP FIX
(C) M8X16 FLANGE
0-28050-816-0
01
1
1601-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
03
1
1601-
48
BOLT; CLIP FIX
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1601-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
04
1
1601-
86
CLIP; HTR HOSE
(C) B=14
8-98029-678-0
01
1
1601-
86
CLIP; HTR HOSE
EXC. HEATER & DEFROSTER(C41) (B) ID=44
8-94463-508-0
01
1
1601-
142
CLIP; BAND
L=170
8-98166-021-0
01
1
1601-
27
63
56
63
56
103
56
103
56
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98226-489-0
01
1
1601-
56
CLAMP; HTR HOSE
ID=22
8-97359-141-0
04
1
1601-
63
HOSE; WATER
(C)
8-98112-655-0
01
1
1601-
63
HOSE; WATER
(A)
8-98113-087-0
01
1
1601-
63
HOSE; WATER
(B)
8-98113-088-0
01
1
1601-
103
CONNECTOR; HOSE
9-09703-048-0
02
1
1601-
