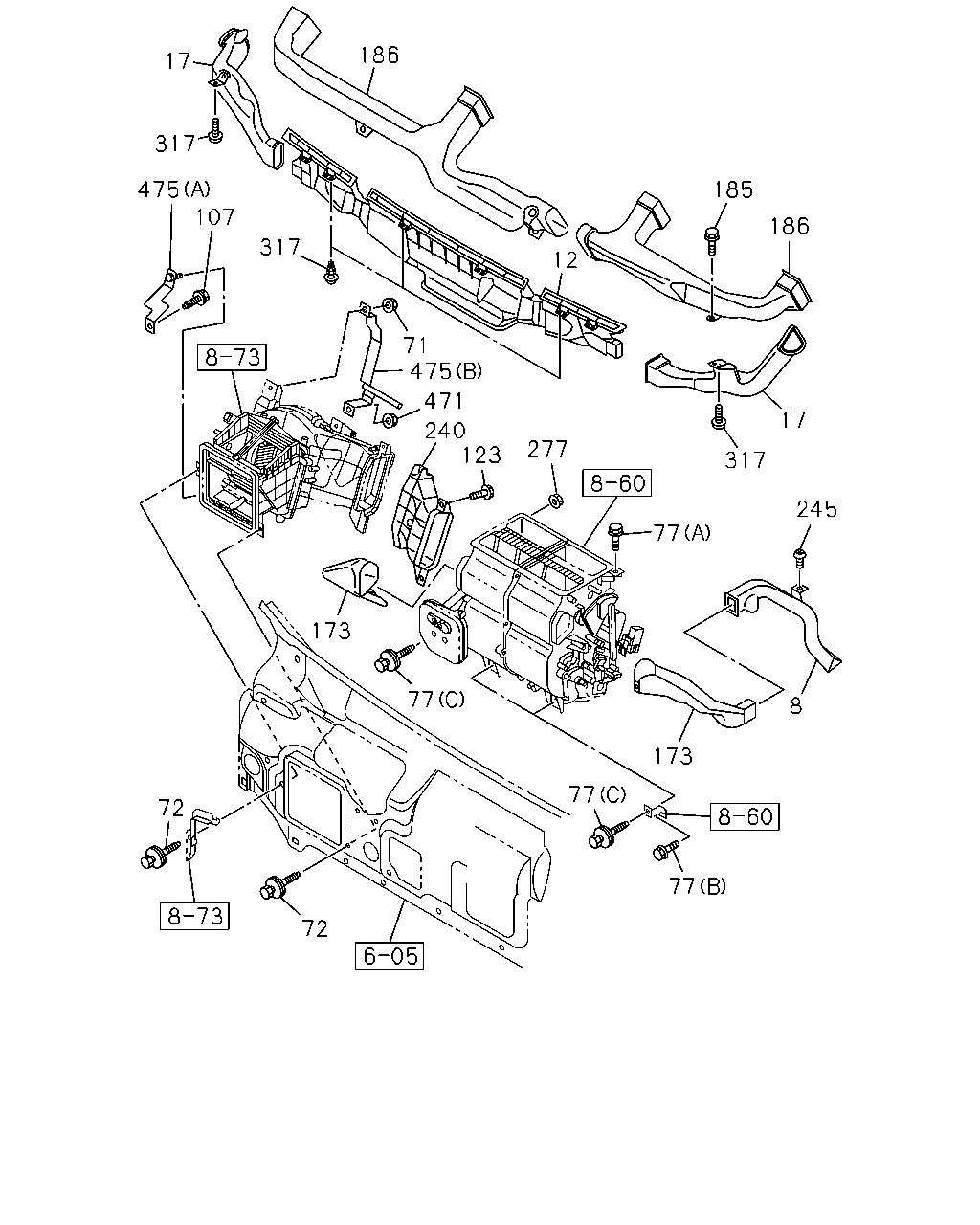

8-40 — HEATER SYSTEM (#176079) — 28 parça
çizim 513459
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR 8-98080-998-1 01 1 1601-
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1601-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1601-
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-758-0 01 1 1601-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1601-
çizim 515149
17 317 475 317 107 186 71 471 123 173 77 72 72 77 77 173 8 245 77 277 240 475 317 17 186 185 12
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 8-98011-567-0 01 1 1601-
12 NOZZLE; DEFROSTER 8-98040-010-2 01 1 1601-
17 NOZZLE; DEFROSTER,SIDE 8-98040-014-0 01 1 1601-
17 NOZZLE; DEFROSTER,SIDE 8-98040-019-0 01 1 1601-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 1601-
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1601-
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1601-
77 BOLT; HTR UNIT
(B) M6X20 FLANGE 		0-28650-620-0 02 1 1601-
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1601-
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1601-
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1601-
173 DUCT; FOOT,HTR 8-97585-508-1 01 1 1601-
173 DUCT; FOOT,HTR 8-98217-774-1 01 1 1601-
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1601-
186 DUCT; VENTILATOR 8-98285-573-0 01 1 1601-
186 DUCT; VENTILATOR 8-98285-575-0 01 1 1601-
240 DUCT; AIR,HTR 8-98062-749-1 01 1 1601-
245 CLIP; FOOT DUCT 8-98056-059-0 03 1 1601-
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 1601-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1601-
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 1601-
475 BRACKET; BLOWER
(A) 		8-98028-309-1 01 1 1601-
475 BRACKET; BLOWER
(B) 		8-98165-782-0 01 1 1601-
