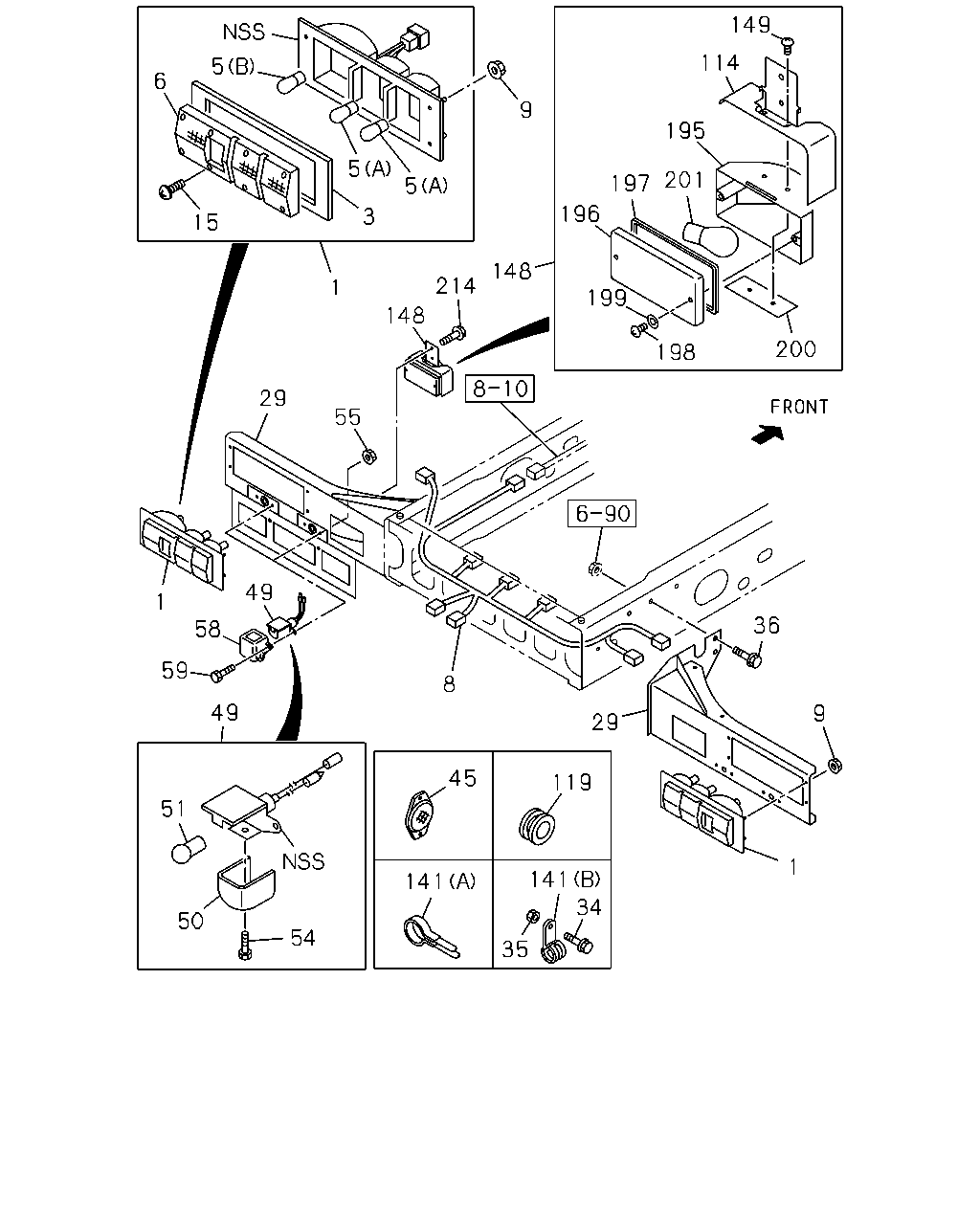

1 |
LAMP ASM; RR COMB
|
8-98223-616-0 |
01 |
1 |
1601- |
| |
1 |
LAMP ASM; RR COMB
|
8-98223-615-0 |
01 |
1 |
1601- |
| |
3 |
GASKET; RR COMB LAMP
|
5-82236-002-0 |
01 |
1 |
1601- |
| |
3 |
GASKET; RR COMB LAMP
|
5-82236-001-0 |
01 |
1 |
1601- |
| |
5 |
BULB; RR COMB LAMP
(A)
24V 21W
|
8-98017-972-0 |
02 |
1 |
1601- |
| |
5 |
BULB; RR COMB LAMP
(A)
24V 21W
|
8-98017-972-0 |
02 |
1 |
1601- |
| |
5 |
BULB; RR COMB LAMP
(B)
24V 21/5W
|
8-98017-973-0 |
01 |
1 |
1601- |
| |
5 |
BULB; RR COMB LAMP
(B)
24V 21/5W
|
8-98017-973-0 |
01 |
1 |
1601- |
| |
6 |
LENS; RR COMB LAMP
|
5-82235-002-0 |
01 |
1 |
1601- |
| |
6 |
LENS; RR COMB LAMP
|
5-82235-001-0 |
01 |
1 |
1601- |
| |
8 |
HARNESS; RR COMB LAMP
|
8-98203-884-0 |
01 |
1 |
1601- |
| |
9 |
NUT; LAMP,RR COMB
M5 FLANGE
|
1-09984-170-0 |
08 |
1 |
1601- |
| |
15 |
SCREW; RR COMB LAMP
|
8-97017-759-0 |
08 |
1 |
1601- |
| |
15 |
SCREW; RR COMB LAMP
|
8-97017-759-0 |
08 |
1 |
1601- |
| |
29 |
BRACKET; LAMP,RR COMB
|
8-98337-341-0 |
01 |
1 |
1601- |
| |
29 |
BRACKET; LAMP,RR COMB
|
8-98337-342-0 |
01 |
1 |
1601- |
| |
34 |
BOLT; SUPPORT FIX
REVERSING WARNING BUZZER<YM9>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1601- |
| |
34 |
BOLT; SUPPORT FIX
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
1601- |
| |
35 |
NUT; SUPPORT FIX
REVERSING WARNING BUZZER<YM9>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1601- |
| |
35 |
NUT; SUPPORT FIX
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
1601- |
| |
36 |
BOLT; BRKT,RR COMB
M10X40 FLANGE
|
0-28651-040-0 |
04 |
1 |
1601- |
| |
45 |
REFLECTOR; REFLEX,SIDE GATE,MIDDLE
|
1-82290-011-1 |
08 |
1 |
1601- |
| |
49 |
LAMP; LICENSE PLATE
24V 5W
|
8-98329-430-0 |
02 |
1 |
1601- |
| |
50 |
LENS; LICENSE PLATE LAMP
|
8-97108-212-0 |
02 |
1 |
1601- |
| |
51 |
BULB; LICENSE PLATE LAMP
24V 5W
|
1-82194-039-0 |
02 |
1 |
1601- |
| |
54 |
SCREW; LICENSE PLATE LAMP
M4X8
|
8-94419-312-0 |
02 |
1 |
1601- |
| |
55 |
NUT; LICENSE PLATE LAMP
M5 FLANGE
|
1-09984-170-0 |
04 |
1 |
1601- |
| |
58 |
COVER; LICENSE PLATE LAMP
|
8-97076-590-1 |
02 |
1 |
1601- |
| |
59 |
SCREW; TAP,LICENSE LAMP BODY
M5X20
|
9-93490-520-0 |
04 |
1 |
1601- |
| |
114 |
BRACKET; RR FOG LAMP
|
8-97108-583-0 |
01 |
1 |
1601- |
| |
119 |
GROMMET; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)
ID=28 OD=35 T=17
|
9-09956-256-2 |
02 |
1 |
1601- |
| |
119 |
GROMMET; HARNESS
WHEEL BASE 6000MM(60W)
ID=24 OD=30 T=17
|
9-09956-092-1 |
02 |
1 |
1601- |
| |
141 |
CLIP; LICENSE & BODY HARNESS
REVERSING WARNING BUZZER<YM9>
(B)
ID=9 L=16
|
0-95234-825-0 |
01 |
1 |
1601- |
| |
141 |
CLIP; LICENSE & BODY HARNESS
(B)
ID=11 L=20
|
0-95235-035-0 |
02 |
1 |
1601- |
| |
141 |
CLIP; LICENSE & BODY HARNESS
(B)
ID=14.5 L=20
|
1-09701-012-0 |
04 |
1 |
1601- |
| |
141 |
CLIP; LICENSE & BODY HARNESS
(A)
ID=14 L=44
|
9-09917-427-0 |
03 |
1 |
1601- |
| |
141 |
CLIP; LICENSE & BODY HARNESS
EXC. KD PREPARATORY PACK<6HF>
(A)
ID=14 L=44
|
9-09917-427-0 |
04 |
1 |
1601- |
| |
141 |
CLIP; LICENSE & BODY HARNESS
EXC. KD PREPARATORY PACK<6HF>
(A)
ID=11 L=41
|
1-09700-403-0 |
02 |
1 |
1601- |
| |
148 |
LAMP ASM; RR FOG
|
1-82110-477-0 |
01 |
1 |
1601- |
| |
149 |
SCREW; BRKT TO LAMP BODY
|
8-94336-372-0 |
02 |
1 |
1601- |
| |
195 |
LAMP UNIT; RR FOG
|
8-94336-322-0 |
01 |
1 |
1601- |
| |
196 |
LENS; RR FOG LAMP
|
8-94336-325-0 |
01 |
1 |
1601- |
| |
197 |
GASKET; RR FOG LAMP
|
8-94336-324-0 |
01 |
1 |
1601- |
| |
198 |
SCREW; LENS TO BODY
|
0-71190-416-0 |
02 |
1 |
1601- |
| |
199 |
WASHER; LENS,RR FOG LAMP
|
8-94336-326-0 |
02 |
1 |
1601- |
| |
200 |
PLATE; SET,RR FOG LAMP
|
8-94336-323-0 |
01 |
1 |
1601- |
| |
201 |
BULB; RR FOG LAMP
24V 21W
|
1-82194-036-0 |
01 |
1 |
1601- |
| |
214 |
BOLT; RR FOG LAMP
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1601- |
