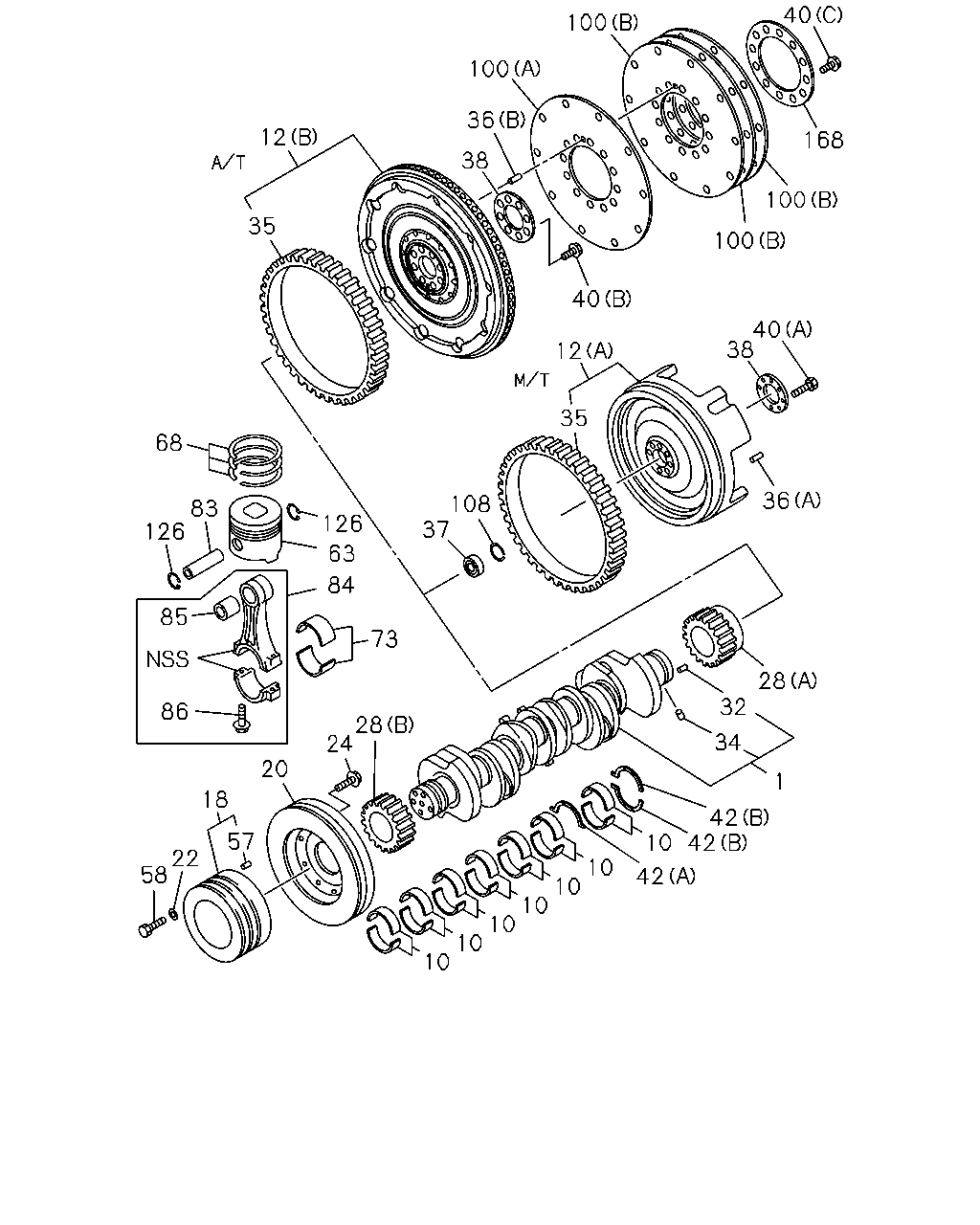

1 |
CRANKSHAFT
|
8-97603-004-0 |
01 |
1 |
1001- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
07 |
1 |
1001- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
07 |
1 |
1001- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
07 |
1 |
1001- |
| |
12 |
FLYWHEEL
ALLISON MD3560P A/T(Y3B)
(B)
|
8-97610-682-1 |
01 |
1 |
1107- |
| |
12 |
FLYWHEEL
(A)
|
8-97602-463-2 |
01 |
1 |
1001-1204 |
| |
12 |
FLYWHEEL
ZF9S1110 M/T(Y5E)
(A)
|
8-97602-463-2 |
01 |
1 |
1205- |
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-97606-944-0 |
01 |
1 |
1001- |
| |
20 |
DAMPER; CR/SHF
|
8-97613-696-1 |
01 |
1 |
1001- |
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
1001- |
| |
24 |
BOLT; DAMPER
M10X16 FLANGE
|
0-28151-016-0 |
06 |
1 |
1001- |
| |
28 |
GEAR; CR/SHF
(A)
Z=42
|
8-94392-255-1 |
01 |
1 |
1001- |
| |
28 |
GEAR; CR/SHF
(B)
Z=41
|
8-94396-954-2 |
01 |
1 |
1001- |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
1001- |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
1001- |
| |
35 |
GEAR; RING
Z=140
|
8-94396-784-1 |
01 |
1 |
1001- |
| |
36 |
PIN; FLYWHEEL
ALLISON MD3560P A/T(Y3B)
(B)
OD=6 L=16
|
9-08160-616-0 |
01 |
1 |
1107- |
| |
36 |
PIN; FLYWHEEL
(A)
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
1001-1106 |
| |
36 |
PIN; FLYWHEEL
ZF9S1110 M/T(Y5E)
(A)
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
1107- |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
8-94392-288-0 |
01 |
1 |
1001-1106 |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
ZF9S1110 M/T(Y5E)
|
8-94392-288-0 |
01 |
1 |
1107- |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
|
1-87610-157-0 |
01 |
1 |
1001-1106 |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
ZF9S1110 M/T(Y5E)
BEST VALUE PARTS
|
1-87610-157-0 |
01 |
1 |
1107- |
| |
38 |
WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
1001- |
| |
40 |
BOLT; FLYWHEEL
ALLISON MD3560P A/T(Y3B)
(C)
M12X30
|
8-11505-501-0 |
12 |
1 |
1107- |
| |
40 |
BOLT; FLYWHEEL
ALLISON MD3560P A/T(Y3B)
(B)
M16X79
|
8-97606-638-0 |
08 |
1 |
1107- |
| |
40 |
BOLT; FLYWHEEL
(A)
M16X62
|
8-94393-070-2 |
08 |
1 |
1001-1106 |
| |
40 |
BOLT; FLYWHEEL
ZF9S1110 M/T(Y5E)
(A)
M16X62
|
8-94393-070-2 |
08 |
1 |
1107- |
| |
42 |
WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
1001- |
| |
42 |
WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
1001- |
| |
57 |
PIN; PULLEY
OD=8 L=16
|
8-94391-156-0 |
01 |
1 |
1001- |
| |
58 |
BOLT; CR/SHF PULLEY
M16X50
|
0-20951-650-0 |
04 |
1 |
1001- |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98041-141-2 |
06 |
1 |
1001- |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-98040-125-0 |
06 |
1 |
1001- |
| |
73 |
METAL SET; CONN ROD,STANDARD
GREEN
|
8-97616-358-0 |
06 |
1 |
1001- |
| |
73 |
METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97616-359-0 |
06 |
1 |
1001- |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-98018-863-1 |
06 |
1 |
1001- |
| |
84 |
ROD ASM; CONN
|
8-98018-425-3 |
06 |
1 |
1001- |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-1 |
06 |
1 |
1001- |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
12 |
1 |
1001-1004 |
| |
86 |
BOLT; CONNROD
M13X57 FLANGE
|
8-98091-141-0 |
12 |
1 |
1005- |
| |
100 |
PLATE; FLEX
ALLISON MD3560P A/T(Y3B)
(A)
|
8-29538-154-0 |
01 |
1 |
1107- |
| |
100 |
PLATE; FLEX
ALLISON MD3560P A/T(Y3B)
(B)
|
8-29538-155-0 |
03 |
1 |
1107- |
| |
108 |
RING; SNAP,BRG SET
OD=59.2
|
9-09180-155-0 |
01 |
1 |
1001-1106 |
| |
108 |
RING; SNAP,BRG SET
ZF9S1110 M/T(Y5E)
OD=59.2
|
9-09180-155-0 |
01 |
1 |
1107- |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
OD=43.7
|
8-98006-828-0 |
12 |
1 |
1001- |
| |
168 |
PLATE; WEAR
ALLISON MD3560P A/T(Y3B)
ID=119 OD=177
|
8-29538-157-0 |
01 |
1 |
1107- |
