◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#176067) — 14 parça

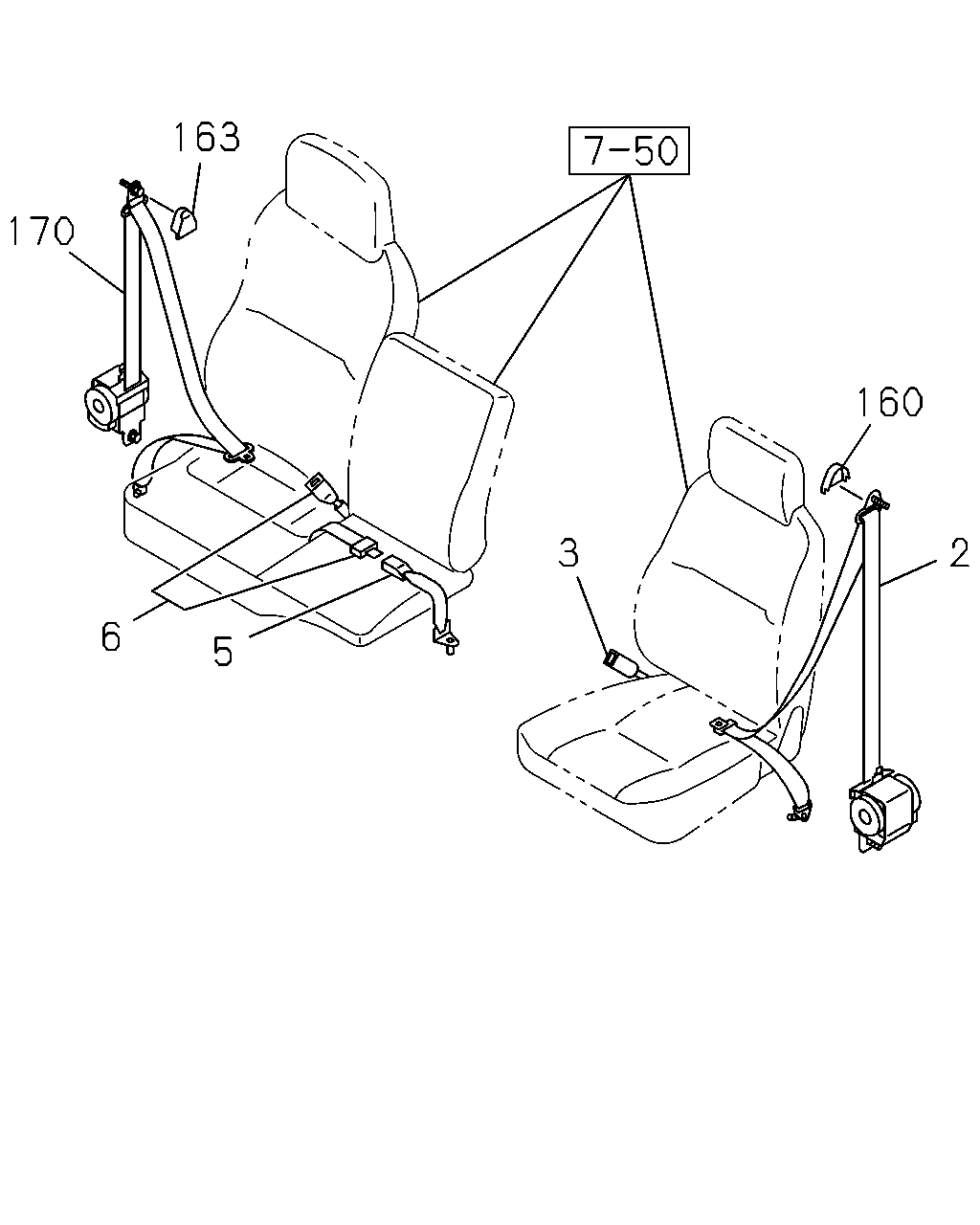

çizim 513150
163 170 6 5 3 160 2
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1601-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97411-565-3 01 1 1601-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1601-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1601-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1601-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1601-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1601-
çizim 514718
170 163 3 4 169 2 160
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1601-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97411-565-3 01 1 1601-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-769-1 01 1 1601-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1601-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1601-
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> OD=25 BLACK 		1-76798-019-0 01 1 1601-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
