◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#176062) — 110 parça

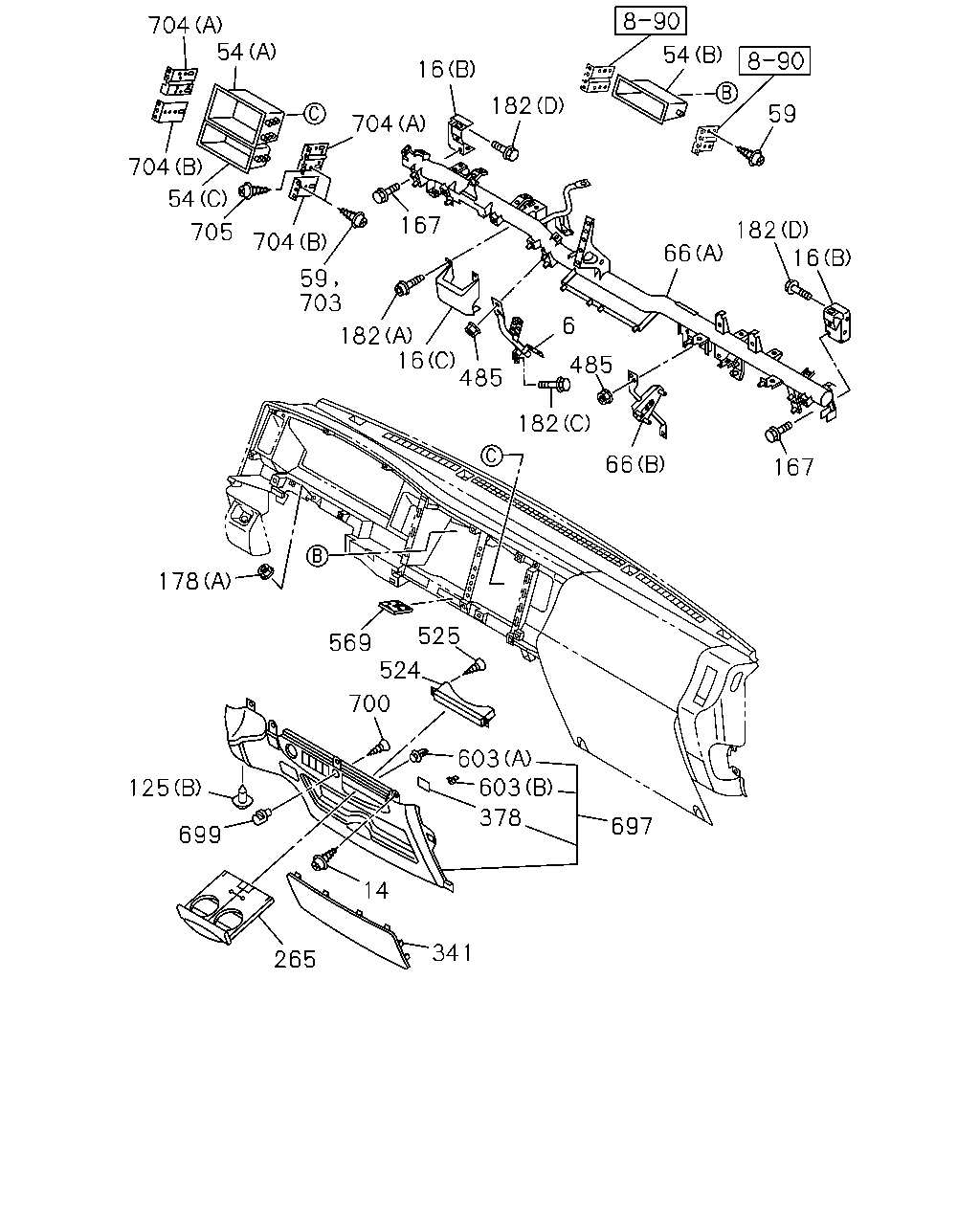

çizim 513808
66 167 16 66 182 6 182 485 485 16 182 703 167 182 704 16 54 704 705 54 704 704 59 54 59 525 524 569 178 700 603 603 378 697 125 699 265 14 341
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1601-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1601-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1601-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1601-
16 BRACKET; INST PNL
(D) 		8-98180-279-1 01 1 1601-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1601-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1601-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1601-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1601-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1601-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1601-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1601-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1601-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1601-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1601-
125 CLIP; INST PANEL
(A) 		8-98021-271-0 02 1 1601-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1601-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1601-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1601-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1601-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1601-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1601-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1601-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1601-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1601-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1601-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1601-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601-
569 HOLDER; CARD 8-97410-276-1 01 1 1601-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1601-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1601-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1601-
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1601-
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1601-
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1601-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1601-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1601-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1601-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1601-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1601-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601-

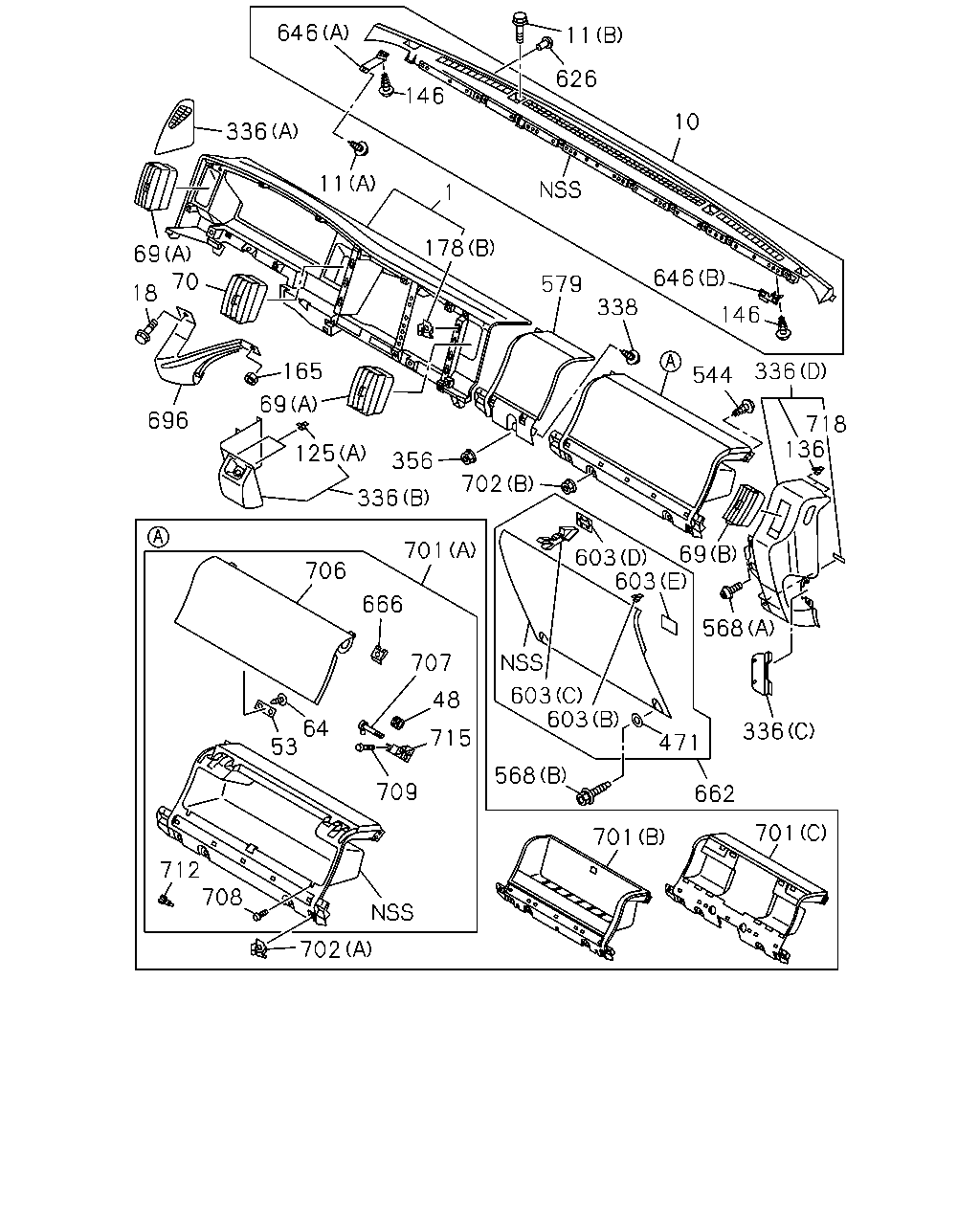

çizim 513936
646 146 626 11 10 178 579 646 544 11 336 146 336 136 718 603 603 568 336 69 338 702 356 336 125 69 165 696 70 18 69 662 701 701 471 603 603 707 568 666 706 701 53 709 715 48 702 64 712 708 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1601-
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1601-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1601-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1601-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1601-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1601-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1601-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1601-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1601-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1601-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1601-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1601-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1601-
125 CLIP; INST PANEL
(A) 		8-98021-271-0 02 1 1601-
136 CLIP; INST COVER 8-98076-254-0 02 1 1601-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1601-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1601-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1601-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1601-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1601-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1601-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1601-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1601-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1601-
471 WASHER; PL 8-98179-641-0 02 1 1601-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601-
568 BOLT; COVER
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601-
568 BOLT; COVER
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1601-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1601-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1601-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1601-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1601-
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1601-
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1601-
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1601-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1601-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1601-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1601-
662 COVER; LWR,INST PANEL
GRAY 		8-97422-093-2 01 1 1601-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1601-
696 BRACKET; KNEE 8-98098-126-1 01 1 1601-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1601-
701 TRAY; INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (C) GRAY 		8-97417-196-2 01 1 1601-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1601-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1601-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1601-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1601-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1601-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1601-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1601-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1601-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1601-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1601-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1601-

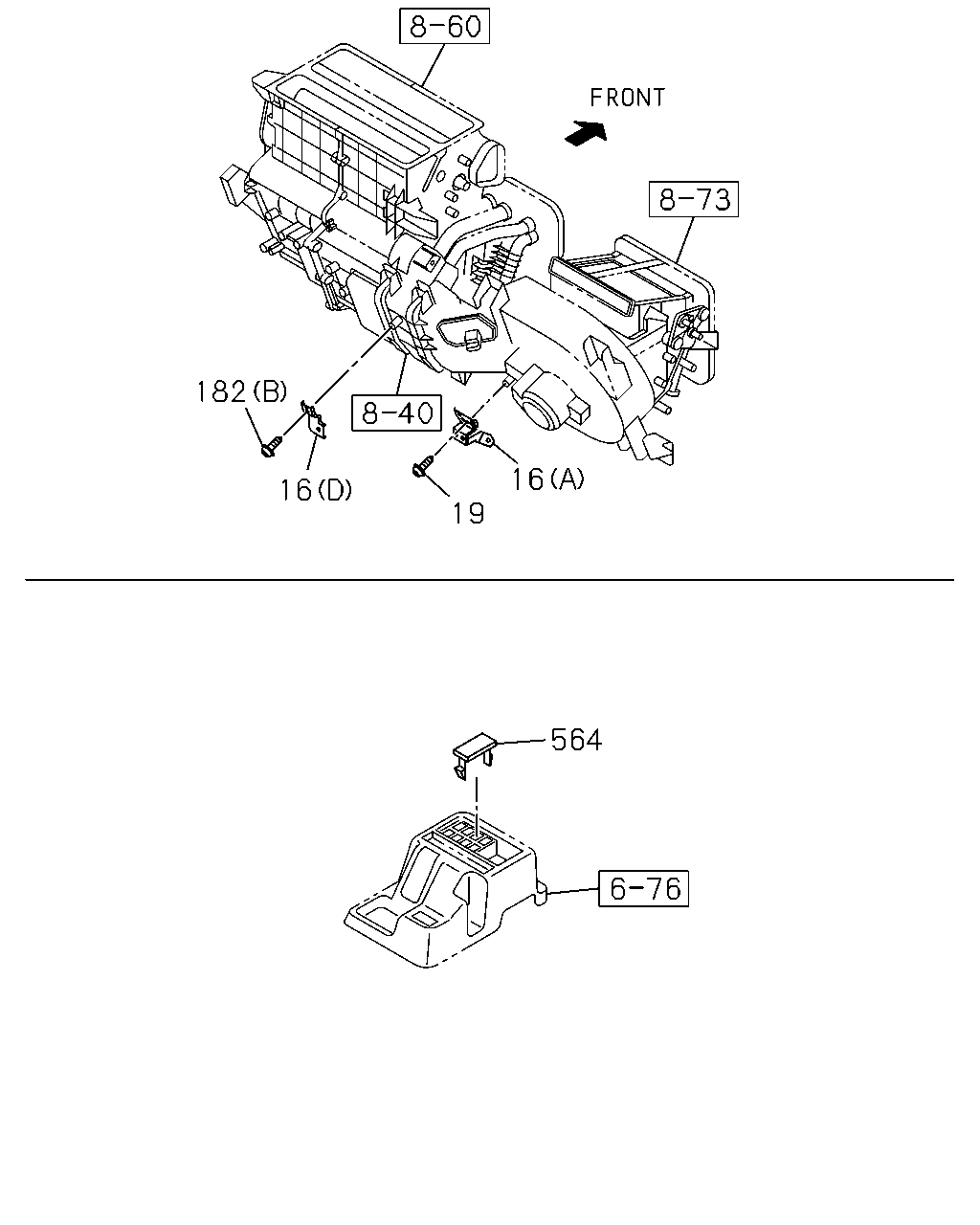

çizim 514631
16 19 16 182 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1601-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1601-
16 BRACKET; INST PNL
(D) 		8-98180-279-1 01 1 1601-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1601-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1601-
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1601-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1601-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1601-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1601-
564 COVER; SW 8-97043-732-1 06 1 1601-
