Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11169 - FVZ SOUTH AFRICA
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#17606) — 43 parça
◀

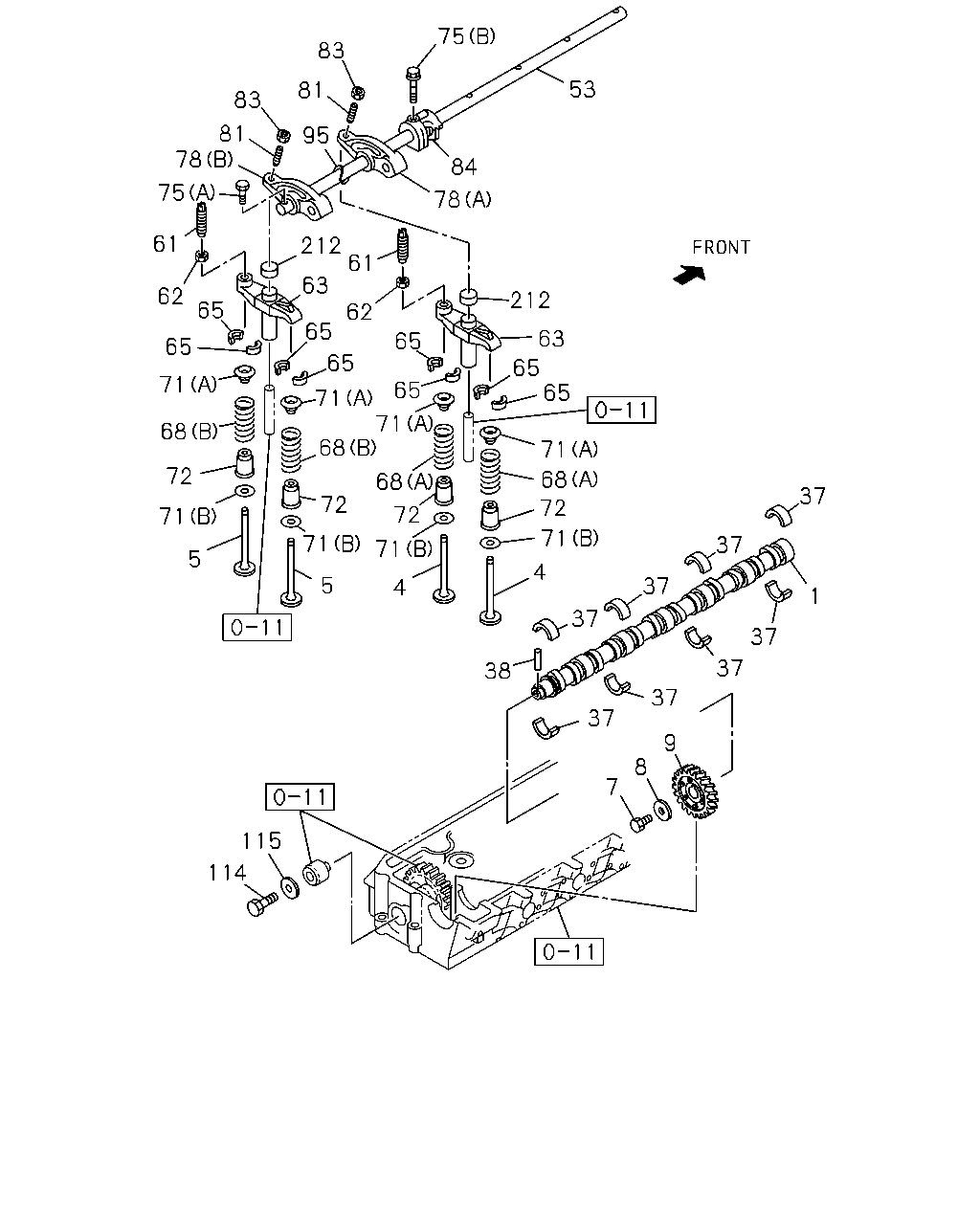

[014A] VALVE AND CAMSHAFT (31 parça)

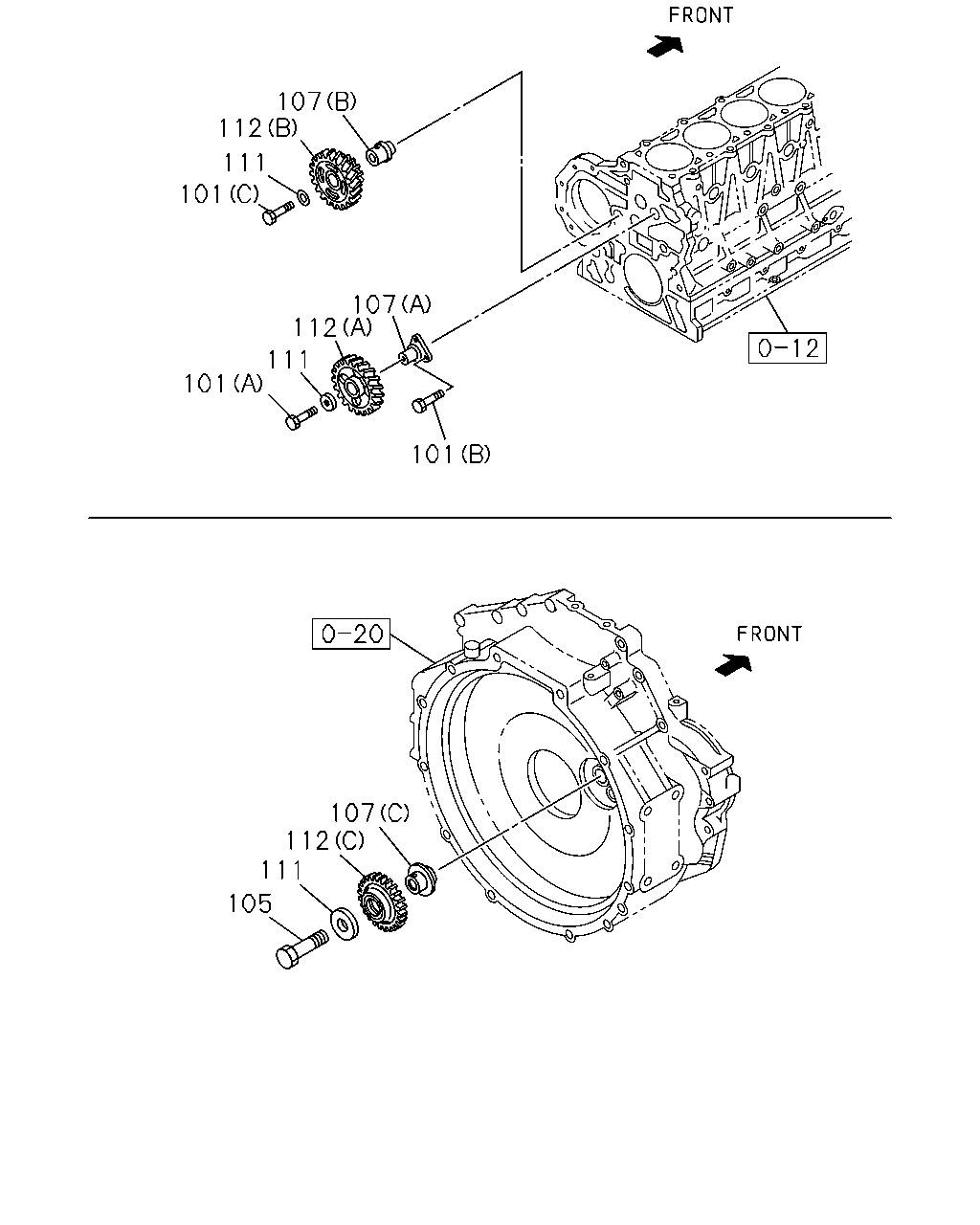

[014A] IDLE GEAR (12 parça)
▶
114
115
1
37
37
37
37
9
8
7
37
37
37
37
38
4
4
5
5
53
75
83
84
81
83
78
81
95
78
75
212
61
212
62
65
65
61
63
71
68
72
71
71
71
71
72
63
65
62
65
65
71
65
68
72
72
71
65
68
65
71
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97601-438-0
01
1
1001-1311
1
CAMSHAFT
8-98227-261-1
01
1
1312-
4
VALVE; INL
8-94395-882-2
12
1
1001-
5
VALVE; EXH
8-97209-876-4
12
1
1001-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1001-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
1001-
9
GEAR; CM/SHF
Z=35
8-98018-934-3
01
1
1001-
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
1001-
37
METAL; CM/SHF
LOWER B=26
8-97602-699-0
04
1
1001-
38
PIN; CAM BRG SET
OD=7 L=7.5
8-94399-487-0
01
1
1001-
53
SHAFT; ROCKER ARM
8-97389-918-0
01
1
1001-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
12
1
1001-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE SOU
9-09844-574-0
12
1
1001-
63
BRIDGE
8-94392-002-3
12
1
1001-
65
COLLAR; SPLIT
5-12565-004-0
48
1
1001-
68
SPRING; VLV
(A) EXHAUST MARK WHITE
8-94395-885-1
12
1
1001-
68
SPRING; VLV
(B) INLET MARK BLUE
8-97352-888-0
12
1
1001-
71
SEAT; SPR
(A) UPPER OD=32.8 T=12.75
8-94390-783-2
24
1
1001-
71
SEAT; SPR
(B) LOWER ID=14.3 T=1.0
8-94391-468-0
24
1
1001-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
24
1
1001-
75
BOLT; BRKT
(A) M8X40 FLANGE
0-28050-840-0
02
1
1001-
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
1001-
78
ARM; ROCKER
(A) INLET
8-97306-421-3
06
1
1001-
78
ARM; ROCKER
(B) EXHAUST
8-97306-424-3
06
1
1001-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
1001-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
1001-
84
BRACKET; ROCKER SHAFT,INTER
8-94395-836-2
05
1
1001-
95
SPRING; ROCKER SHAFT
8-94392-999-0
06
1
1001-
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
1001-
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
1001-
212
CAP; ADJ SCREW
8-94396-015-2
12
1
1001-
107
112
111
101
107
112
111
101
101
112
111
105
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X60
0-16956-460-0
01
1
1001-
101
BOLT; THRUST COLLAR
(A) M14X30
0-23951-430-0
01
1
1001-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1001-
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
1001-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1001-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1001-
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1001-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
03
1
1001-
112
GEAR; IDLE
(B) Z=72-60-30
8-97600-586-1
01
1
1001-1402
112
GEAR; IDLE
(B) Z=72-60-30
8-98254-970-0
01
1
1403-
112
GEAR; IDLE
(A) Z=61
8-97606-767-0
01
1
1001-
112
GEAR; IDLE
(C) Z=34
8-97606-771-0
01
1
1001-
